40W-PLUS Handheld 40W Laser Igniter
The 40W-PLUS Handheld Laser Igniter is a compact, high-power portable laser device designed for reliable short-range ignition applications. Featuring 40W laser output, a rechargeable high-rate battery, visible red aiming light, intelligent temperature protection, real-time battery monitoring, and convenient USB Type-C charging, it combines powerful performance with a lightweight handheld design.
With a stable effective operating range of up to approximately 1 meter, the 40W-PLUS is designed for convenient handheld operation. An integrated visible red aiming light assists with target positioning, while the aluminum-alloy housing and intelligent cooling system help manage heat during operation.
Measuring only 114 × 40 × 25 mm and weighing approximately 180 g, the 40W-PLUS delivers high output in a compact and portable form factor.
Key Features
40W High-Power Laser Output
Provides 40W laser output for powerful short-range laser ignition applications.
Up to 1 Meter Effective Range
Designed for a stable effective operating range of up to approximately 1 meter under suitable operating conditions.

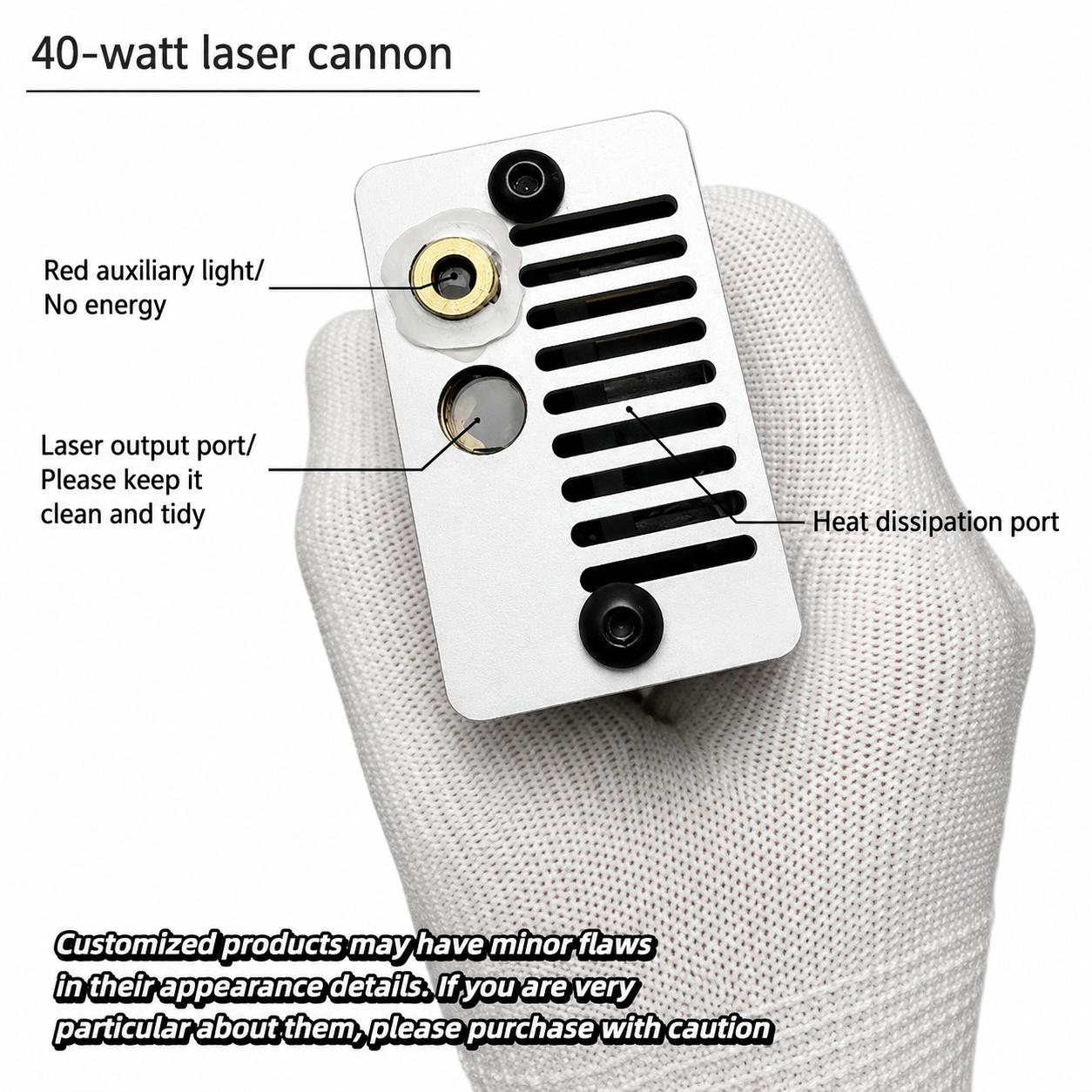

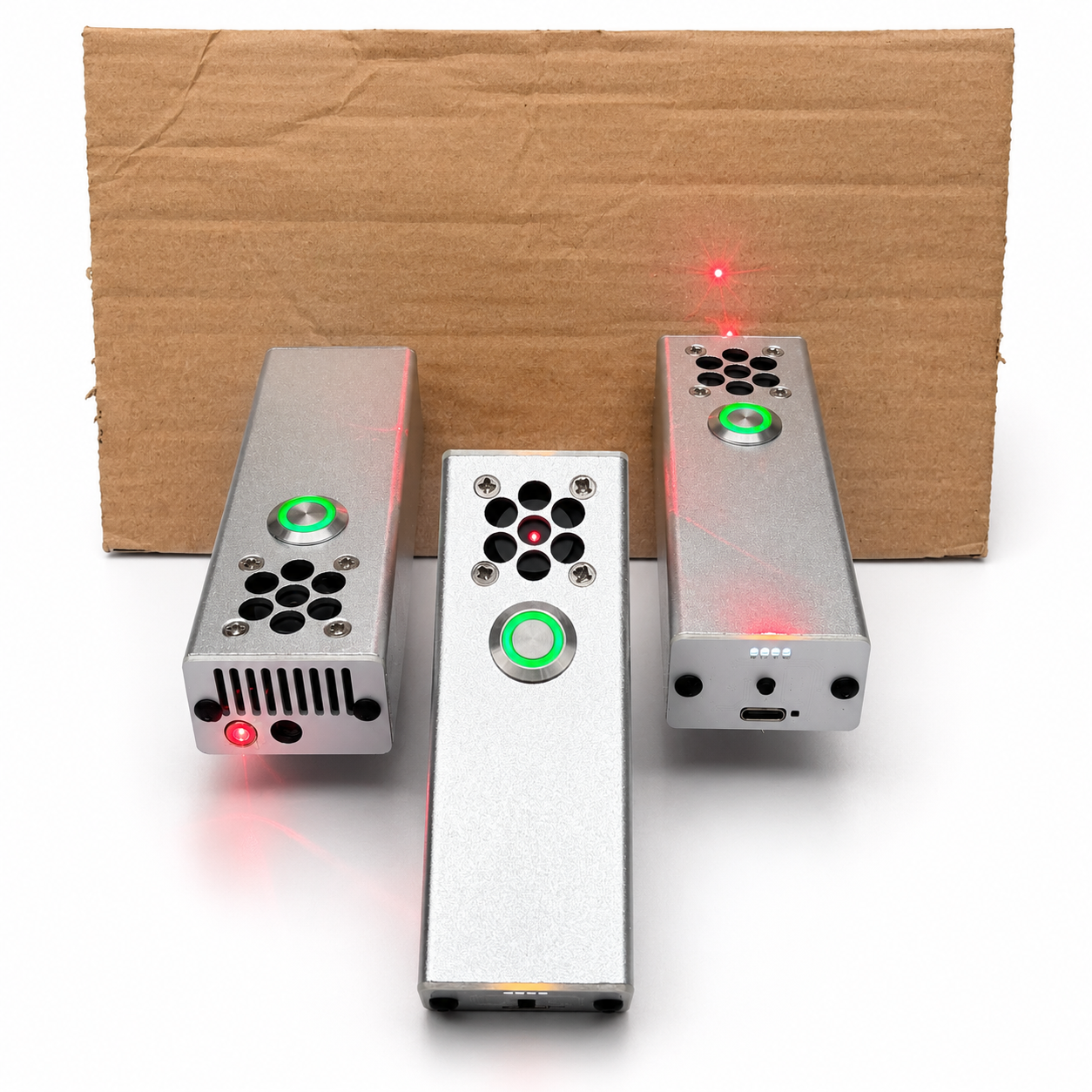

Visible Red Aiming Light
An integrated red visible aiming light helps identify and position the target before operation. The red light is for aiming assistance and does not provide the primary laser energy.
At approximately 30–50 cm, the visible red aiming point and working laser position are designed to approximately coincide.
Double-Click Power-On
The device features a double-click power-on design to help prevent accidental activation.
Simply double-click the power button to turn on the device.
1500mAh 30C High-Rate Battery
Powered by a built-in 1500mAh 30C high-rate RC lithium-polymer battery, designed to provide the high discharge capability required for high-power operation.
USB Type-C Rechargeable
Equipped with a convenient USB Type-C charging port for easy recharging.
USB Type-C charging cable is included.
A dedicated charging indicator light provides convenient charging-status confirmation.

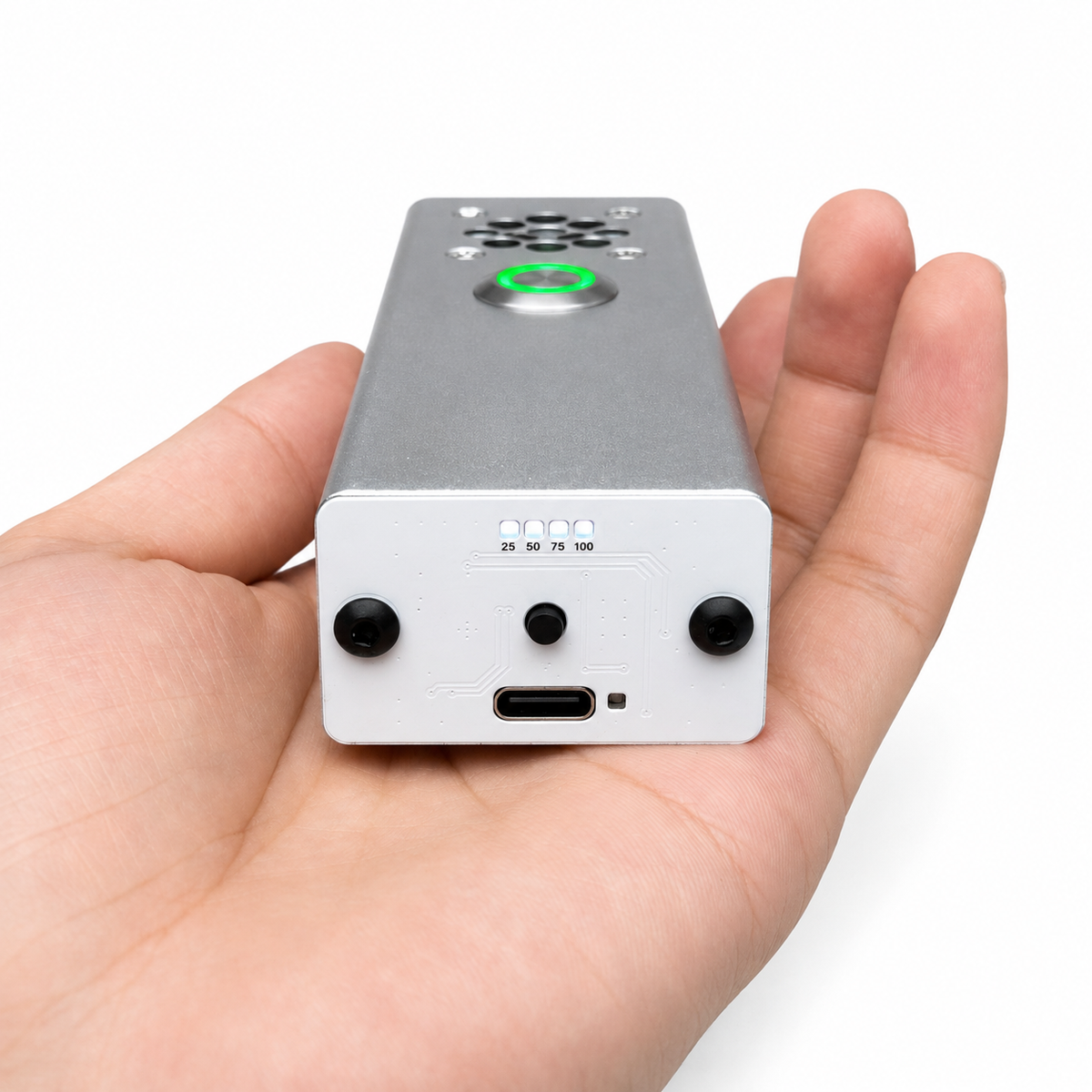

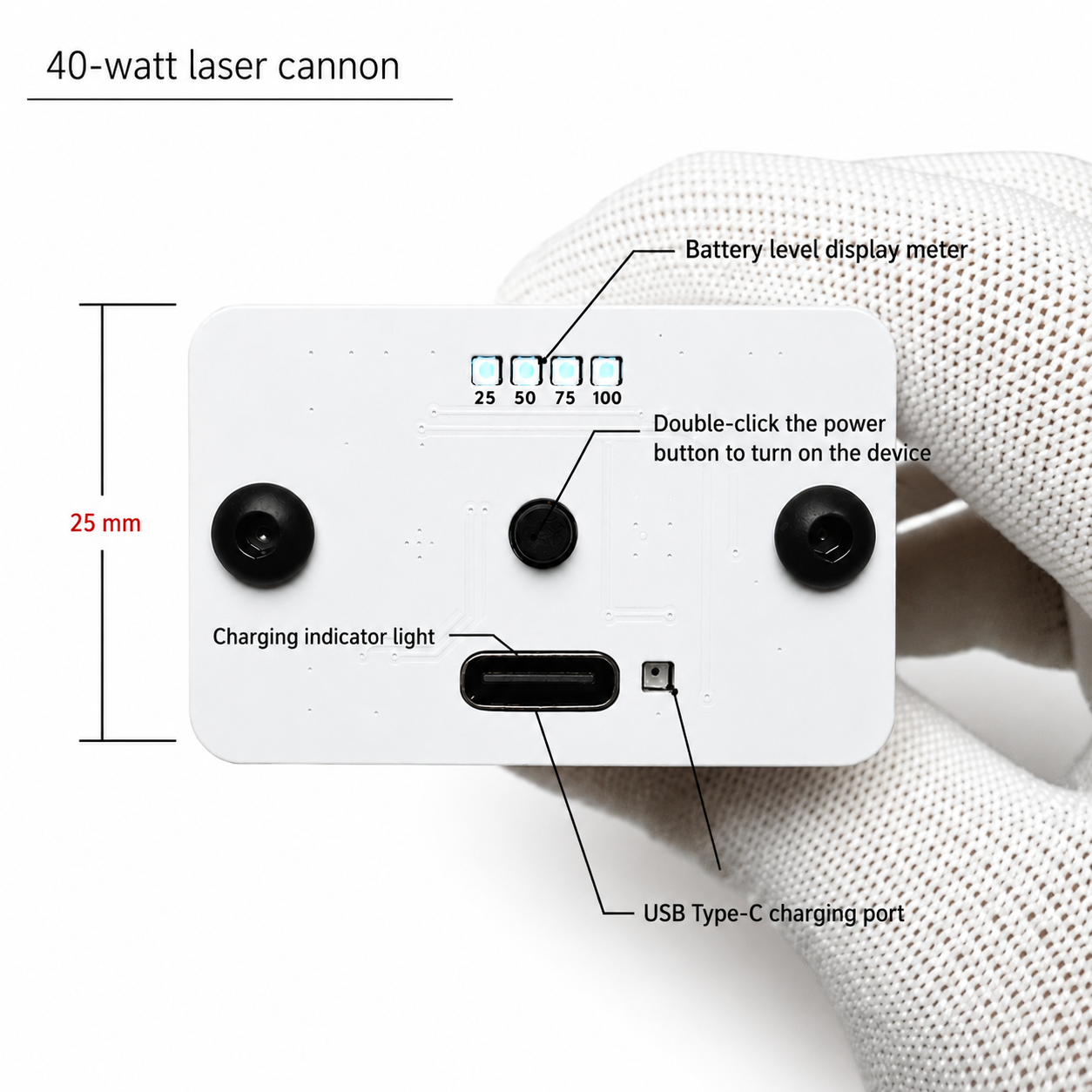

Real-Time Battery Level Display
The integrated battery indicator provides an easy visual indication of the remaining battery level at approximately:
25% / 50% / 75% / 100%
This allows you to quickly monitor battery status during use.
Smart Temperature-Controlled Cooling
An integrated temperature-controlled cooling fan automatically adjusts according to operating temperature.
As the internal temperature rises, the fan increases cooling performance to help maintain stable operation.
Automatic 45°C Temperature Protection
For additional protection, the system automatically cuts off pump power output when the internal temperature reaches approximately 45°C, helping protect the laser module from excessive heat.
Fast Temperature Monitoring
The integrated temperature sensing system provides fast, responsive temperature monitoring for improved thermal management during operation.

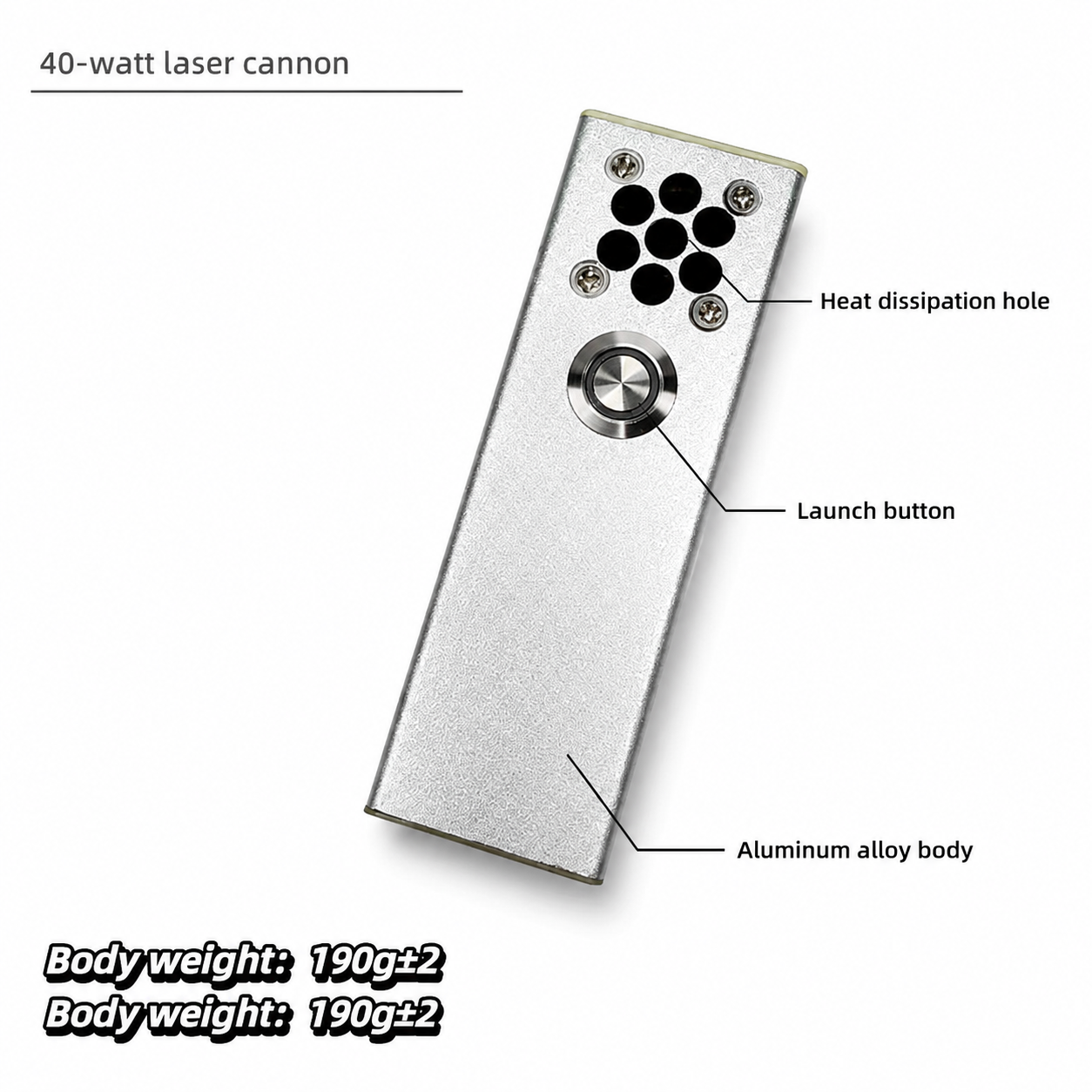

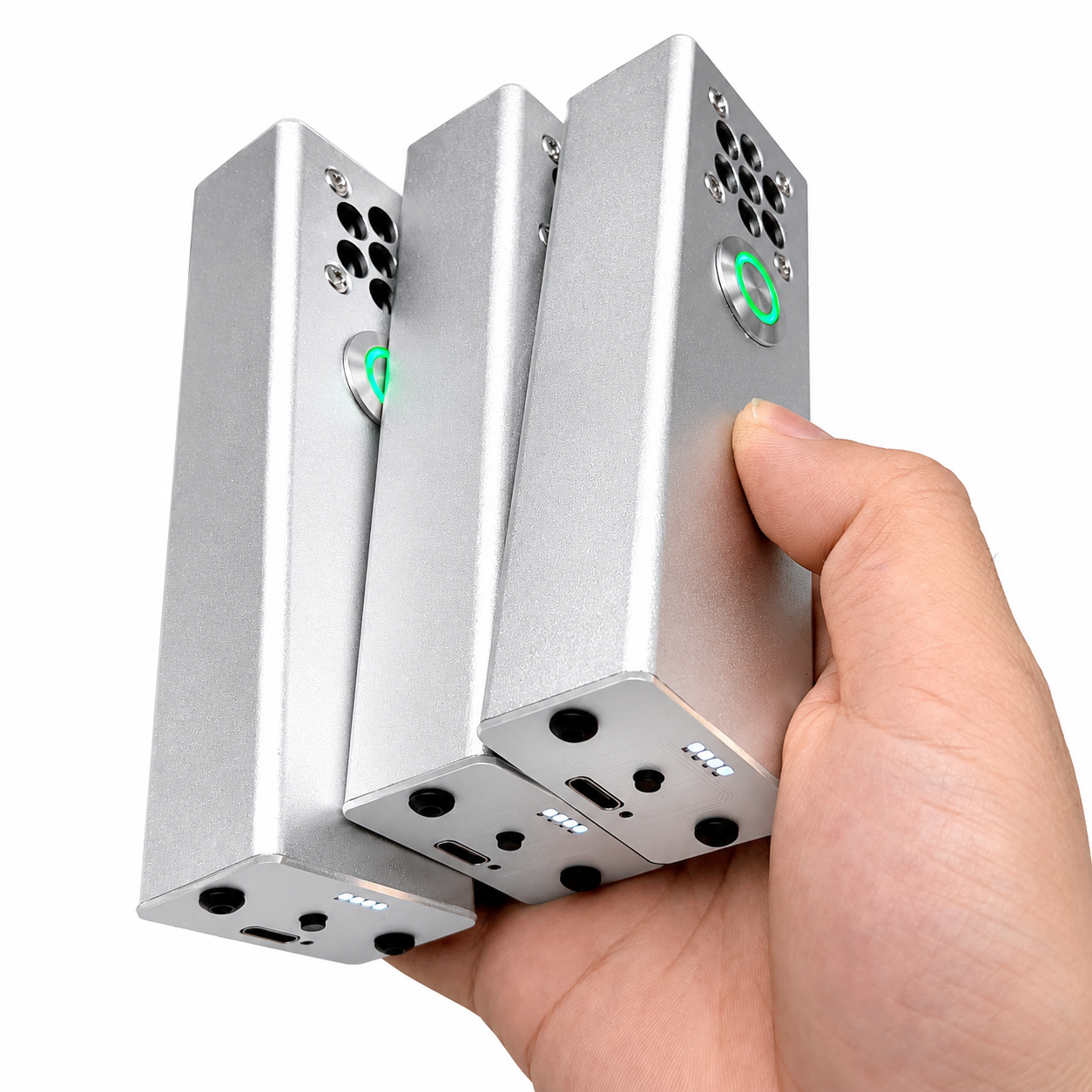

Durable Aluminum Alloy Housing
The body is constructed from aluminum alloy, providing durability while helping dissipate heat efficiently.

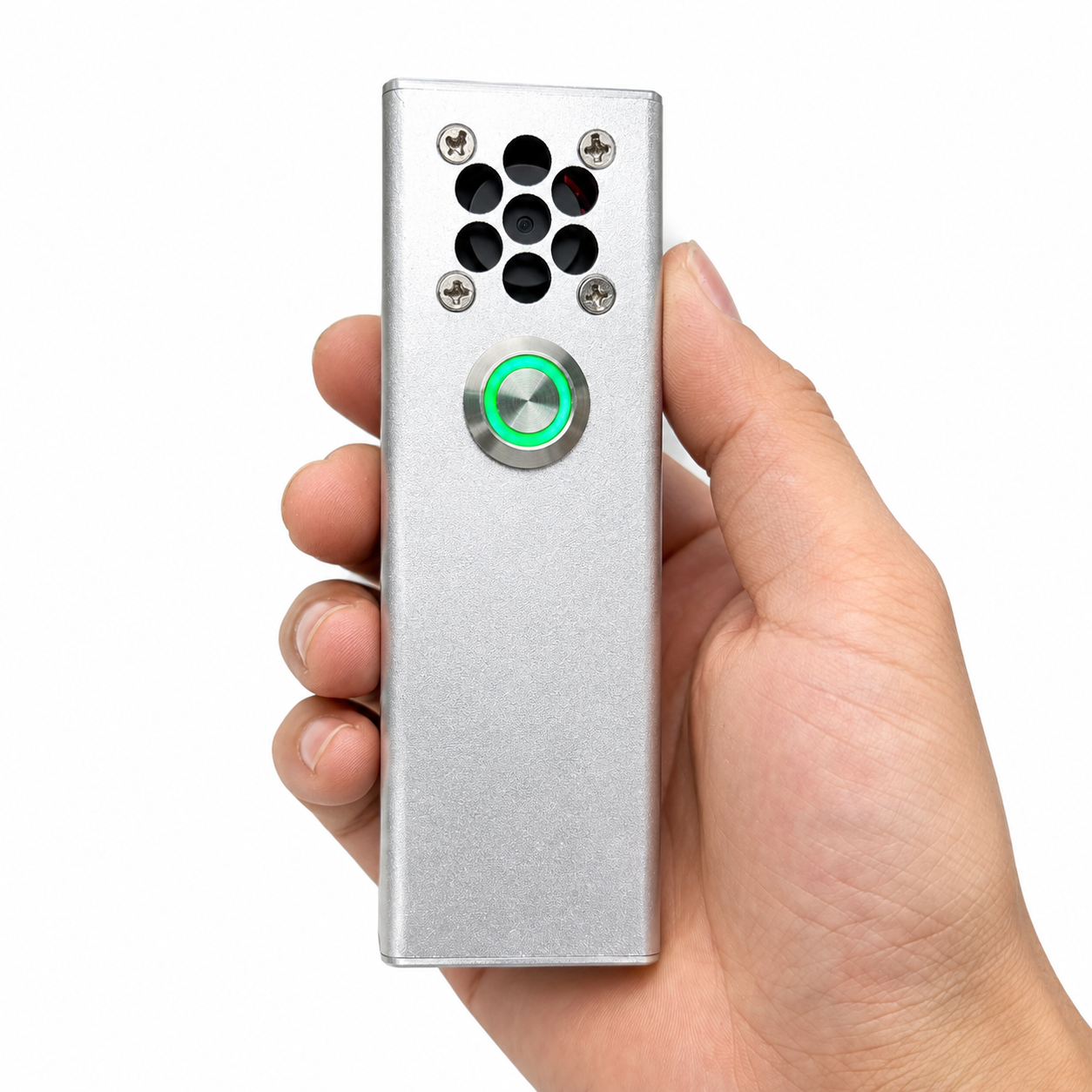

Compact & Lightweight

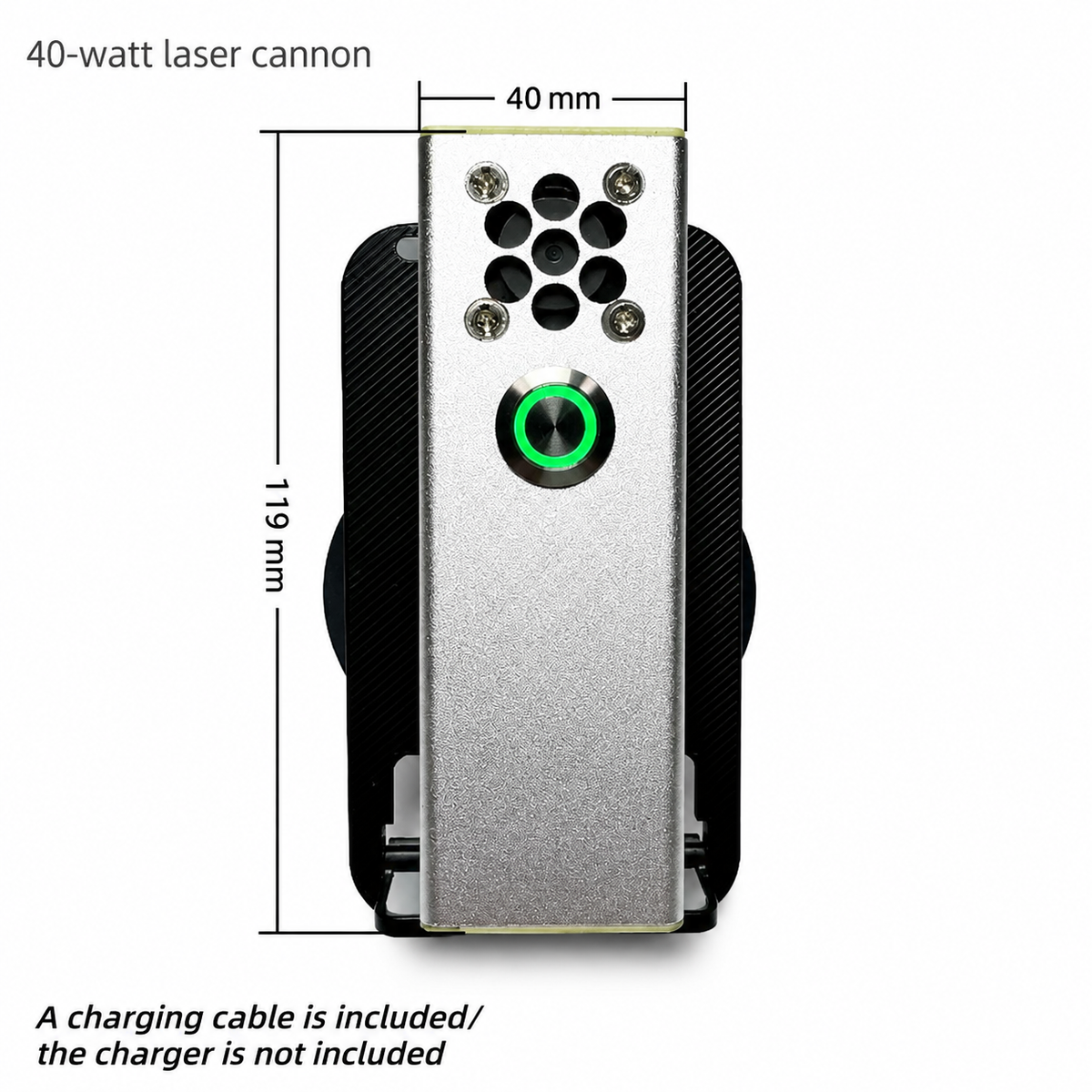

Despite its high output, the 40W-PLUS maintains a compact handheld form:
- Length: 114 mm
- Width: 40 mm
- Height: 25 mm

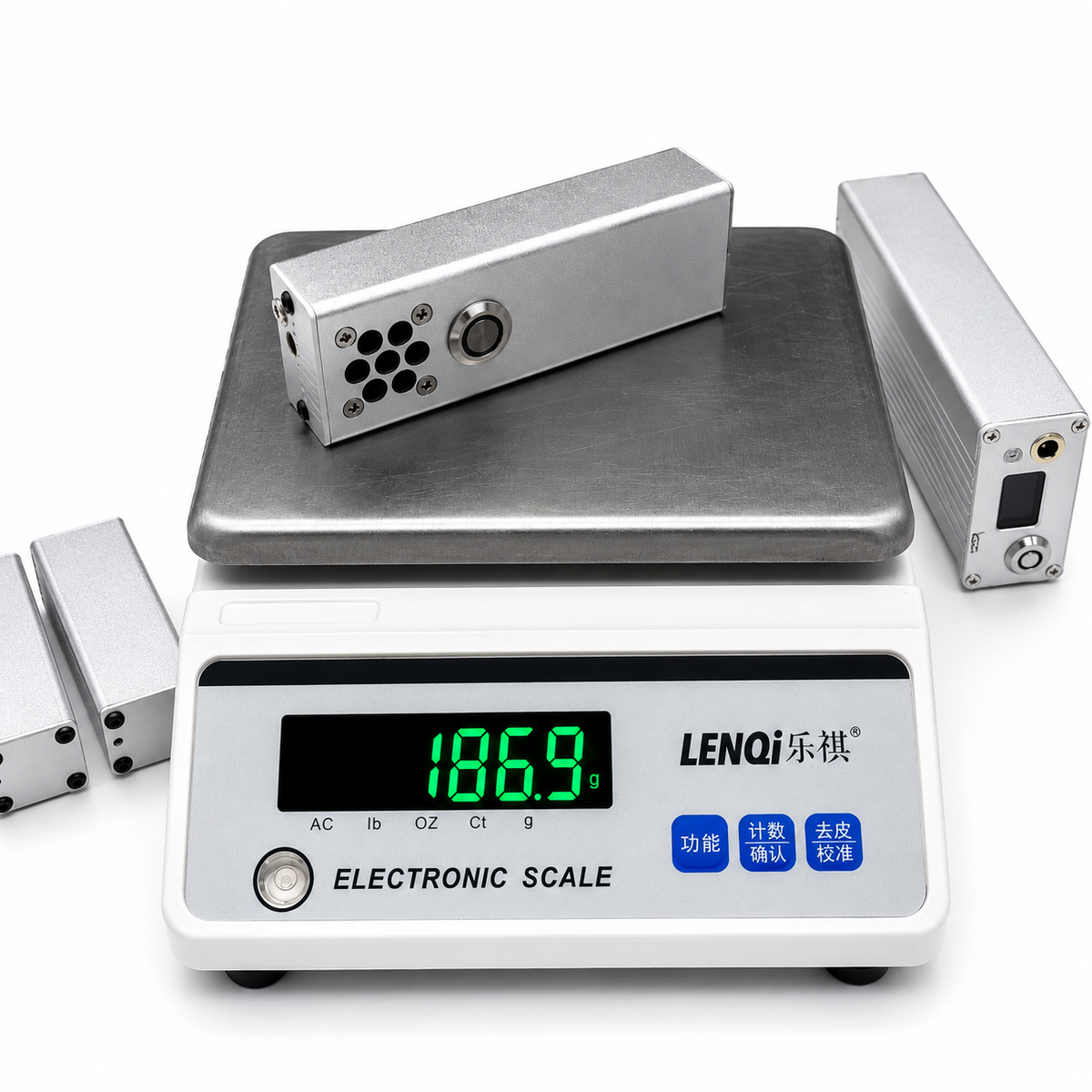

- Weight: Approx. 180 g
Technical Specifications
| Specification | Details |
|---|---|
| Model | 40W-PLUS Handheld Laser |
| Laser Power | 40W |
| Effective Operating Range | Up to approx. 1 meter |
| Aiming Assistance | Visible red aiming light |
| Red Aiming Alignment | Approx. 30–50 cm |
| Battery | 1500mAh 30C high-rate RC lithium-polymer battery |
| Battery Display | 25% / 50% / 75% / 100% |
| Charging Interface | USB Type-C |
| Charging Cable | Included |
| Charging Indicator | Yes |
| Power-On Operation | Double-click power button |
| Cooling System | Smart temperature-controlled fan |
| Temperature Protection | Automatic pump output cutoff at approx. 45°C |
| Housing Material | Aluminum alloy |
| Dimensions | 114 × 40 × 25 mm |
| Weight | Approx. 180 g |
Charging & Battery
The 40W-PLUS features a built-in rechargeable 1500mAh 30C high-rate battery and a convenient USB Type-C charging interface.
A USB Type-C charging cable is included with the product.
The integrated battery-level display shows approximately 25%, 50%, 75%, and 100% remaining charge, while the dedicated charging indicator makes it easy to monitor charging status.
Operating Instructions
- Check the battery level before operation.
- Put on appropriate laser protective eyewear.
- Point the device only toward the intended target area.
- Double-click the power button to turn on the device.
- Use the visible red aiming light to assist with target positioning.
- Avoid continuous operation if the device becomes excessively warm.
- Allow the integrated temperature-control system and cooling fan to manage operating temperature.
Package Includes
- 1 × 40W-PLUS Handheld 40W Laser Igniter
- 1 × USB Type-C Charging Cable
- 1 × Protective Eyewear
Important Laser Safety Warning
This product contains a Class 4 high-power laser.
Appropriate laser protective eyewear must be worn during operation. Never look directly into the laser aperture or beam, and never aim the laser at people, animals, vehicles, aircraft, reflective surfaces, or any location where the beam could cause injury or property damage.
Keep the product away from children and unauthorized users. This device should only be operated by adults who understand appropriate high-power laser safety procedures.
Actual operating range and performance may vary depending on target material, environmental conditions, battery charge level, operating temperature, focus, and other factors.
Note: As this is a manually assembled/customized product, minor cosmetic marks or small variations in appearance may occur and do not affect normal operation.
