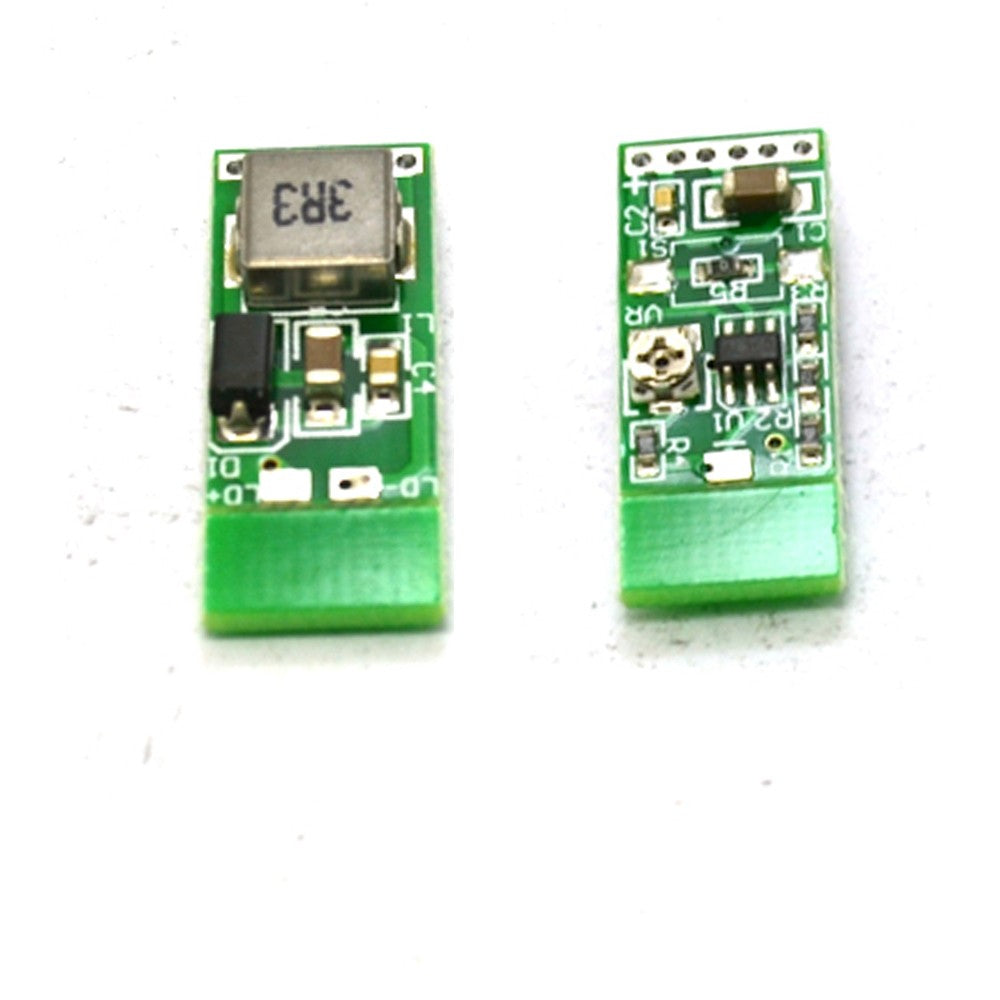

445nm 447nm 450nm 1W 1.4W 1.6W 3.7V Blue Laser Diode Power Driver Board 9x20mm
445nm 447nm 450nm 1W 1.4W 1.6W 3.7V Blue Laser Diode Power Driver Board 9x20mm
Regular price
$13.00
Regular price
$15.00
Sale price
$13.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Lab DIY 445nm 447nm 450nm 1w 1.4w 1.6w Laser Diode Driver 3.7V 9x20mm High Power
Description:
A Driver Circuit board for 445-450nm 1W 1.4W 1.6W Laser Diode
Circuit control: 5.5V boost circuit
Dimension: 9X20mm
Reverse Polarity Protection: None
QSP protection: with soft start protection, even if you frequently switch on and off the power supply, it will not caouse damage to the laser diodes.

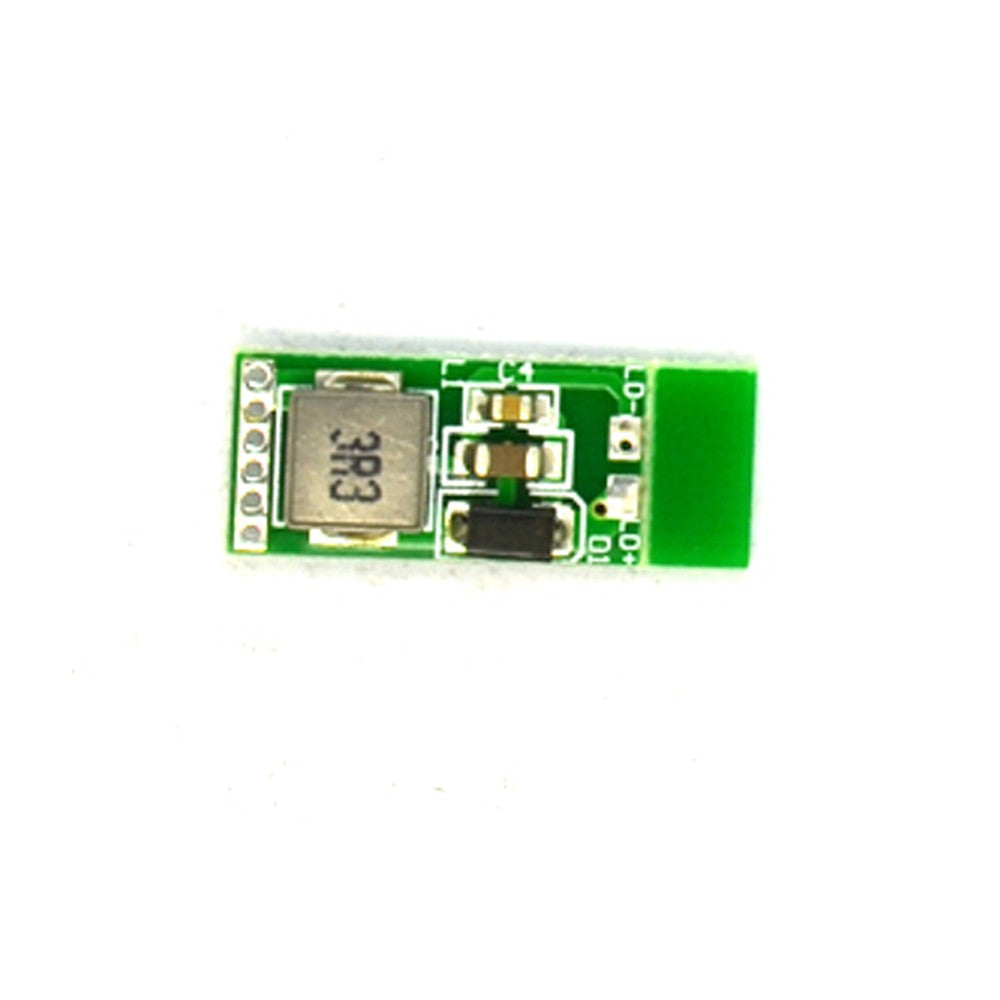

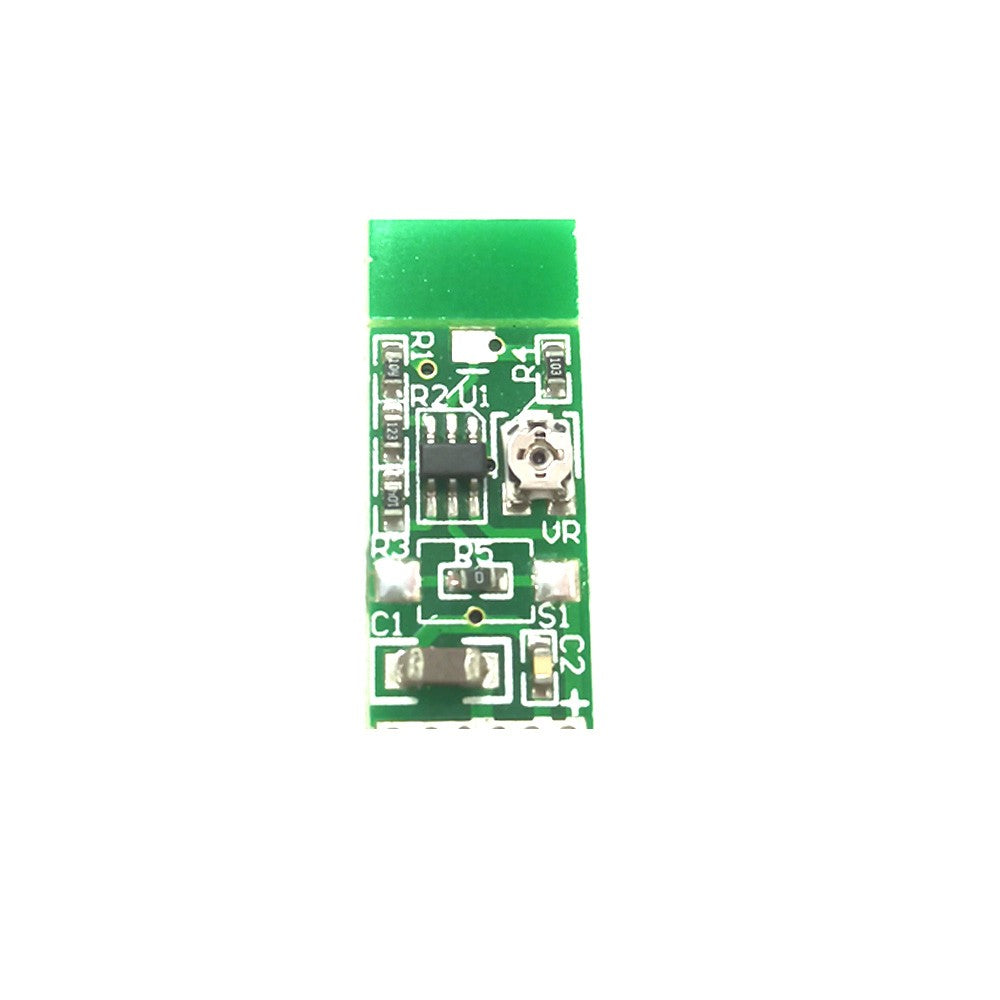

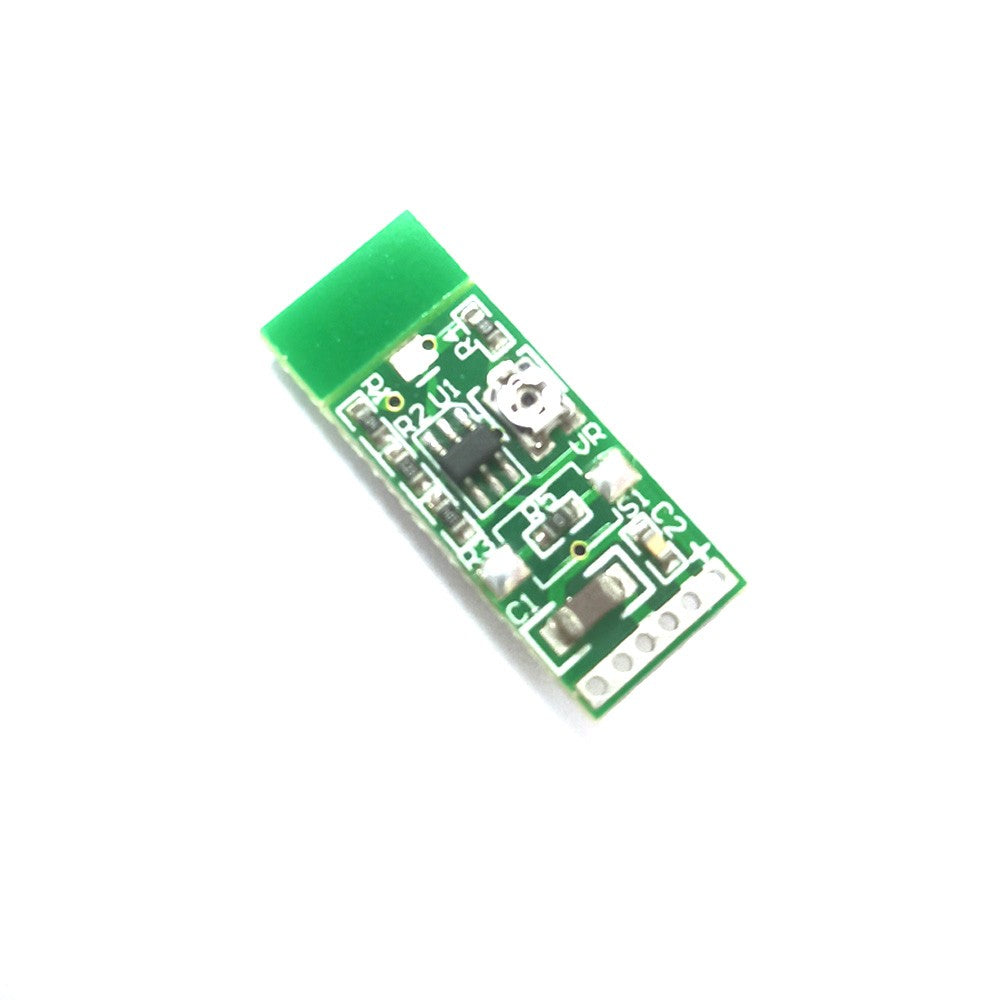

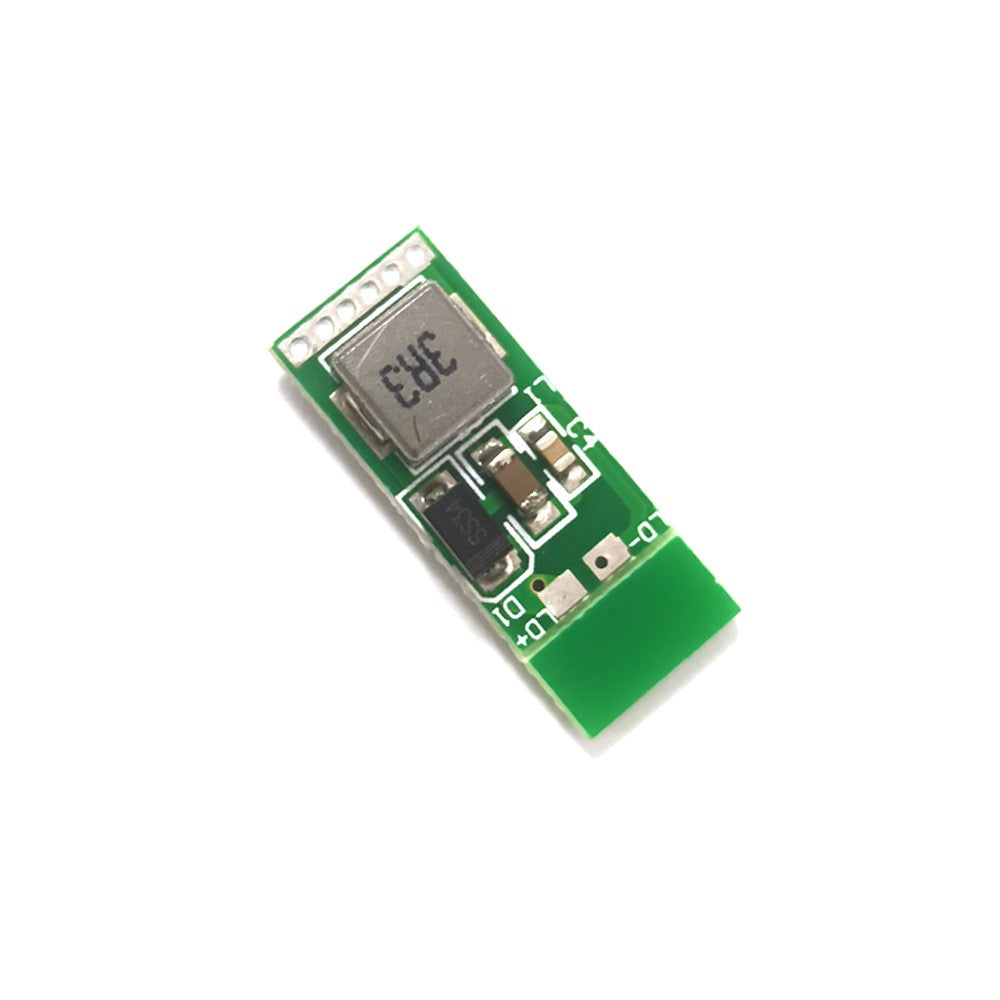

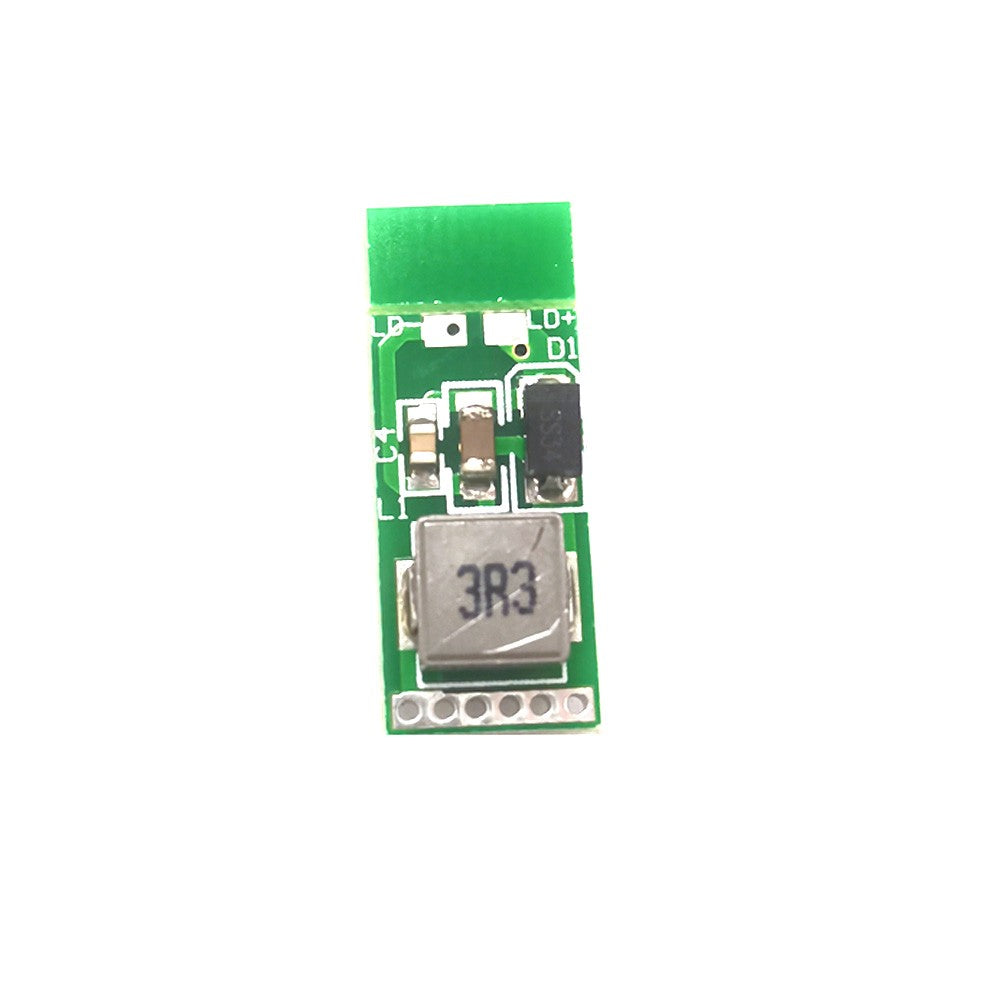

Pin definition: the PCB board shows positive and negative wiring schematic
This is a driver for 445-450nm 1W 1.4W 1.6W laser diodes!
Widely industrial and LAB use!
Circuit control: 5.5V boost circuit
Dimension: 9X20mm
Reverse Polarity Protection: None
QSP protection: with soft start protection, even if you frequently switch on and off the power supply, it will not caouse damage to the laser diodes.
Pin definition: the PCB board shows positive and negative wiring schematic
Recommended working voltage: 3.7V lithium battery (16340,18650,14500 and 18500 powered), or directly using a 5.5V DC power supply.
WARNING:
The default current of the board is 1.3A, the maxiumu current is 1.5A, before soldering your laser diode to this PCB board, make sure the board's current will not be bigger than your laser diode's maximum circuit, otherwise it would burn your laser diode immediatly, Also, heat cooling of laser diode before electric conduction is important, make sure you install the laser diode into the heatsink or holder before connected to the power supply!!!This is a driver for 445-450nm 1W 1.4W 1.6W laser diodes!
Widely industrial and LAB use!
Keep it in dry environment away from water or moisture!.
Package:
1x 445nm 447nm 450nm 1w 1.4w 1.6w Laser Diode Driver 3.7V 9x20mm
