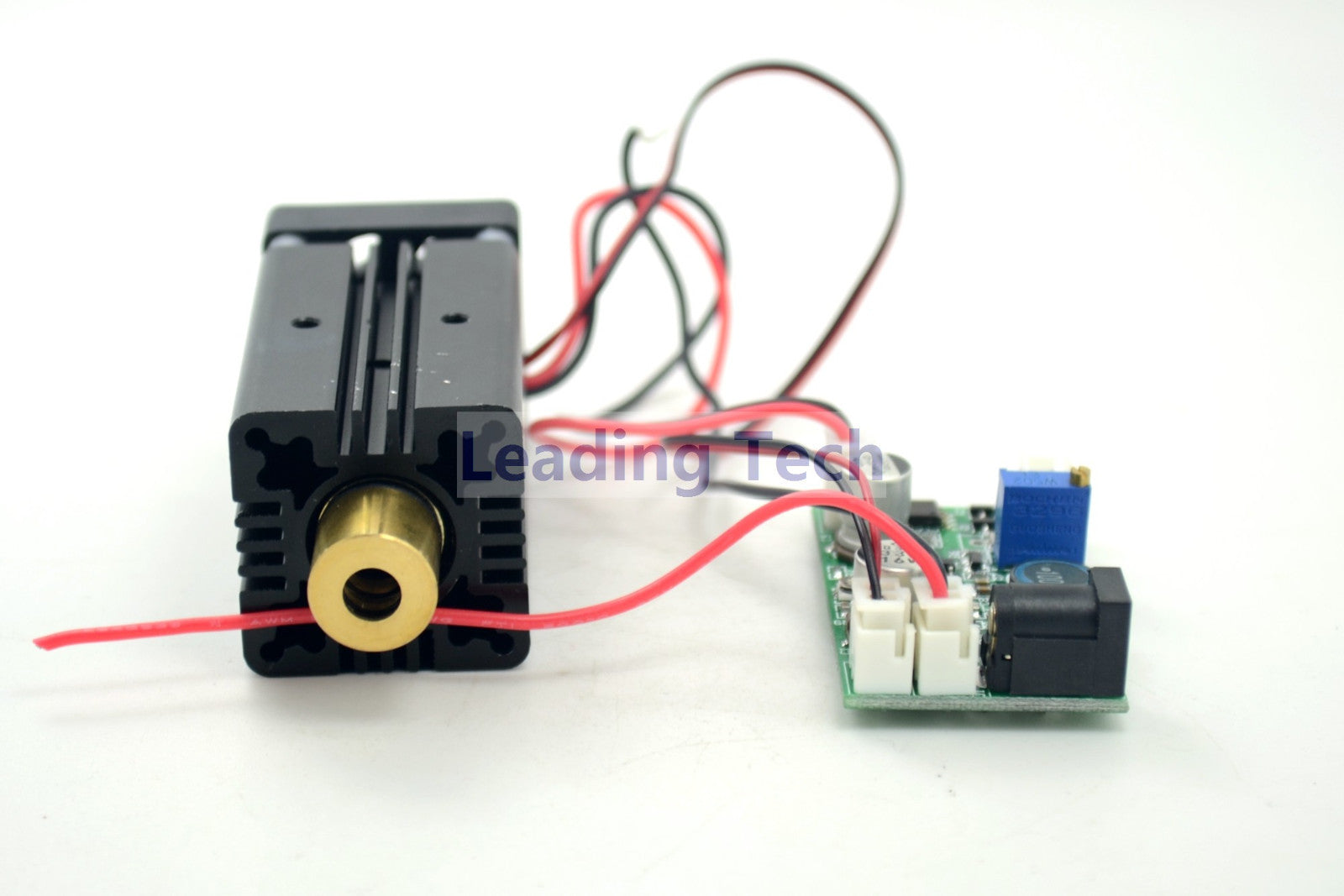

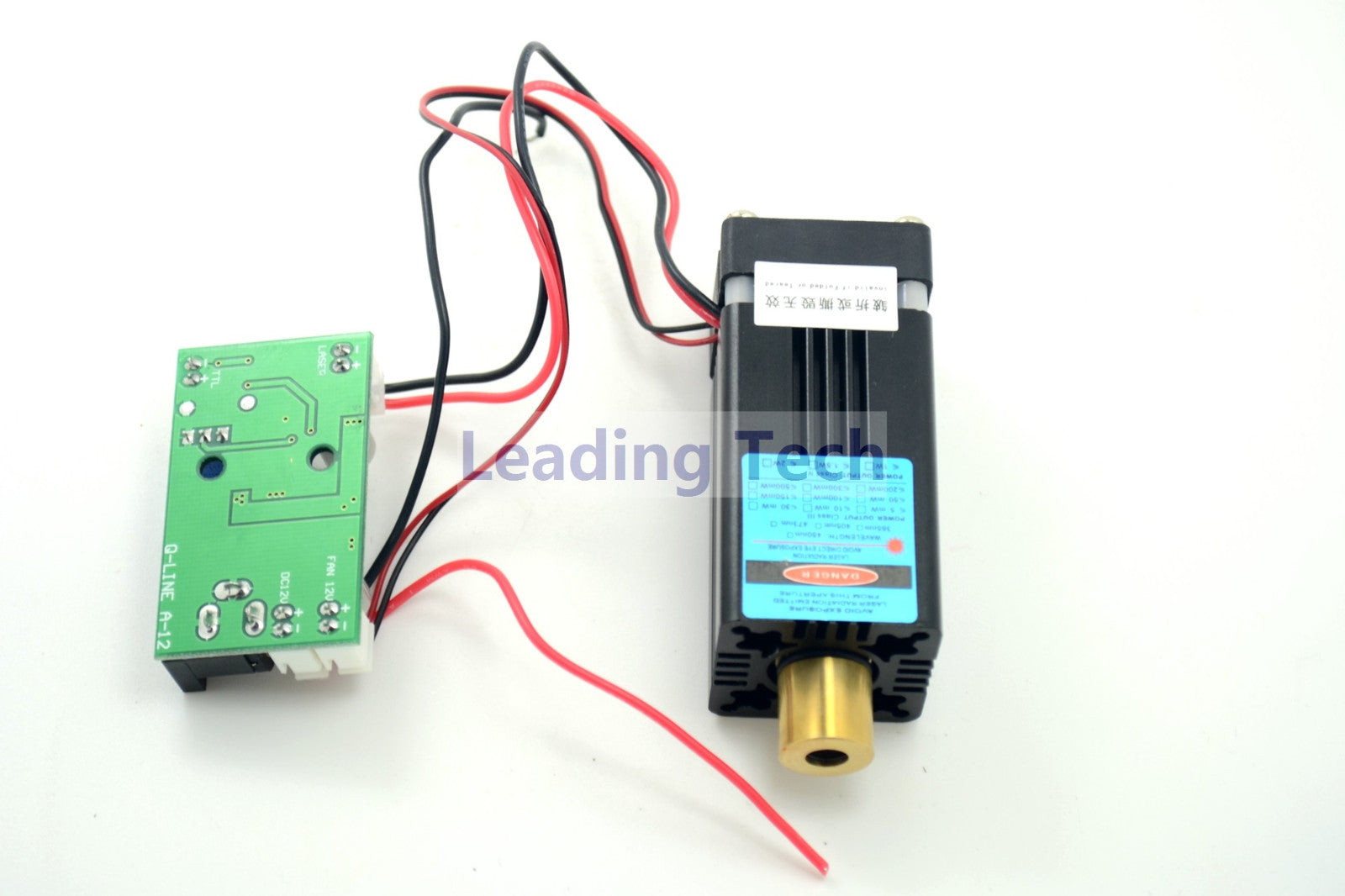

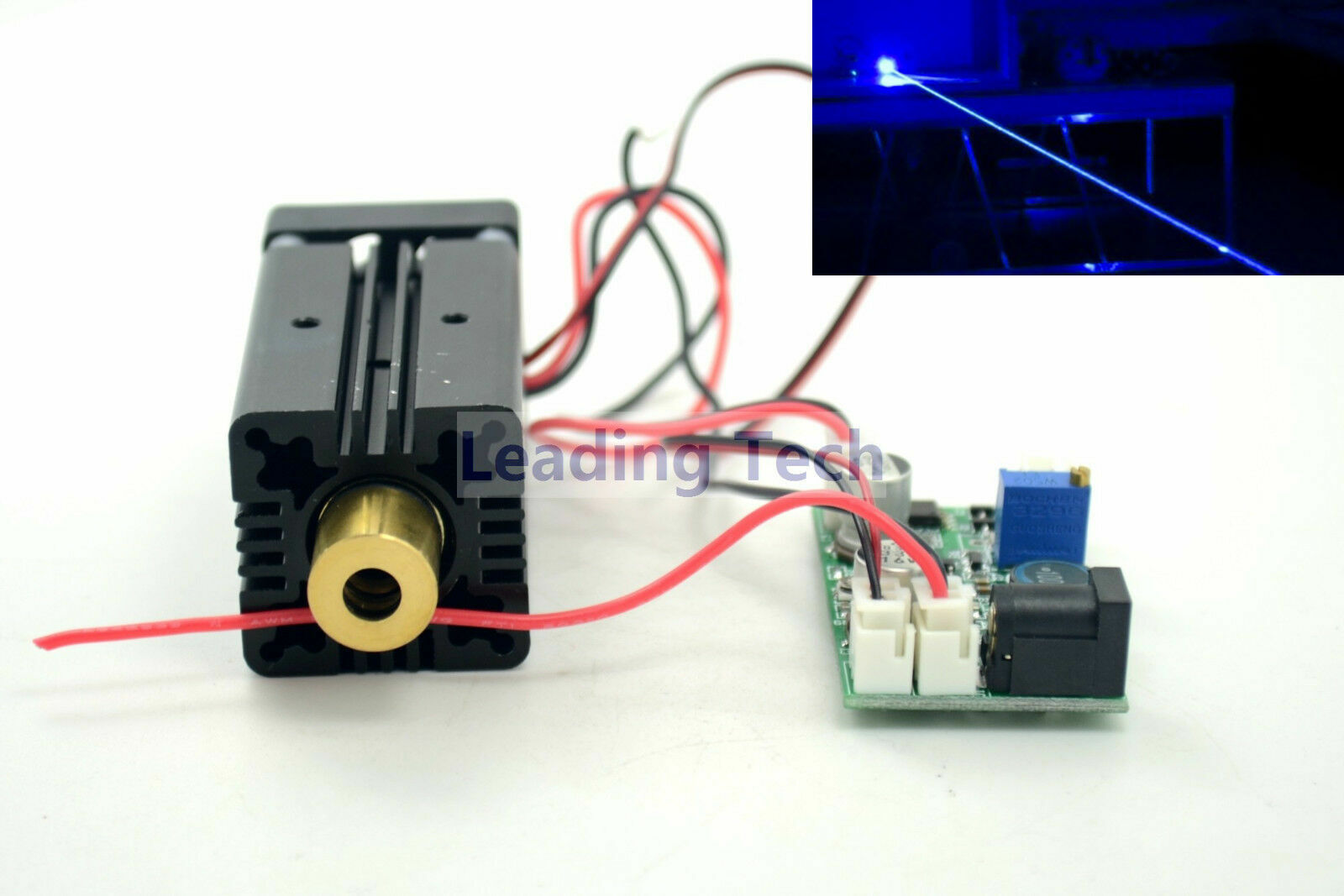

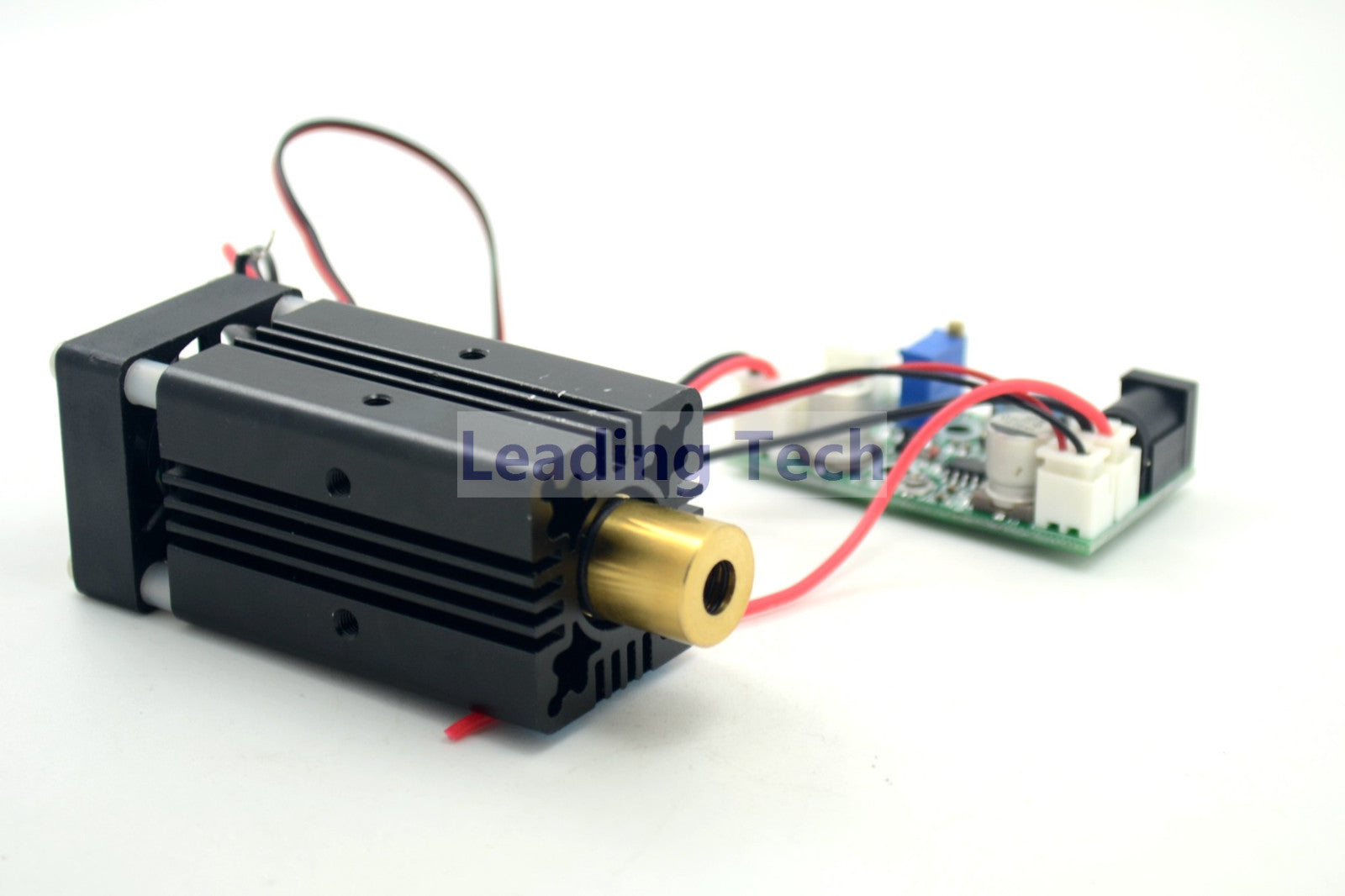

445nm 450nm 500mw High Power Blue LasersDot Diode Module 12V w/TTL & AC Adapter

Name: 445nm 450nm 500mw High Power Blue LasersDot Diode Module 12V w/TTL & AC Adapter
Brand: lillyelectronics
SKU: 450MD-500-12V-XL
Price: 158.00 CAD
Availability: InStock

$158.00

~~$187.00~~ $158.00

Sale Sold out

Shipping calculated at checkout.

Quantity

445nm 450nm 500mw High Power Blue LasersDot Diode Module 12V w/TTL & AC Adapter

Specification:

Laser head size: 69mmx30mmx30mm
Circuit Board size: 71.5mmx35.5mmx16mm
Wavelength: 445nm 450nm
Output power: 500mW

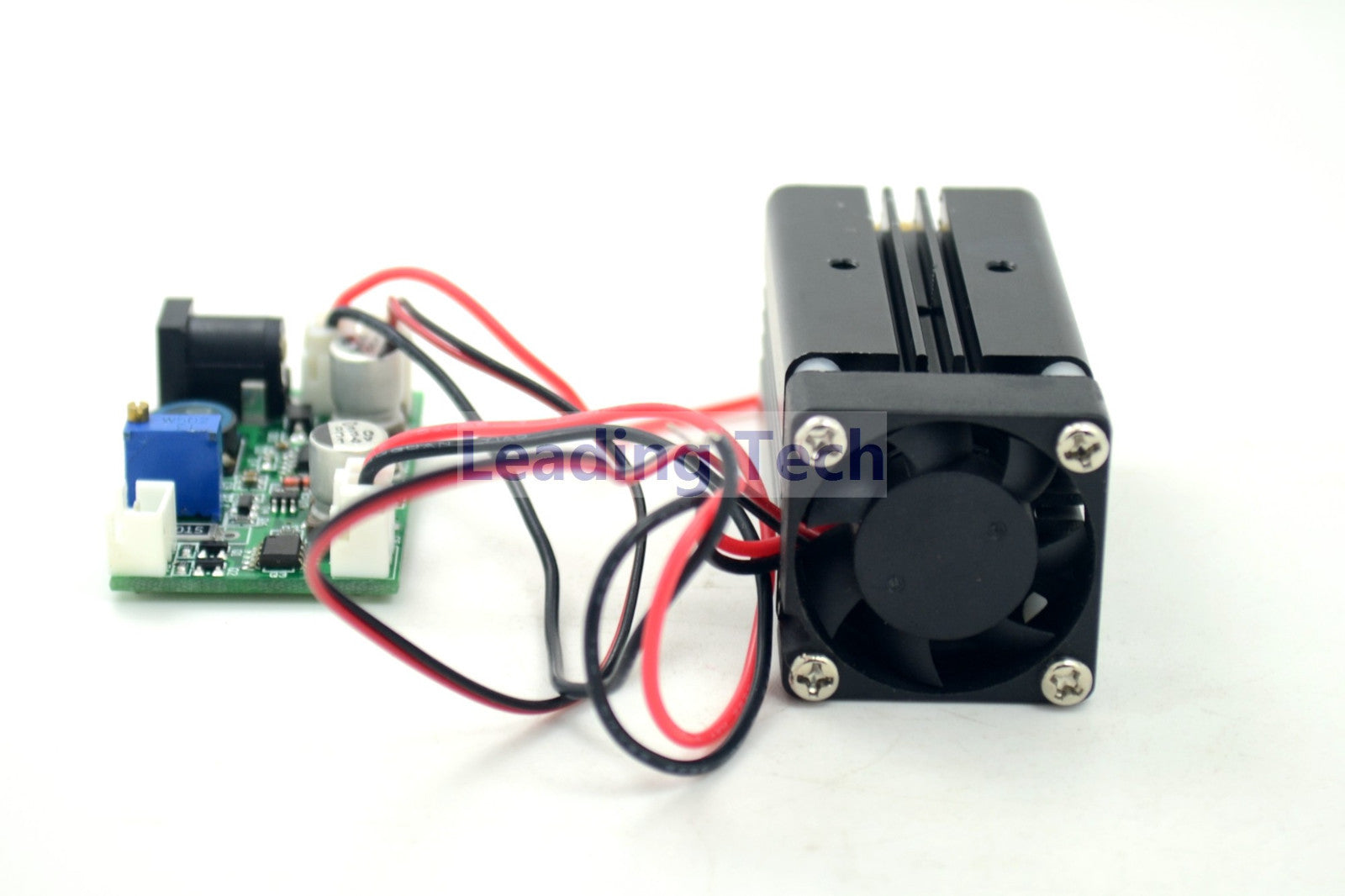

Cooling Method: Fan Cooling
Modulation frequency: TTL modulation
Operation Method: continuous work
Finish Color: Blue or black
Case Material: Aluminum
The circuits control: constant current
Reverse polarity protection: with automatically identify the positive and negative
Operating voltage: DC = 12V
Operating Current: I <650mA
Warm-up time: None
Operating Temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃

Details:

1.This 450nm 500mw blue laser module with built-in driver is an industrial electronic component and used for industrial testament, Lab etc.

2.The input voltage for this laser is 12V, working voltage >12v can cause damage to the circuit and laser instantly, if you have any technical problems, please contact us!

3.The laser module is precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about

the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or

testing.

4.Please protect your eyes before 450nm pure blue ray!

5.This module is with AC Cable and adapter for easy operation.And we have US-plug and EU-plug in our inventory.If you don't

leave us any message,we will ship the adapter according to your country.

Package:
1 x High Power Blue Lasers 445nm 450nm 500mw Dot Diode Module 12V with TTL
