450nm 2.5W Blue Laser Module with TTL Control | 12V CNC Engraving & Cutting Head
450nm 2.5W Blue Laser Module with TTL Control | 12V CNC Engraving & Cutting Head
Couldn't load pickup availability
Product Overview

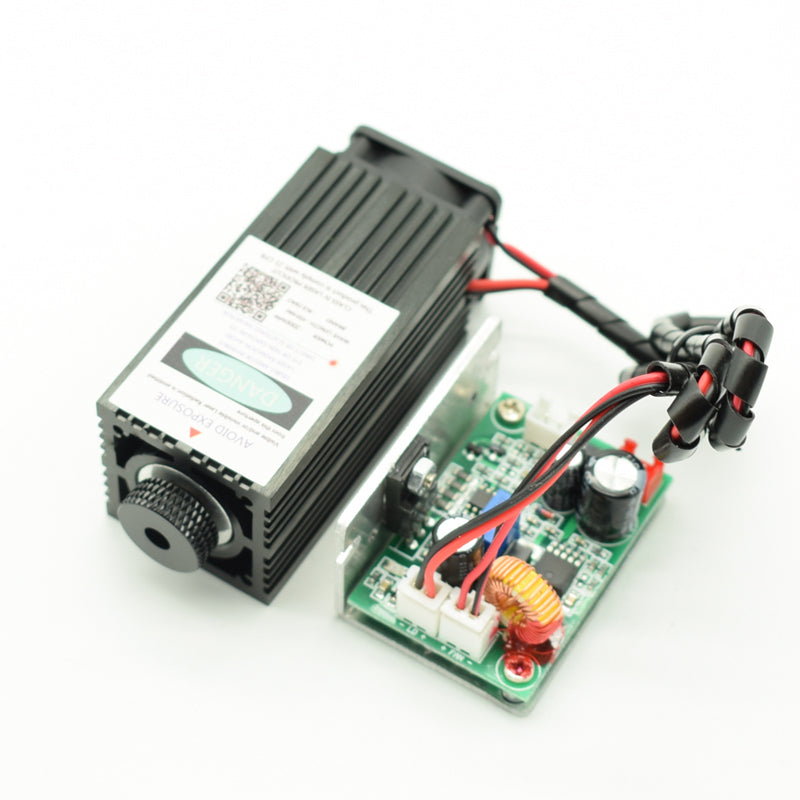

This professional 450nm blue laser module delivers up to 2.5W optical output power and is designed for CNC engraving, laser cutting, DIY fabrication, industrial automation, and research applications.
Featuring TTL control input and adjustable focus optics, this module can be integrated into a wide variety of laser engraving machines and custom automation systems.
Key Features
✔ High-power 450nm blue laser output
✔ Up to 2500mW optical power
✔ TTL modulation control support
✔ Adjustable focus lens
✔ Compact aluminum heat-dissipation housing
✔ Suitable for CNC engraving and laser cutting systems
✔ Stable 12V DC operation
✔ Easy integration into DIY and industrial projects
Technical Specifications
| Parameter | Specification |
|---|---|
| Wavelength | 450nm Blue |
| Optical Output Power | 2.5W (2500mW) |
| Input Voltage | DC 12V |
| Input Current | 5A |
| Control Method | TTL Modulation |
| Focus Type | Adjustable Focus |
| Operating Temperature | -10°C to +40°C |

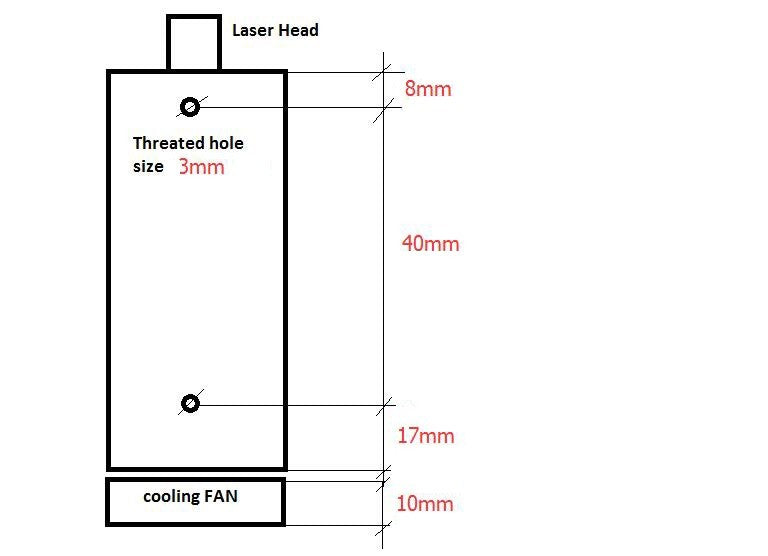

| Module Dimensions | 33 × 33 × 75mm |
| Cable Length | 40cm |
| Housing Material | Aluminum Alloy |
| Applications | Engraving, Cutting, Marking |
Applications
- CNC Laser Engraving Machines
- Laser Cutting Systems
- DIY Laser Projects
- Industrial Automation
- Scientific Research
- Educational Experiments
- Optical Development Projects
Package Includes
- 1 × 450nm 2.5W Blue Laser Module
Share
Straightforward installation and stable operation during testing. Output power and focus are as specified.
