450nm 200mW Blue Laser Module TTL Modulation Air Cooling Can Work Continuously
450nm 200mW Blue Laser Module TTL Modulation Air Cooling Can Work Continuously
Regular price
$100.00
Regular price
$125.00
Sale price
$100.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
450nm 200mW Blue Laser TTL Modulation Air Cooling Can Work Continuously
Specifications:
Host size: length 69.5mm * width 30mm * height 30mm
Power supply size: see description picture
Output wavelength: 405 nm
Output power: 200mW
Cooling method: air-cooled
Modulation frequency: TTL 1-20K Hz
Modulation voltage: 0-5V
Job characteristics: Can work continuously
Surface treatment: Green
Shell material: Aluminum
Circuit control: constant current
Reverse protection: with automatic identification of positive and negative poles
Working voltage: DC=12V
Working current: I<260mA
Preheating time: none
Working temperature: -10 ℃ to+40 ℃
Storage temperature: -10 ℃ to+40 ℃
Structural features: laser tube+lens+heat dissipation shell

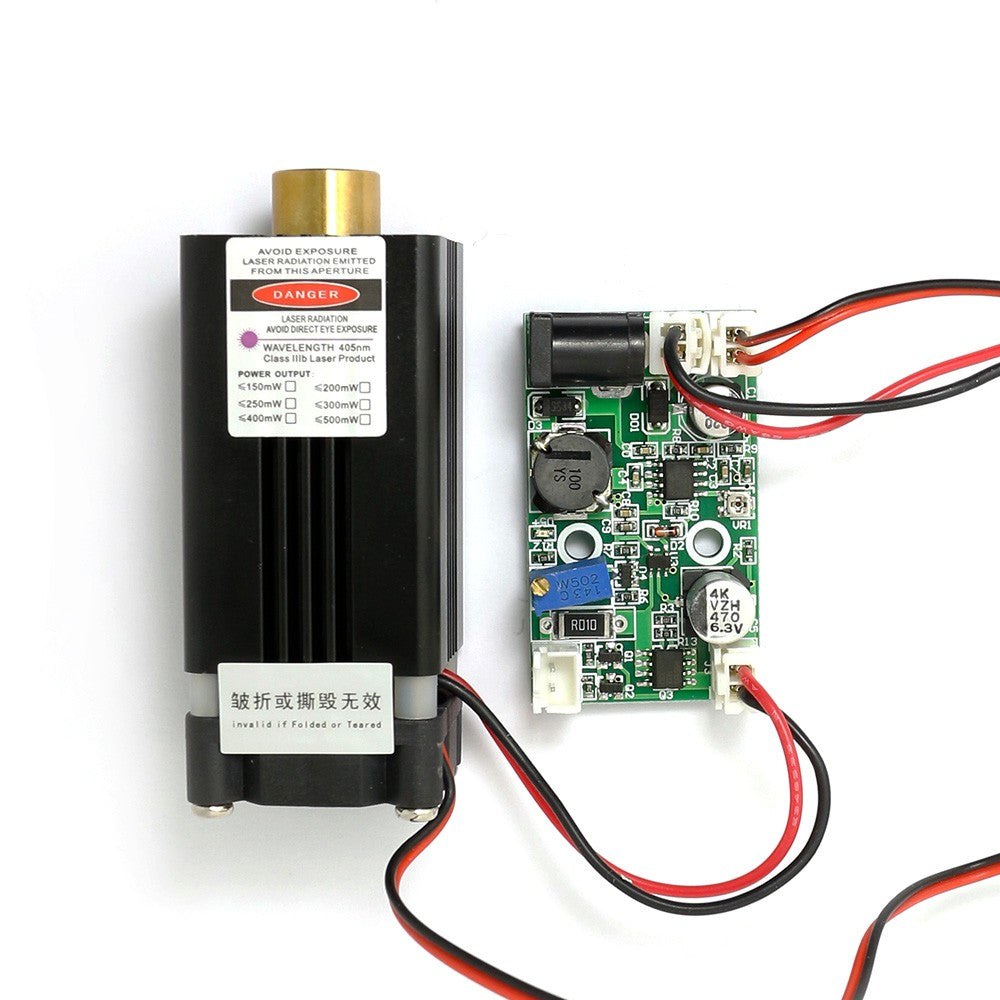

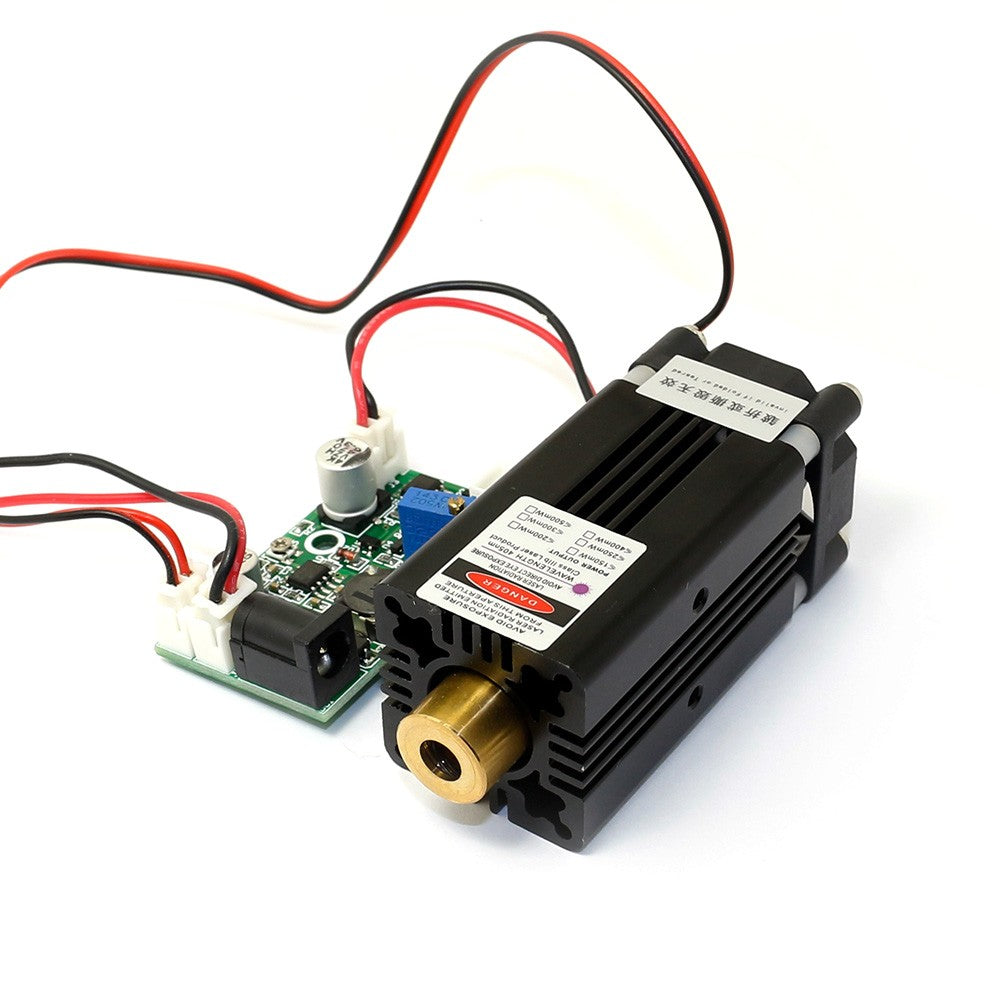

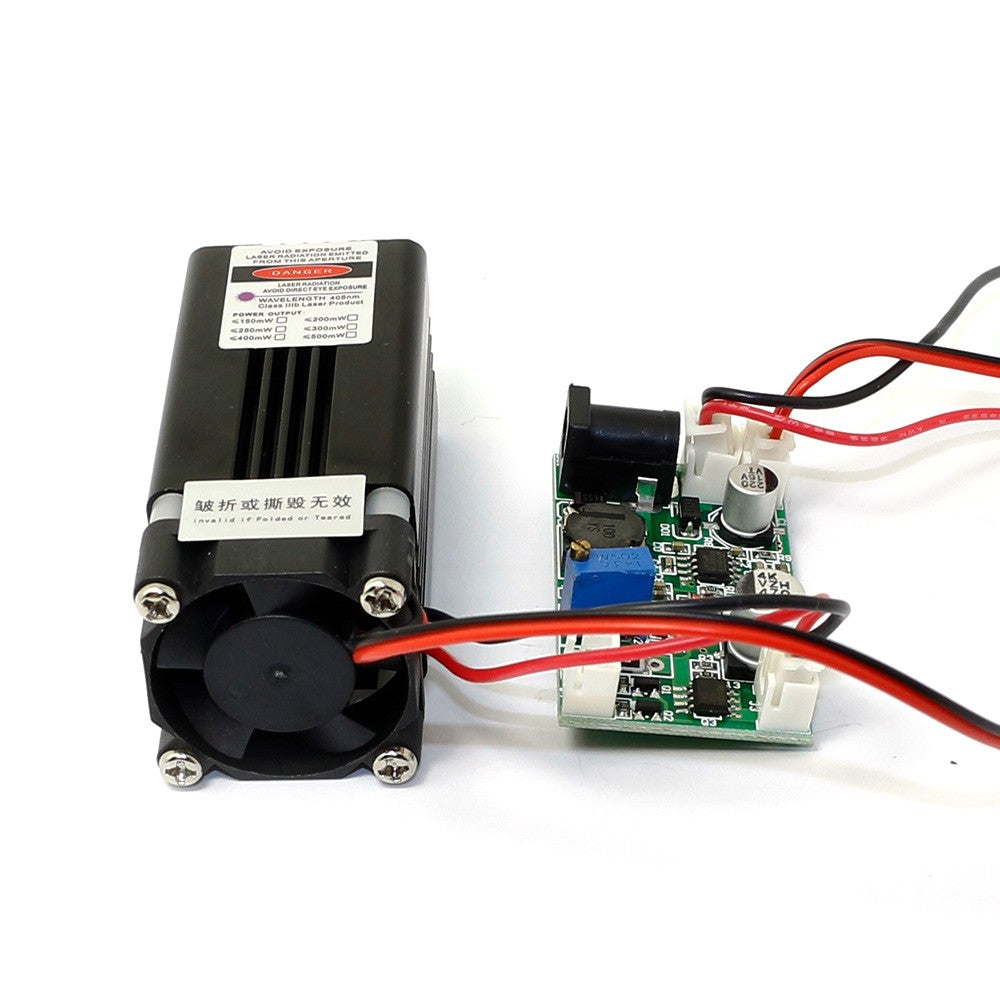

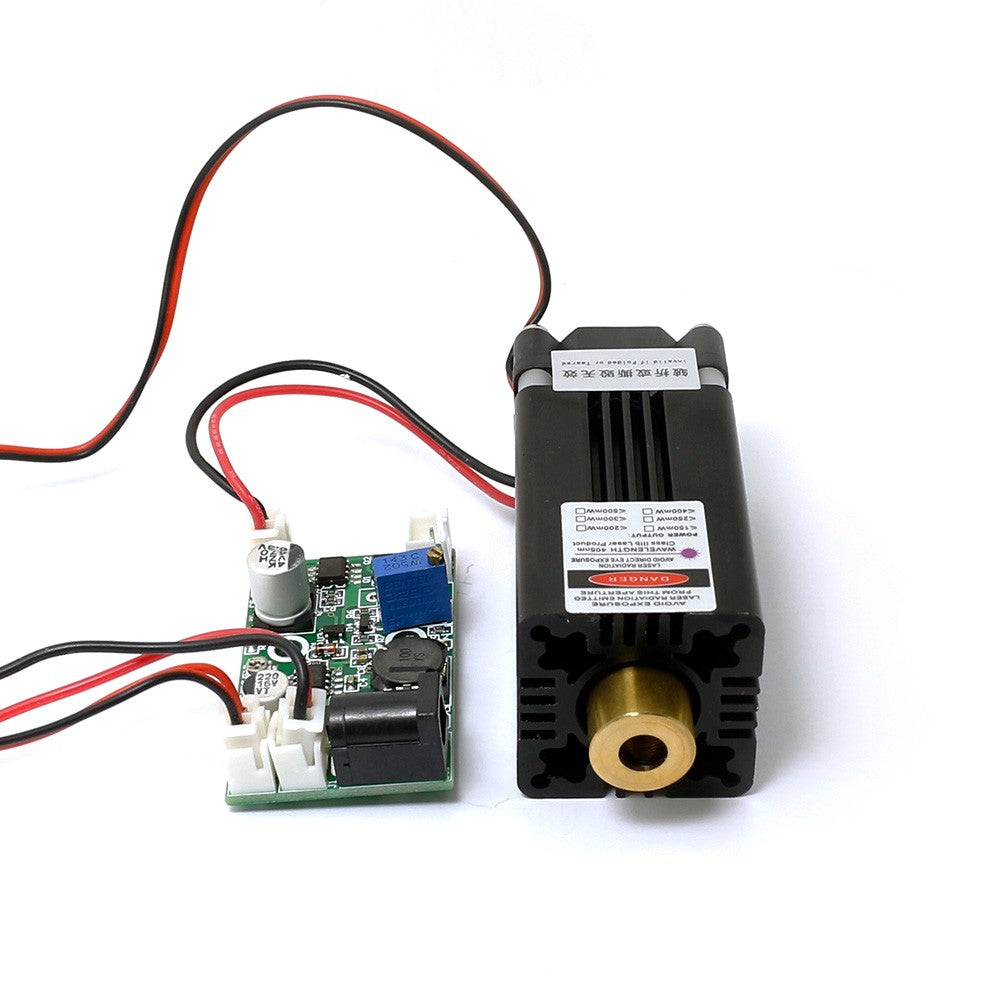

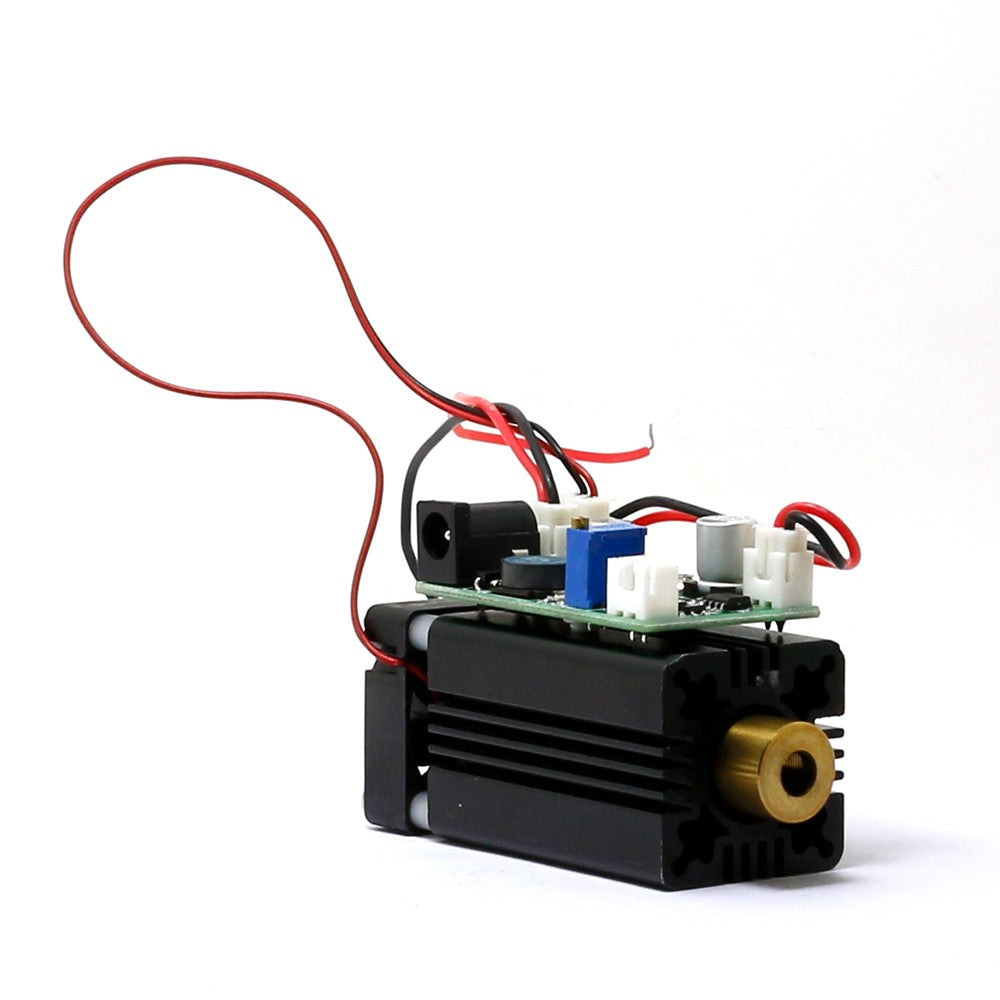

Note: The power supply and laser head are separate, and the laser head is equipped with a fan for cooling
Special Reminder: The input voltage is 12V. Overvoltage can cause instantaneous damage to the circuit and module
Package:
1x 450nm 200mW Blue Laser TTL Modulation Air Cooling Can Work Continuously
Package:
1x 450nm 200mW Blue Laser TTL Modulation Air Cooling Can Work Continuously
