450nm 455nm 5W New Laser Engraving Cutting Fixed Focus Module Group PWM Modulation 12V Cutting 5mm Wooden Board

450nm 455nm 5W New Laser Engraving Cutting Fixed Focus Module Group PWM Modulation 12V Cutting 5mm Wooden Board

Specifications:

Optical Power:5W±3%

Laser Peak wavelength:455nm±5nm

Operating Voltage:DC 12V / 24V

Focus position (fixed focus):27mm±0.2

Focus size:0.06mm

Ambient temperature:-30℃~40℃

Spot shape:Rectangle

Power Modulation:5V TTL/5V Analog

TTL trigger mode:high level active (>DC 2.0V)

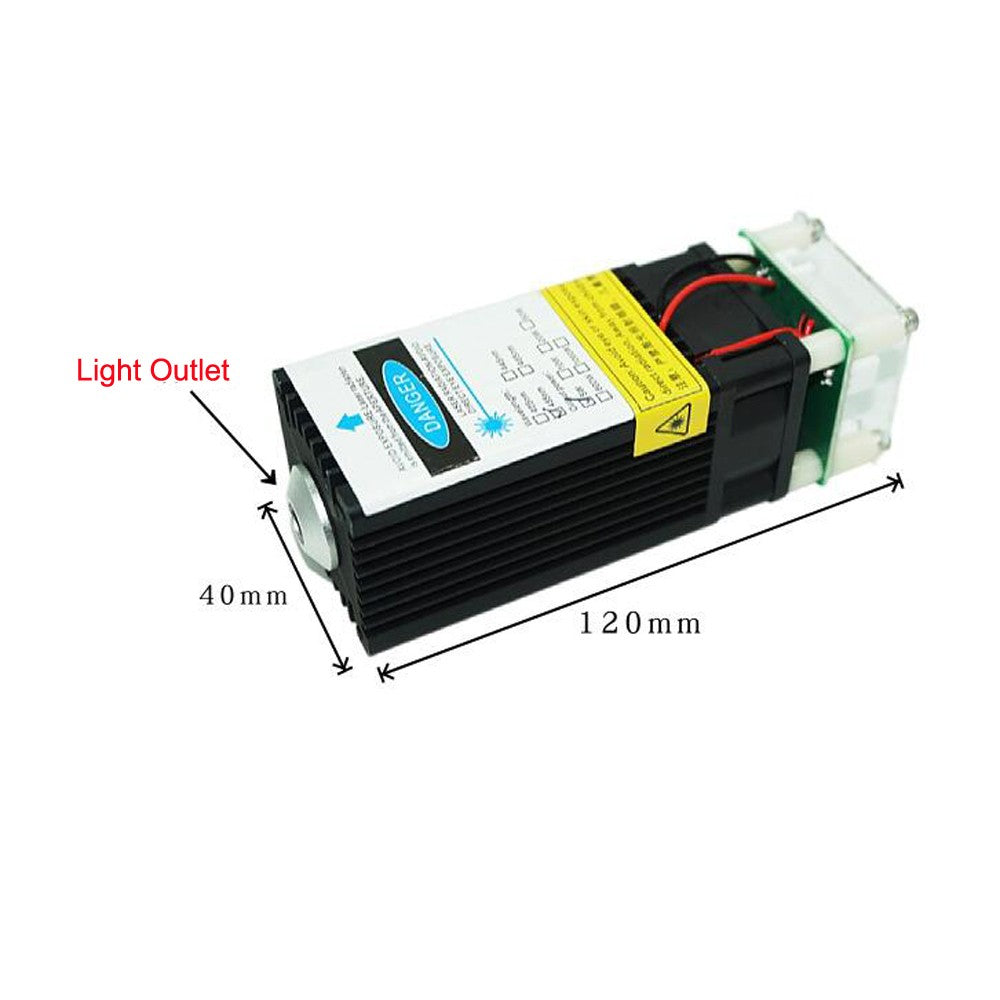

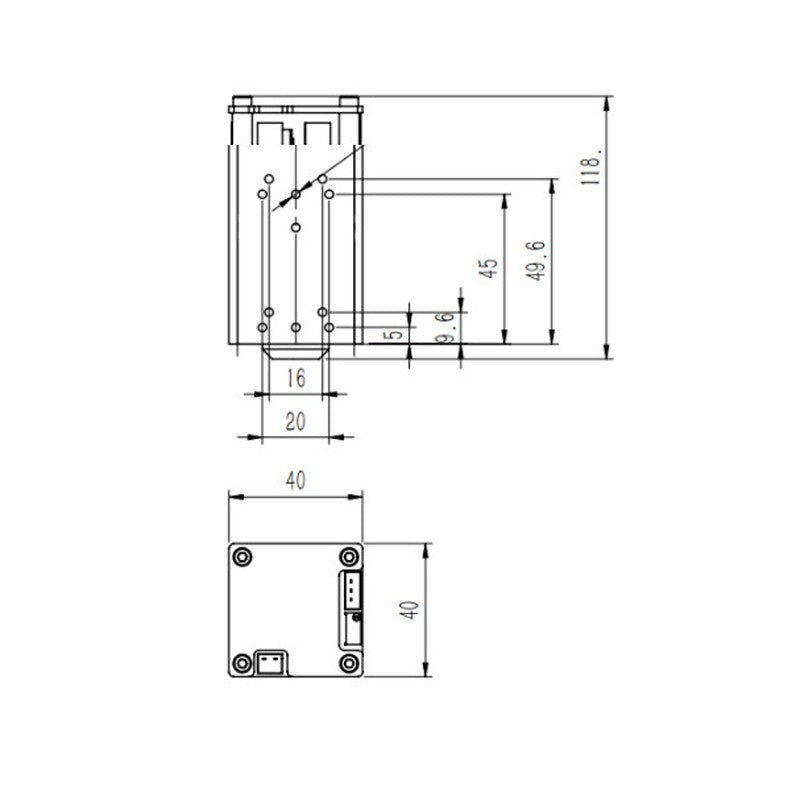

Product appearance (mm):40x40x120mm

TTL output power: >1K HZ output power = continuous power x 50%

Modulation Rate:1KHz TTL/1KHz Analogue

Analog control input voltage:DC 0～5V

Warm-up time:  <1 minute

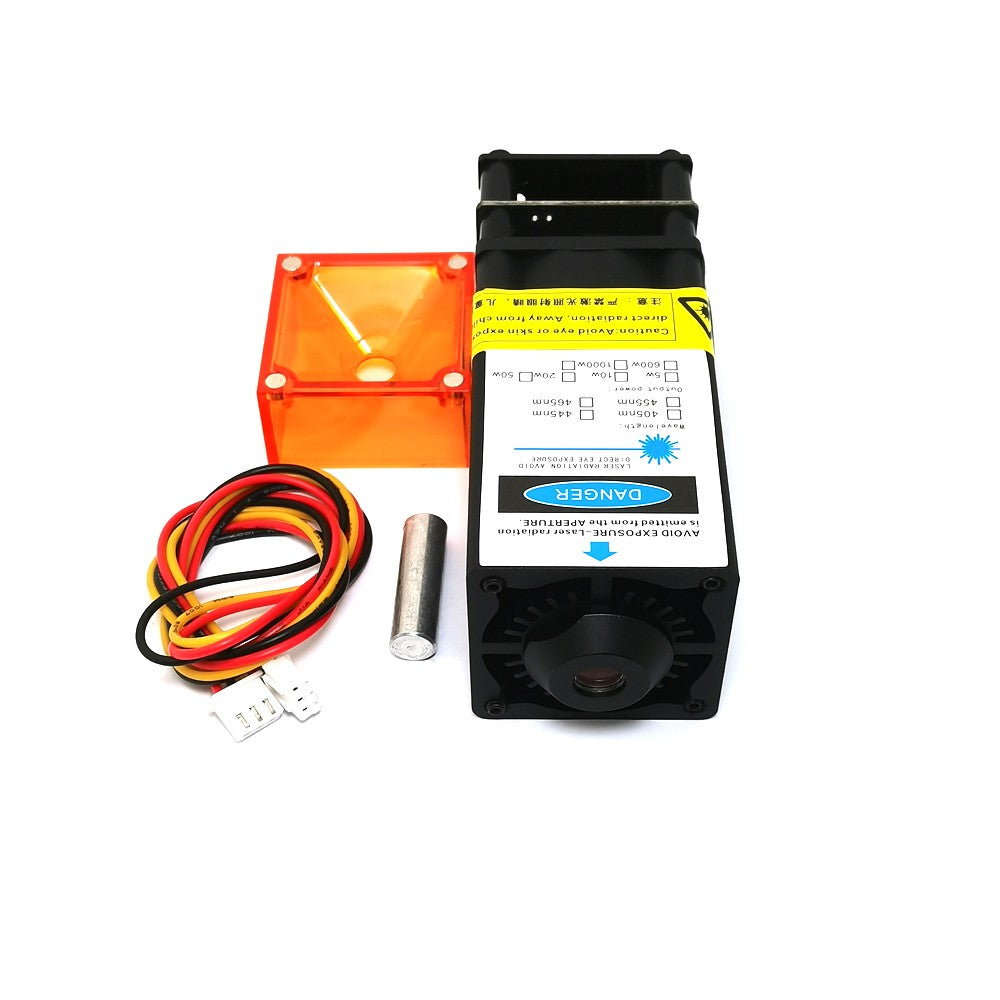

Package:

1*450nm 5W Blue Light Engraving Laser
