450nm Adjustable Focus Blue Cross Laser Module, 30mW 50mW 80mW 100mW Cross Line Laser Positioning Locator

Product Overview

This 450nm blue cross laser positioning module features an all aviation aluminum metal housing with matte black oxidation insulation treatment for outstanding heat dissipation and structural durability. Equipped with ACC constant current control circuit, it delivers stable laser output with continuous service life exceeding 8000 hours. Adopting adjustable focus design, the thickness of cross lines can be freely adjusted, with a default 60° emission angle. Multiple power options are available, perfectly suited for industrial positioning, equipment calibration, machinery alignment and auxiliary marking tasks.

Key Features

✅ Full aviation aluminum all-metal shell, robust and excellent heat dissipation
✅ Matte black oxidation surface with insulation treatment
✅ Built-in ACC constant current circuit for stable long-term operation

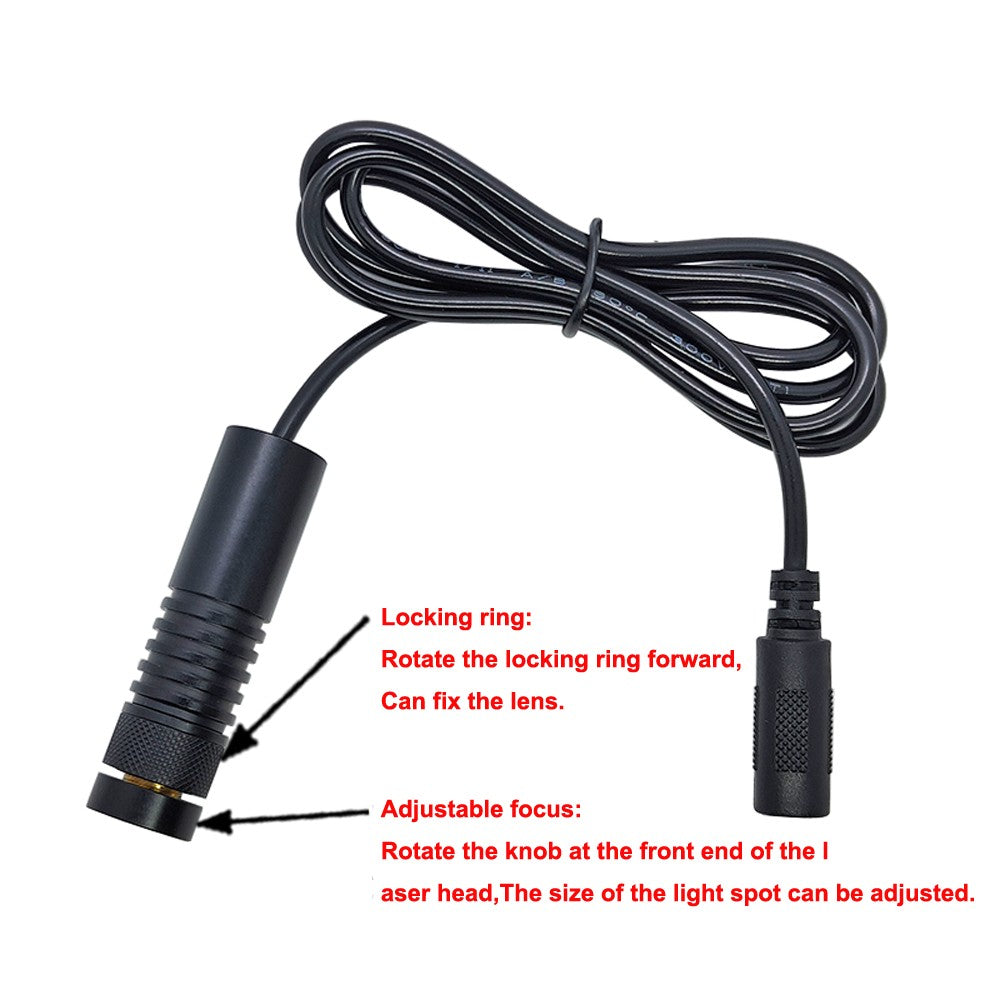

✅ Adjustable focus to control cross line thickness flexibly
✅ Default 60° cross line emission angle
✅ Multiple power specifications optional to satisfy diverse working demands
✅ Wide temperature adaptability for different working conditions

Specifications

• Material: Aviation Aluminum, All Metal Shell
• Surface Treatment: Matte Black Oxidation with Surface Insulation
• Continuous Service Life: ＞8000 Hours
• Wavelength: 450nm±10nm
• Output Power: ＜30mW / ＜50mW / ＜80mW / ＜100mW Optional
• Effective Distance: Up to 5 Meters (Indoor use; working distance affected by ambient light)
• Laser Shape: Cross Line Beam, Adjustable Line Thickness, Default 60° Emission Angle
• Focus Mode: Adjustable Focus
• Control Circuit: ACC Constant Current Circuit
• Working Voltage: DC 3V~5V
• Working Current: • 30mW: ＜160mA • 50mW: ＜180mA • 80mW: ＜230mA • 100mW: ＜280mA
• Operating Temperature: -10℃ ~ +50℃
• Storage Temperature: -20℃ ~ +70℃

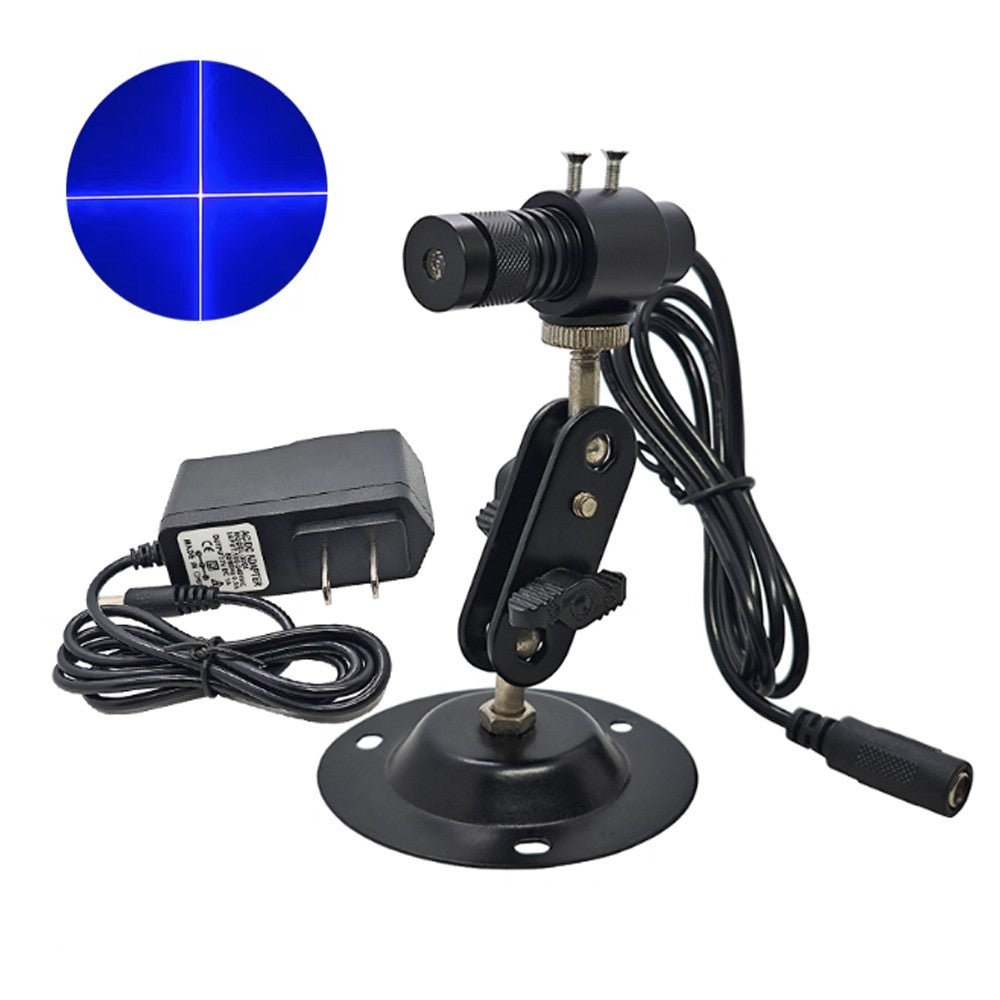

Package Includes

1 × 450nm Cross Laser Module

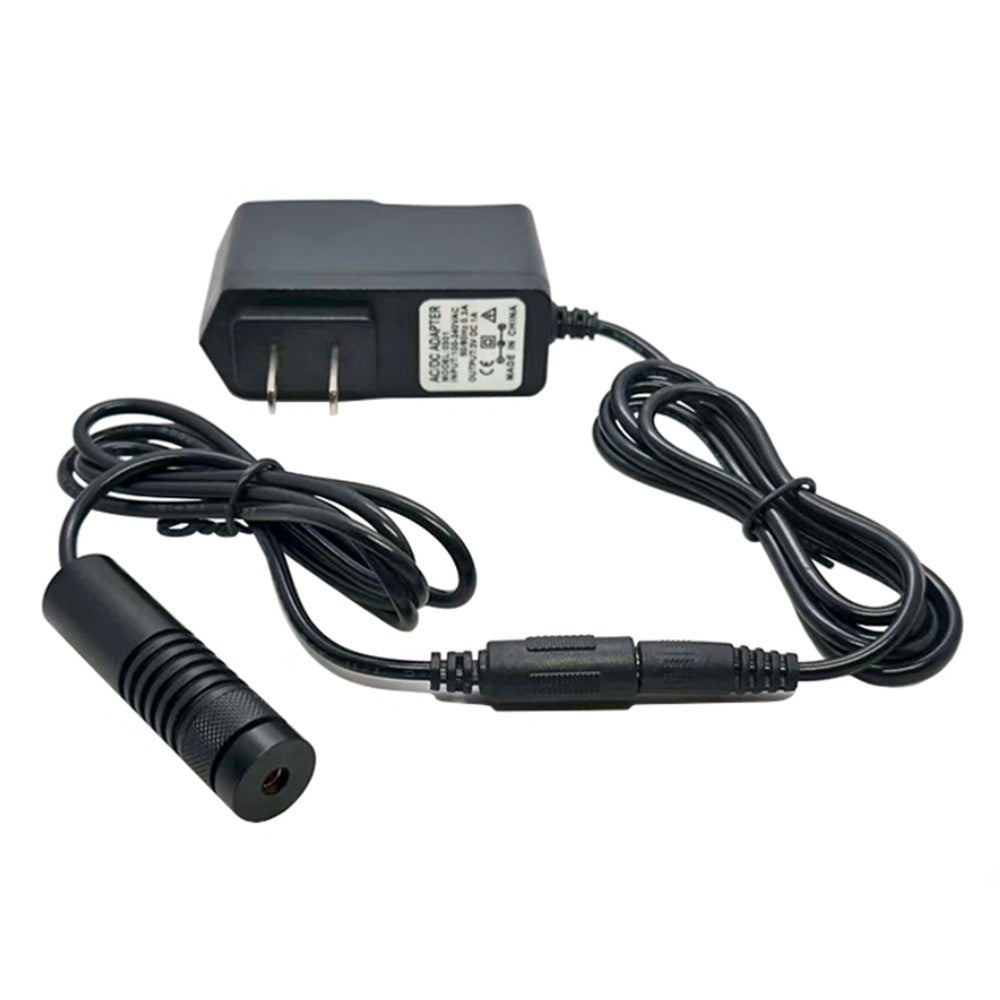

1 × Power Supply

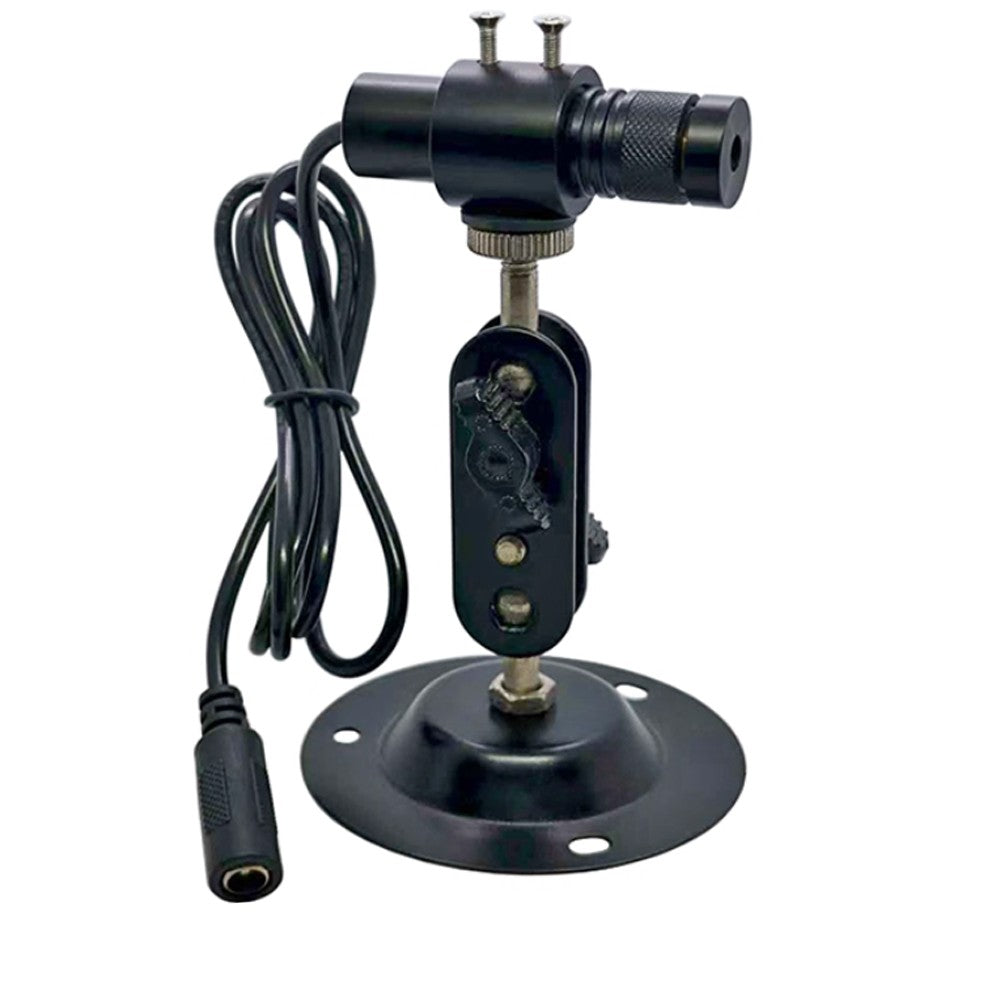

1 × Mounting Bracket

Application Scenarios

Mechanical equipment calibration, woodworking cross positioning, automated assembly alignment, textile positioning, processing auxiliary marking, engineering auxiliary layout and other industrial cross positioning occasions.

⚠️ Important Safety Warning

Laser radiation. Do NOT stare directly into the laser beam.Not a toy. Keep away from children. Designed for professional industrial application only. Laser safety goggles are recommended during operation.
