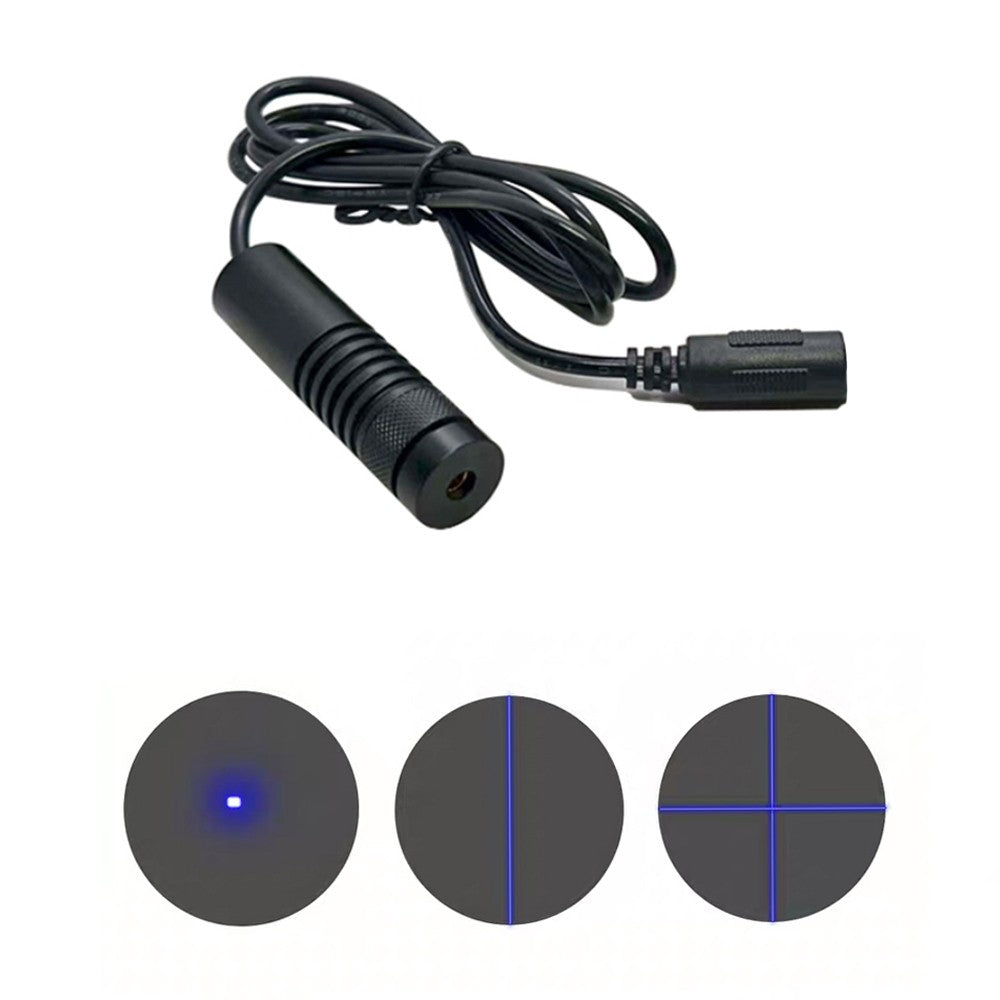

450nm Blue Laser Module Adjustable Focus, 30mW 50mW 80mW 100mW Dot Line Cross Blue Light Laser Locator Positioning Light

Product Overview

450nm blue laser positioning module adopts full aviation aluminum metal housing with matte black oxidation insulation treatment, sturdy structure and excellent heat dissipation performance. Built-in ACC constant current drive circuit, stable laser output, long continuous service life up to over 8000 hours. Support adjustable focus, available in multiple power options for industrial positioning, marking, equipment calibration and auxiliary alignment.

Specifications

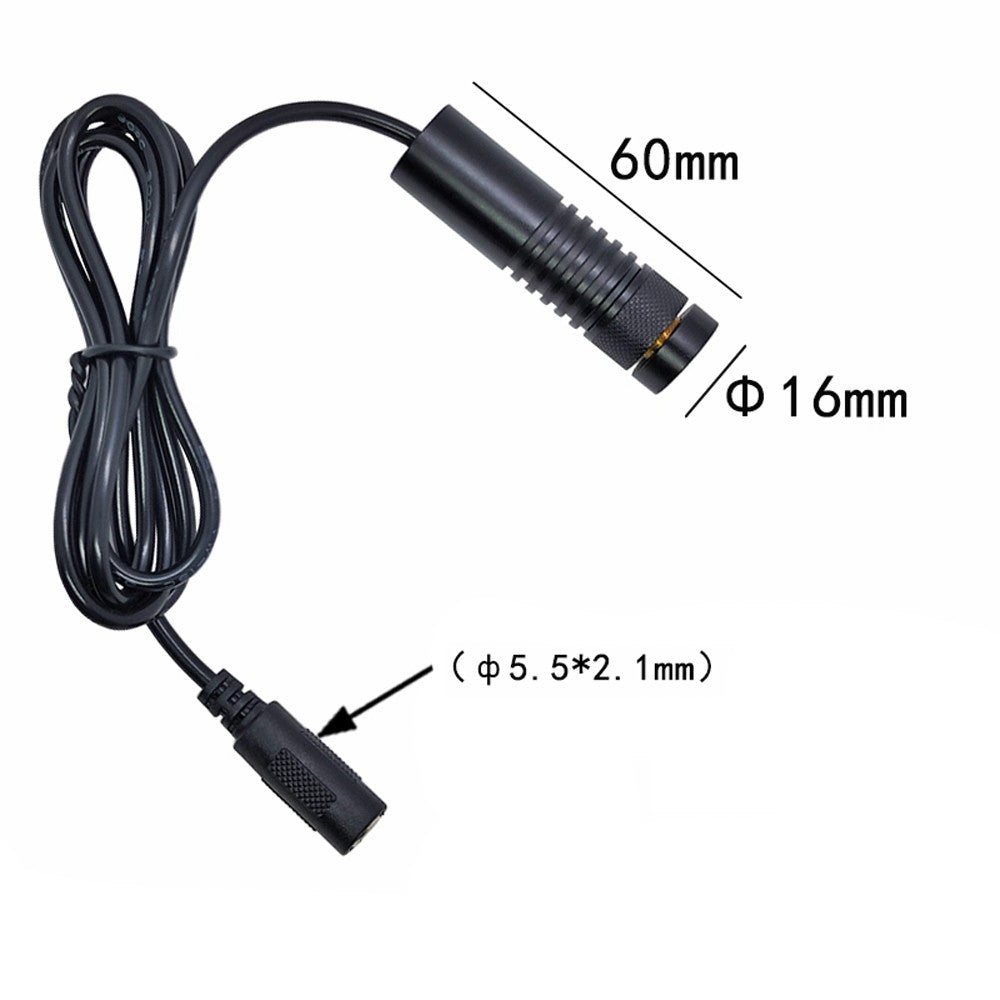

• Material: Aviation Aluminum, All Metal Shell
• Surface Treatment: Matte Black Anodizing with Surface Insulation
• Service Life: Continuous working lifespan＞8000 Hours
• Wavelength: 450nm±10nm
• Output Power: ＜30mW / ＜50mW / ＜80mW / ＜100mW Optional
• Effective Range: Up to 1100 Meters (Indoor use; laser distance will be influenced by ambient light)
• Spot Feature: Dot beam, oval spot, spot size＜10mm @ 10 Meters

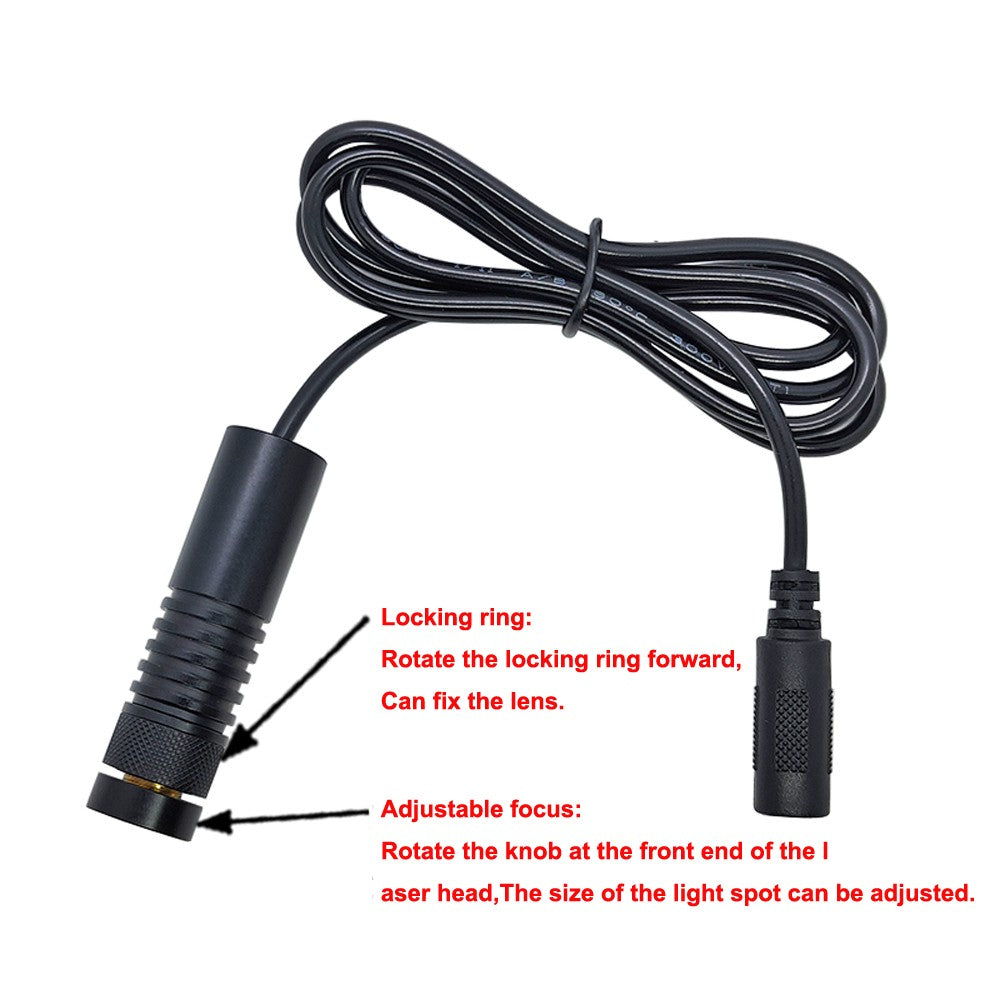

• Focus Mode: Adjustable Focus
• Circuit: ACC Constant Current Control Circuit
• Working Voltage: DC 3V~5V
• Working Current: ✔ 30mW: ＜160mA ✔ 50mW: ＜180mA ✔ 80mW: ＜230mA ✔ 100mW: ＜280mA
• Operating Temperature: -10℃ ~ +50℃
• Storage Temperature: -20℃ ~ +70℃

Features

✅ Full aviation aluminum casing, good heat resistance & durability
✅ Matte black insulated surface treatment, anti-interference
✅ ACC constant current circuit ensures stable luminous performance
✅ Freely adjustable focus to meet different distance demands
✅ Multiple power options for diverse industrial scenarios
✅ Long continuous service life, low failure rate

Application Scenarios

Industrial mechanical positioning, cutting auxiliary marking, automated equipment calibration, woodworking alignment, machinery positioning, experimental auxiliary light source and other non-entertainment industrial usage.

Important Safety Notice

⚠️ Laser radiation, DO NOT stare directly into laser beam.
⚠️ Not a toy. Keep away from children.
⚠️ Suitable for professional industrial operation only.
⚠️ Please wear corresponding laser protective goggles during operation.
