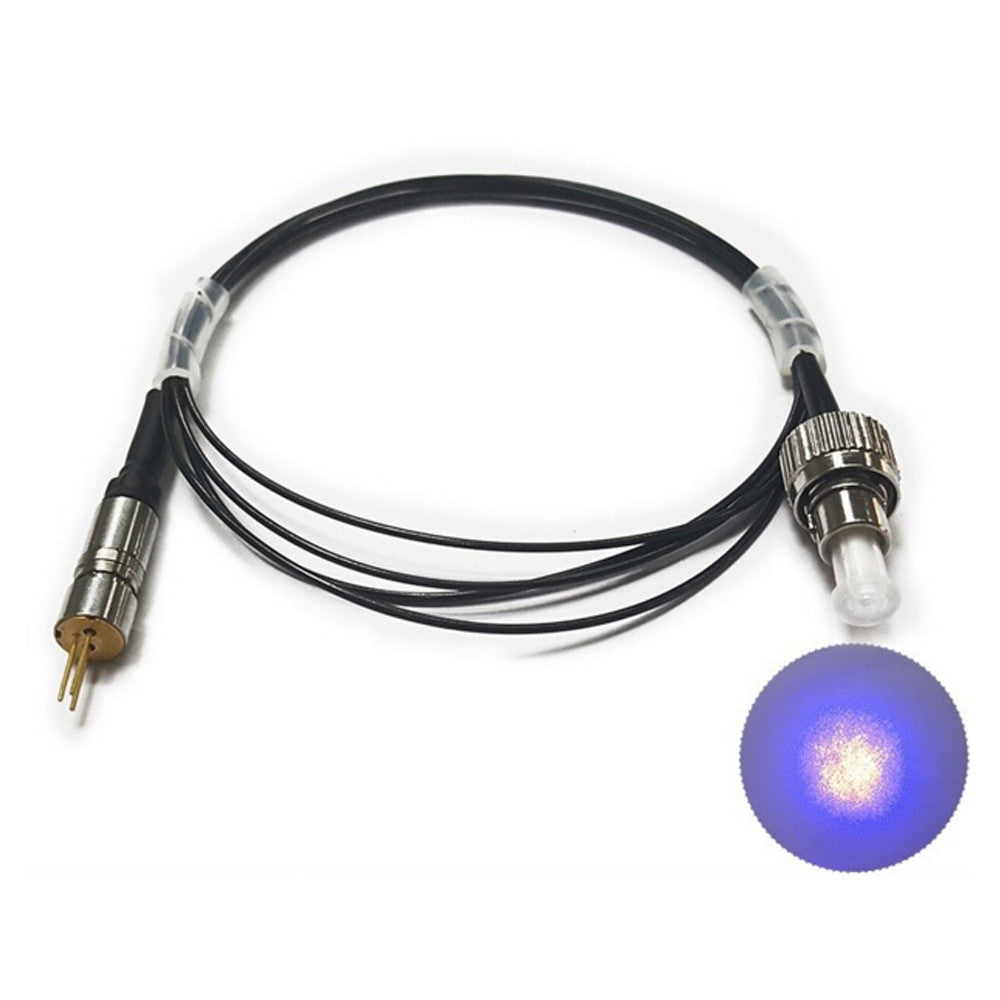

450nm80mw Semiconductor Laser Coupler Splitter Fiber Blue Laser Module Lamp

450nm80mw Semiconductor Laser Coupler Splitter Fiber Blue Laser Module Lamp

Output wavelength: 450±10NM

Output power: <80MW

Size: 6*16MM

Fiber Material: Quartz

Fiber core diameter: 200 microns

Fiber length: 1 meter

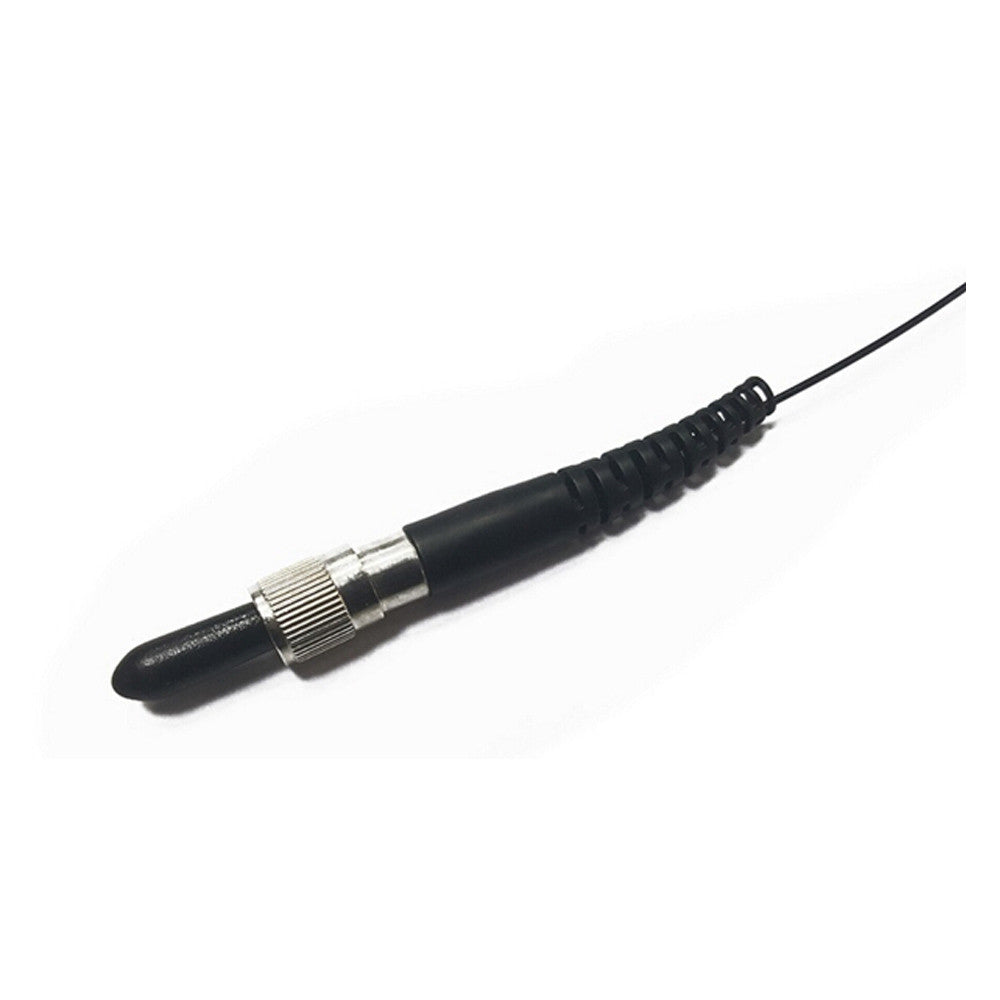

Connector type: FC connector (customizable)

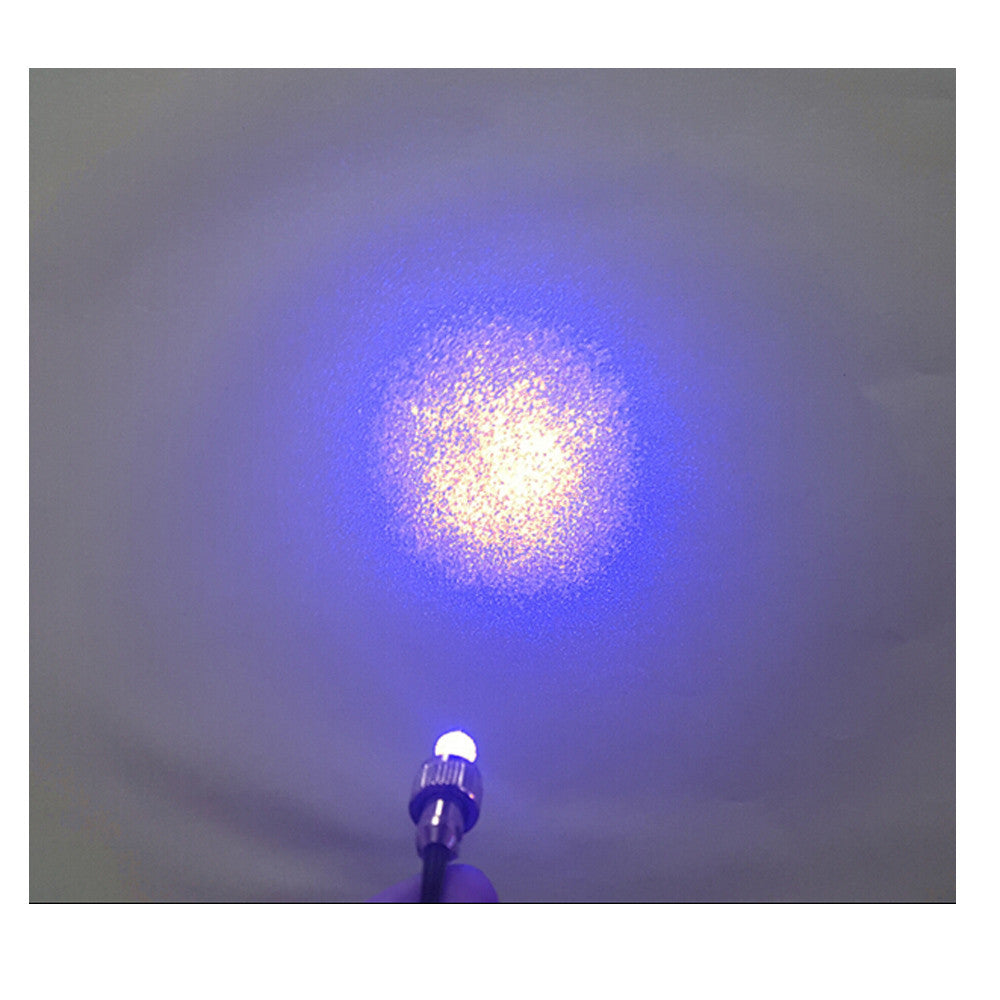

Spot shape: astigmatism

Coupling lens material: optical glass

Bare tube starting voltage: DC5V

Circuit control mode: ACC constant current control board

Plus driver board voltage: DC6V

Bare tube maximum working current: <120MA

Wire: UL1571 28#150MM red and black electronic wire

Working temperature: -10 ° C ~ +70 ° C

Storage temperature: -40 ° C ~ +85° C

Producing time: 12-15 working days

Buying advice:

Please determine the distance used and reserve a certain length.

The default product does not have a board. If you want to add a board, please contact us.

Prompt:

Do not bend the fiber optic cable excessively to avoid fiber breakage.

Do not place heavy objects on the fiber.

When the dust jacket is not in use, try not to remove it to prevent dust pollution.

Do not pull too much to prevent the fiber connection from coming off.

Package:

1*450nm80mw Semiconductor Laser Coupler Splitter Fiber Blue Laser Module Lamp
