505nm 35mw Green Laser Diode CW 100mA 7.5V TO18 5.6mm -10/+60℃ New
505nm 35mw Green Laser Diode CW 100mA 7.5V TO18 5.6mm -10/+60℃ New
Regular price
$25.00
Regular price
$30.00
Sale price
$25.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
505nm 35mw Green Laser Diode CW GH05030C2LM 100mA 7.5V TO18 5.6mm New -10/+60℃
Description:
505nm 35mw Green Laser Diode GH05030C2LM
Country of Origin: Japan
Output power: CW 35mW
Working current: Max 100mA
Working voltage: Max 7.5V

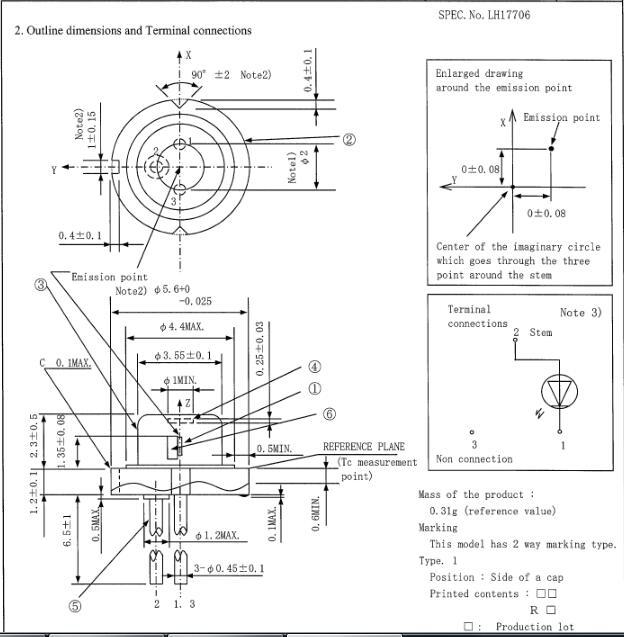

Package: TO18 (5.6mm)
Operating temperature: -10 / +60 ℃
Storage temperature: - 40 ℃ / + 85 ℃
Welding time: less than 10 seconds
Welding temperature : less than 260 ℃
Working life: less than 10,000 hours
Precautions:
This component is sensitive to static electricity, do not do the anti-static measures Do not touch the laser tube body directly by hand, in addition to this product must have qualified drive circuit to work properly, different voltage power, but the work current is different, The driving current needs to be controlled within the safe range, otherwise it will affect the life. Our own self-developed step-up constant current circuit, with soft-start and reverse polarity protection, there is a need friends can contact the owner.
The laser diode is special product, before delivery to ensure good condition, brand new, once sold,no warranty and not accept return.Thanks for understanding!
Package:
1 x 505nm 35mw Green Laser Diode GH05030C2LM
