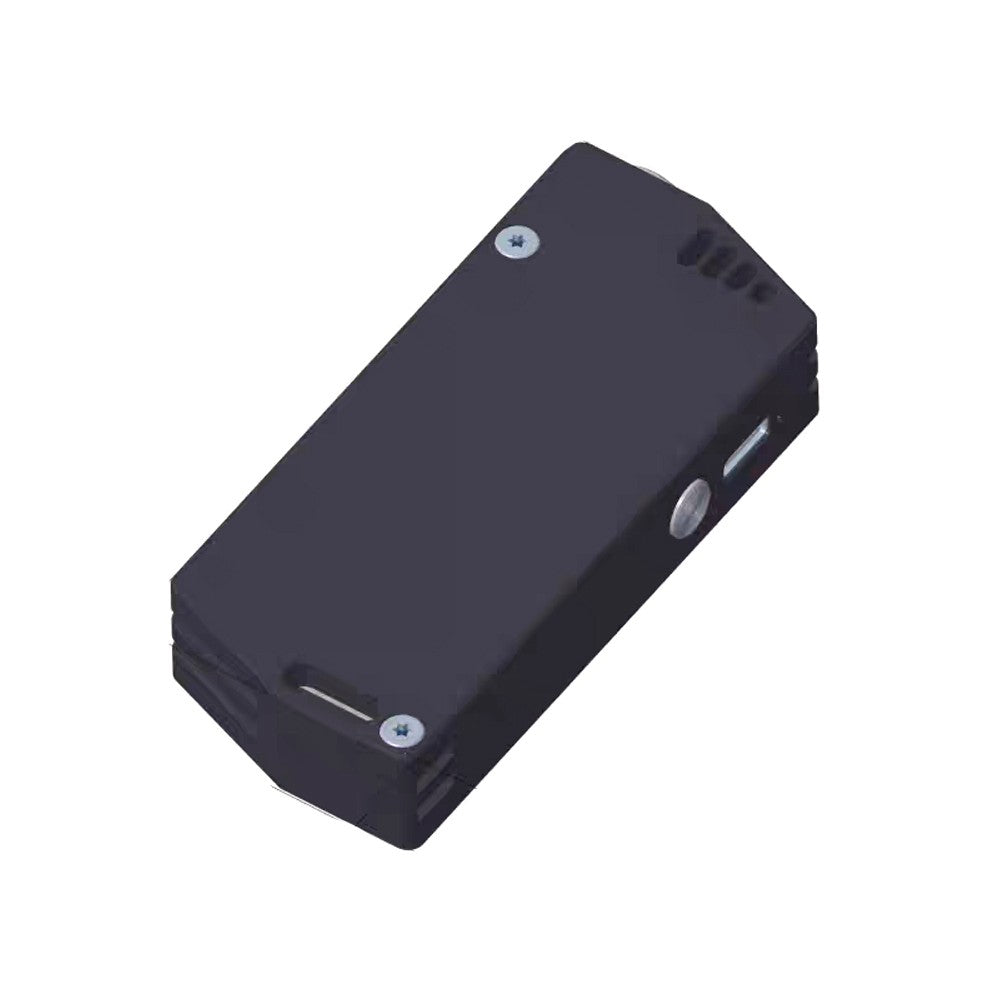

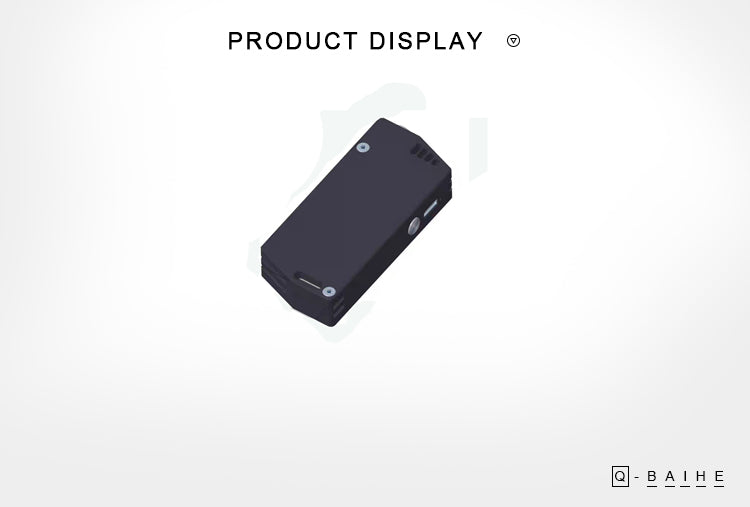

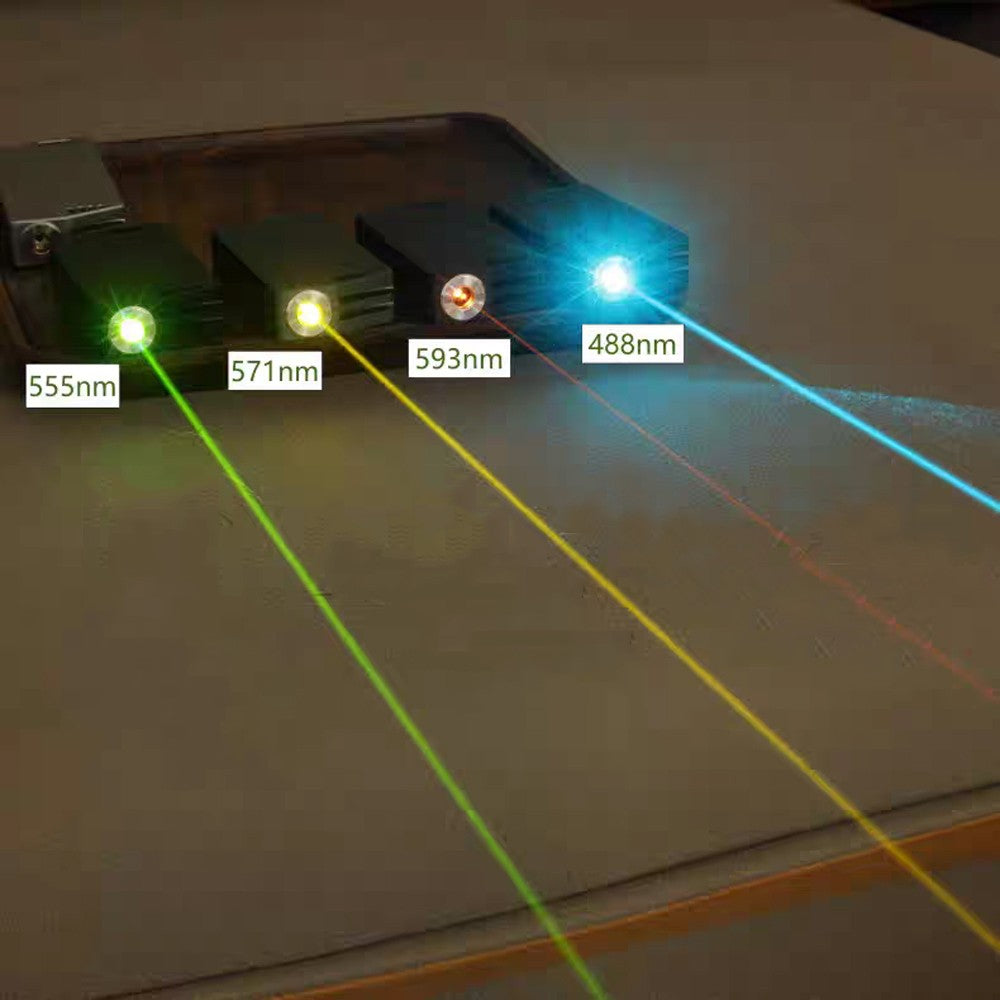

488nm 505nm 520nm 545nm 555nm 571nm 593nm 638nm 658nm Yellow Green Blue Laser Module

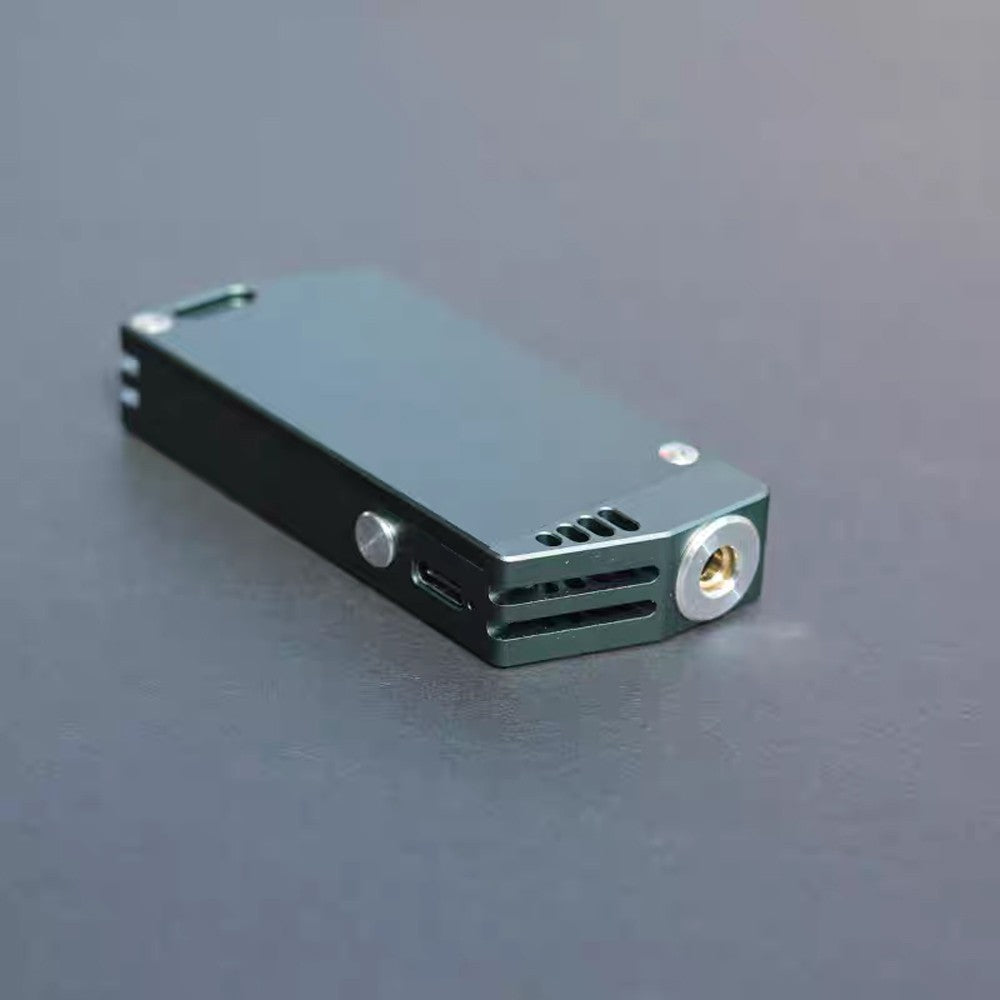

Product structure design features:

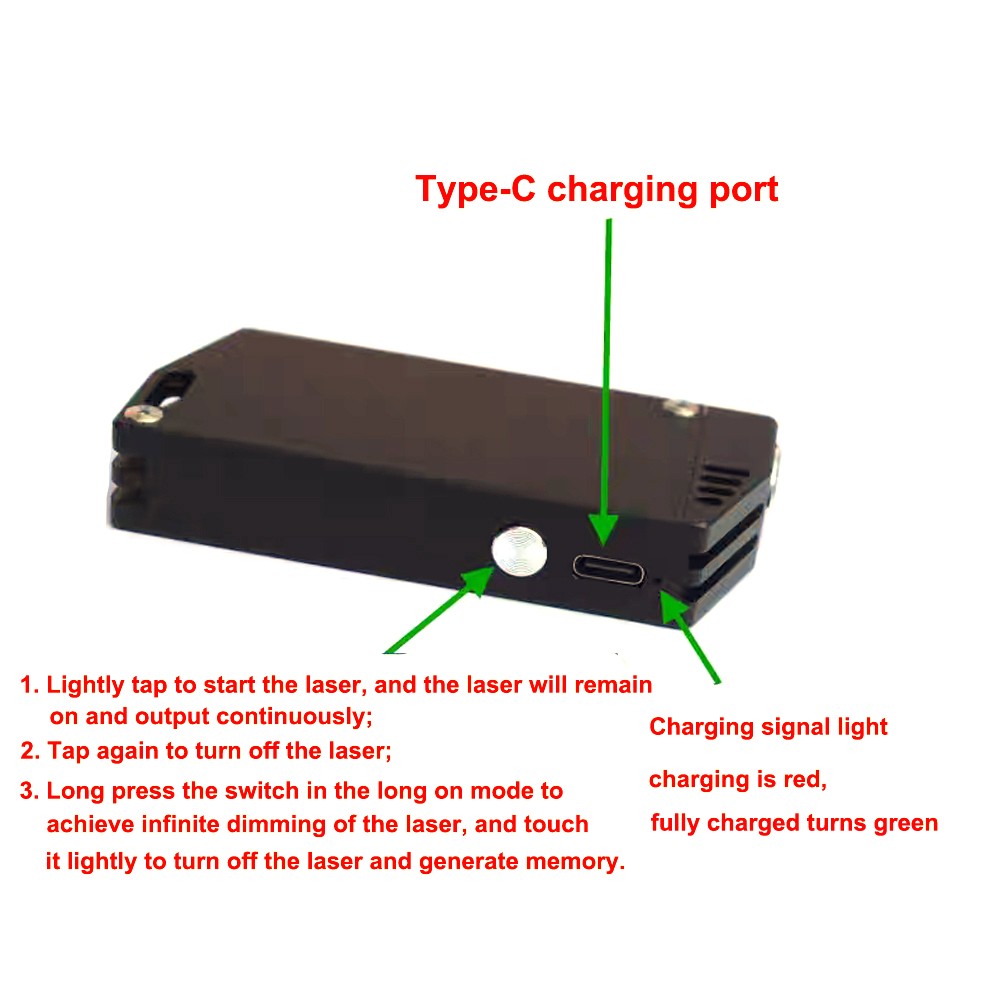

1. The shell is made of 6061 aviation aluminum, processed by CNC machining, and treated with three-level hard oxygen treatment;
2. Built in rechargeable polymer lithium battery, TYPE-C direct charging, convenient and practical;
3. Tap the button to start, long press to infinitely adjust power;
Specifications

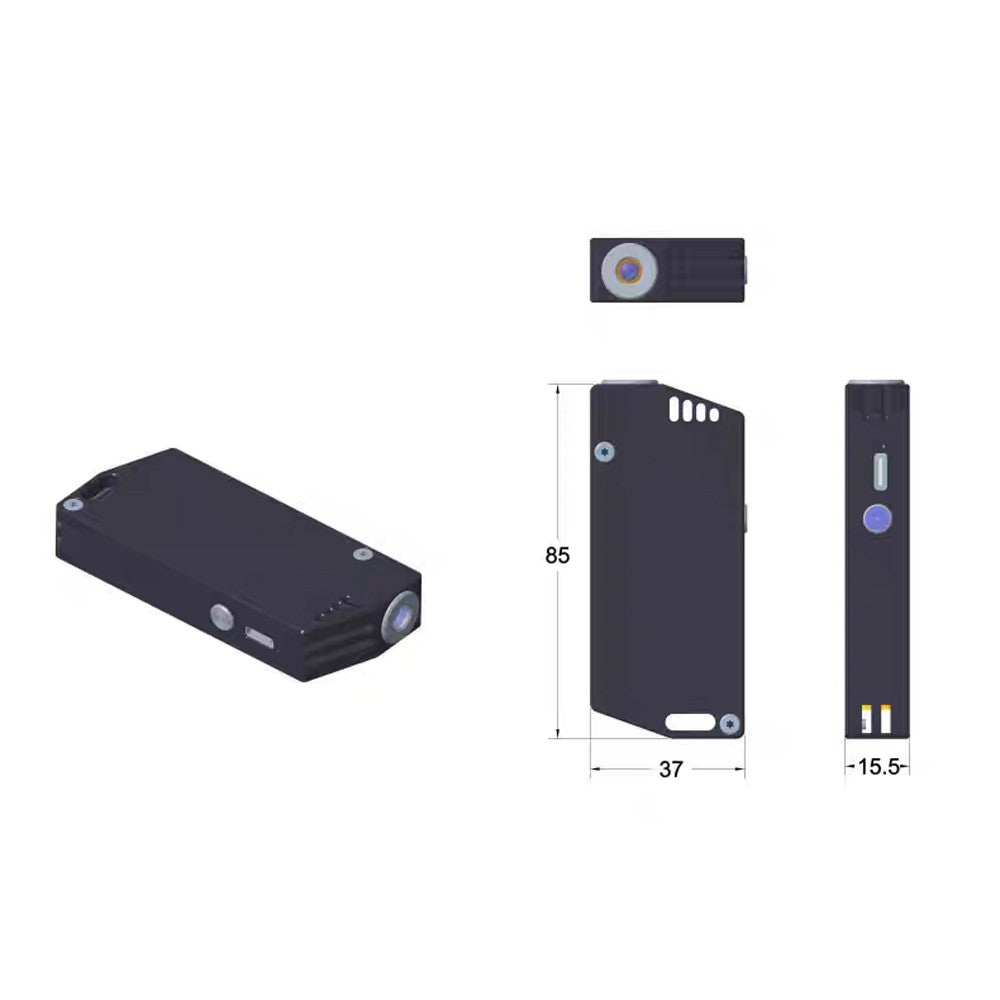

Dimensions: 85 * * 37 * 15.5mm
Shell material: 6061 aviation aluminum

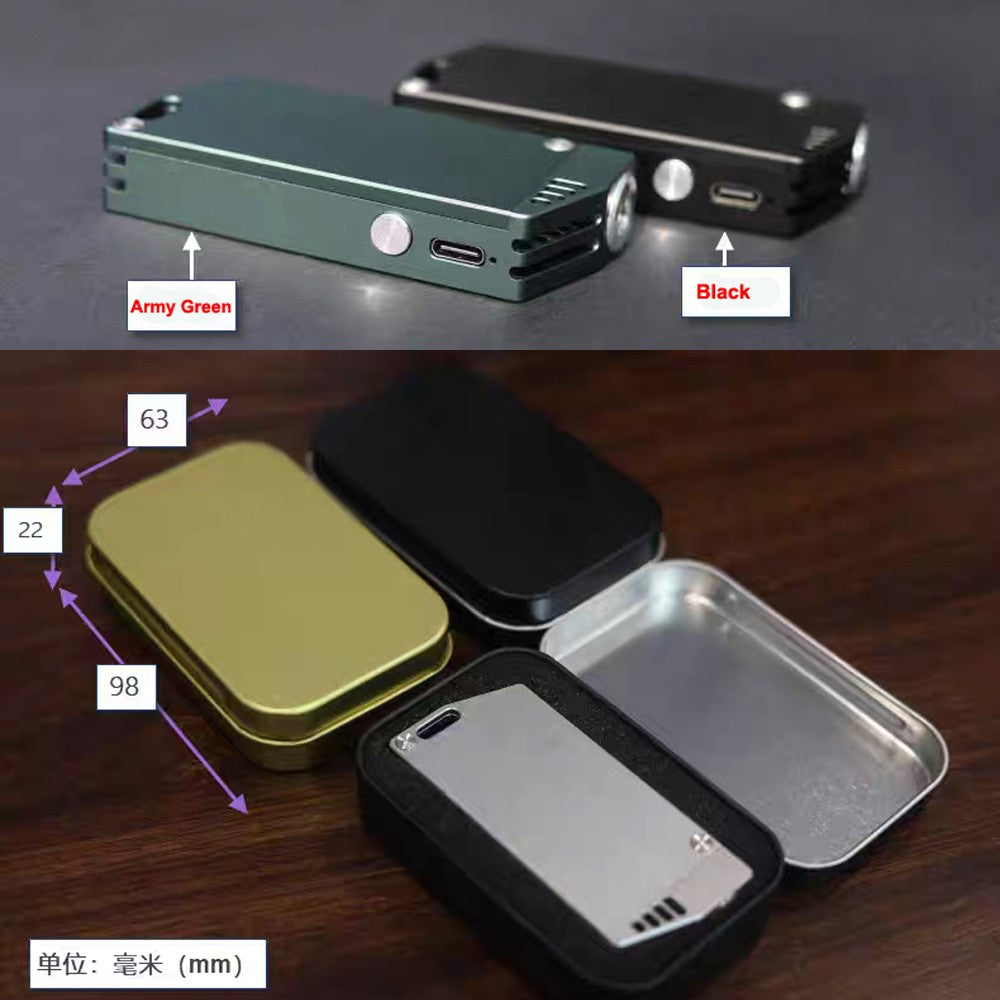

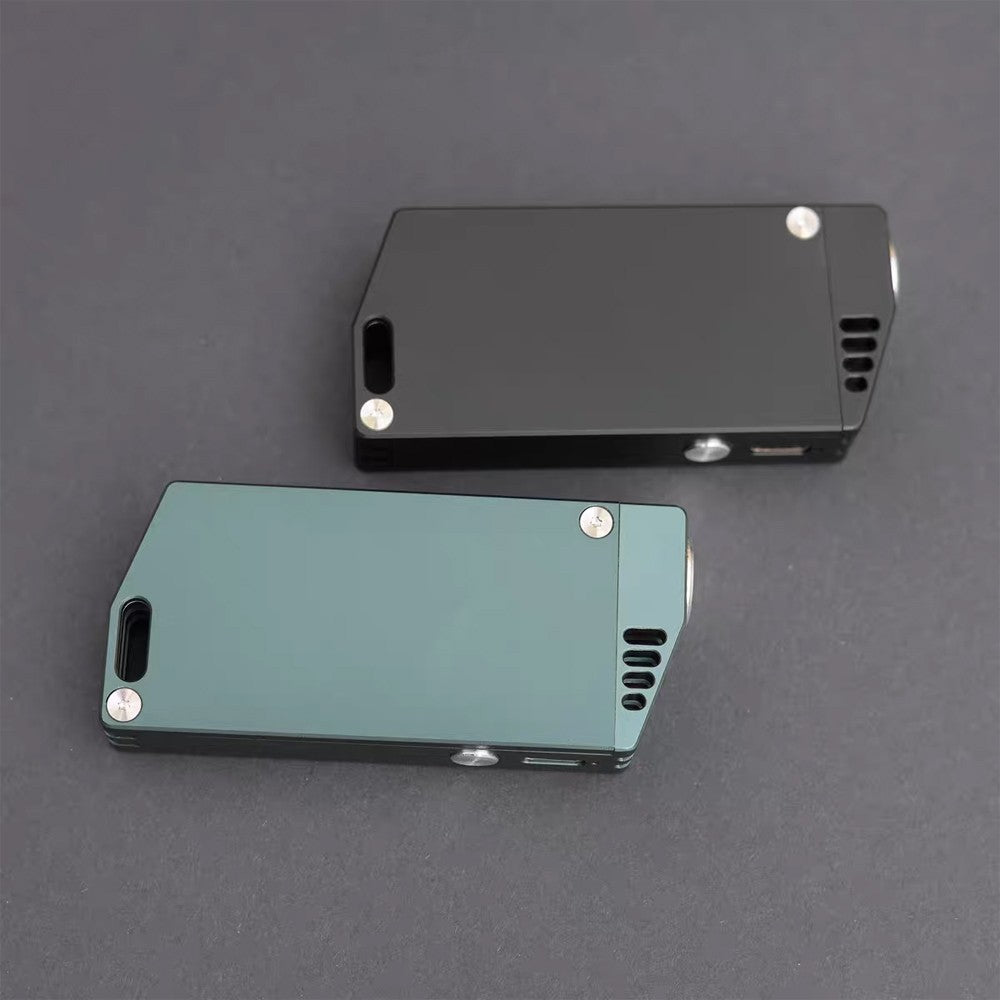

Surface treatment: Surface oxidation black/military green two colors (random)

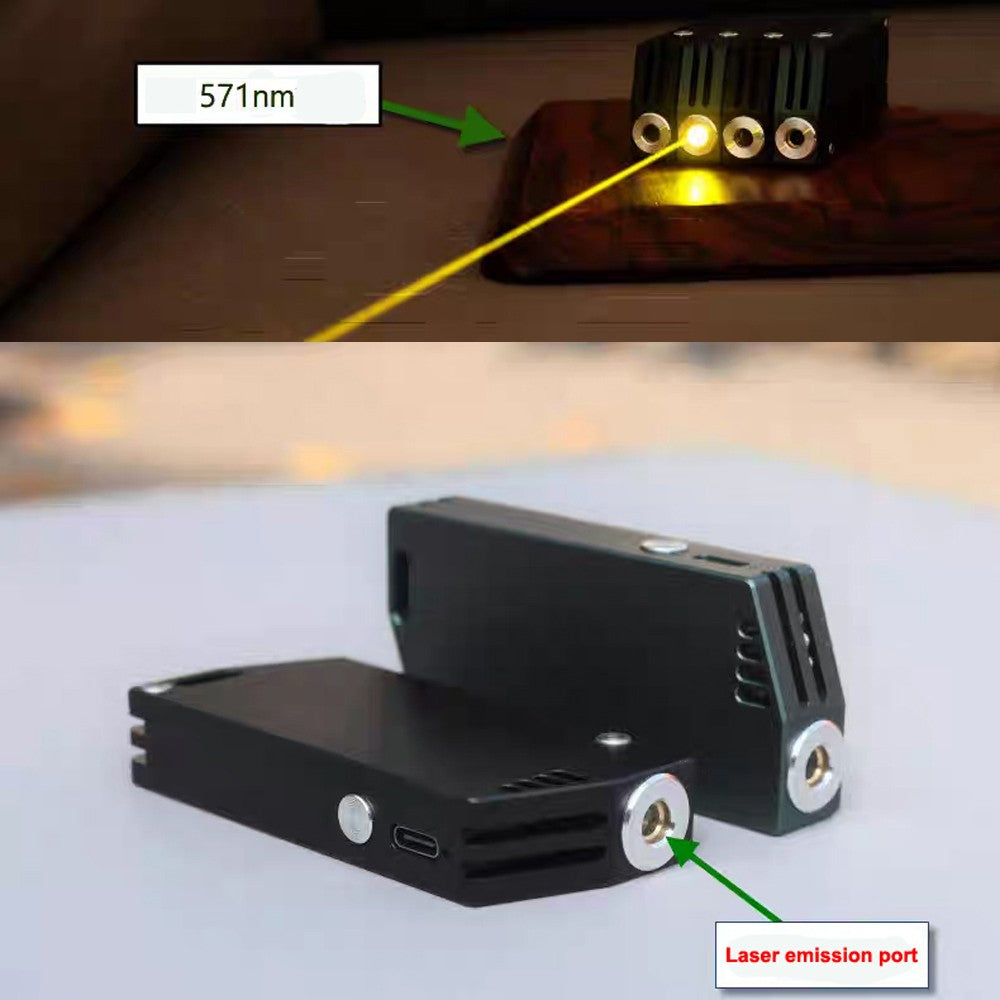

Output wavelength: 593nm/405nm/555/505nm/520nm/488nm/638nm/658nm, etc
Gear setting: Lightly touch to light up, long press to infinitely dim
Switch mode: light touch self-locking
Center wavelength: selected
Output power: 10-200mW
Average power: optional
Safety level: Class 3B
Circuit control: 5V boost or 5V buck, depending on the corresponding driver equipped with the laser diode
Circuit efficiency: voltage conversion efficiency of over 93%
Spot form: Point like
Beam Style: Continuous Linear
Spot size: about 5M<8-12mm in the middle
Focusing method: fixed focus
Focusing method: Non adjustable focus
Waterproof level: Not waterproof
Working current: 3.7V@100-380mA
Battery type: Built in polymer rechargeable battery cell
Battery direction: Built in battery, anti reverse plug port
Battery capacity: 1000mAh
Working voltage: DC=3.7V
Starting voltage: DC=2.5V
Preheating time: 593nm yellow light needs to be preheated below 25 degrees Celsius, other wavelengths do not need to be preheated
Working temperature: -10 ° C~+60C
Storage temperature: -10 ° C~+40 ° C
Packaging method: Black or gold metal box (random)
Charging method: TYPE-C direct charging
Note: This price includes one laser and one packaging box
