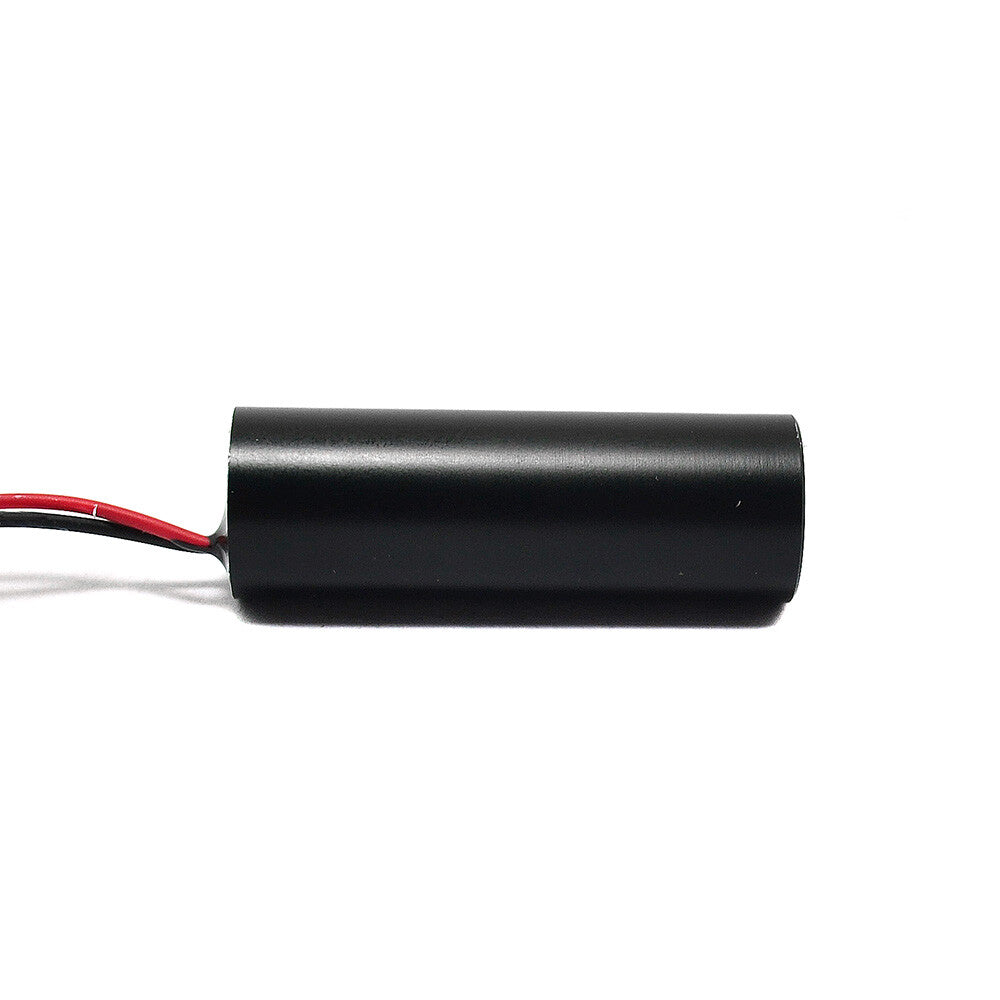

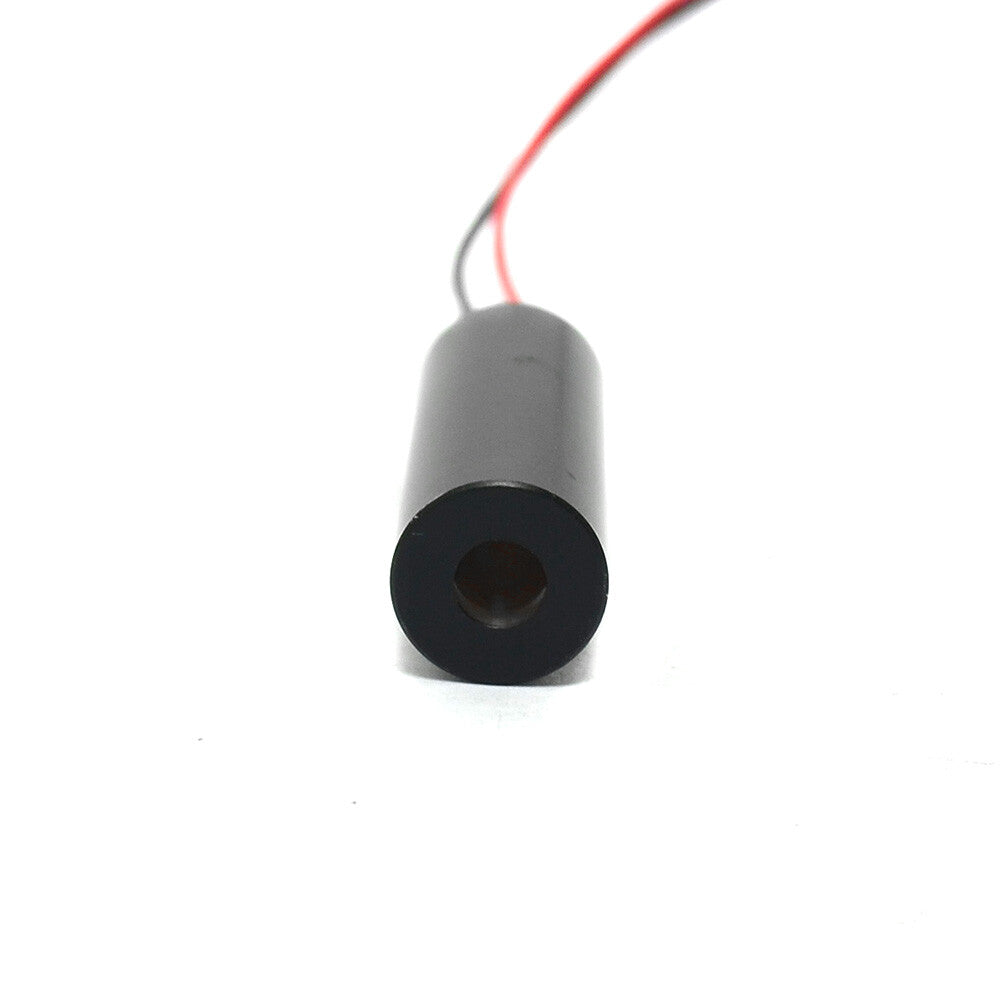

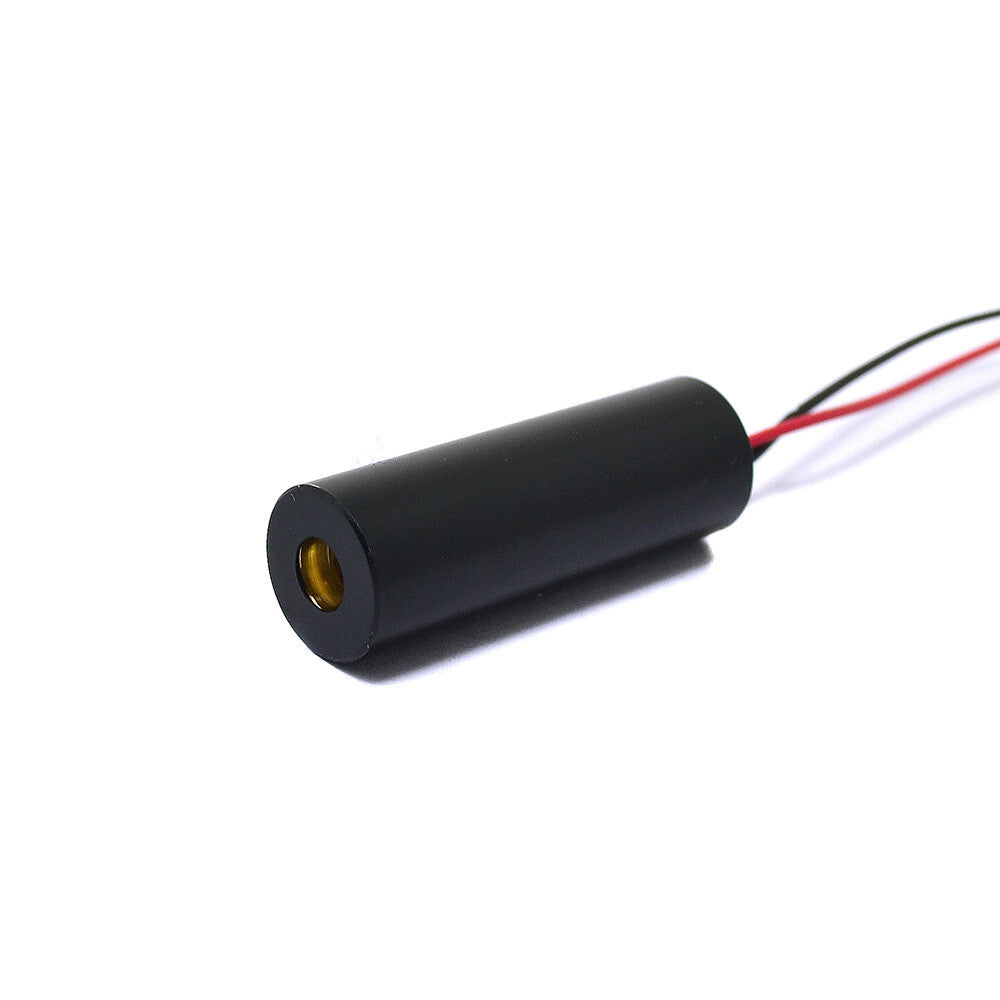

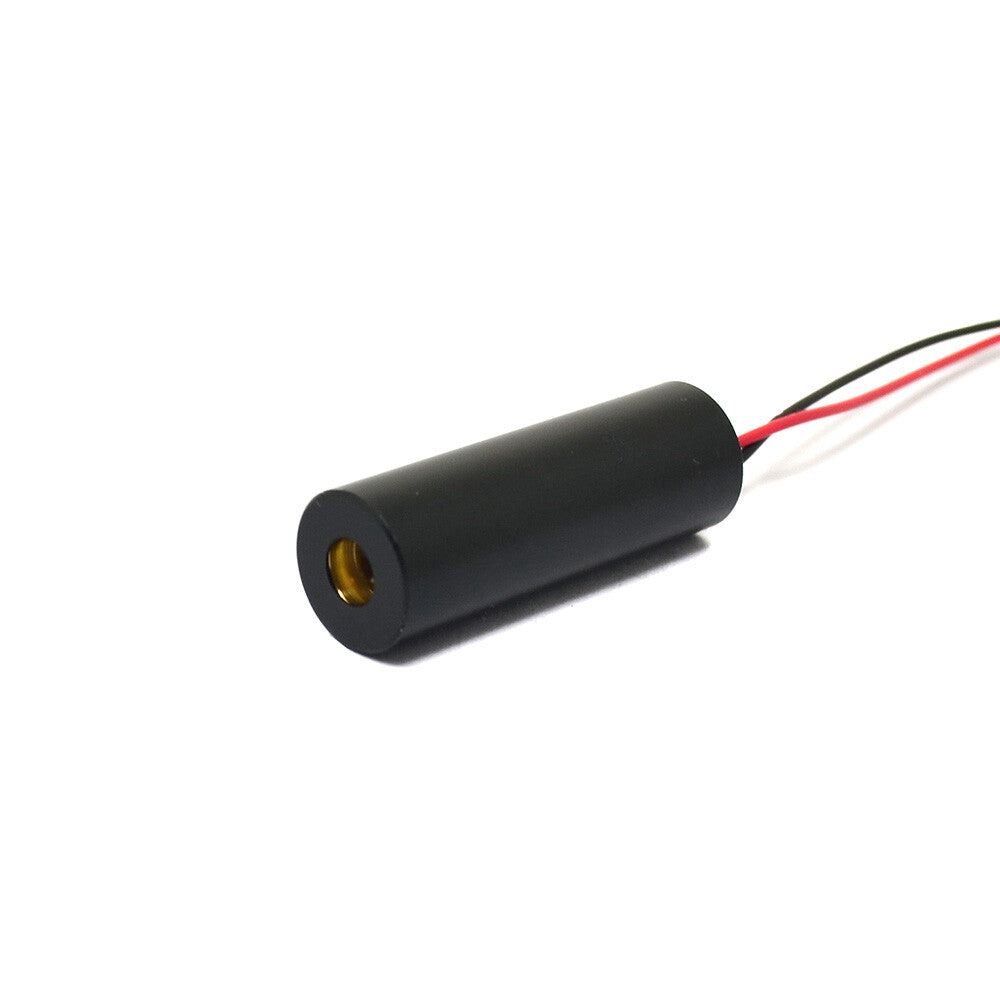

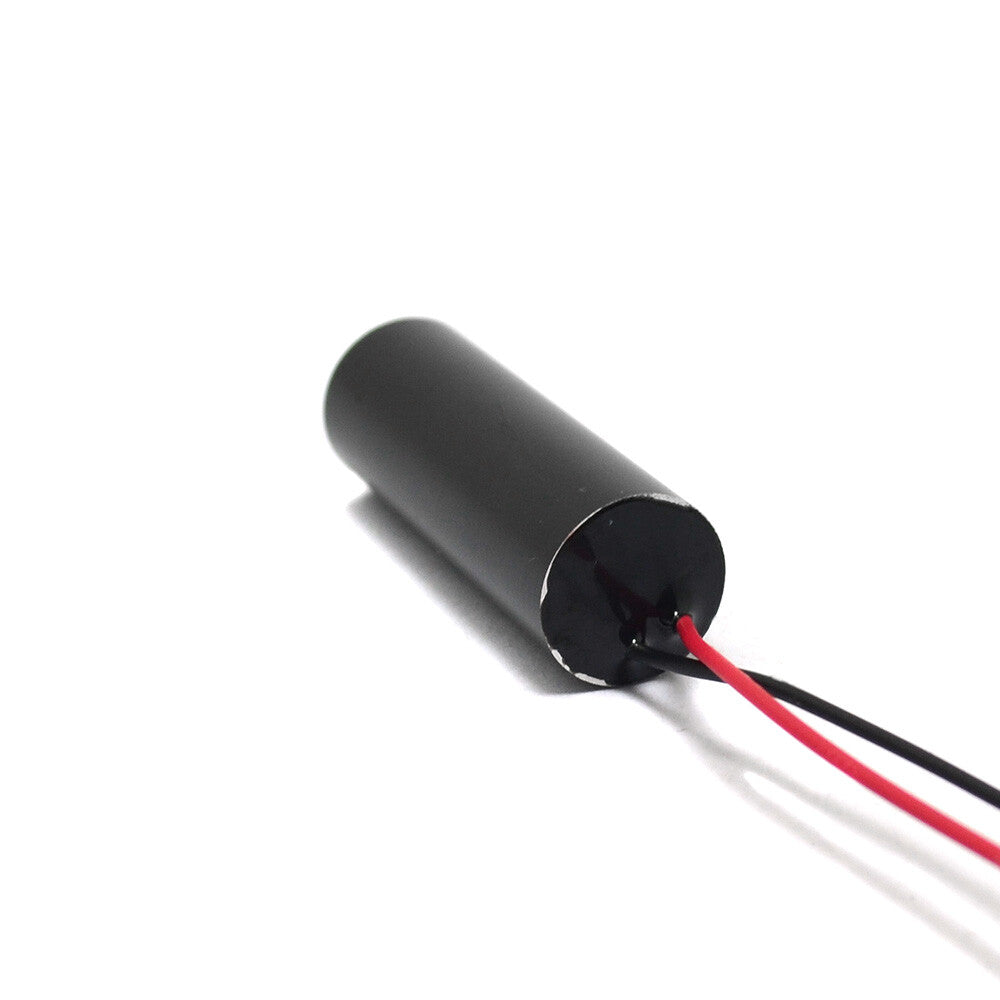

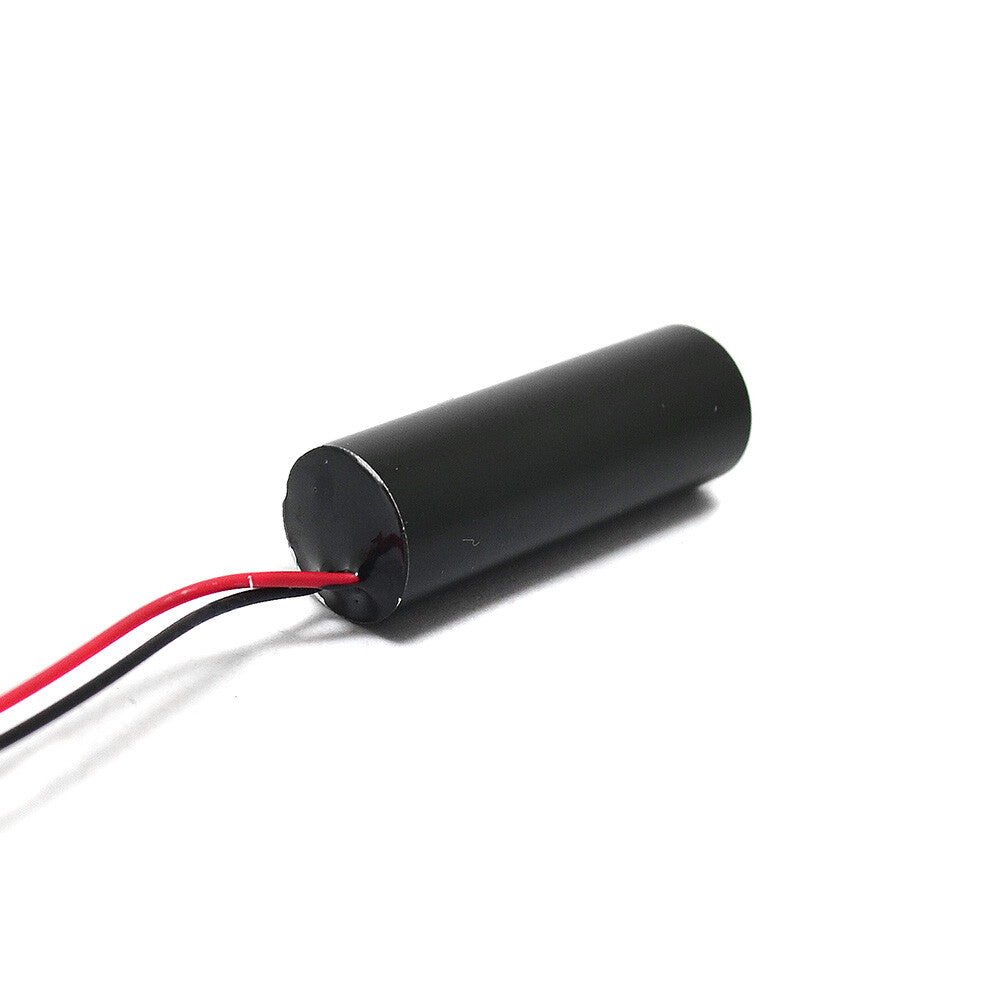

505nm 5mw 10mw 20mw 30mw Green Laser Module for Positioning Dot Line Cross DIY Lab
Specifications:
Test environment: T = 25 ℃
Model: HA350530D
Shell material: aluminum （environmental protection）
Dimensions: 10x35mm
Wire length: 150mm
Wavelength: 505nm
Divergence angle: <0.7mard (collimation)
Spot size: 10m spot <6x10, 1m spot <5mm
Lens Material: Glass K9
Output power: ＜30mw （as your choice）
Laser class: class Ⅲ b
Operating temperature: -10 ℃ ~ +60 ℃
Storage temperature: -40 ℃ ~ +80 ℃
Wavelength shift (nm / ° C): 0.25 nm
Circuit Mode: CW
Supply voltage: 2.8-3.5V
Working current: <200mA
Circuit Control: ACC
Life:> 10000h
Note:
Different power modules, the corresponding description are different, this description is for 30mw module!
You need match a 2.8V-6.5V driver power supply for this module by yourself.
Package:
1 x 505nm Laser Module
