515nm 520nm 10mW 30mW 50mW 80mW Green Lase TTL Modulated Dot Laser Module Laser

515nm 520nm 10mW 30mW 50mW 80mW Green Lase TTL Modulated Dot Laser Module Laser

$107.00
$130.00 $107.00
Sale Sold out
Shipping calculated at checkout.
Power

515nm 520nm 10mW 30mW 50mW 80mW Green Lase TTL Modulated Dot Laser Module Laser Accessories


Specifications:
Wavelength: 520nm ± 5nm

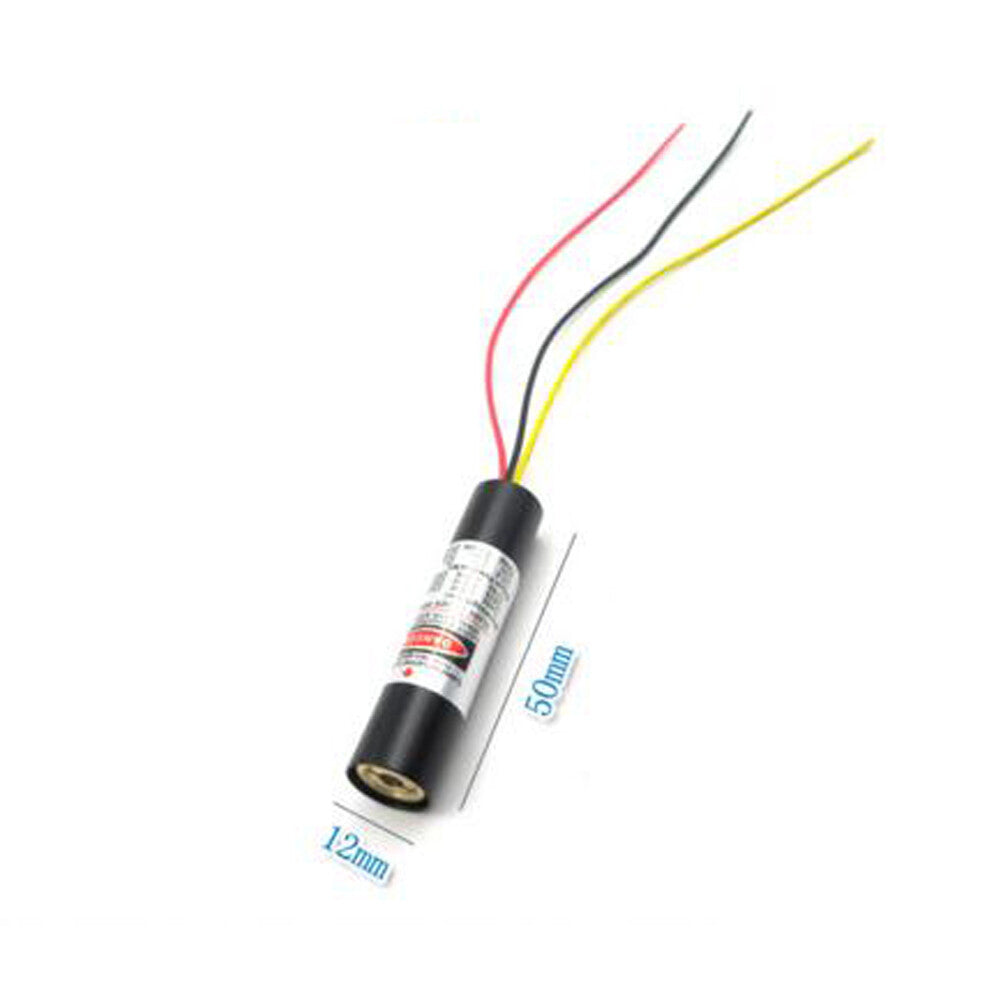

Size: φ12 * 50mm
Power: 10mW 30mW 50mW 80mW
Voltage: DC 2.8-5.2 (V)Can Be Customized

Power: 10mW
Working current: ≤ 200mA
Light distance:
During the day, indoor shooting can reach 0-700 meters
During the day, you can hit 0-250 meters outdoors
Can reach 0-2500 meters in dark environments

Power: 30mW
Working current: ≤ 300mA
Light distance:
During the day, indoor shooting can range from 0 to 1500 meters
During the day, you can go 0-400 meters outdoors
Can reach 0-4000 meters in dark environments

Power: 50mW
Working current: ≤ 400mA
Light distance:
During the day, indoor shooting can range from 0 to 2000 meters
During the day, you can go 0-500 meters outdoors
Can reach 0-5000 meters in dark environments

Power: 80mW
Working current: ≤ 600mA
Light distance:
During the day, indoor shooting can reach 0-2500 meters
During the day, you can hit 0-600 meters outdoors
Can reach 0-6000 meters in dark environments


Advantage:
1. Modulation frequency range 0—50KHZ (can be customized)
2. The spot size can be adjusted from 1mm to several centimeters to meet your different usage requirements.
3. The outer casing is aerospace aluminum-plated insulating varnish, which can fully dissipate heat and shockproof and anti-static
4. Laser diode direct illumination, high stability, can be turned on 24 hours a day
5.IC's intelligent driver board can be 2.8-5.2V ultra-wide range power supply (other voltage can be customized)
6. High temperature resistant Corrosion resistant DC plug wire Suitable for all-weather use
7. Wavelength Power Wire length Working distance Spot effect, etc. can be customized according to customer requirements


Package:
1*520nm Laser Module


View full details
