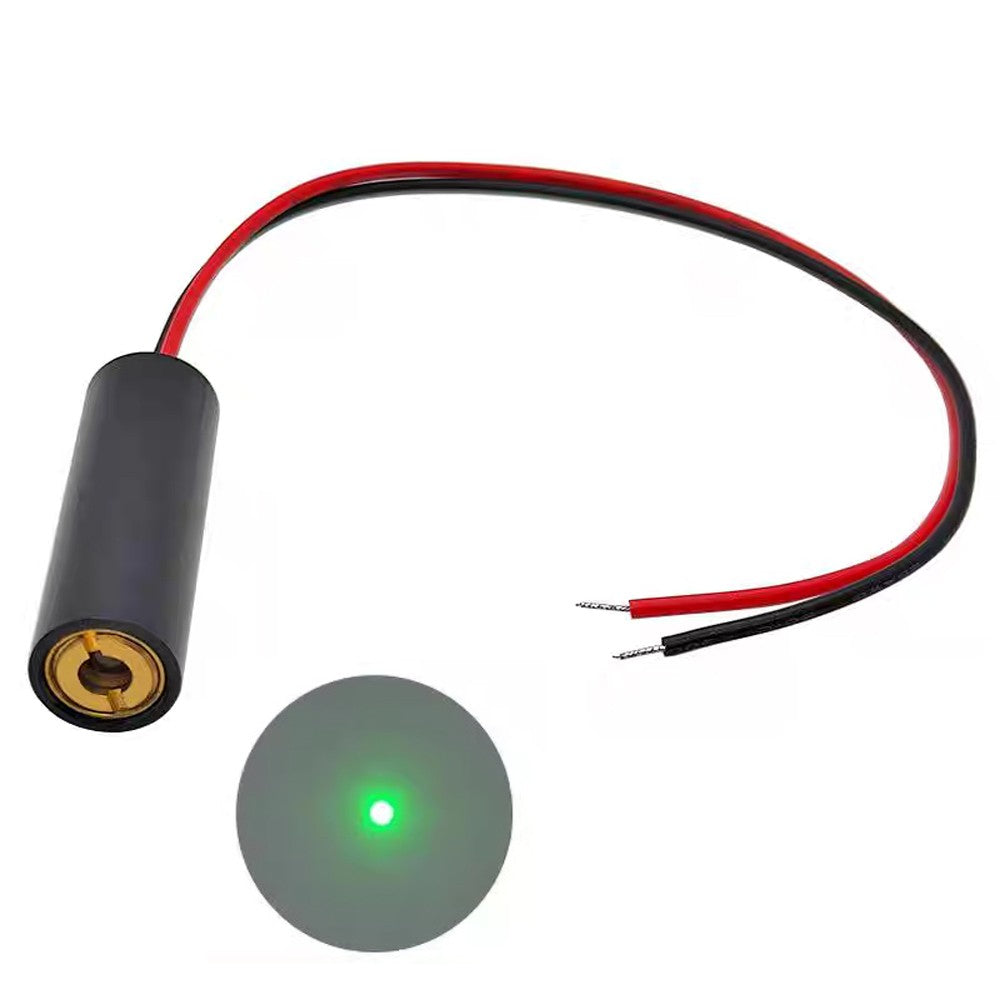

8X26mm 520nm 0.5mW 1mW 5mW 10mW Green Glass Lens internal Adjustable focus Dot Laser Module Positioning Lamp
Specifications:

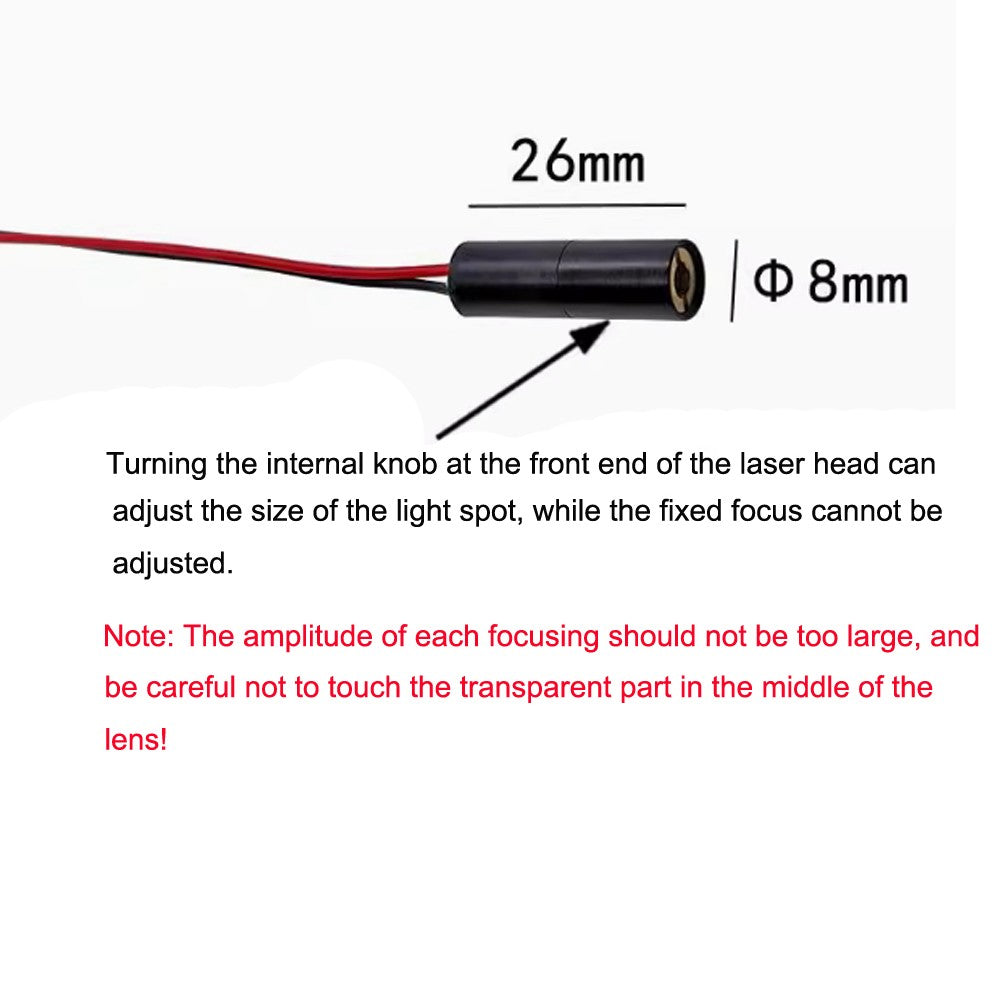

Size: Φ 8X26mm
Materia: Aviation aluminum (all metal shell,The lens material is usually A-grade high-quality glass lens)
Surface Treatment/Color: Black shell, surface insulation, oxidation mist black treatment
Service life: Continuous output, continuous service life>8000 hours
Output wavelength: 520nm±10nm
Output Power:＜0.5mW,＜1mW,＜5mW,＜10mW
Range:<200 meters(Indoor environment, laser will be affected by ambient light interference, and the distance will vary)
Spot shape/diameter: Dot like light, elliptical, spot size<Φ 6mm at 10m (adjustable focus)
Circuit Control: ACC Circuit
Working voltage: DC3.0~5V
Working current: I<80mA(0.5-1mW),< 100mA(5mW),<150mA(10mW)
Working temperature: -30 ℃ to ~ +50 ℃
Storage temperature: -40 ℃ to ~ +80 ℃
Packaging:
1x 520nm Green Laser Module
