515nm 520nm 100mW Dot Line Cross Green Laser Module Marking Laser Wood Cutting Locator

515nm 520nm 100mW Green Laser Diode Module

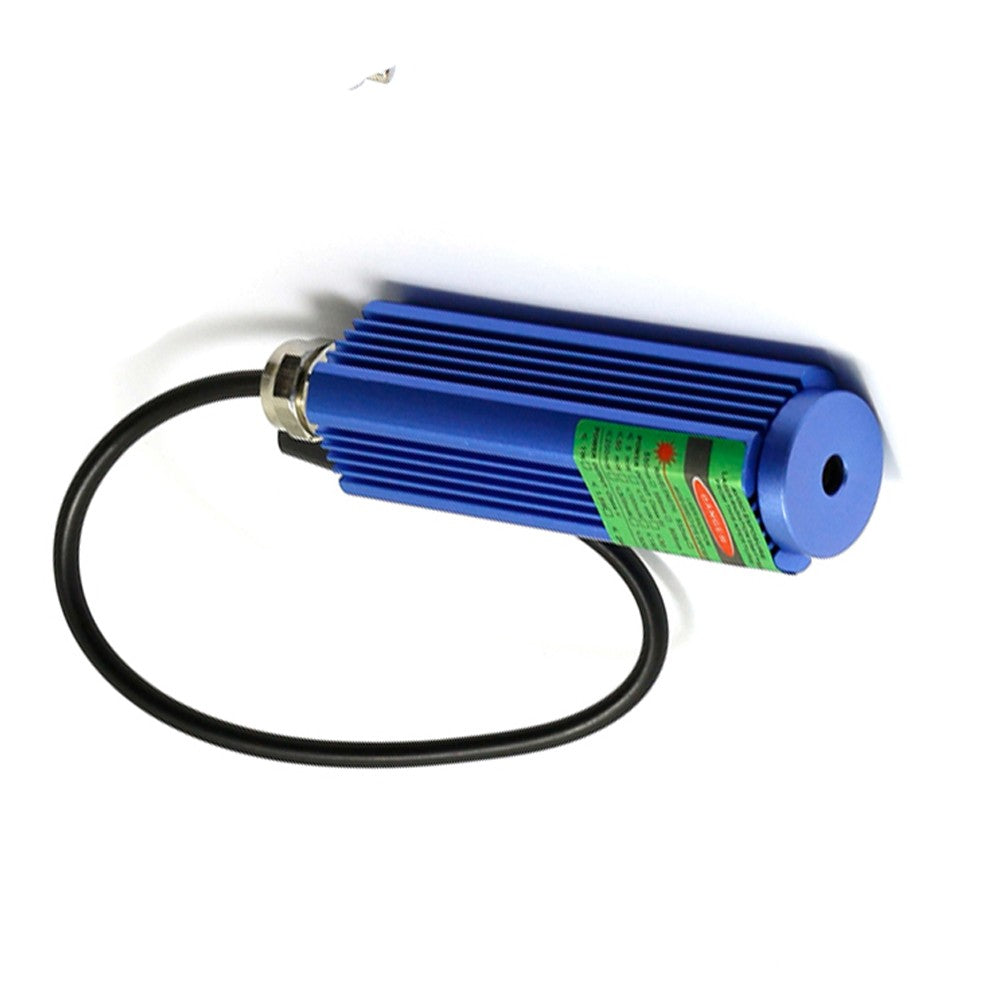

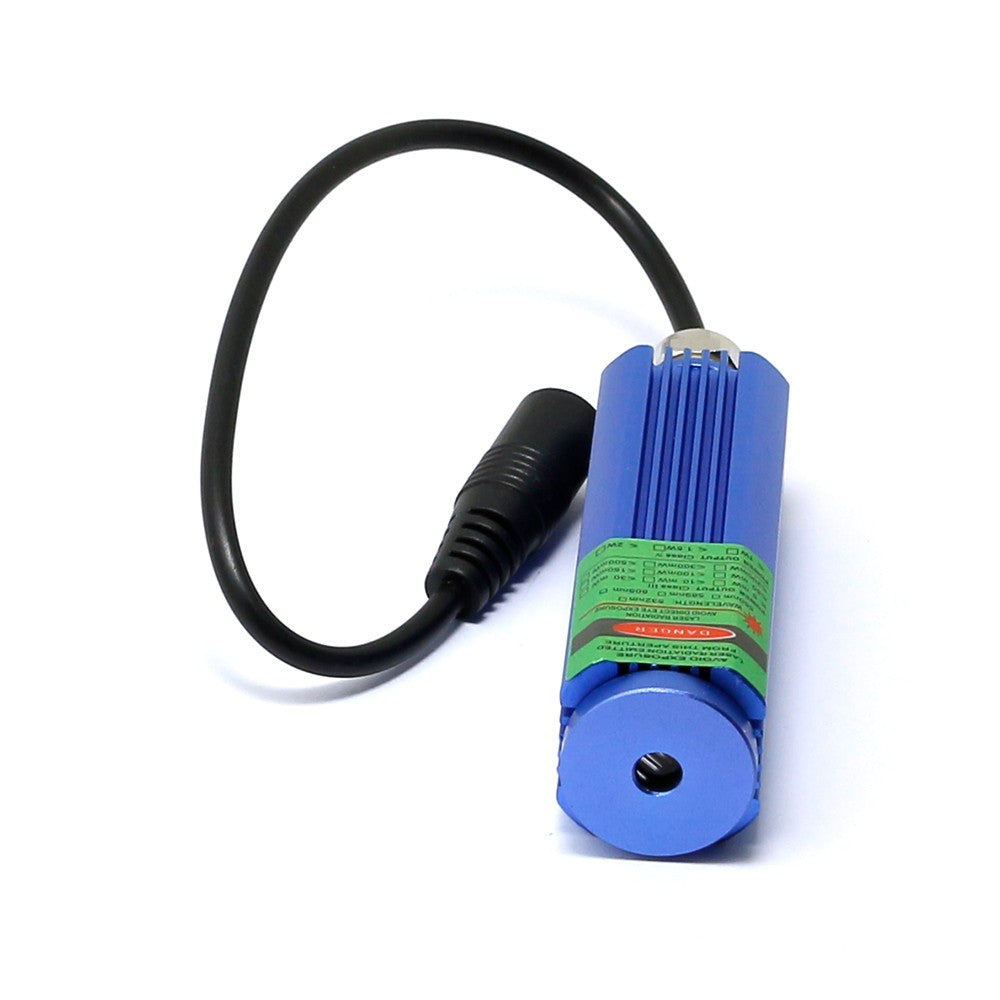

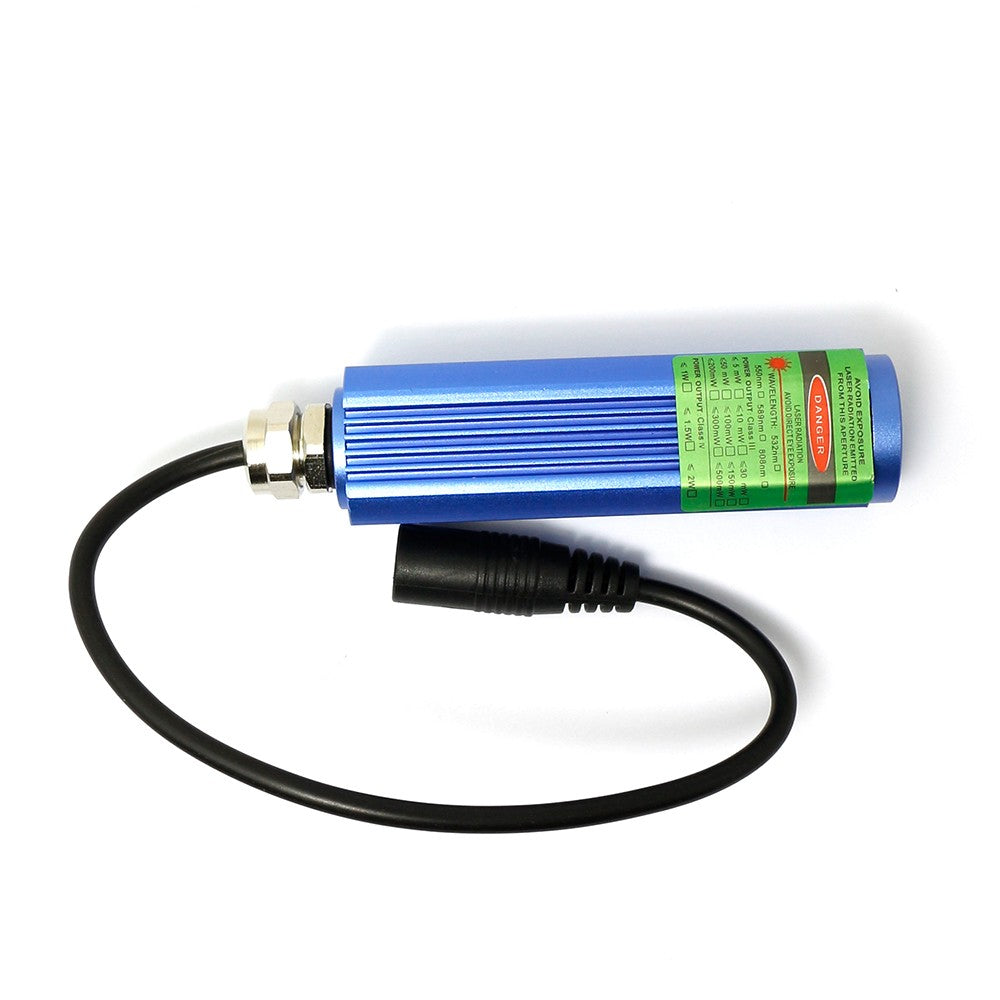

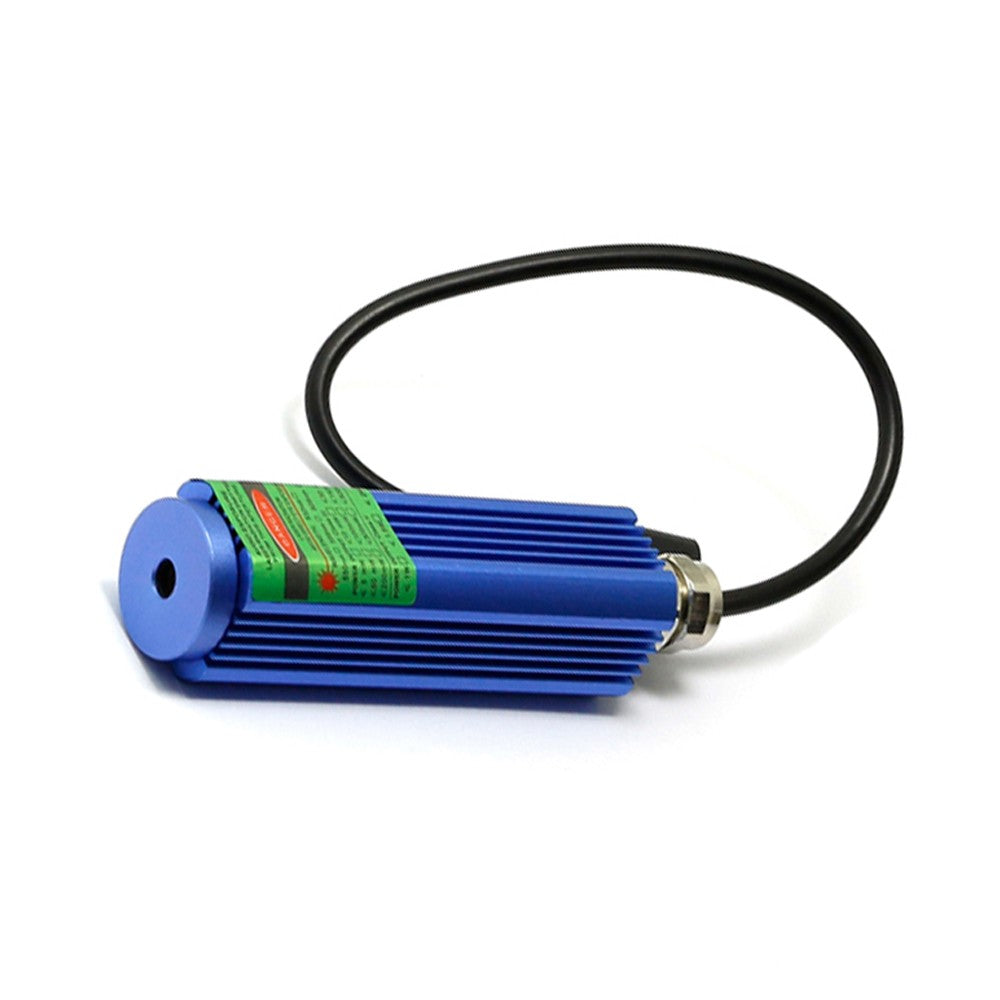

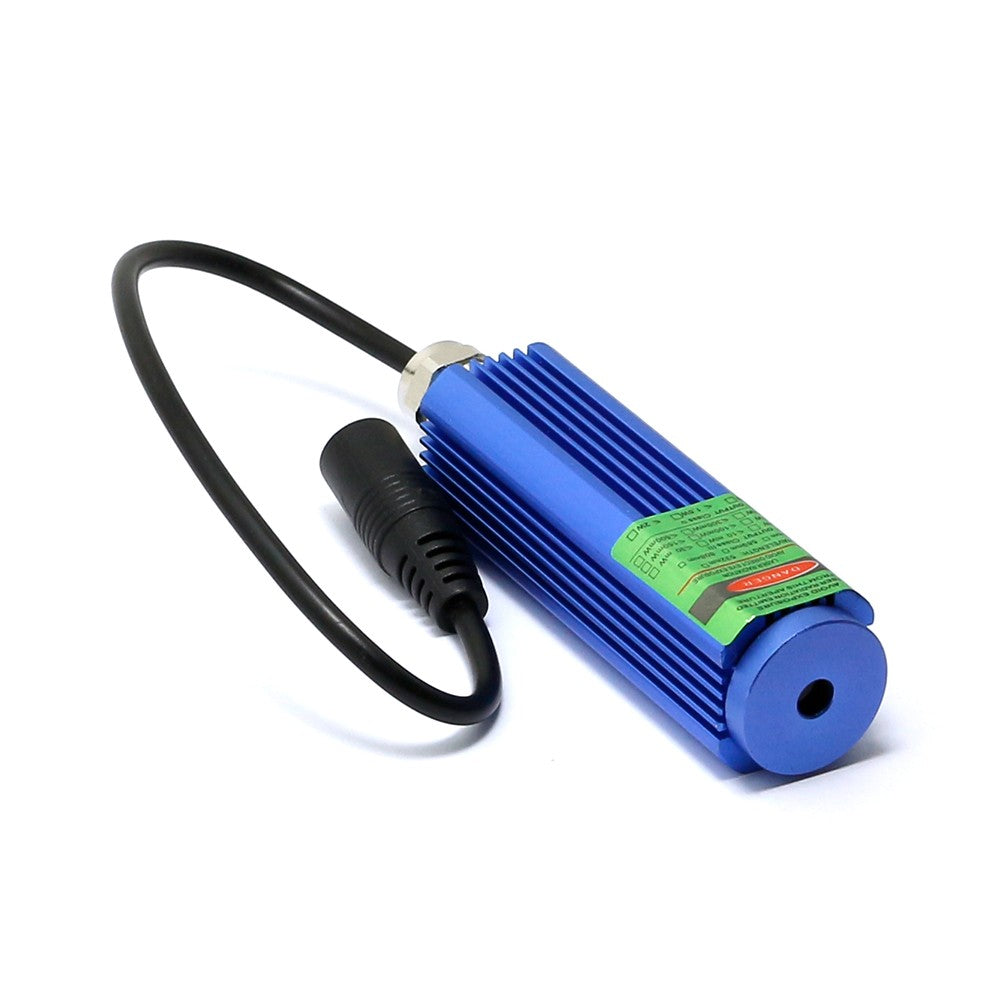

This 100mW green laser module produces a selectable dot, line or cross beam for compatible machine-alignment, positioning and equipment-integration projects. It features an anodized aluminum heat-dissipation housing, integrated optics and reverse-polarity protection.

The module is available in 5V DC or 12V DC versions. Select the required operating voltage and beam pattern before ordering.

Key Features

• Green laser output with a rated wavelength of 515nm ±10nm
• 100mW rated optical output

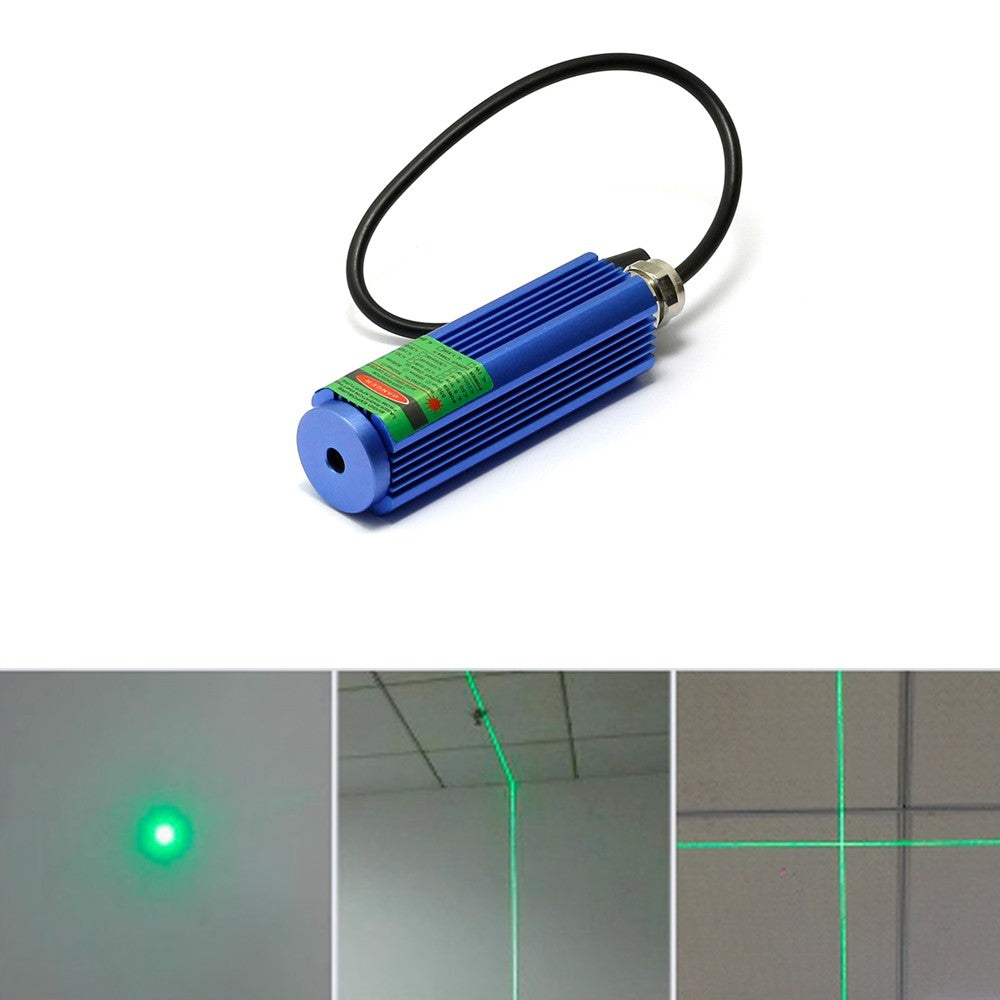

• Selectable dot, line or cross beam pattern
• Designed for compatible alignment and positioning systems
• Anodized aviation-aluminum housing
• Integrated laser source, lens and heat-dissipation housing
• ACC control circuit
• Reverse-polarity protection
• No preheating time required

Specifications

Package Contents

• 1 × 515nm 100mW green laser module
• 1 × Compatible power adapter, if selected and specified in the order

Important Selection Notice

Select the correct dot, line or cross beam pattern and 5V or 12V operating voltage before ordering. Applying an incorrect voltage may permanently damage the module.

If a mains power adapter is included, confirm its input voltage, plug type and electrical certification before use. A 220V-only adapter may not be suitable for standard Canadian or United States electrical outlets.

Laser Safety Warning

Laser radiation can cause permanent eye injury. Never look directly into the beam or aim it toward people, animals, vehicles, aircraft or reflective surfaces. Keep away from children. Operate only in a controlled environment using suitable wavelength-rated eye protection and appropriate safety controls.

This module is intended for qualified users and integration into compliant equipment. The purchaser is responsible for confirming the laser classification and compliance with all applicable laws and safety requirements.
