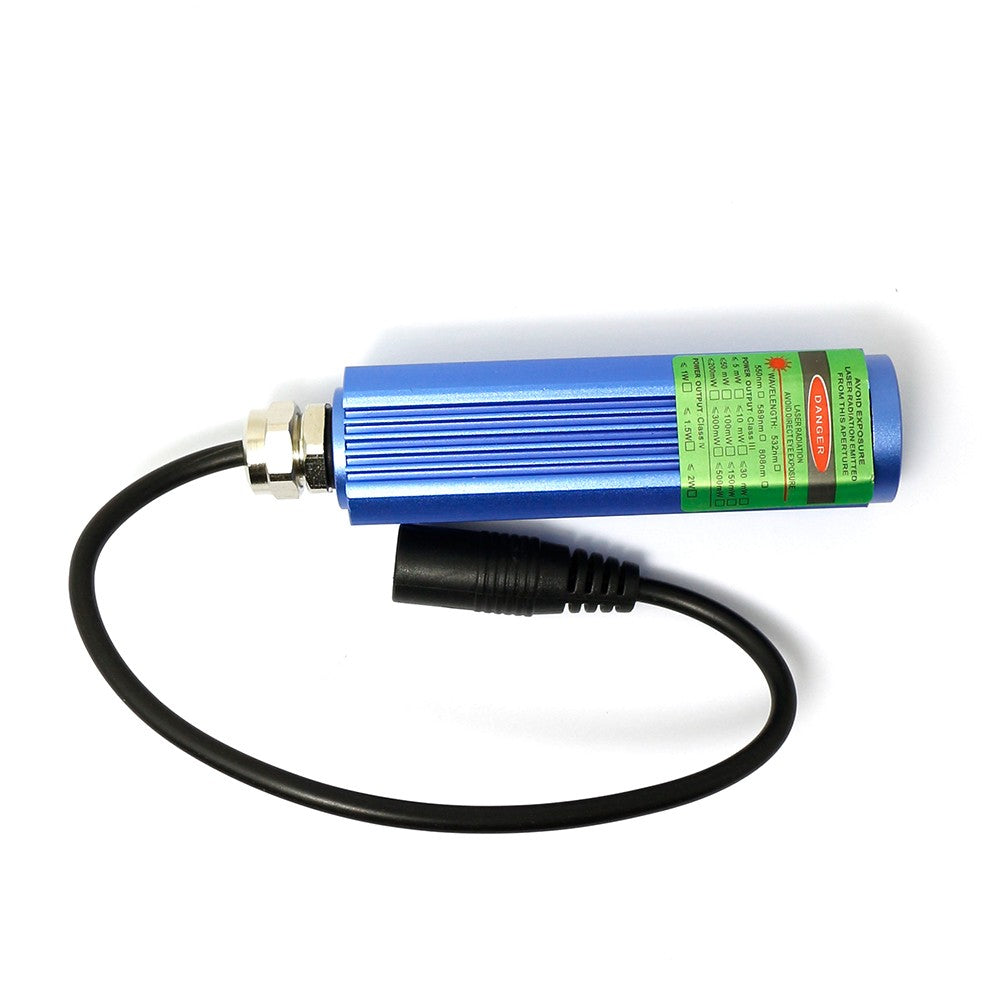

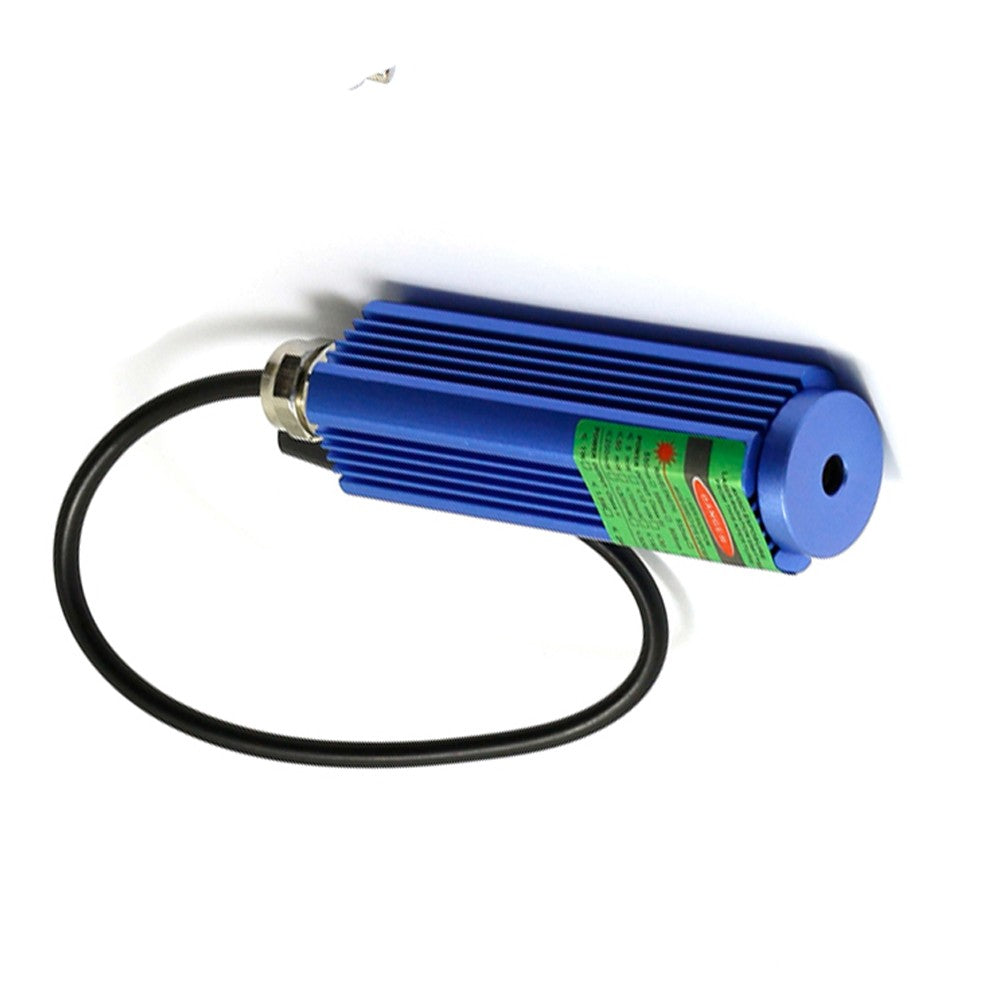

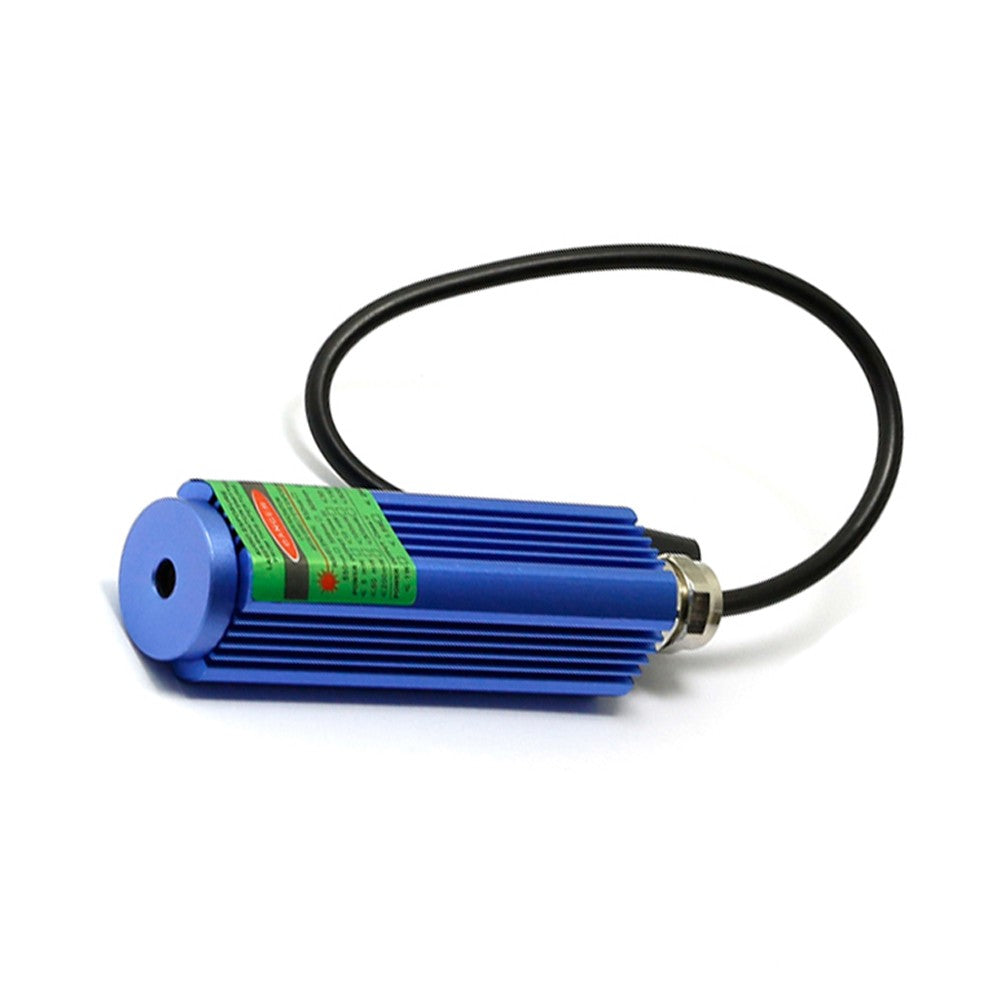

520nm 150mW Dot Line Cross Green Laser Module Marking Laser Wood Cutting Locator

$244.00

~~$326.00~~ $244.00

Sale Sold out

Shipping calculated at checkout.

Model Dot Line Cross

Options 5V 12V

Quantity

Specifications：

Output wavelength: 515 nm ± 10nm

Output power: 150mW

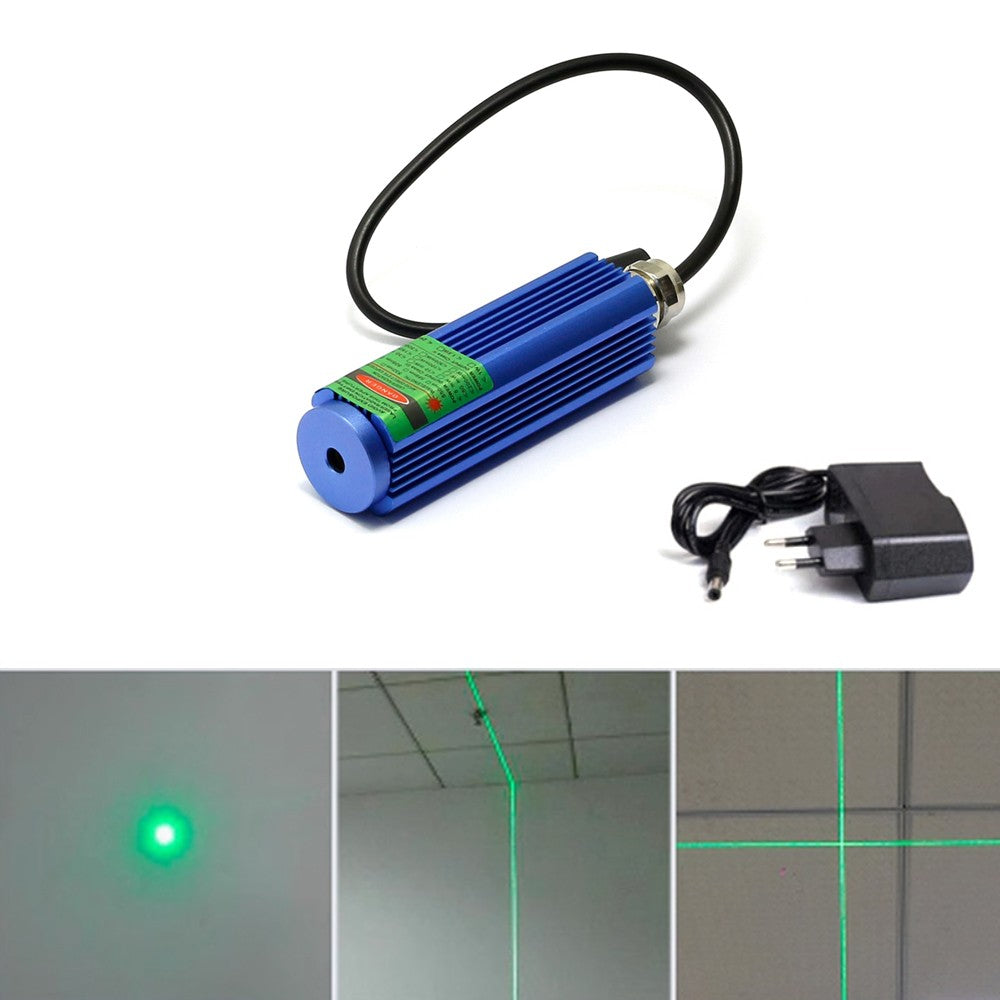

Light output shape: Dot,Line,Cross shaped

Spot size: less than 12mm at 10 meters

Light output angle:<1.5mrad

Surface treatment: anode blue/dark gray

Shell material: aviation aluminum

Circuit control: ACC circuit

Reverse protection: Yes

Working voltage: DC=5V or 12V

Working current: I<280mA

Preheating time: none

Working temperature: 0 ℃~+60 ℃

Storage temperature: -40 ℃ to+85 ℃

Structural features: laser tube+lens+heat dissipation shell

Note: The adapter provided can be directly plugged into a 220V socket for power supply.

Package：

1* Green Laser Module

1* 5V or 12V Adapter
