Φ12X40mm 520nm 1mW 5mW 10mW 15mW Green Adjustable Focus Dot Laser Light Module Positioning Locator
Specifications:

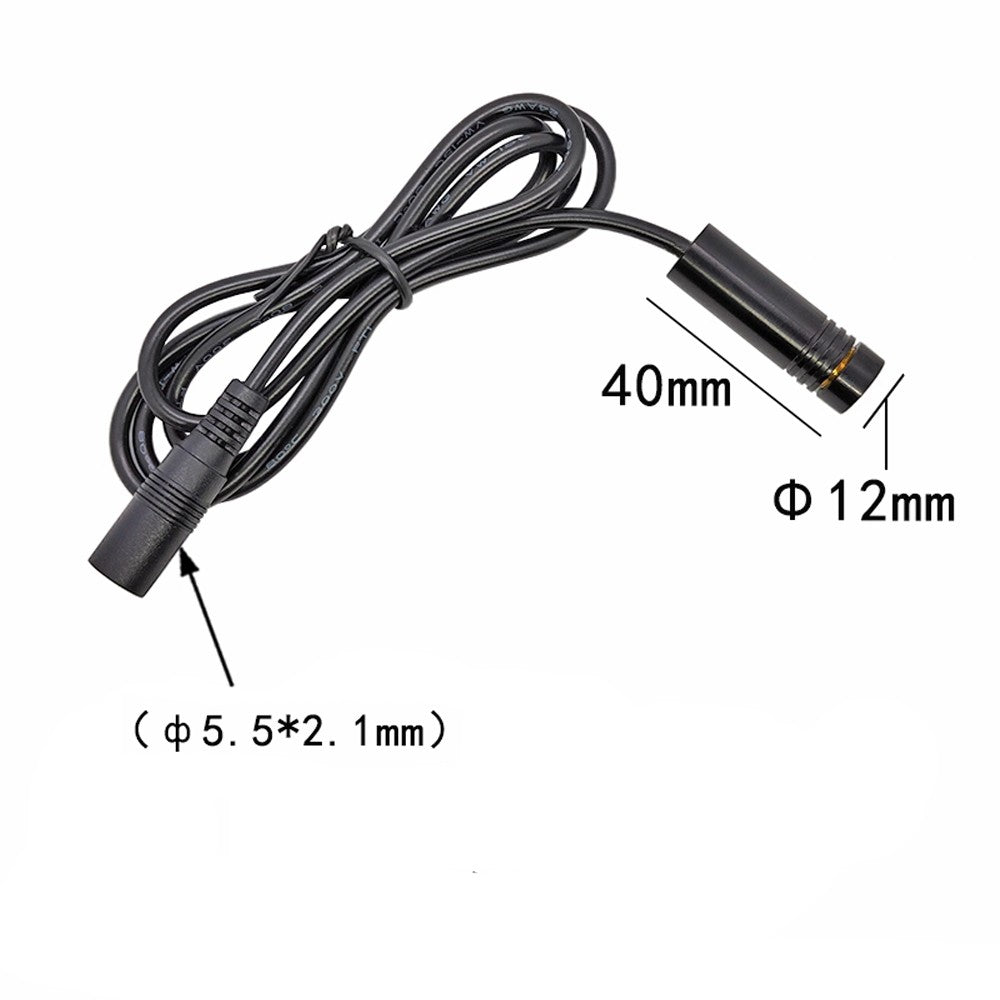

Size: Φ 12X40mm
Materia: Aviation aluminum (all metal shell)
Surface Treatment/Color: Black shell, surface insulation, oxidation mist black treatment
Service life: Continuous output, continuous service life>8000 hours
Output wavelength: 520nm±10nm
Output Power: ＜1mW,＜5mW,＜10mW,＜15mW
Range:<250 meters(Indoor environment, laser will be affected by ambient light interference, and the distance will vary)

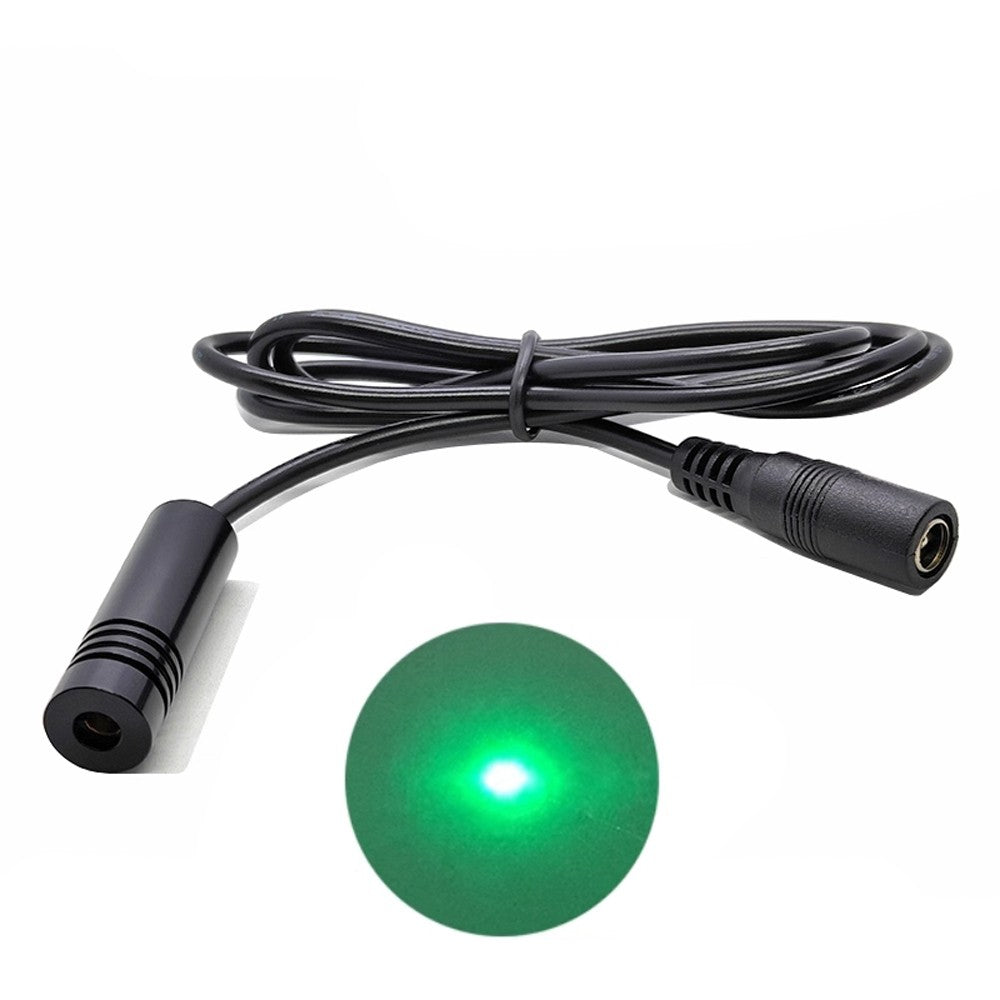

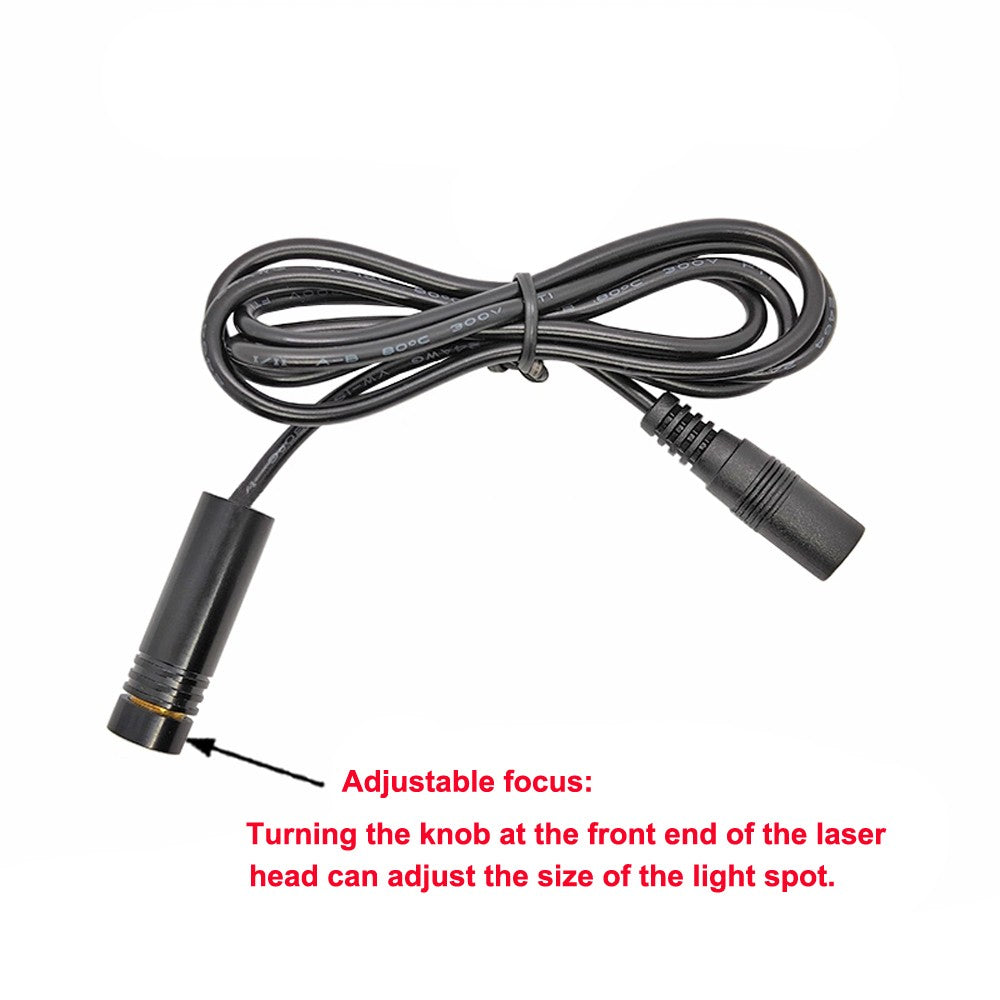

Spot shape/diameter: Dot like light, elliptical, spot size<Φ 10mm at 10m (adjustable focus)
Circuit Control: ACC Circuit
Working voltage: DC3.0~5V
Working current: I<80mA(1mW)，< 120mA(5mW)，<180mA(10mW)，<250mA(15mW)
Working temperature: -10 ℃ to+50 ℃
Storage temperature: -20 ℃ to+70 ℃
Package:
1x 520nm Green Laser Module
