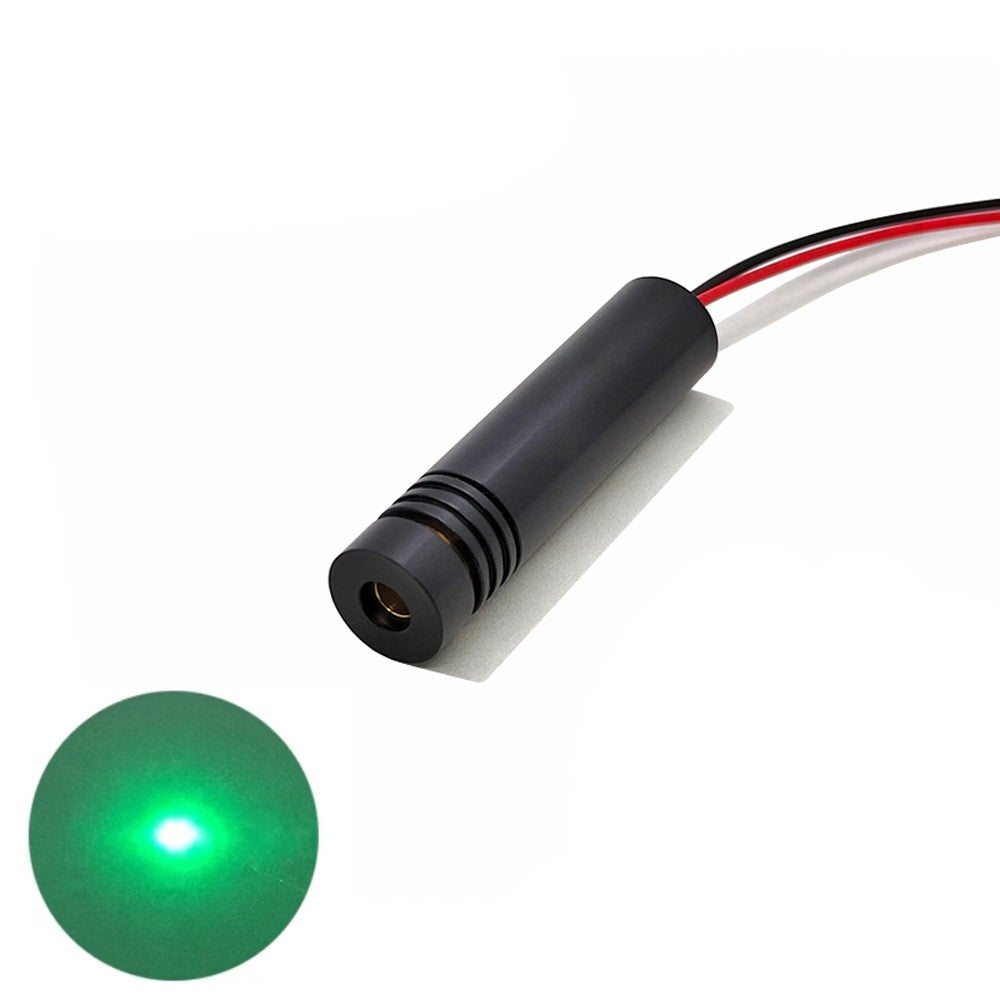

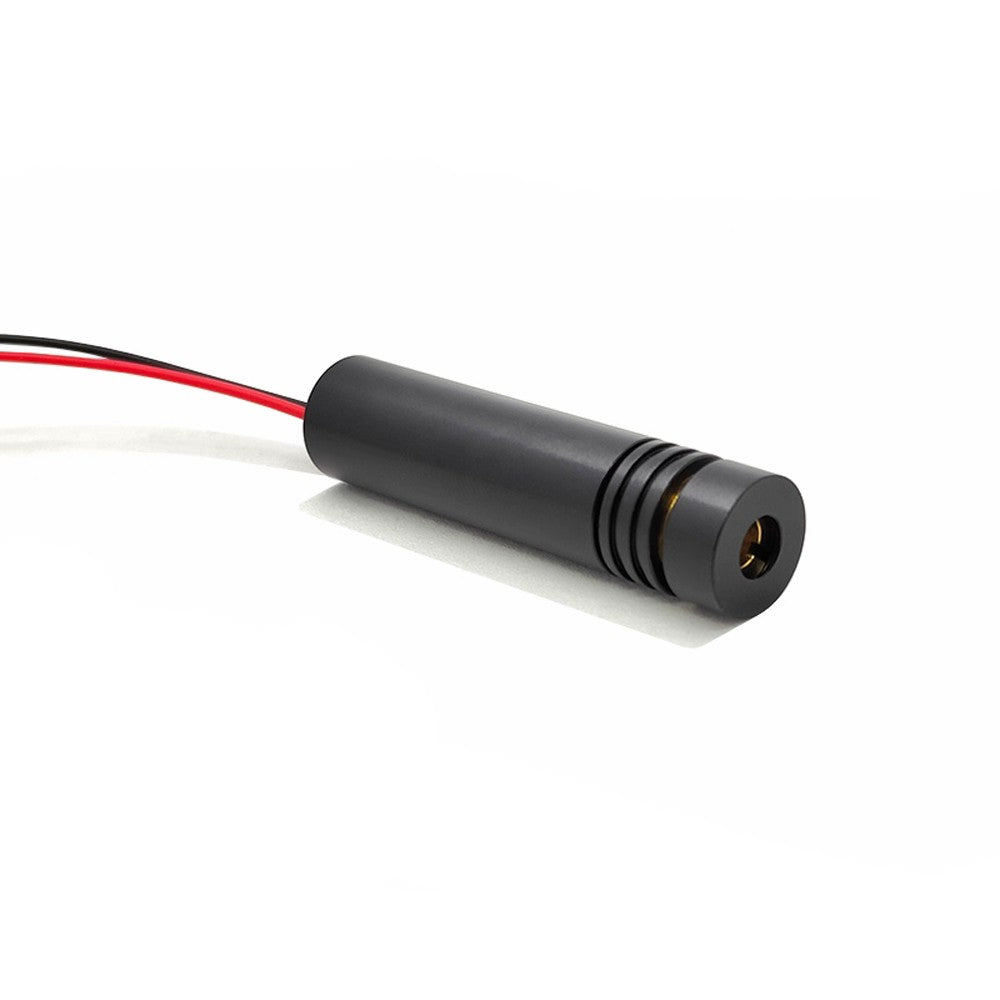

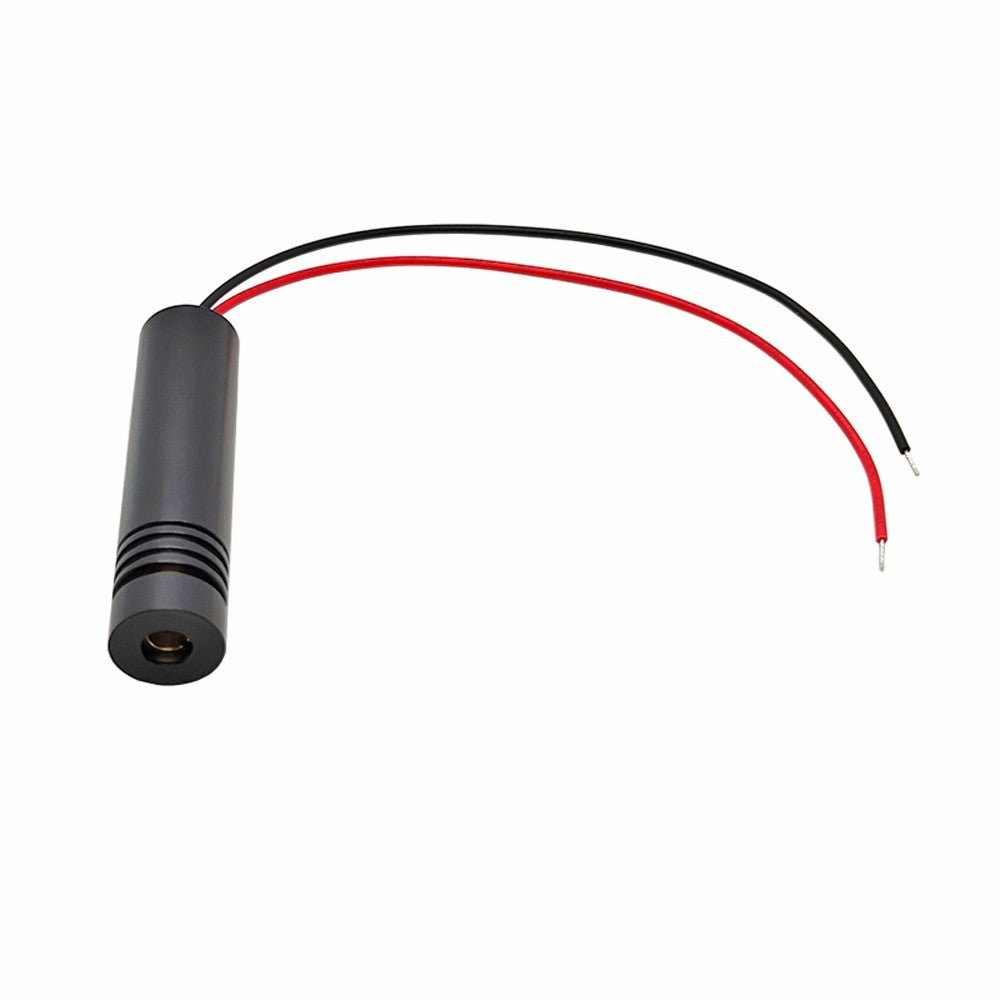

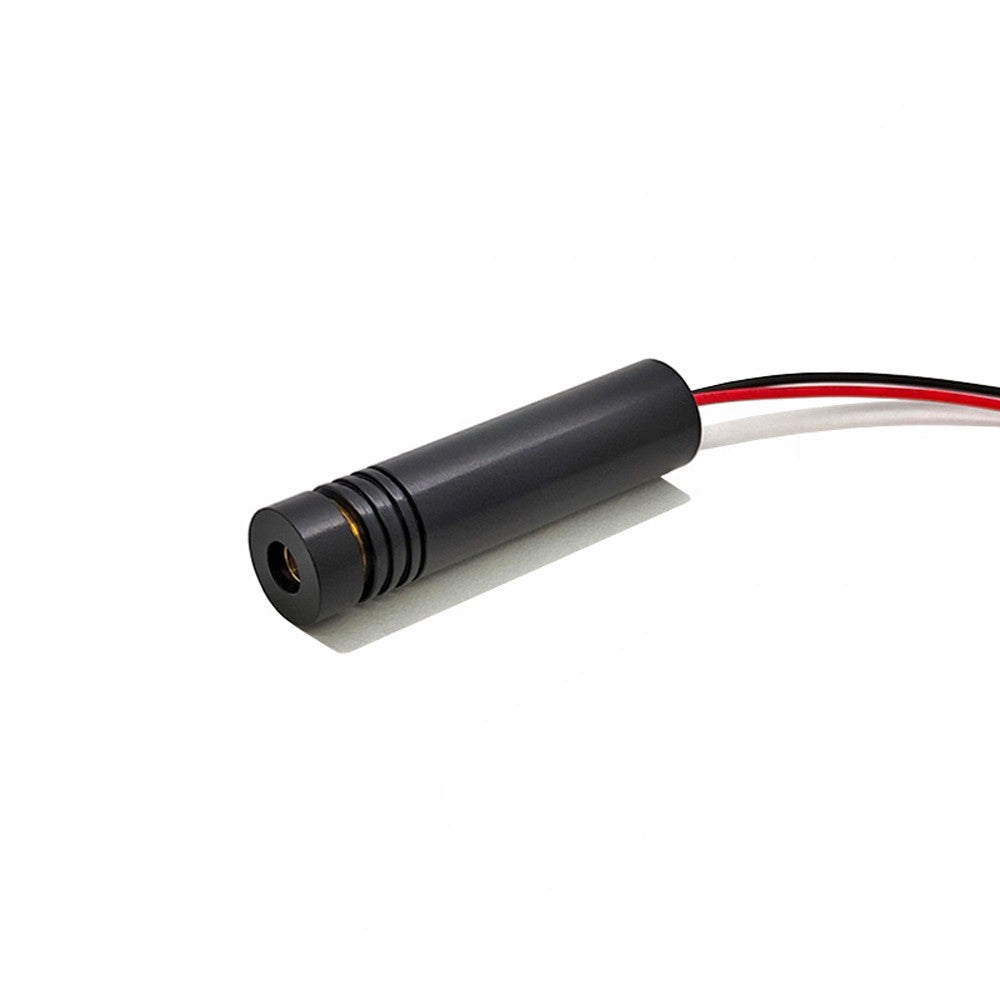

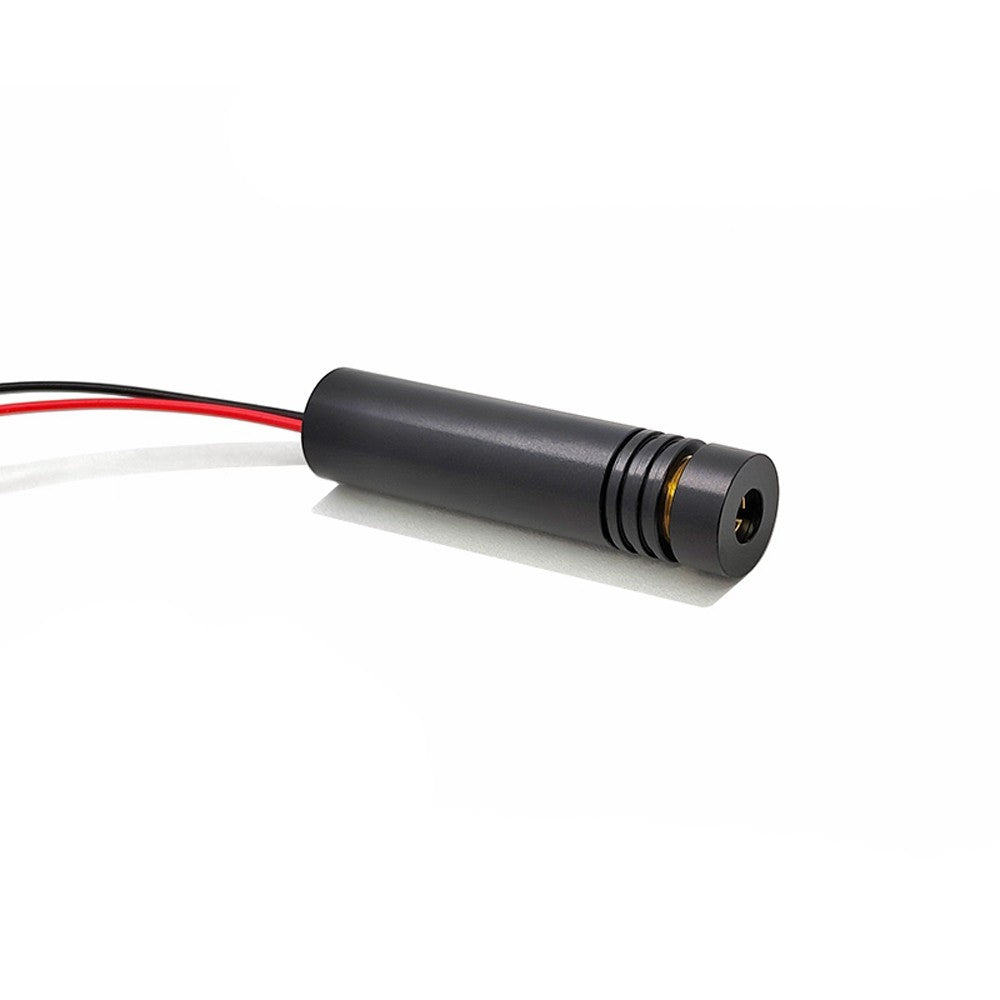

Φ12X50mm 520nm 1mW 5mW 10mW 20mW Green Adjustable Focus Dot Laser Light Module Positioning Locator
Specifications:

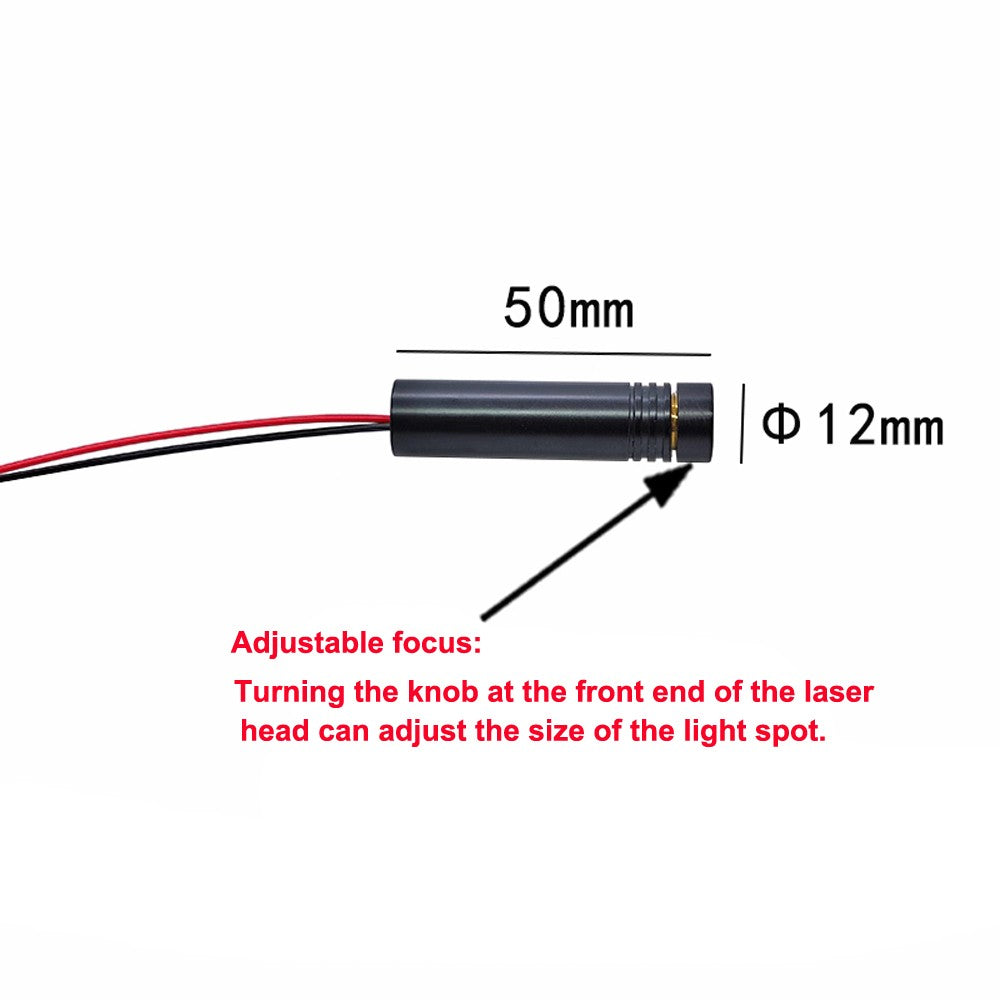

Size: Φ 12X50mm
Material: Aviation aluminum (all metal shell)
Surface Treatment/Color: Black shell, surface insulation, oxidation mist black treatment
Service life: Continuous output, continuous service life>8000 hours
Output wavelength: 520nm±10nm
Output Power: <1mW,< 5mW,<10mW,<20mW
Range:<300 meters(Indoor environment, laser will be affected by ambient light interference, and the distance will vary)
Spot shape/diameter: Dot like light, elliptical, spot size<Φ 10mm at 10m (adjustable focus)
Circuit Control: ACC Circuit
Working voltage: DC9~25V
Working current: I<80mA(1mW),< 120mA(5mW),<180mA(10mW),<250mA(20mW)
Working temperature: -10 ℃ to+50 ℃
Storage temperature: -20 ℃ to+70 ℃
Package:
1x 520nm Green Laser Module
