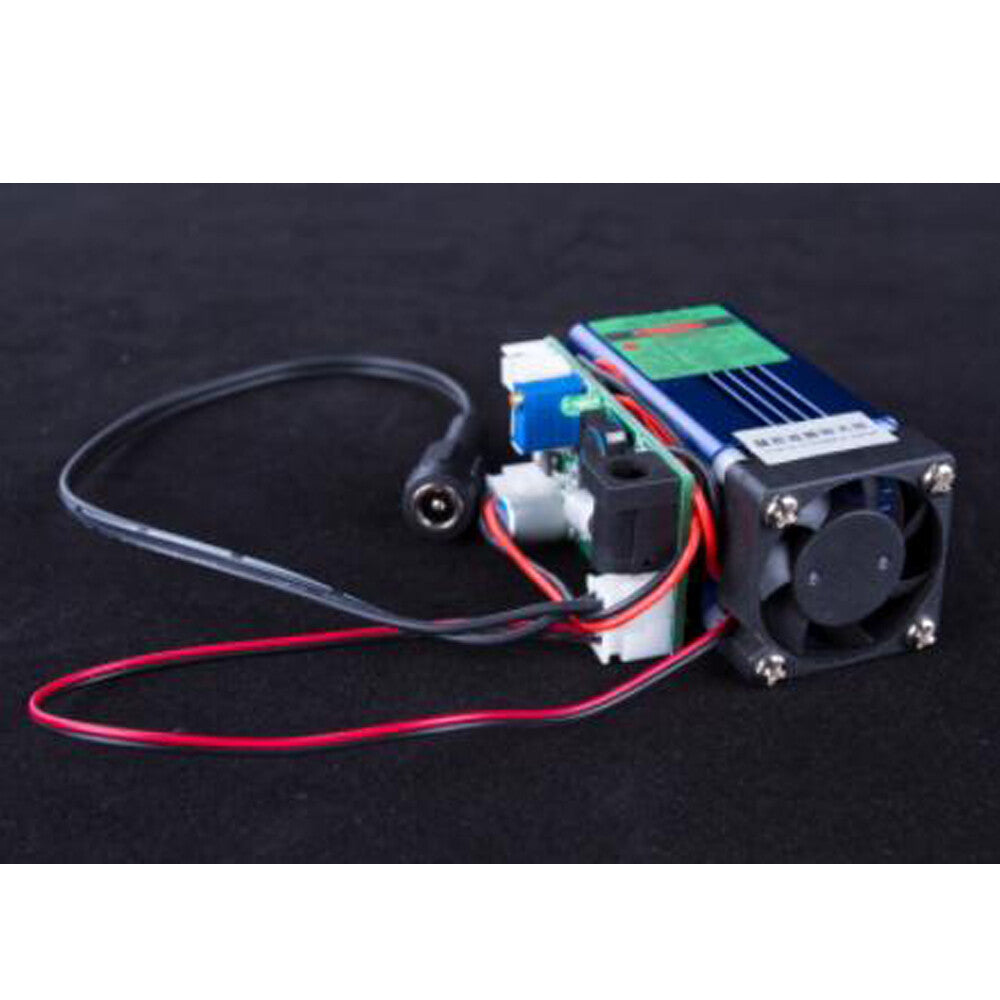

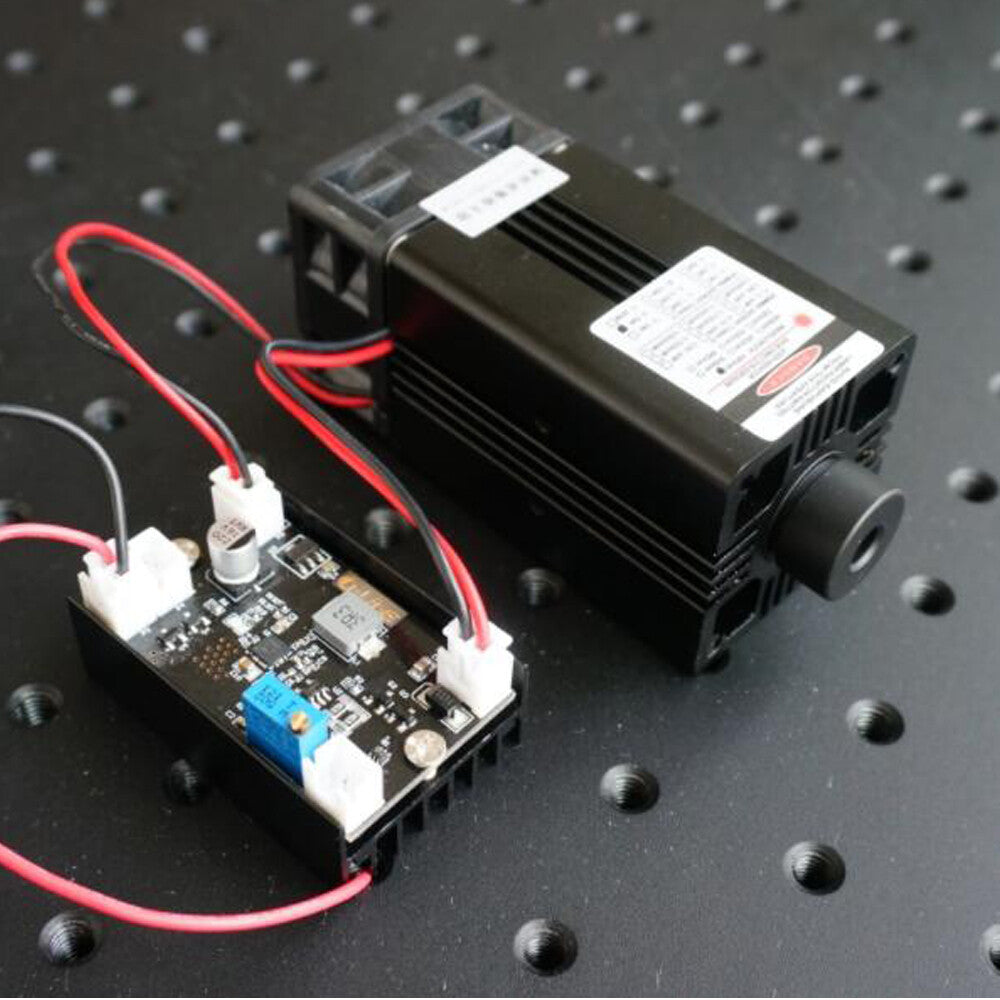

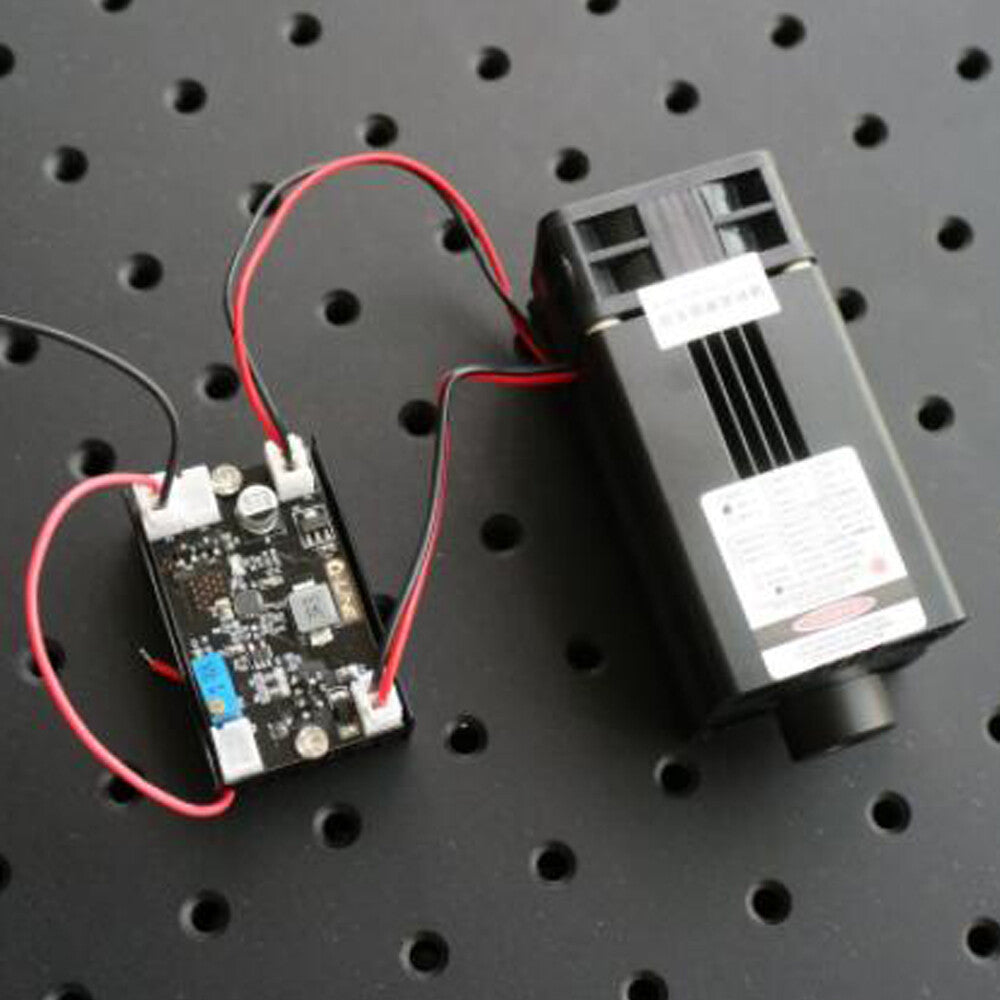

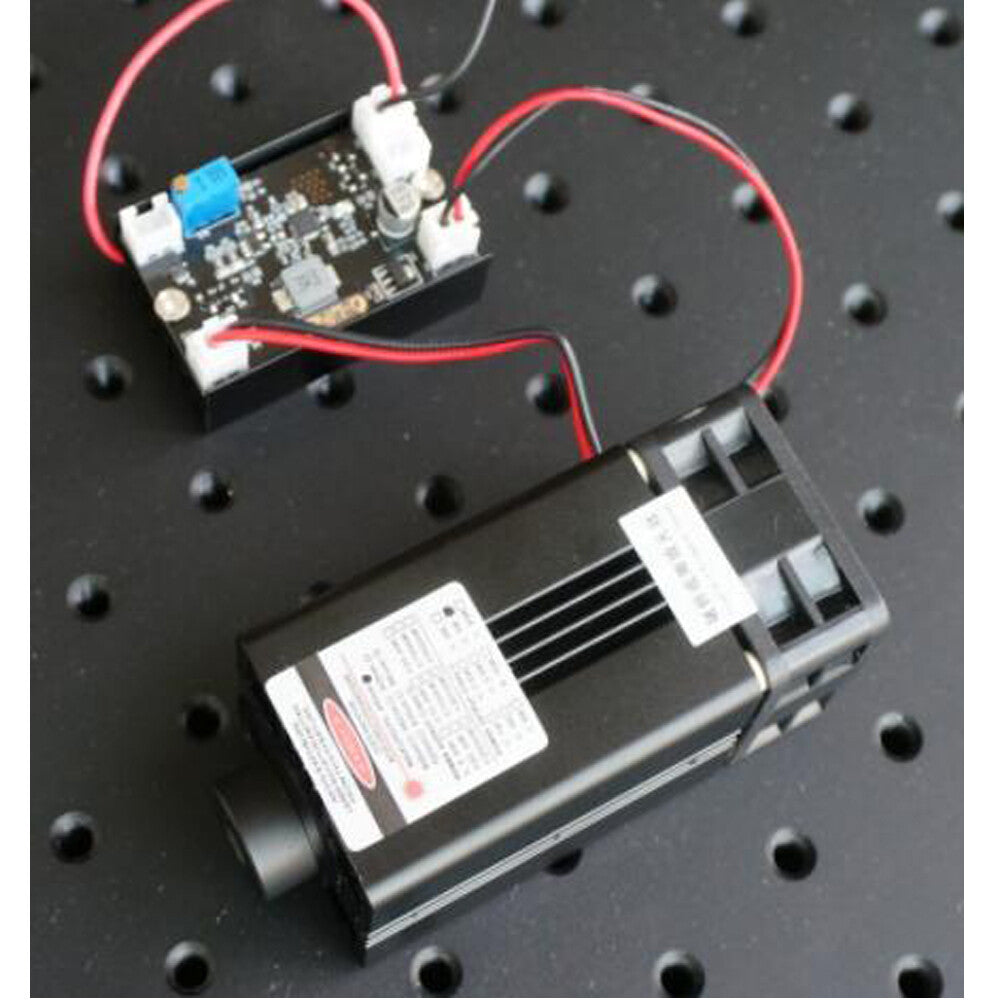

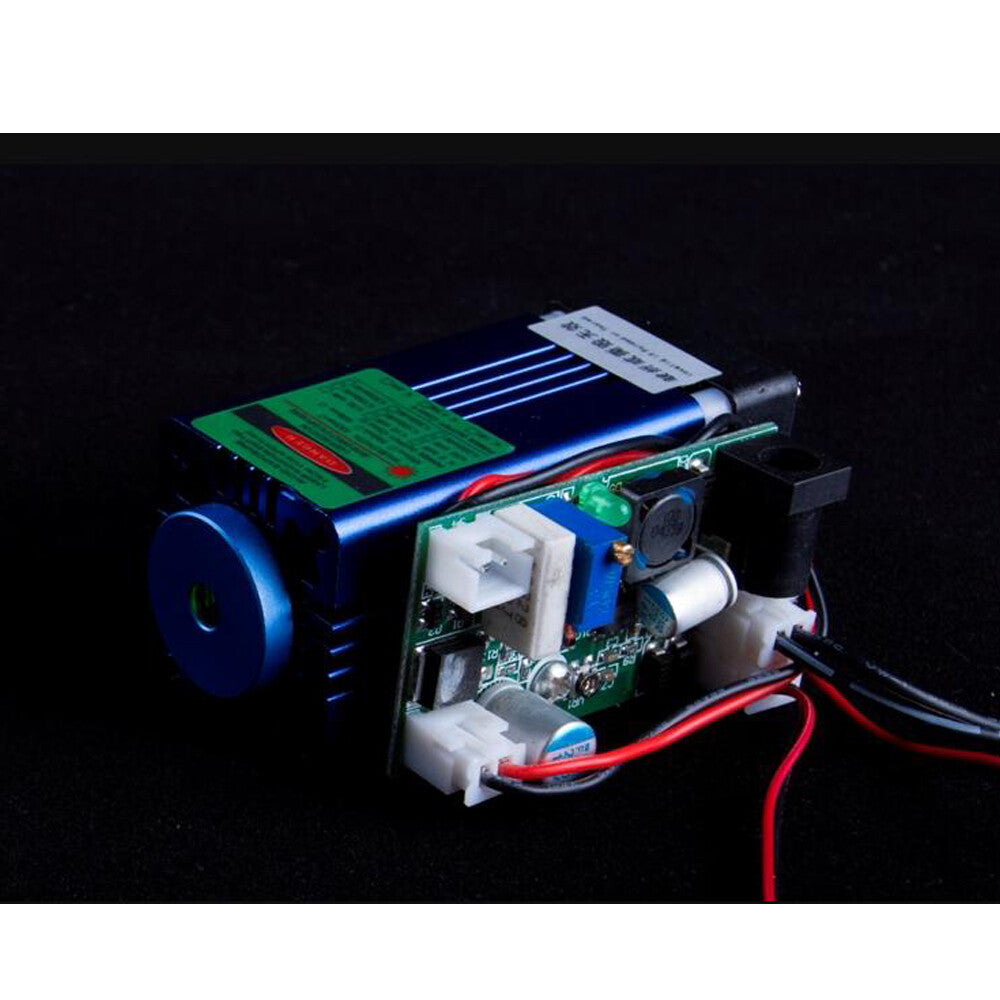

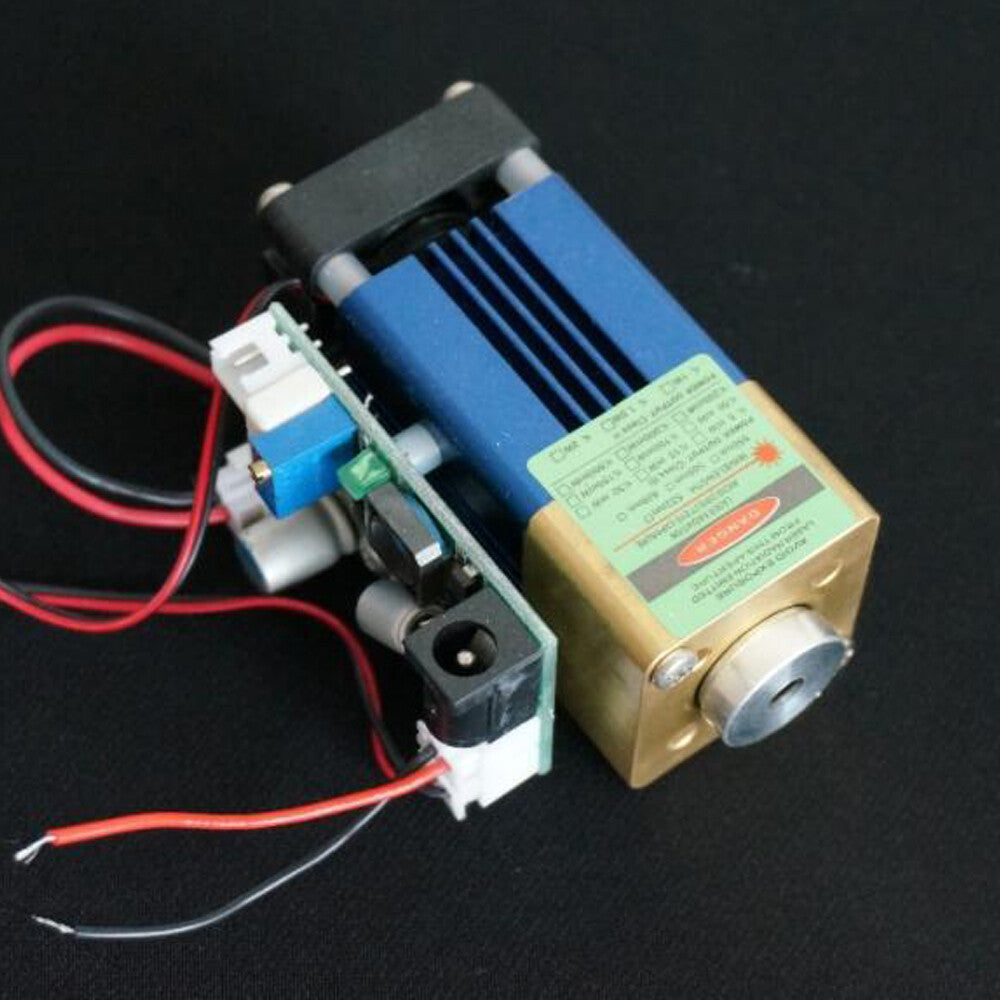

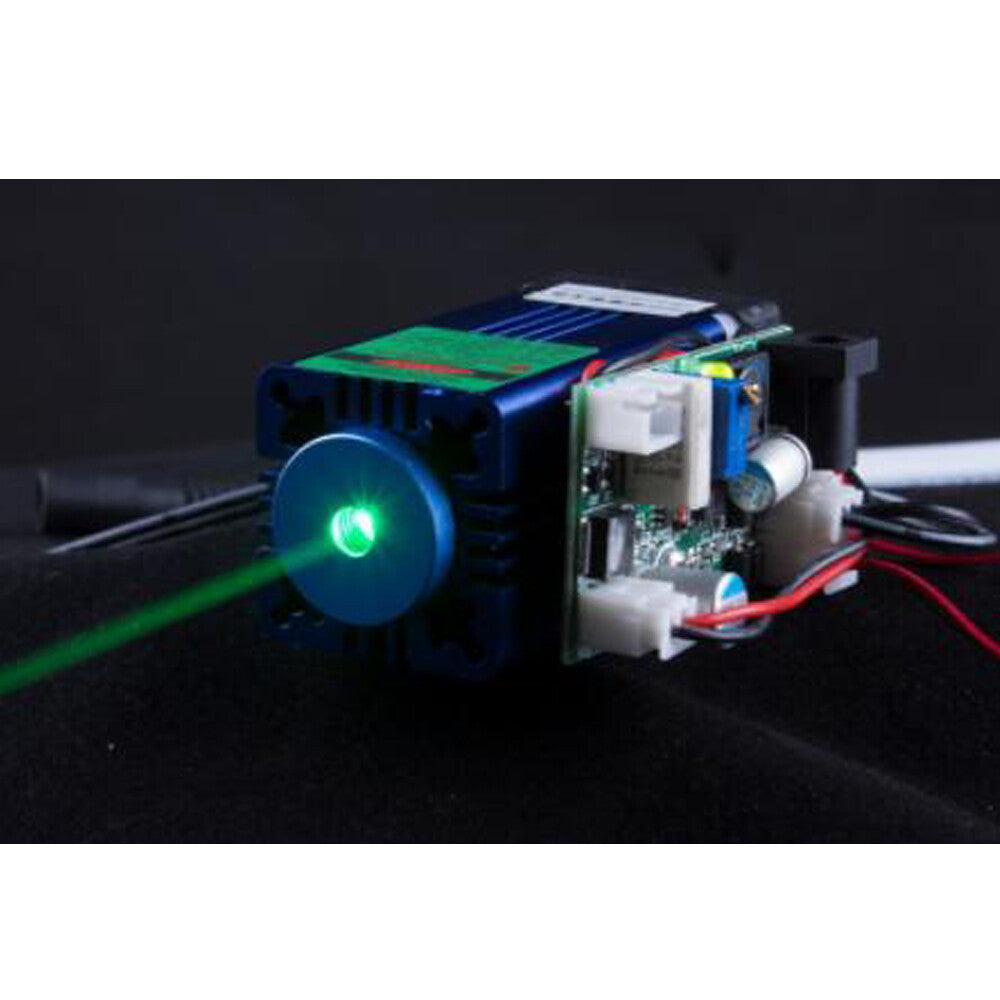

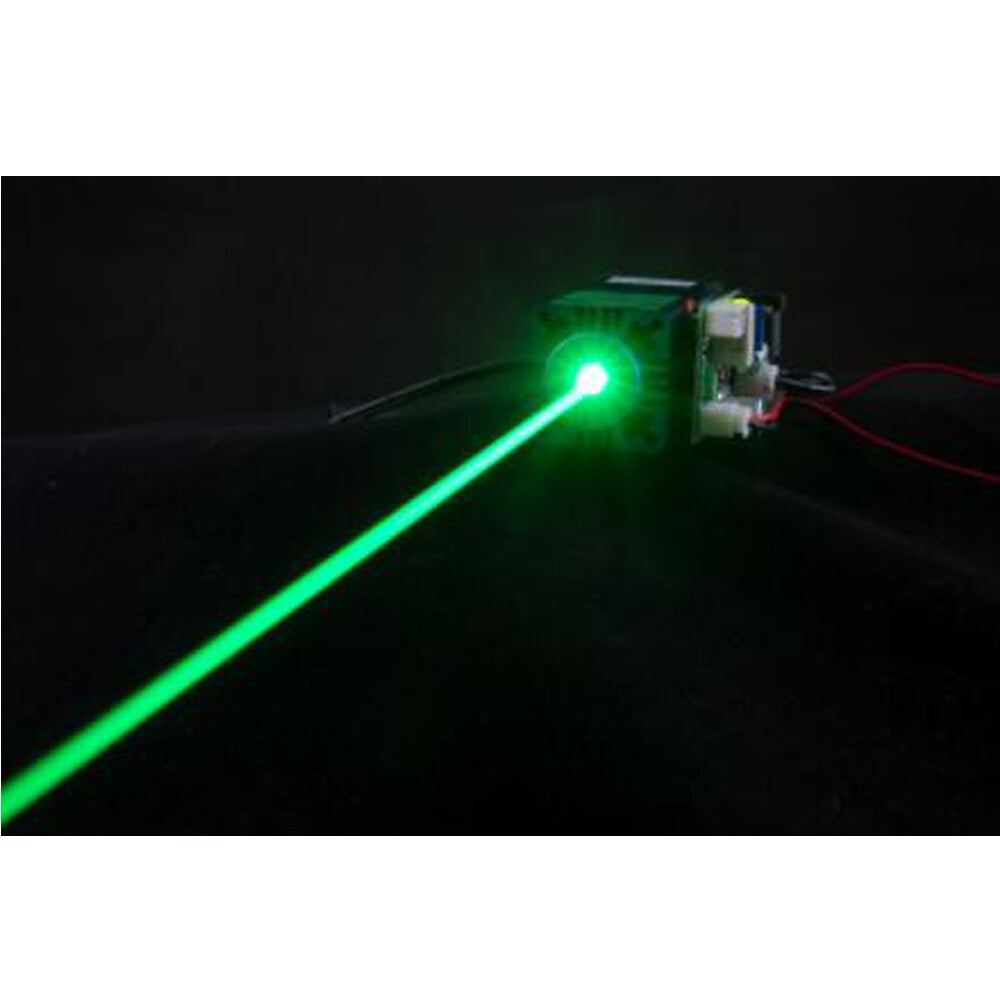

520nm 525nm 100mW 150mW 1W 488nm 60mW Green Laser Module / Blue Green Laser
Specifications:
Host size: 69*30*30mm
Circuit size: 47.5*31.5*16mm
Output wavelength: 488/520nm
Output power: 100mW120mW150mW 1W optional
Cooling method: aluminum heat dissipation
Modulation frequency. modulatable
Working characteristics: Can work continuously
Surface treatment: blue /green
Shell material: aviation aluminum
Circuit Control: Buck Constant Current
Working voltage: |DC=12V
Working current: 100mW<l<1.7A
Warm-up time: no
Working temperature: -10°C~+40°C
Structural features: laser tube + lens + heat sink
Storage temperature: -10°C~+40°C
Reverse connection protection: automatic identification of positive and negative
Note: The power supply is external.
Special reminder: please consult first, thank youl The input voltage is 12V, overvoltage will cause instantaneous damage to the circuit and module. If you have any technical problems,
Package: 1* Green Laser Module / Blue Green Laser
