520nm Green Laser Module Φ12×40mm 0.5‑10mW Green Light Positioning Laser for Laser Marking

$44.00

~~$49.00~~ $44.00

Sale Sold out

Shipping calculated at checkout.

Options 0.5mW 1mW 5mW 10mW

Quantity

520nm Green Light Dot Positioning Laser Module Φ12×40mm

This industrial green laser module adopts full aviation‑aluminum metal shell with matte‑black oxidation insulation treatment, sturdy and durable for long‑time continuous operation. Equipped with APC automatic power‑control circuit, it delivers stable green dot beam for laser marking, equipment alignment and industrial positioning tasks. Multiple power options available to meet different application requirements.

Main Features

Full aviation‑aluminum metal housing, matte‑black oxidation & surface insulation treatment

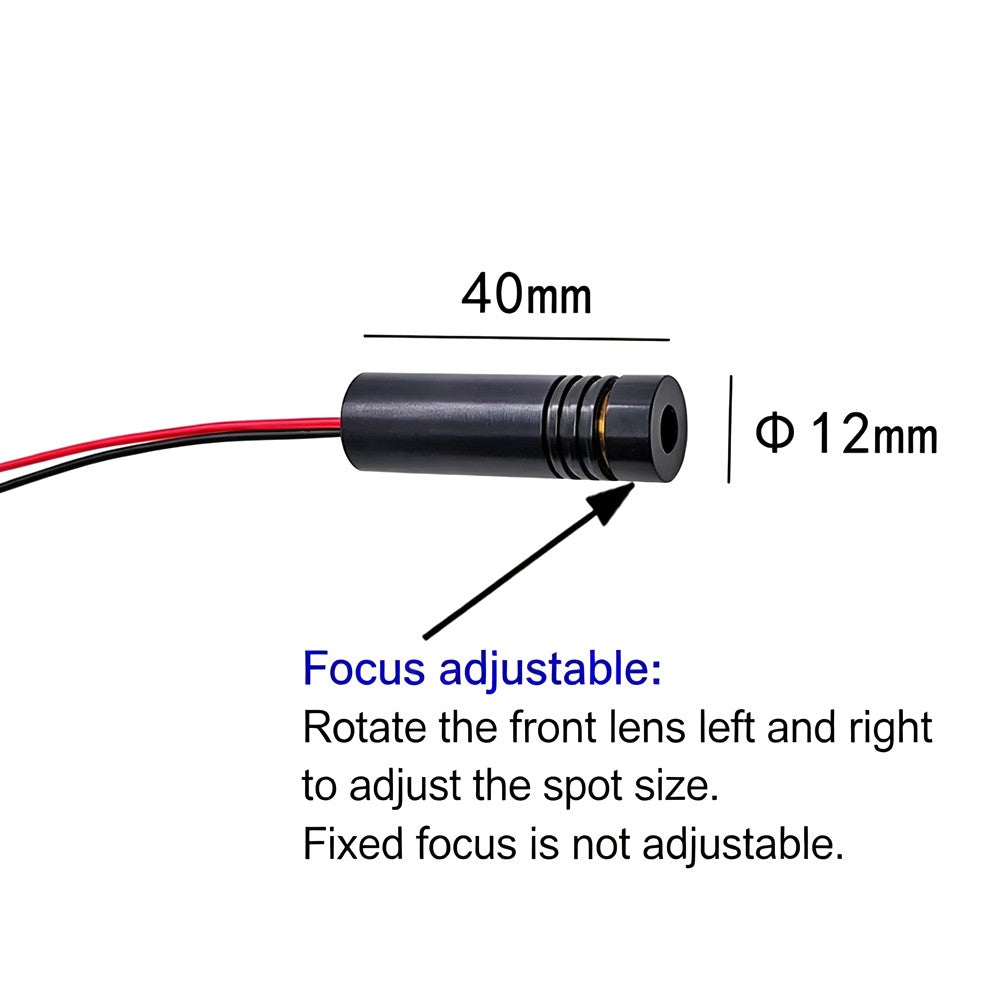

Adjustable focus, easy to tune spot size
Built‑in APC circuit for stable laser output
Multiple power variants: 0.5mW / 1mW / 5mW /10mW optional
Long service life >10000 hours continuous working

Technical Specifications

Item	Parameter
Dimension	Φ12×40 mm
Housing Material	Aviation aluminum, all‑metal shell
Surface Finish	Matte black oxidation, surface insulation
Output Wavelength	520 nm ±10 nm
Output Power	＜0.5 mW / ＜1 mW / ＜5 mW / ＜10 mW (selectable)
Effective Range	Max.200 m (indoor; subject to ambient‑light interference, actual distance varies)

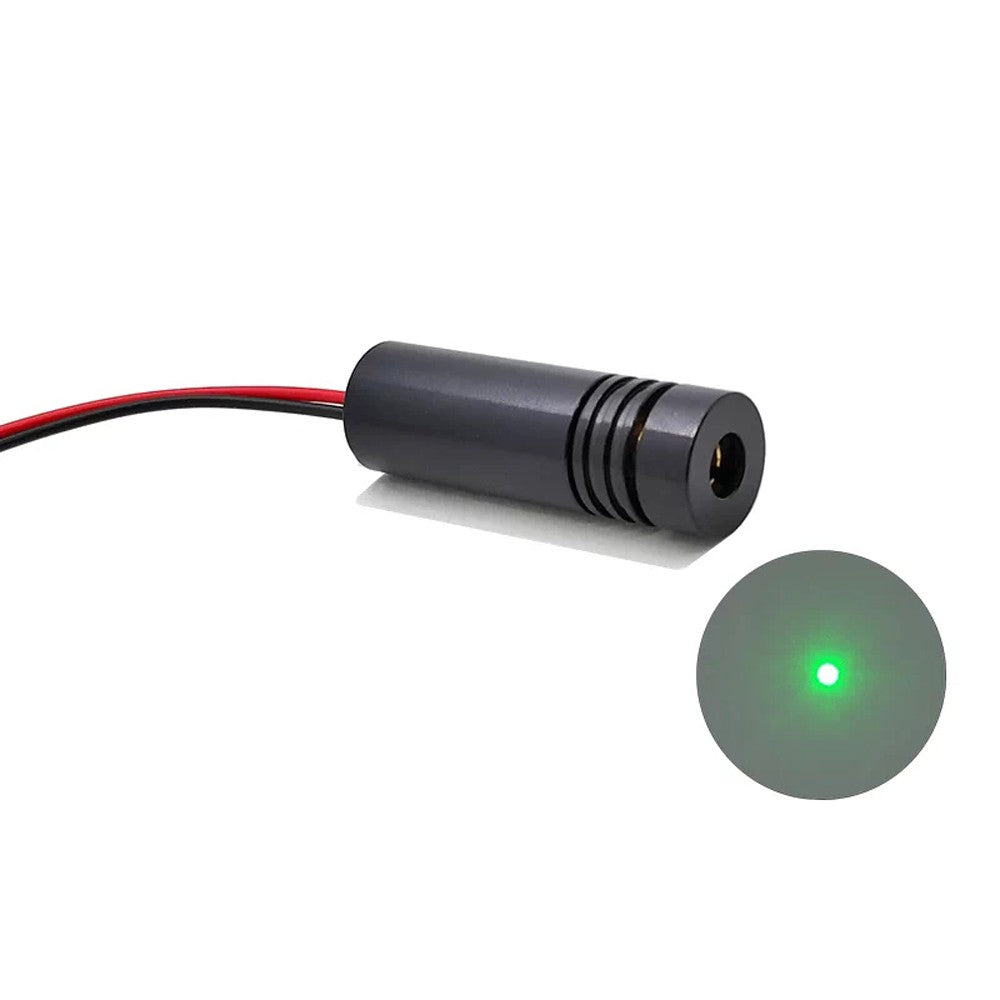

Spot Feature	Dot‑shaped, elliptical; spot size＜10 mm @10 m distance
Focus Mode	Adjustable focus
Circuit Control	APC circuit

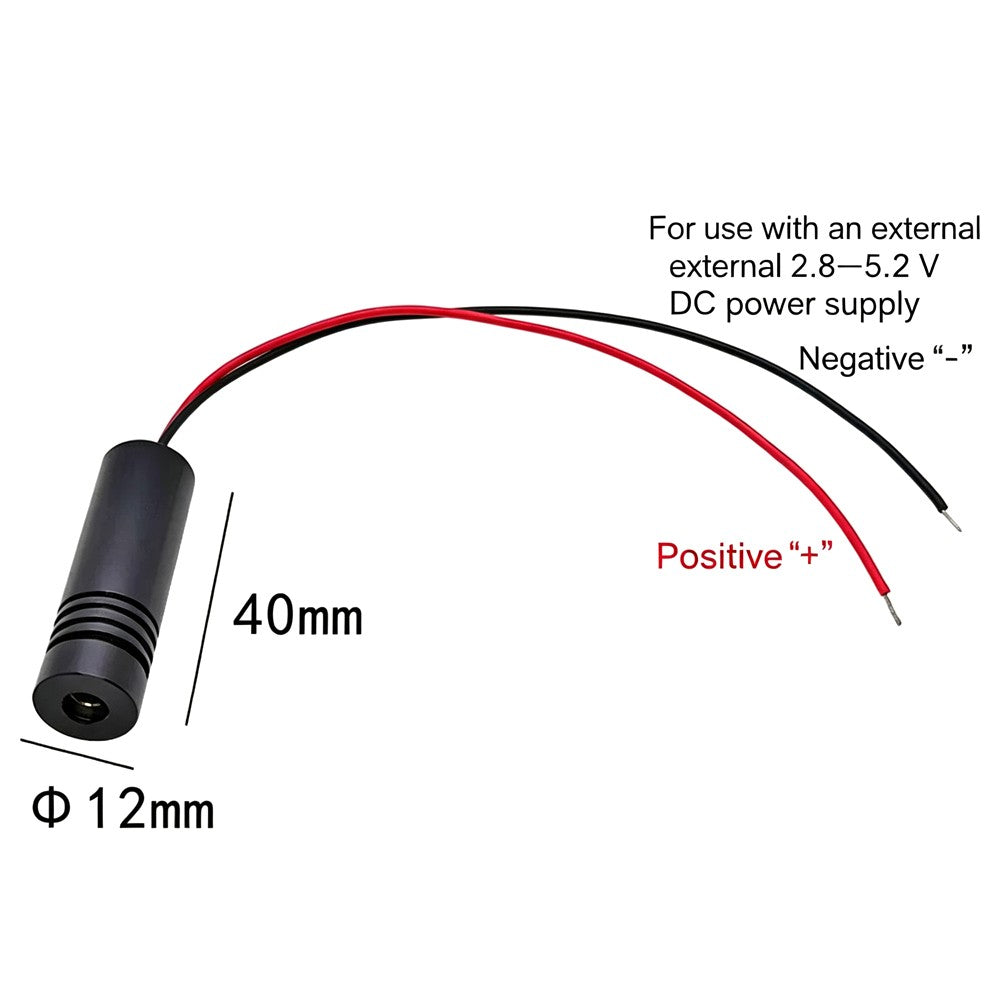

Operating Voltage	2.8‑5.2 V DC
Operating Current	＜80 mA(0.5 mW), 120 mA(1 mW),180 mA(5 mW),＜250 mA(10 mW)
Operating Temperature	-10 °C ~ +50 °C
Storage Temperature	-20 °C ~ +70 °C
Service Life	＞10000 hours continuous output
Laser Safety Class	CLASS II(0.5 mW,1 mW); CLASS IIIA(5 mW); CLASS IIIB(10 mW)
