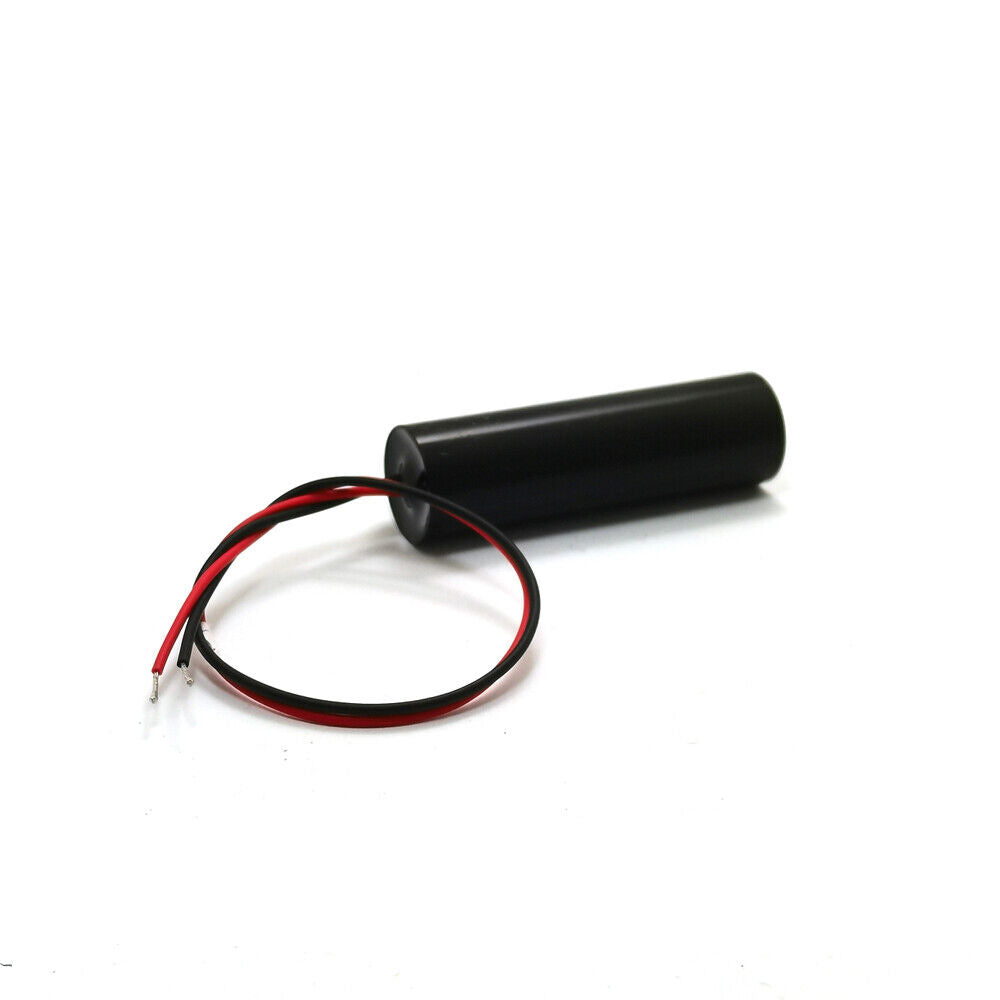

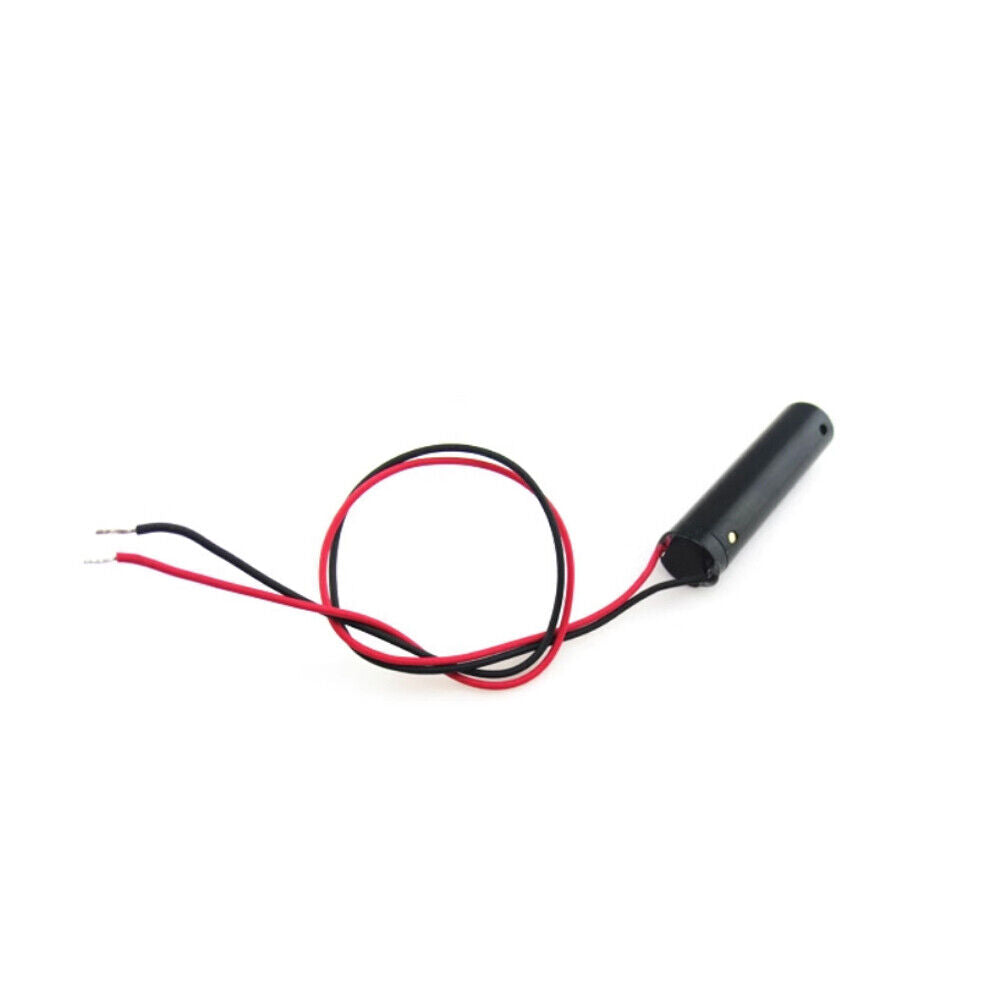

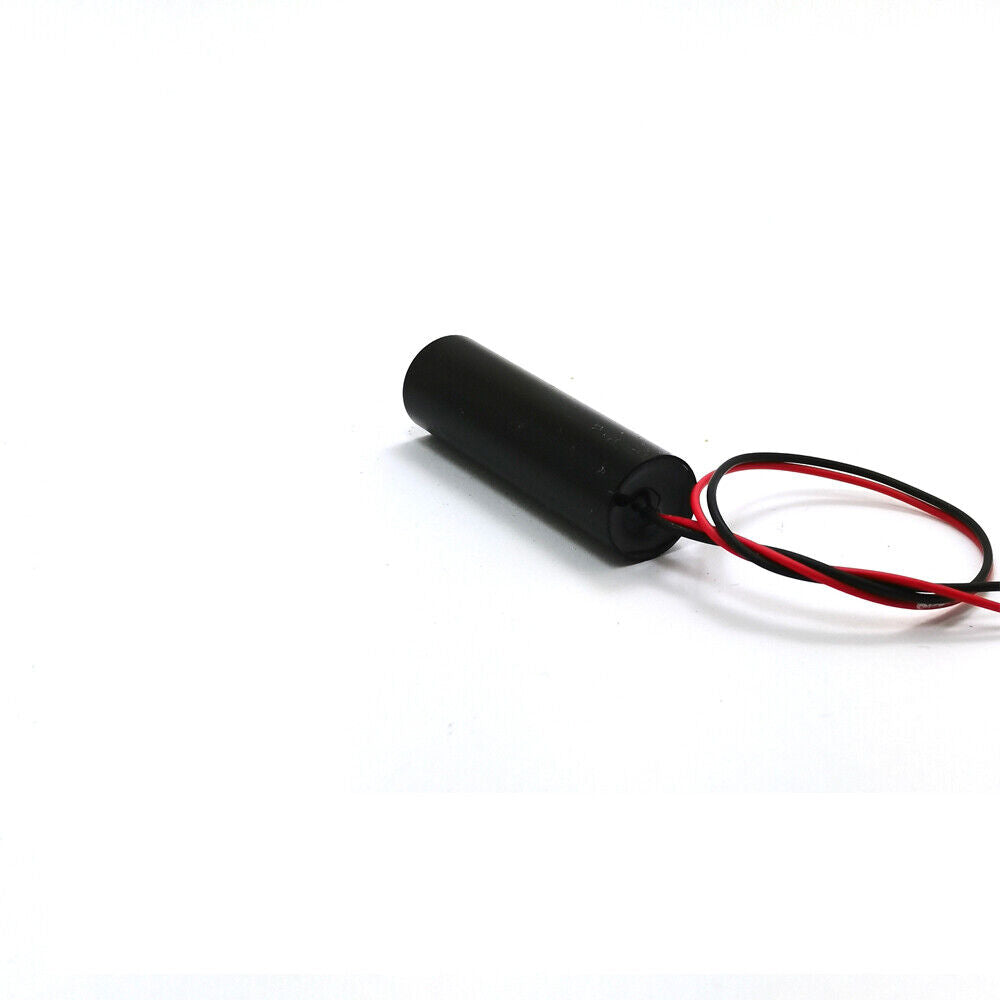

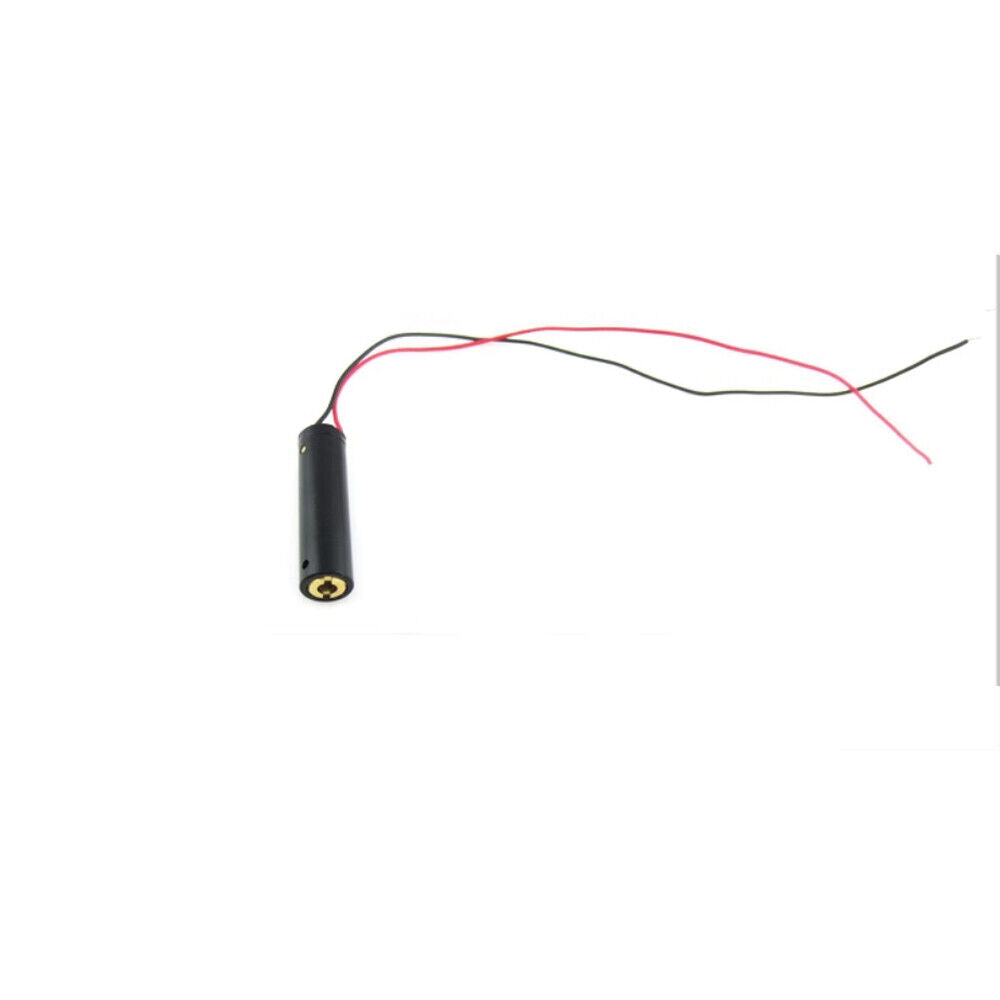

532nm Φ10mm 5mW 10mW Green Dot Laser Module Positioning Green Laser Emitter Lamp

532nm Φ10mm 1mW 5mW 10mW Green Dot Laser Module Positioning Laser Emitter Lamp

Specification:

Mode：CW

Wavelength：532nm

OutputPower：<1mW,<5mW,<10mW

OperatingVoltage：2.8-3V

OperatingCurrent：<280-300mA(Two AAA batteries, alkaline batteries have better performance)

Housing Material：Anodizing Mist Black

Mean timetofailure：>5000H

LaserSafety：ClassIlIA

DivergenceAngle：<0.7mard

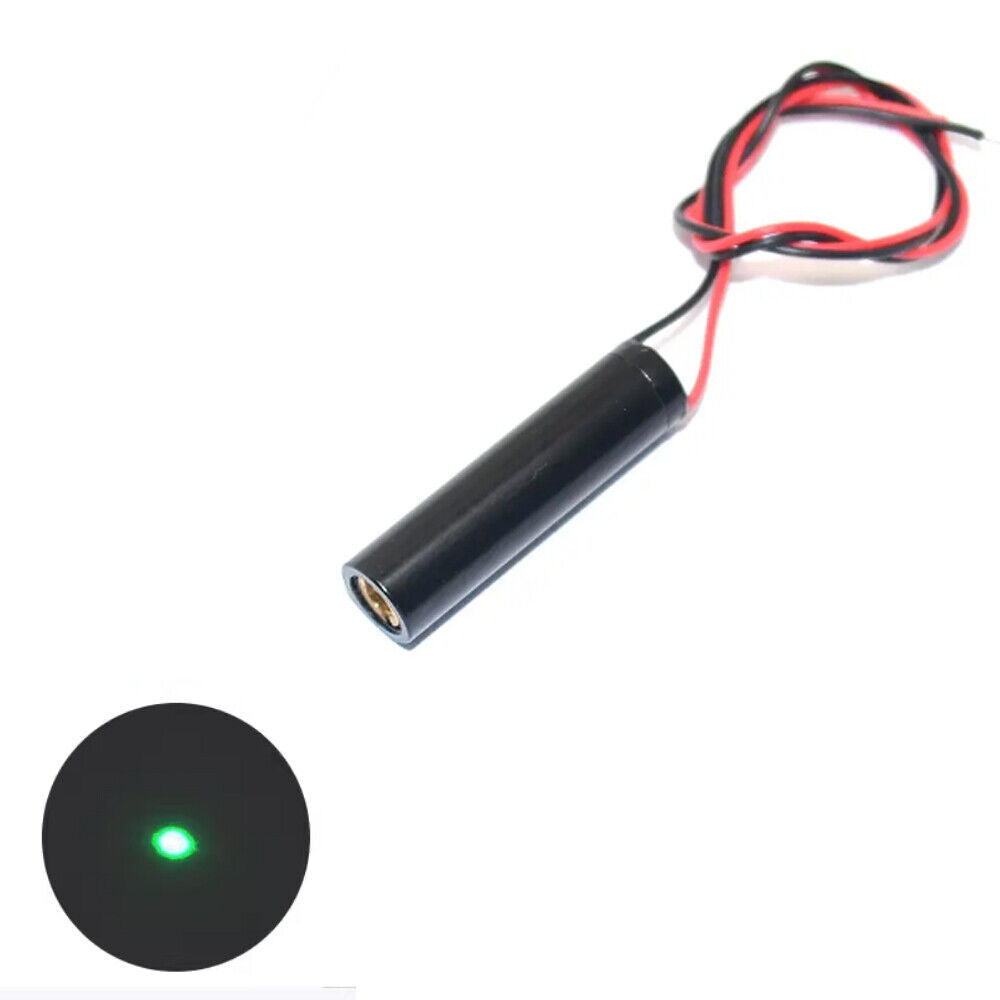

SpotSize：Circular/minimum spot diameter ≤Φ 1.0mm; Light spot at 10m<Φ 18mm

Lens：Glass Collimating Mirror

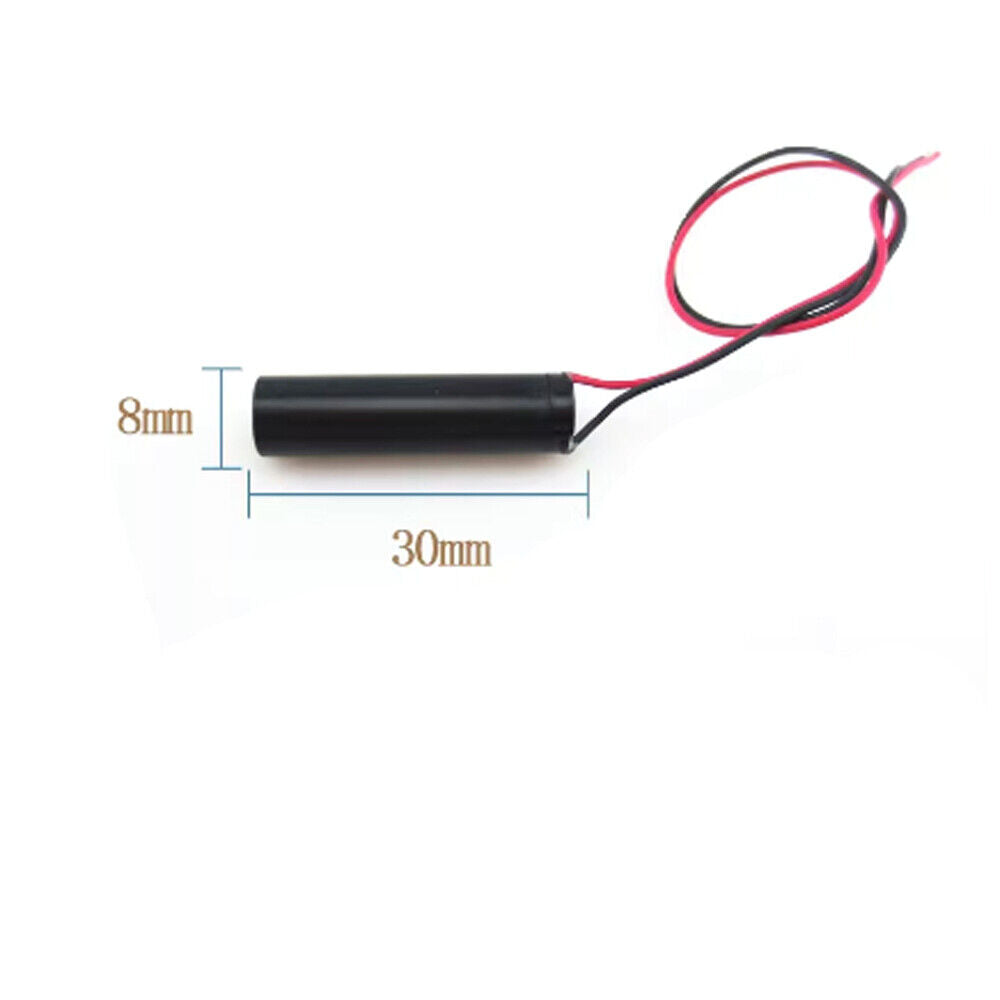

Diameterx Length：10x30mm

Drivercircuit：APC

OperatingTemperature：-20°~+50°

StorageTemperature：-40°~+85°

Package:

1 x 532nm Laser Module
