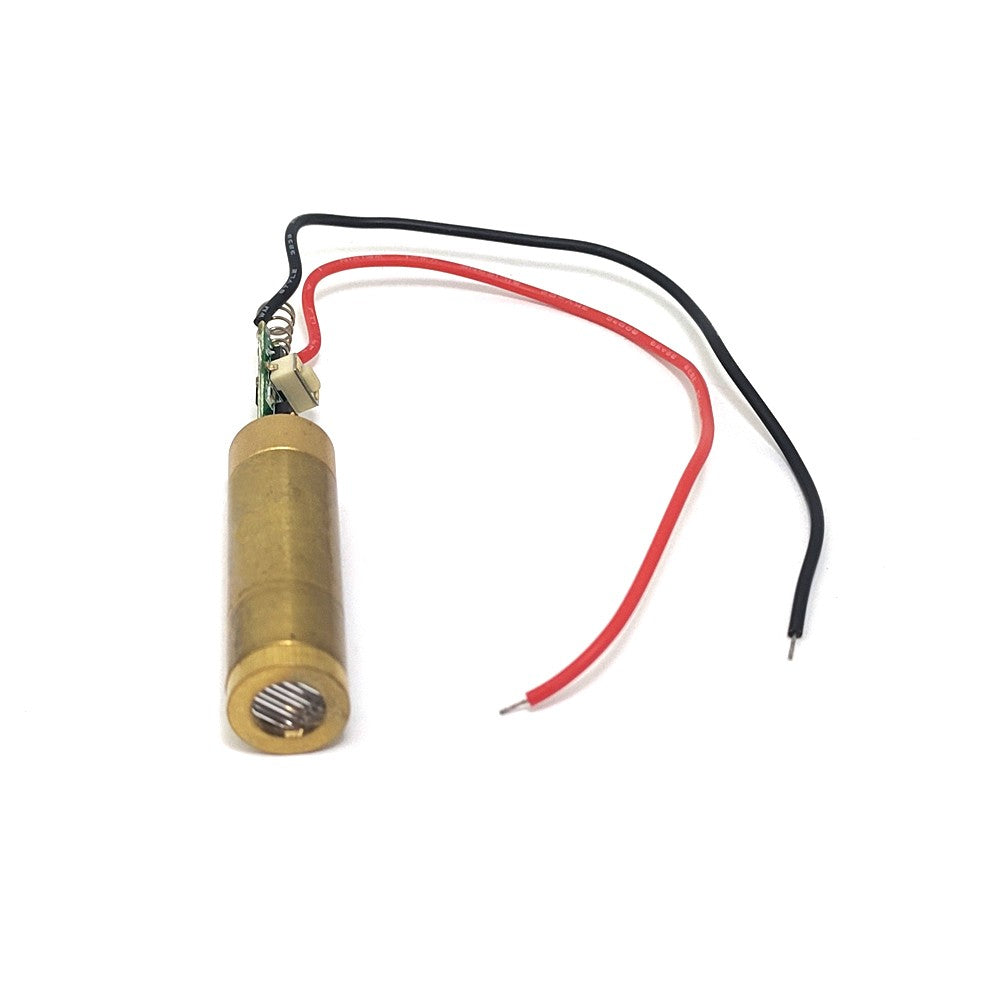

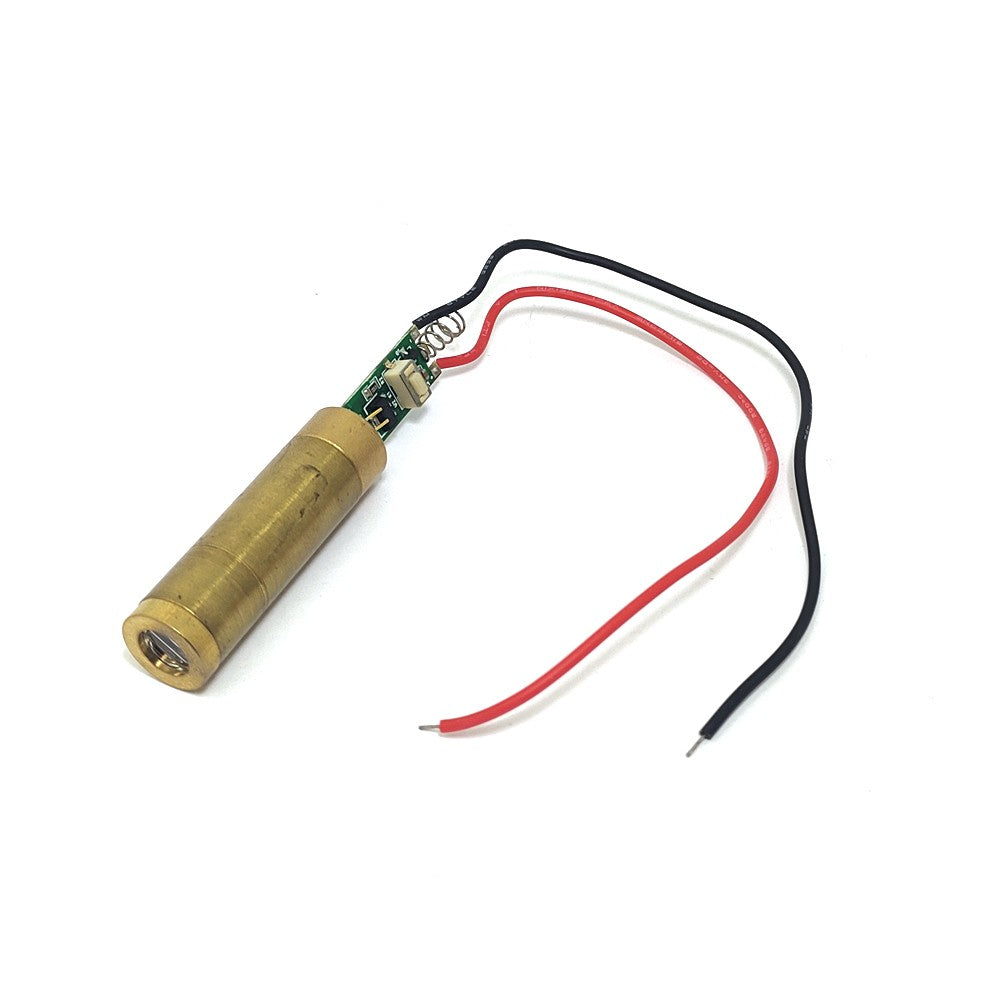

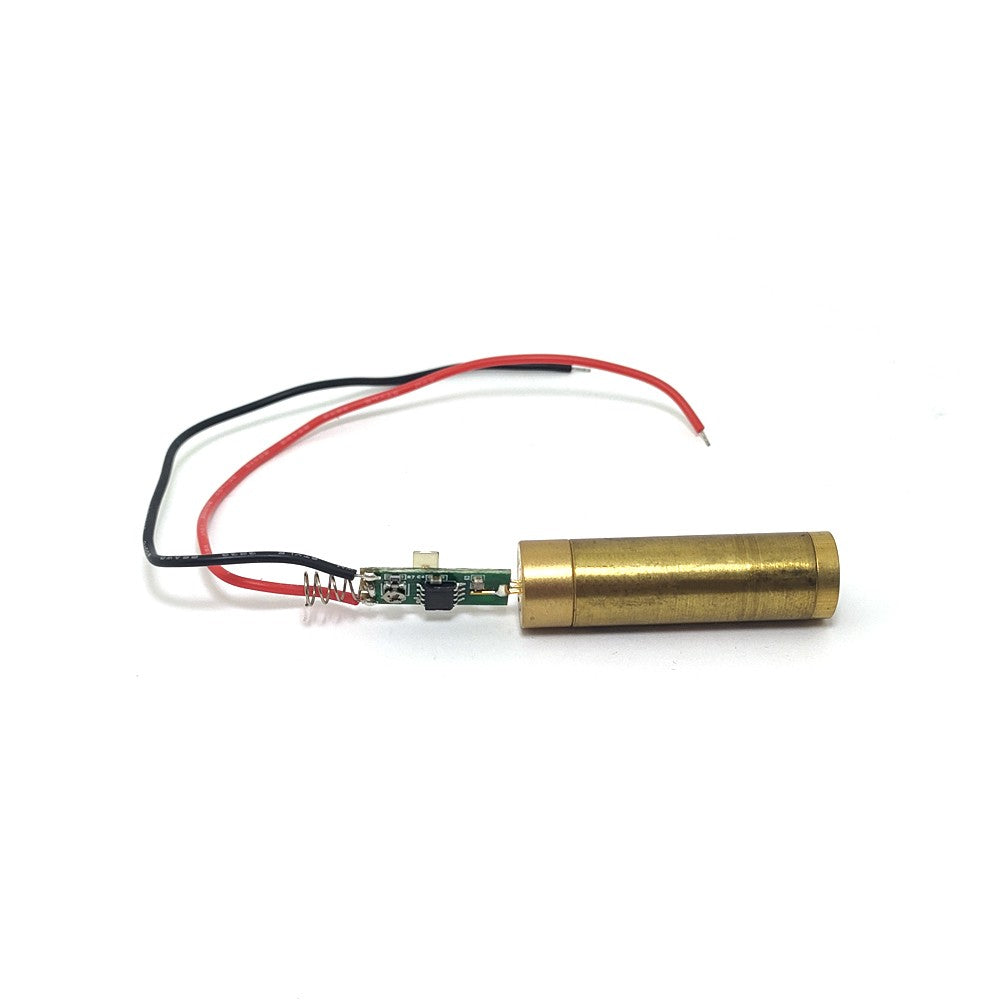

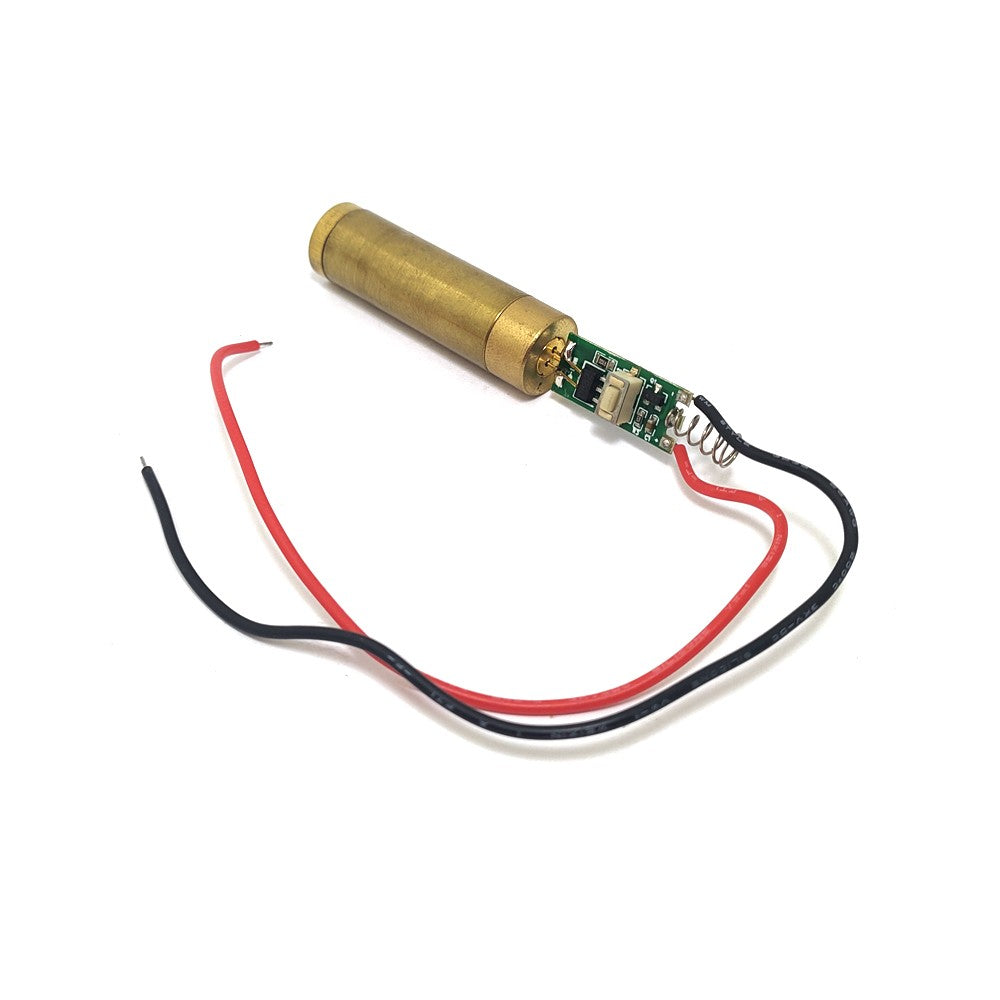

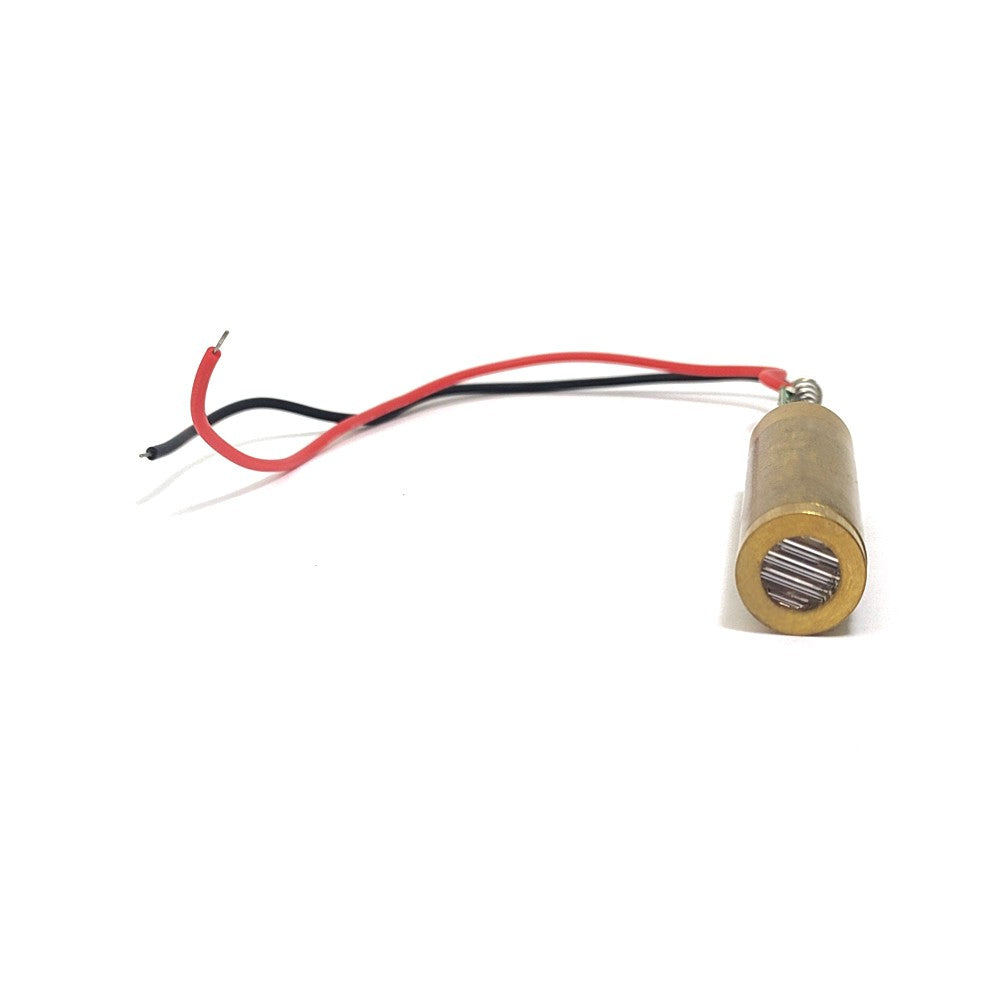

532nm 100mW Green Line Laser Module 110° Wide Angle, 3.0-4.2V Brass Industrial Positioning Laser Locator for Cloth Wood Mechanical Cutting, 12×34mm
532nm 100mW Green Line Laser Module 110° Wide Angle, 3.0-4.2V Brass Industrial Positioning Laser Locator for Cloth Wood Mechanical Cutting, 12×34mm
Couldn't load pickup availability
Product Description
Bright 110° Wide Angle Green Line Laser Module for Industrial Precision Positioning
This 532nm 100mW green line laser module delivers ultra-wide 110-degree uniform green line projection, offering superior visibility compared to red lasers for workshop cutting and mechanical alignment work. Made of solid brass housing, the laser locator features stable DC 3.0-4.2V working voltage, steady power output for long-term industrial use, ideal for factories, carpentry shops, garment cutting studios and machinery assembly lines.
Core Product Features
✅ 110° Extra Wide Line Angle: Covers large working area with one laser unit, no repeated adjustment needed
✅ High Visible 532nm Green Beam: Bright clear green line, easy to identify under normal indoor lighting
✅ Stable 100mW Output Power: Constant light performance, low current draw (<600mA)
✅ Durable Brass Casing: Anti-rust, good heat dissipation, extend module service life
✅ Compact Size 12×34mm: Easy to install on cutting machines, jigs and automation equipment
✅ Standard 3.0-4.2V DC Input: Compatible with small lithium power supplies and machine control circuits
✅ Standard Duty Cycle Design: 60s ON / 15s OFF to avoid overheating damage
Full Technical Specifications
Laser Wavelength: 532nm
Output Power: 100mW
Laser Shape: Line (110° wide line angle)
Focusable: Not adjustable
Working Voltage: DC 3.0V – 4.2V
Operating Current: Less than 600mA
Working Temperature: +10℃ ~ +35℃
Duty Cycle: 60 seconds continuous ON, 15 seconds cooling OFF
Housing Material: Solid Brass
Overall Dimension: 12 mm (Diameter) × 34 mm (Length)
Wide Application Scenarios
This industrial laser line marker is widely adopted for precision positioning in multiple industries:
▸ Garment cloth cutting alignment
▸ Woodworking & timber cutting marking
▸ Mechanical equipment positioning & assembly
▸ Automated production line alignment
▸ DIY optical laser projects & machine modification
Important Safety & Maintenance Tips
Keep the front lens clean at all times to maintain clear, bright laser beam; dust and stains will blur the projection line
Laser eye protection is mandatory: Direct laser radiation will cause permanent eye damage, wear laser safety goggles during all operation and testing
Only operate the laser within the rated duty cycle (60s ON /15s OFF) to prevent overburning the laser diode
This module is for users with basic optical DIY or industrial testing experience; beginners need professional guidance before use
Use within the rated temperature range of 10℃ to 35℃, avoid high temperature or humid environment
