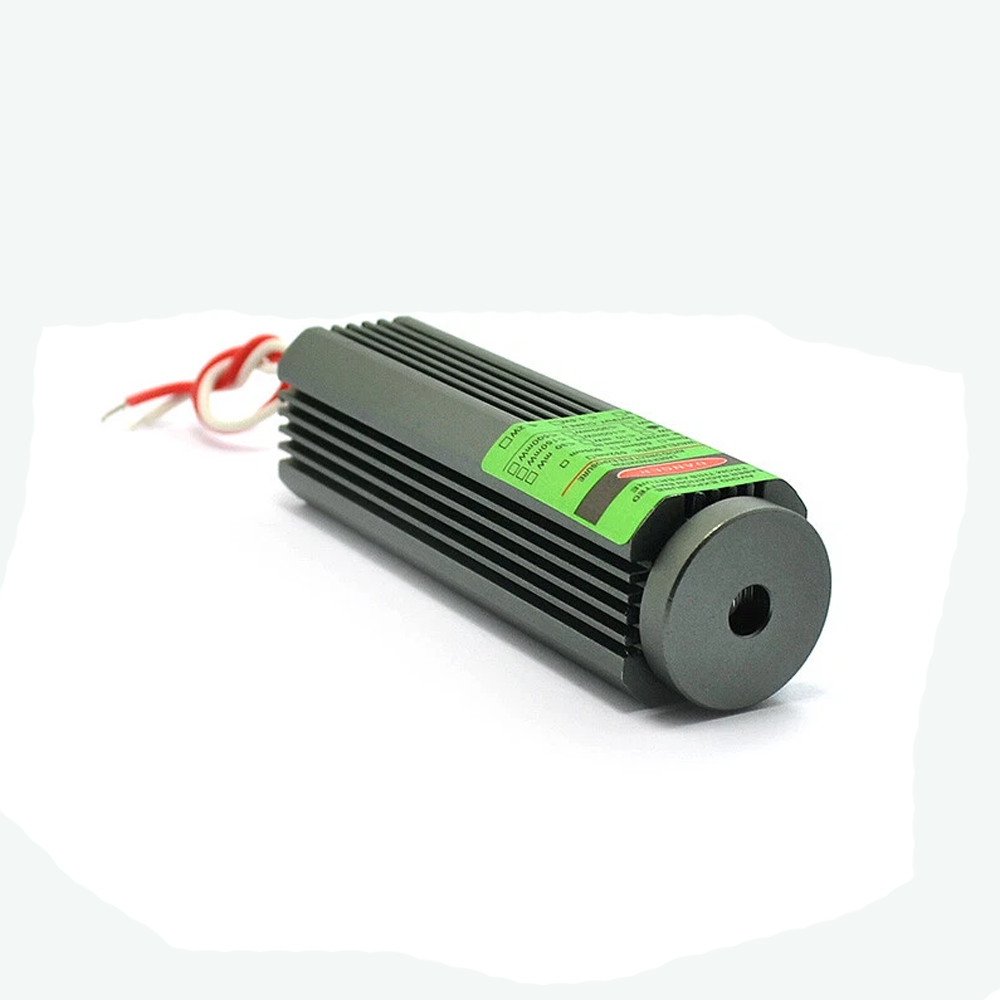

532nm 50mW Green Dot Line Cross Laser Diode Module Locator 25x75mm 5V Glass Collim Lens
Specifications:
Dimensions: 25x75mm
Cross sectional dimension: 21x21mm
Wavelength: 532nm
Output Power: 45-55 mW

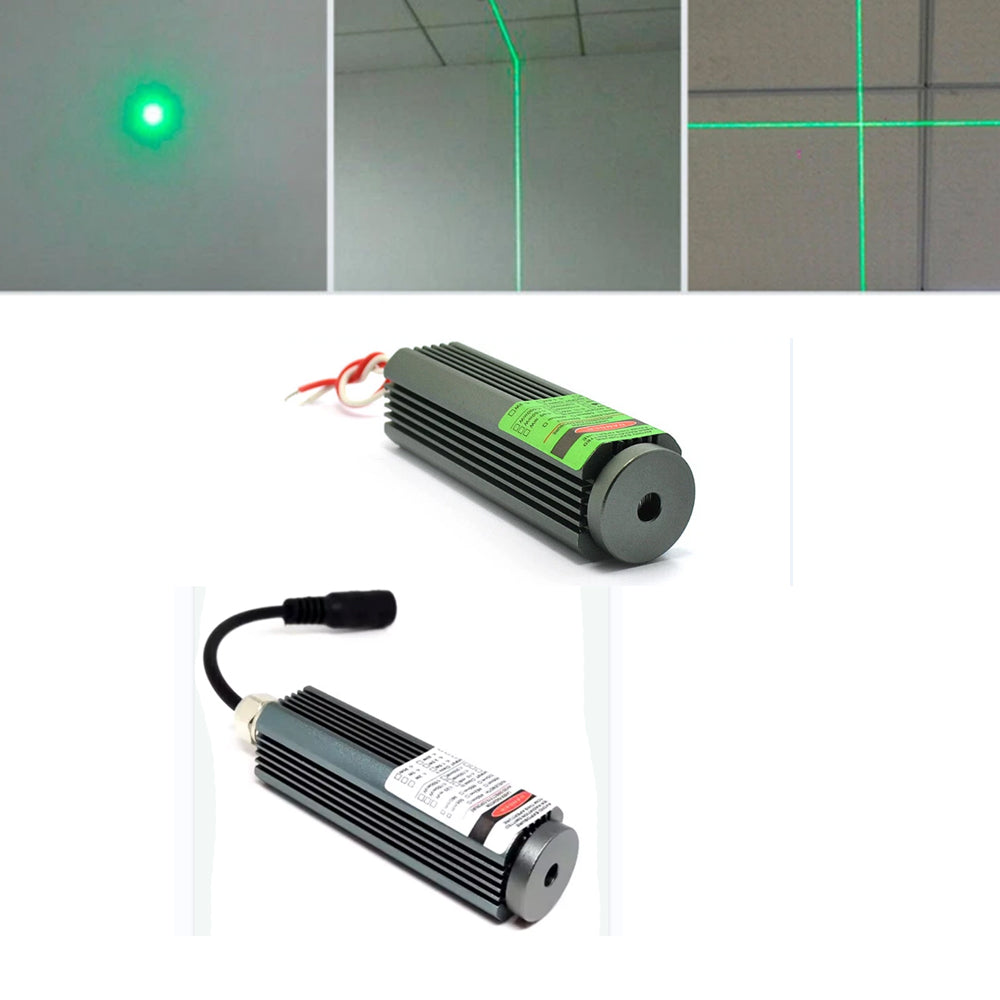

Laser shape: Dot/Line/Cross Optionable
Control circuit: ACC line
(can be customized 5 mW, 10 mW, 20 mW, 50 mW, 100 mW, 120 mW)
Operating voltage: DC = 3-5 V
Current job: <350mA
Warm-up time: None
Operating temperature: + 20 degrees C ~ + 30 degrees C
Storage temperature: + 10 degrees C ~ + 40 degrees C
Duty Cycle: 20 minutes in, 3 minutes off
Structural features: laser diode + crystal + glass lens
Detail:
This laser locator / module has is widely used in cutting clothes, wood cutting, mechanical positioning.
If you want to extend the duty cycle, add additional heat sink, otherwise the life will be significantly shortened from the laser diode, and the laser output will reduce very soon.
Package:
1 x 532nm 50mW Laser Module
