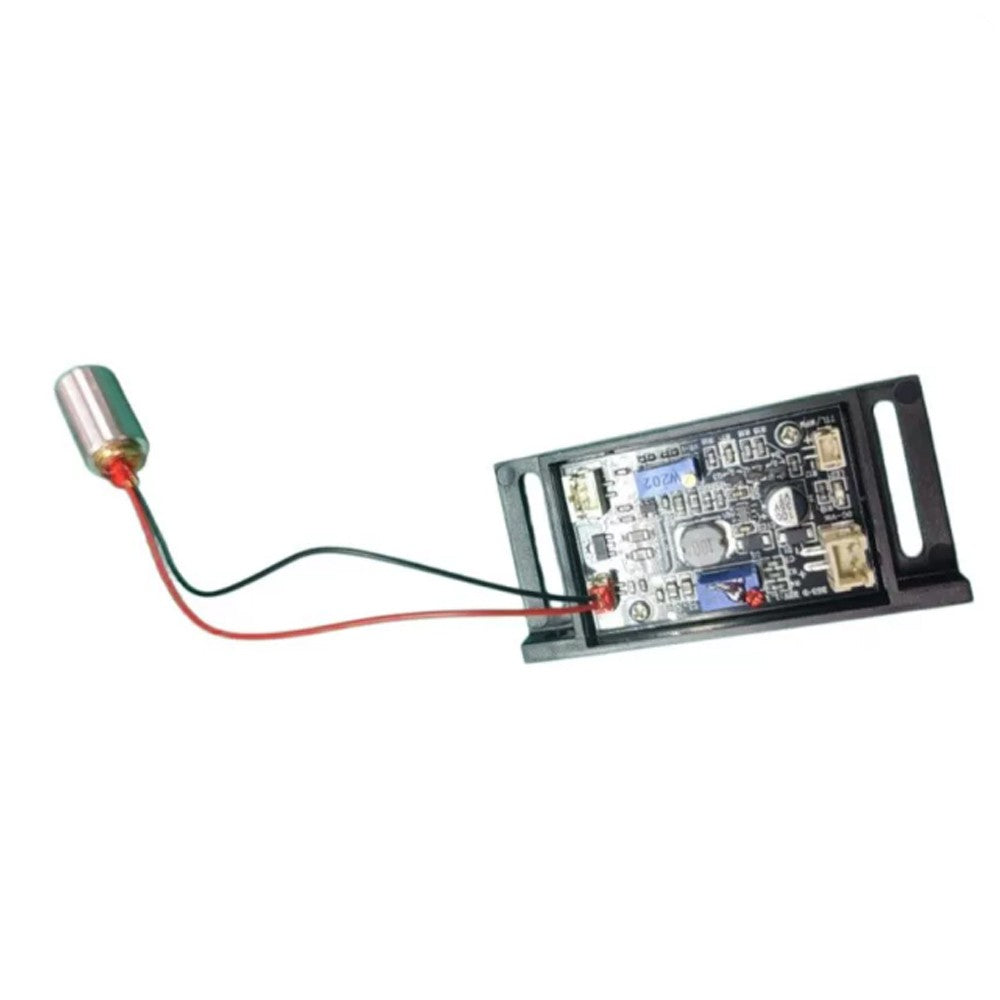

545nm 555nm 561nm 571nm 591nm 20mW Yellow Pumped Wide Temperature Laser Source

Specifications：

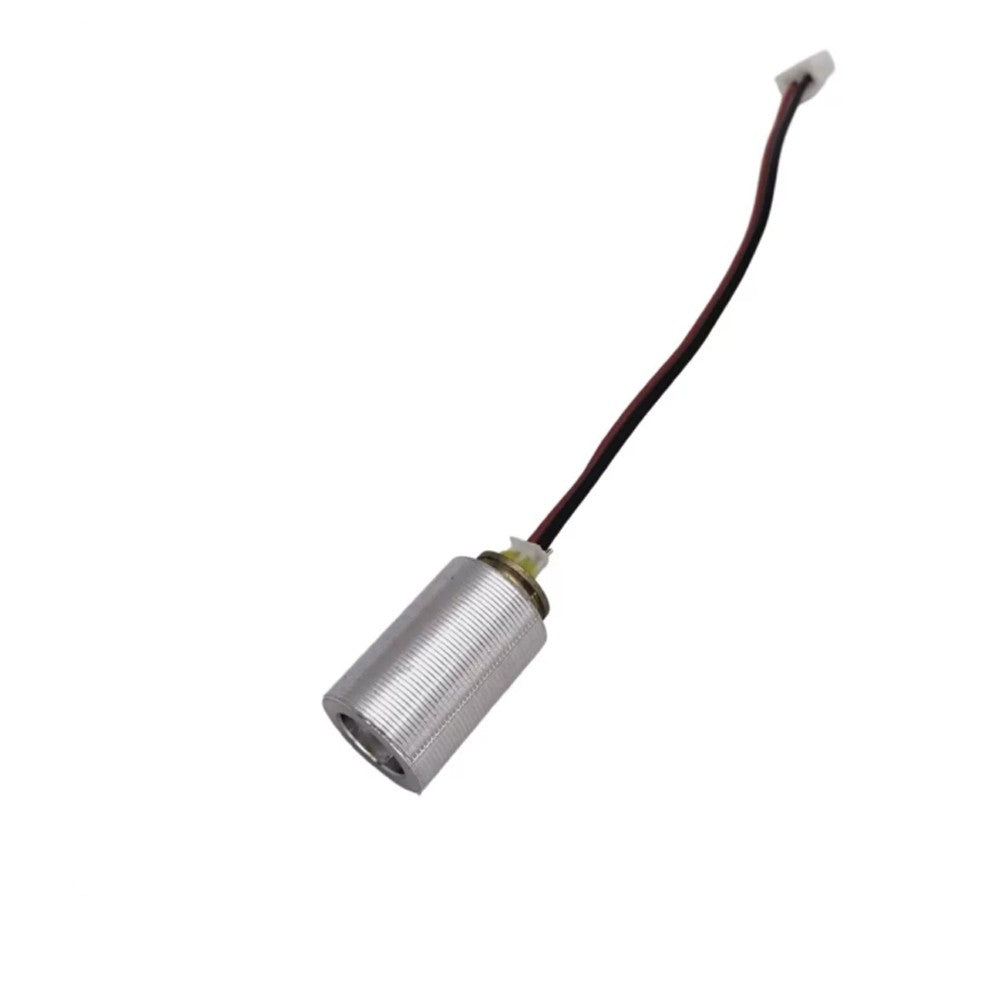

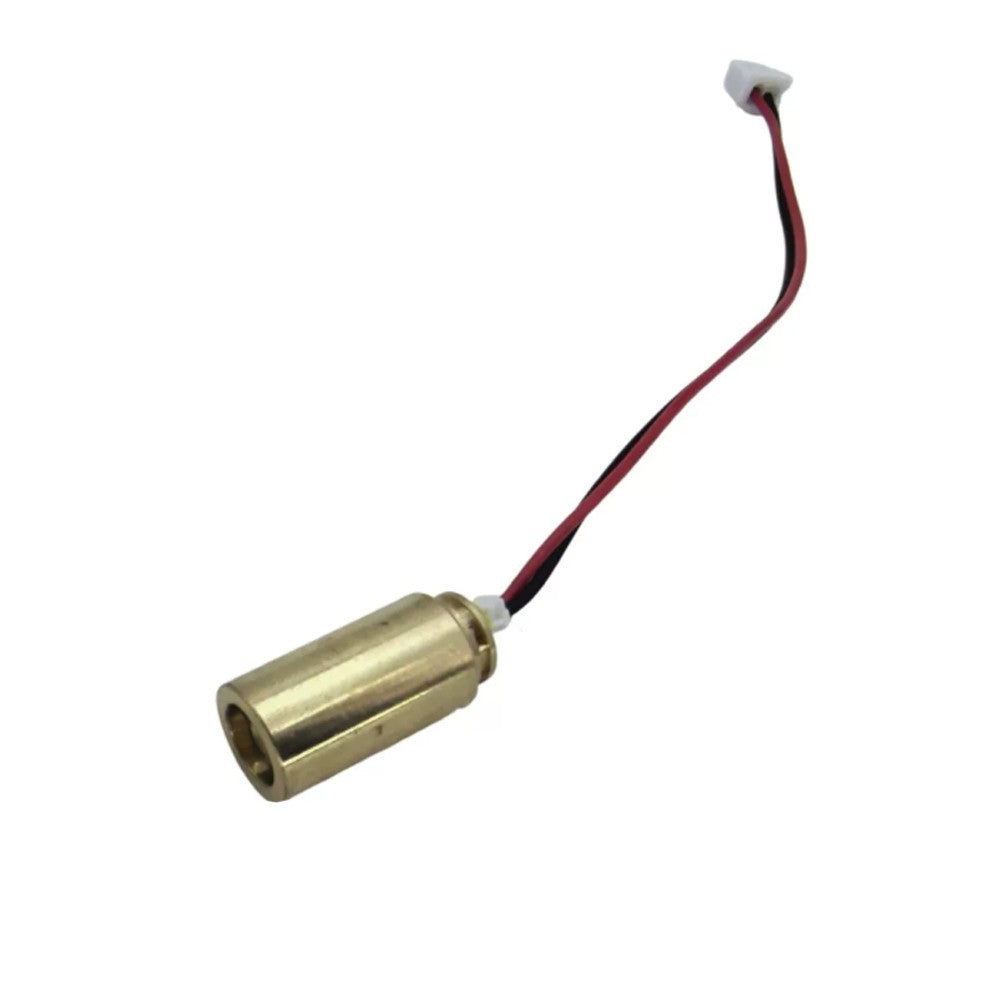

Laser module light source:

Size: 12mm or 13mm

Material: Copper/Aluminum

Wavelength: 532nm, 545nm, 555nm，561nm, 571nm

Power: 20mW, 40mW, 50mW

Voltage: 1.8V-2.2V

Current: ＜ 600mA

Control mode: ACC

Maximum spot at 10 meters: 2mm

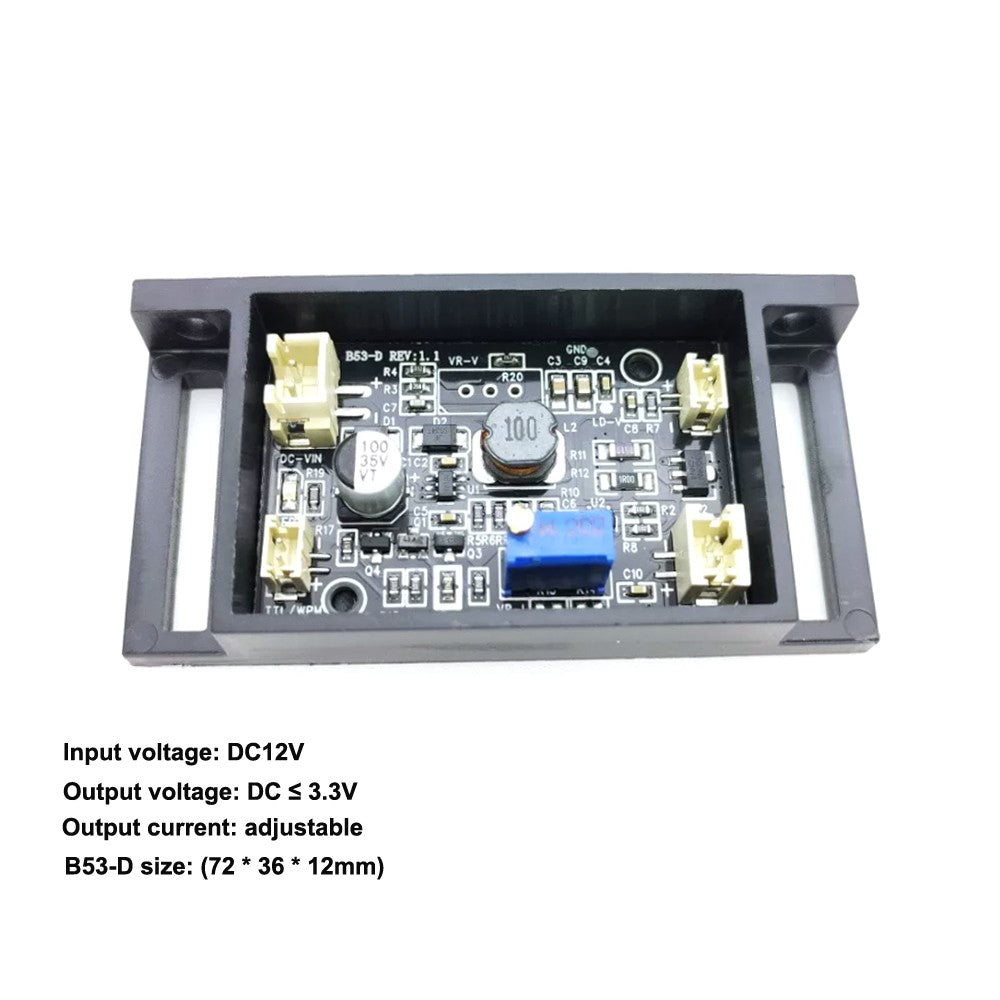

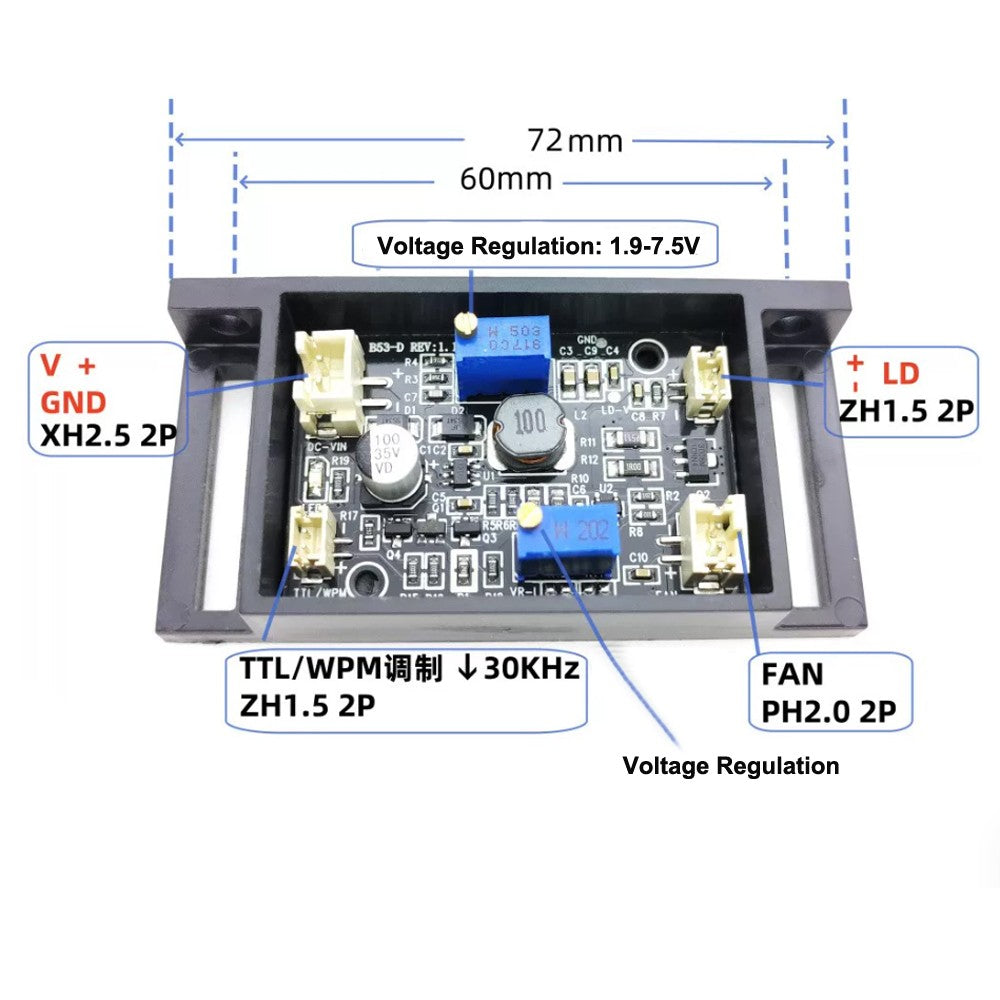

Driver board:

Input voltage: DC12V

Output voltage: DC ≤ 3.3V

Output current: adjustable

Fixed aperture: 04.15-4.3mm

Fixed hole spacing: 60mm

Voltage regulation: 1.9-7.5V

B53-D size: (72 * 36 * 12mm)

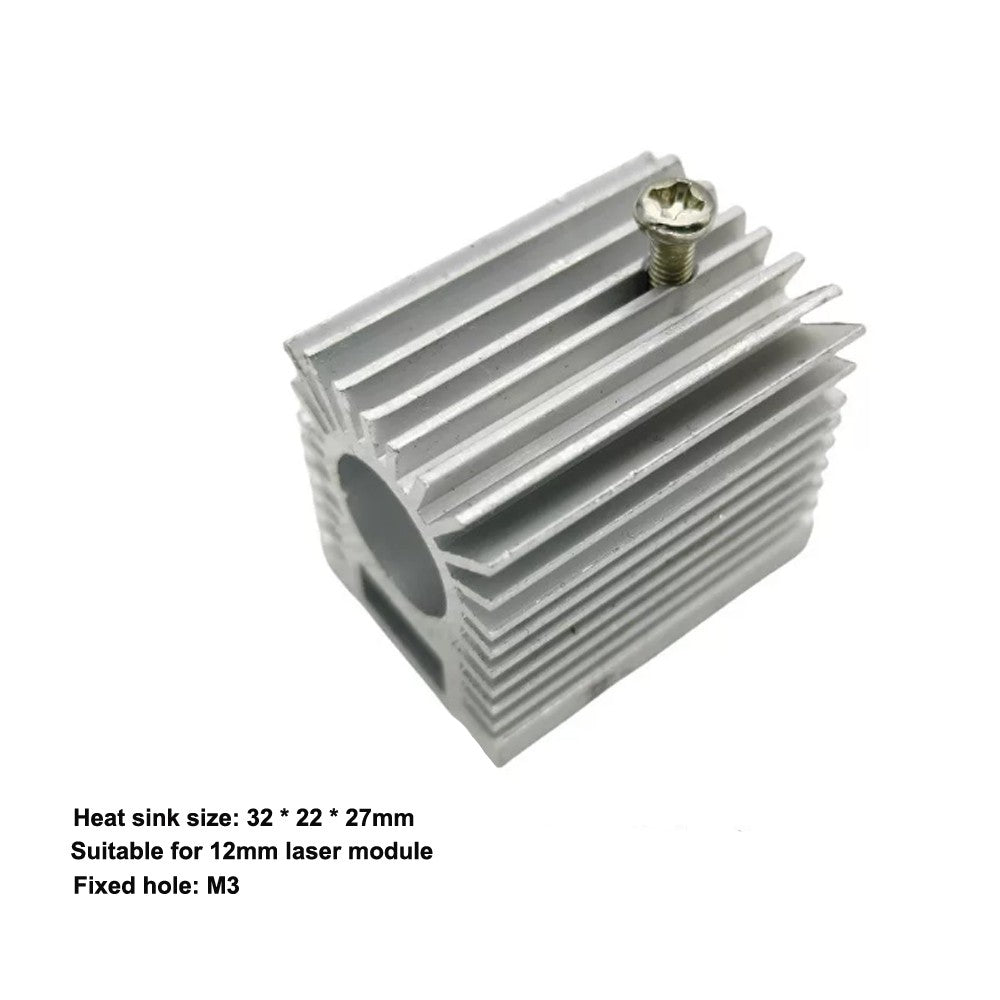

Radiator Bracket：

Size: 32 * 22 * 27mm

Suitable for 12mm laser module

Fixed hole: M3

Package:
1* Yellow Pumped Wide Temperature Laser Source
