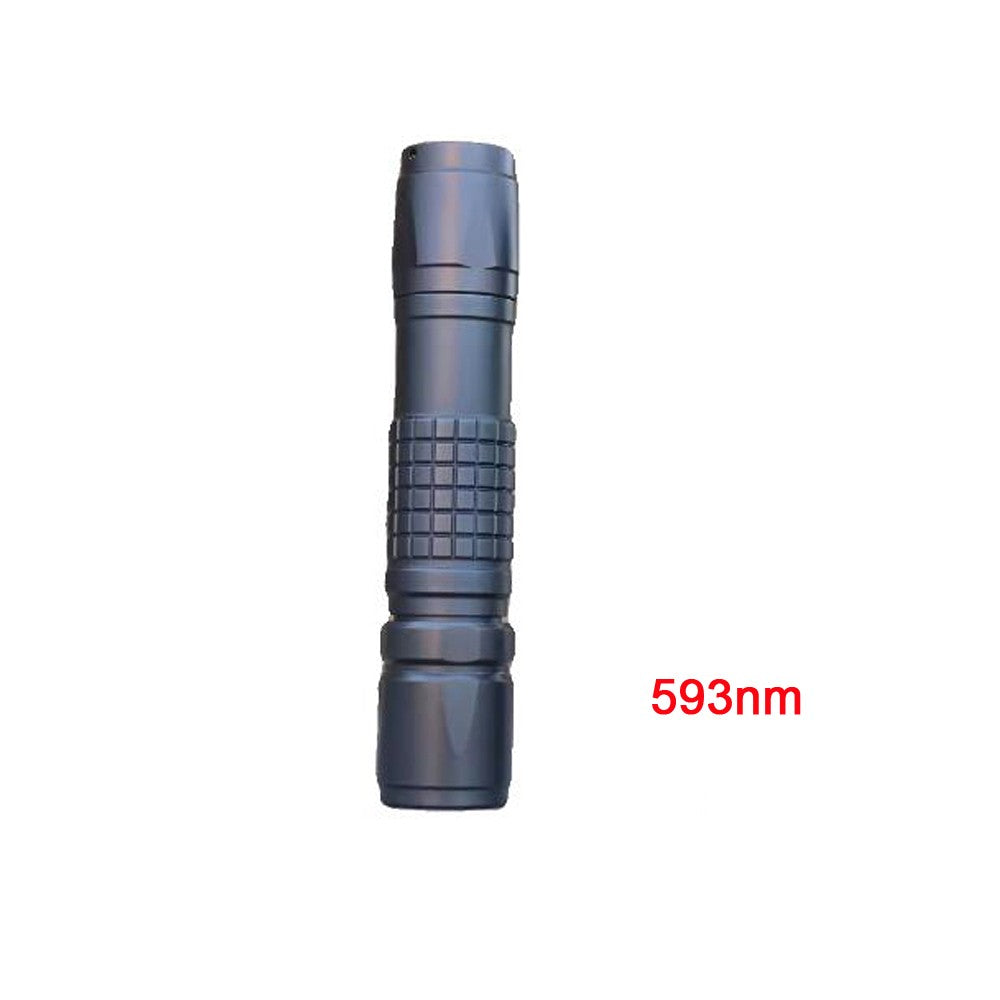

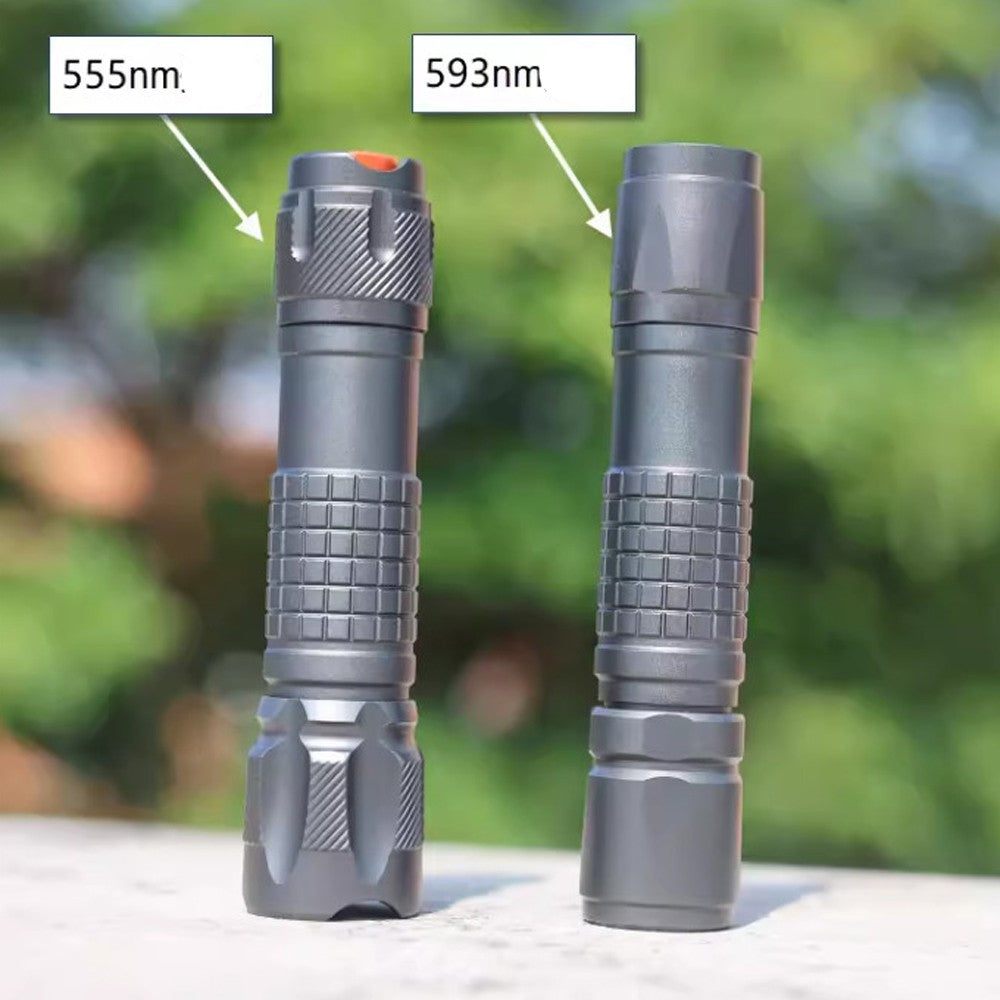

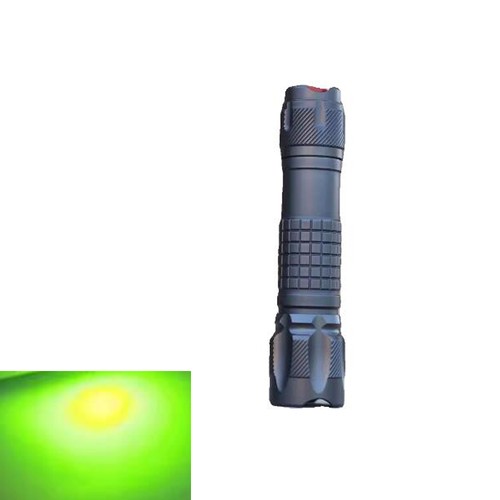

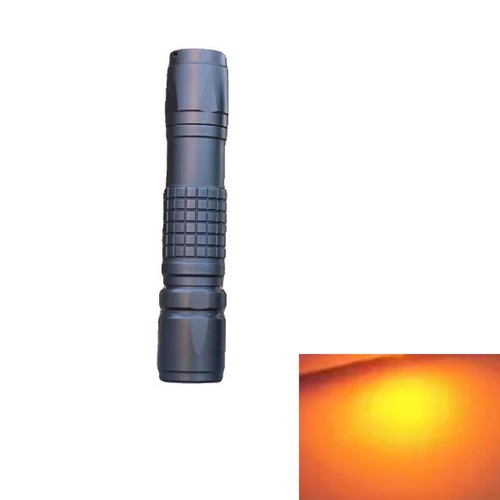

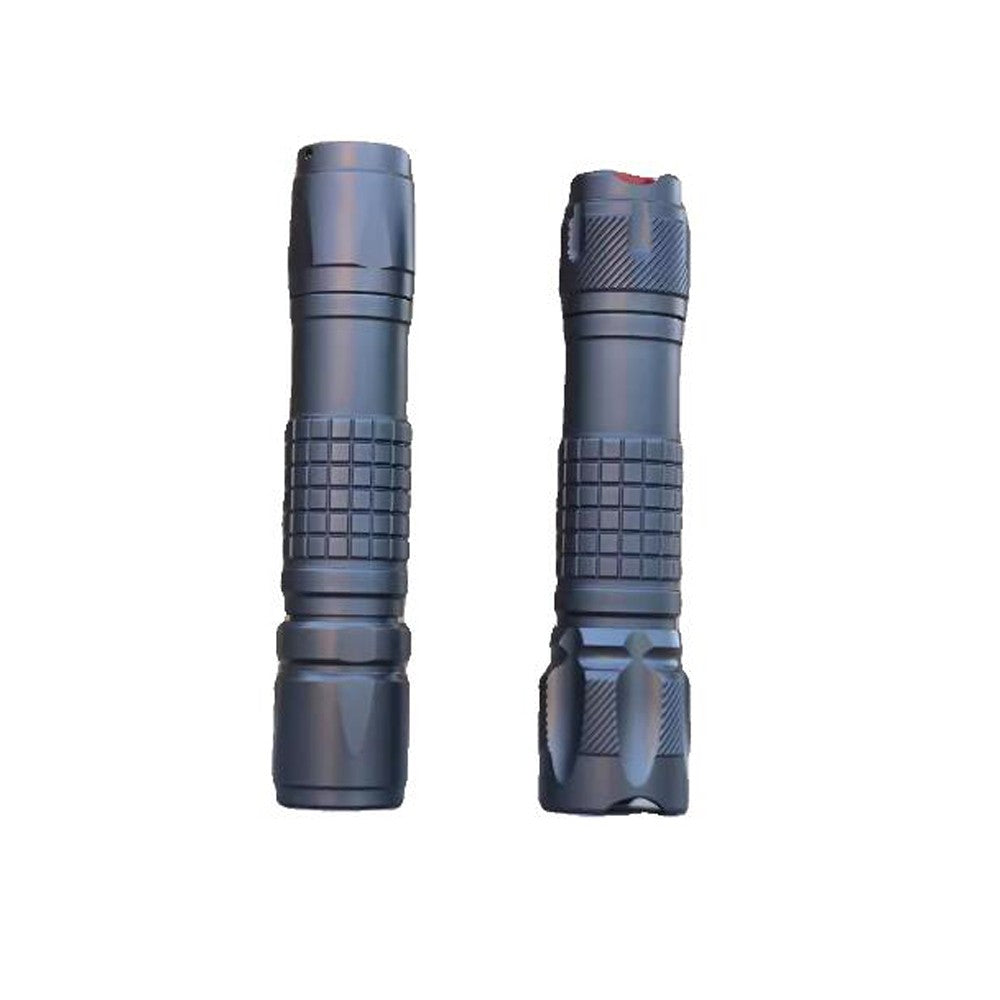

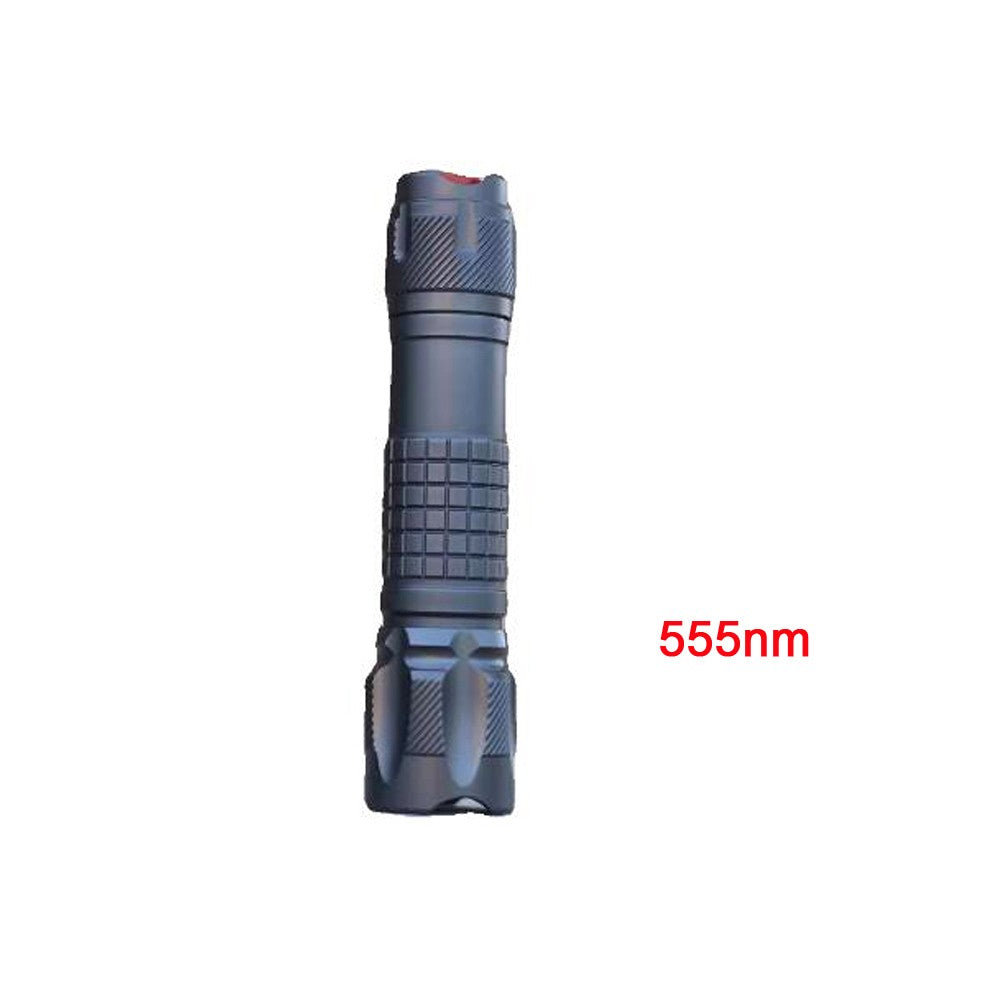

593nm Yellow 555nm Green Light Laser Sand table indication Light Source Module
Specifications:

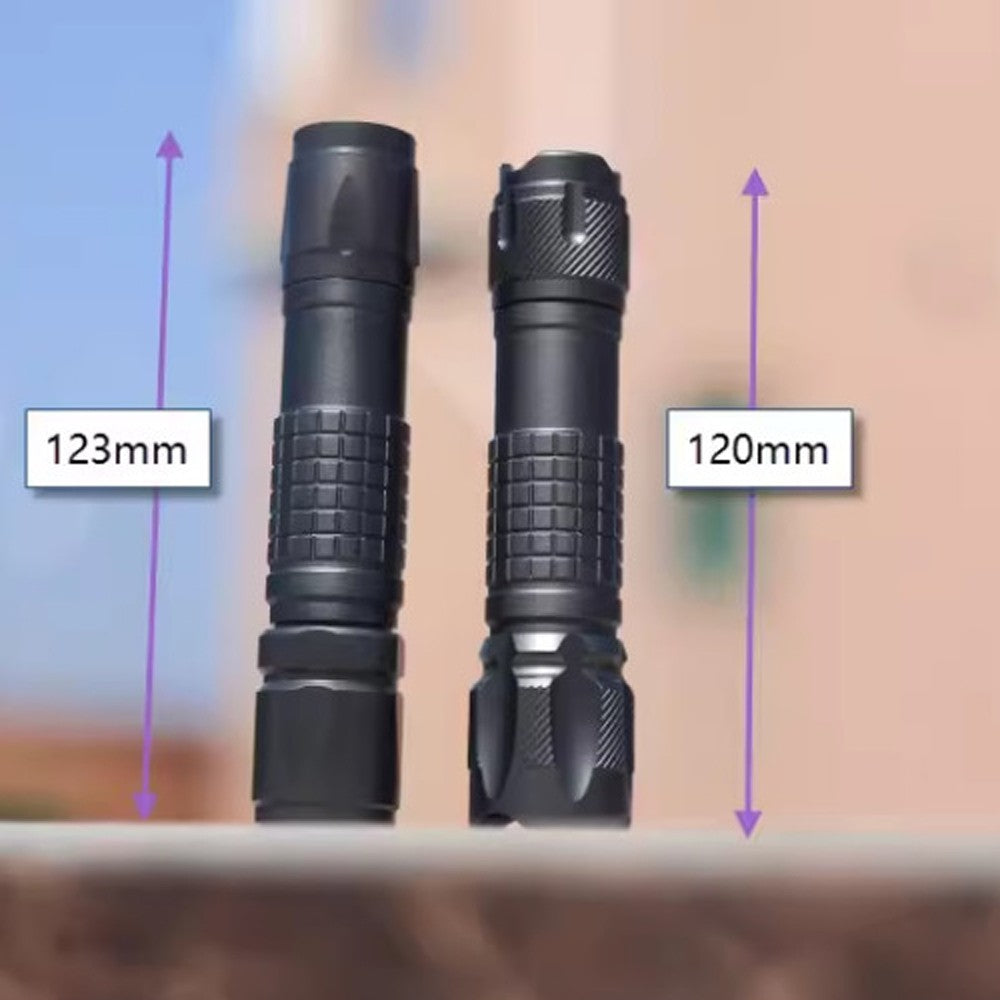

Dimensions: 123 * 29.5mm Head size measured according to style
Shell material: aviation aluminum
Surface treatment: Fine sand matte military green oxidation
Output wavelength: 555/571/593nm optional, can also be customized with 505nm/532nm wavelength
Gear setting: single gear
Switch mode: self-locking constantly on, off
Center wavelength: 532nm/555nm/593nm/571nm optional
Output power: 555nm 20mW/593nm 10-20mW
Average power: optional
Security level: Class 3
Circuit control: 4.2V step-down constant current with reverse protection
Circuit efficiency: voltage reduction conversion efficiency of over 93%
Spot form: Dot
Beam Style: Continuous Linear
Spot size:<010-12mm at approximately 5M
Focusing method: fixed focal length
Focusing method: Non adjustable focus
Waterproof level: Life waterproof
Working current: 3.7V @ 400mA-60mA
Battery type: rechargeable lithium battery cell
Battery direction: negative electrode towards light output direction, positive electrode towards tail switch
Working voltage: DC=3.7V
Starting voltage: DC=2.5V
Preheating time: none
Package：1*Light Source Module
