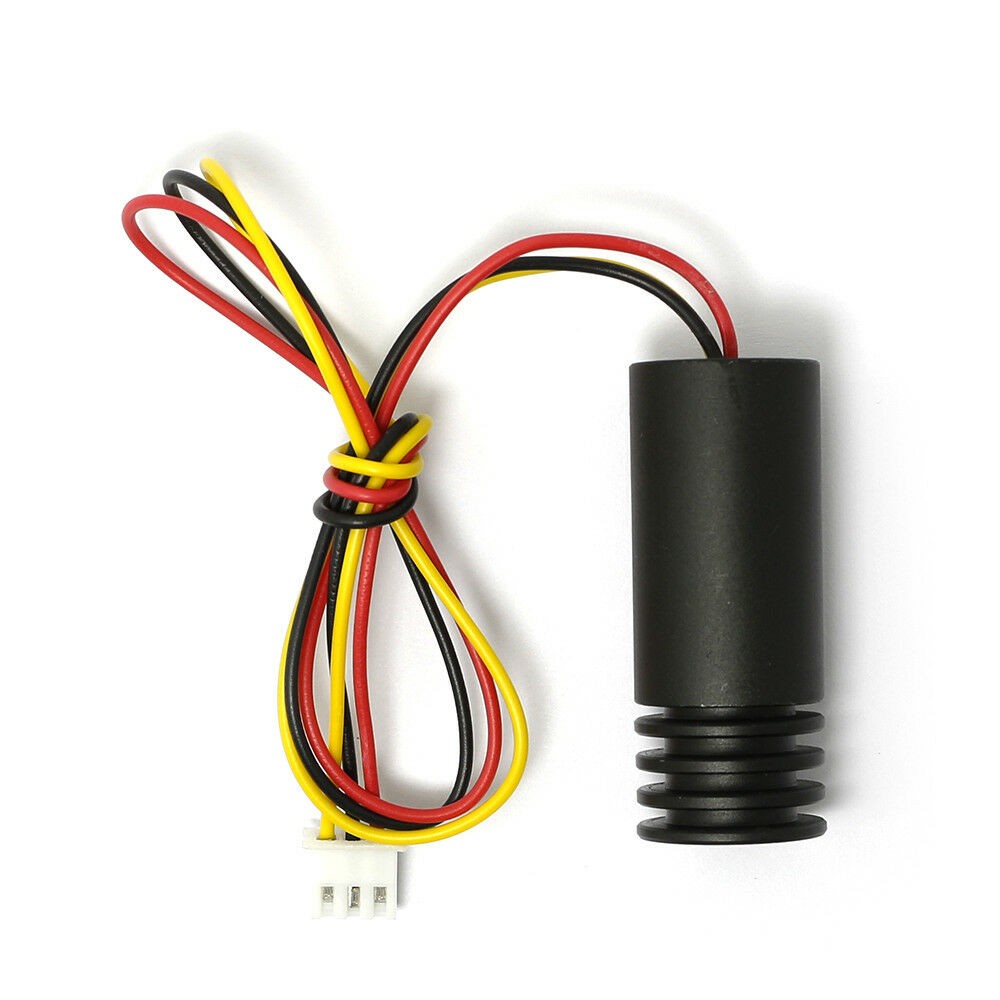

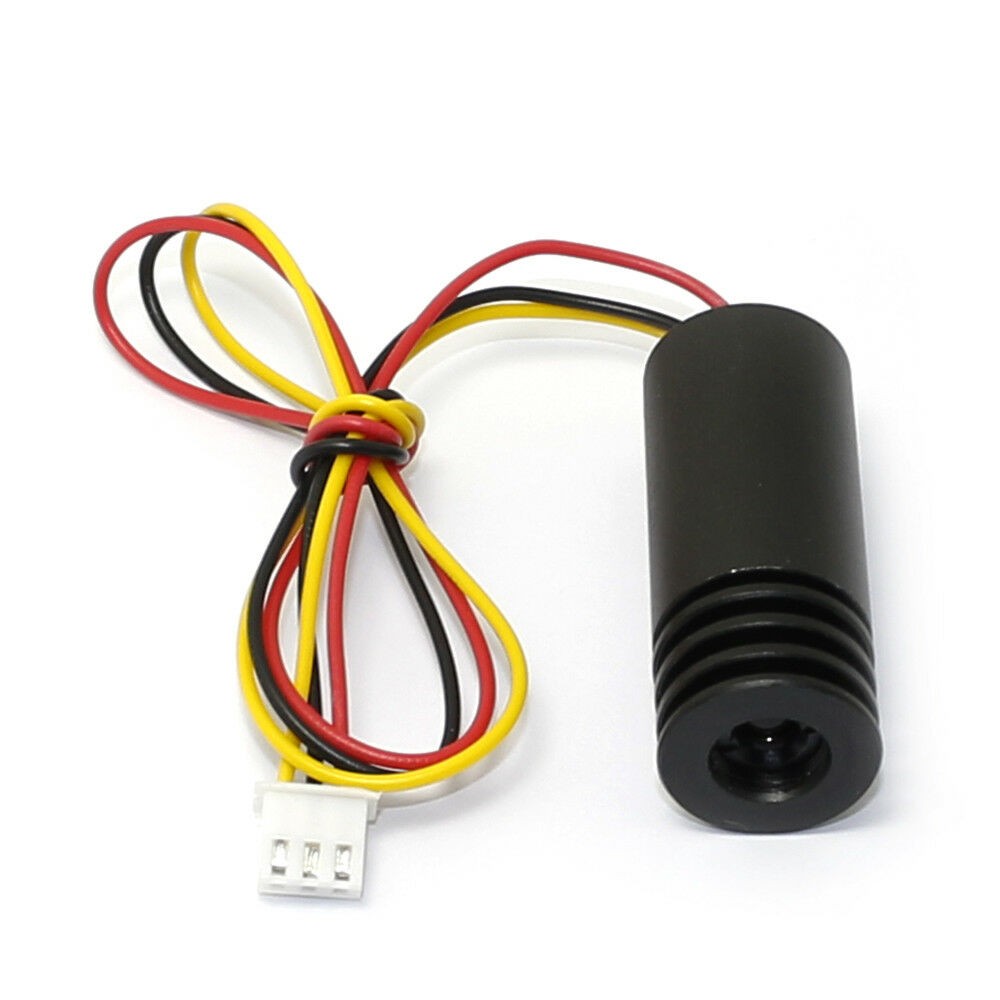

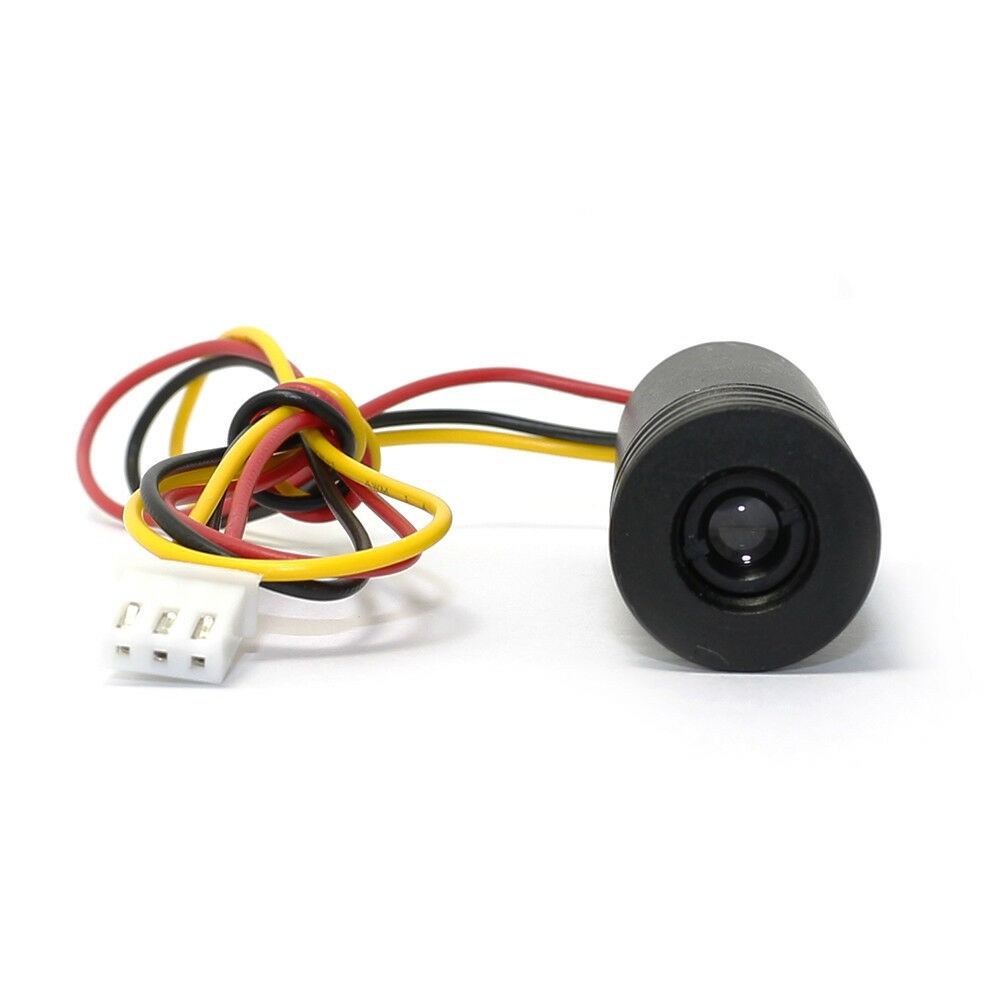

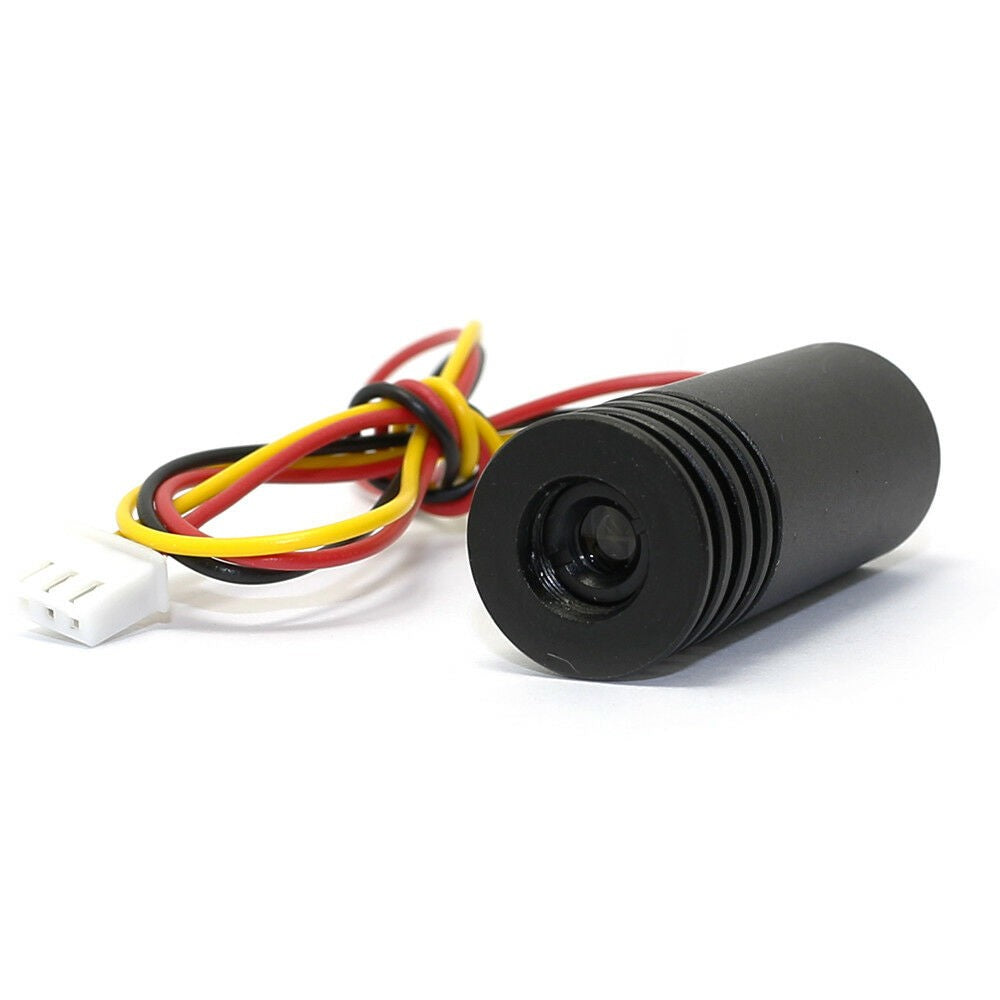

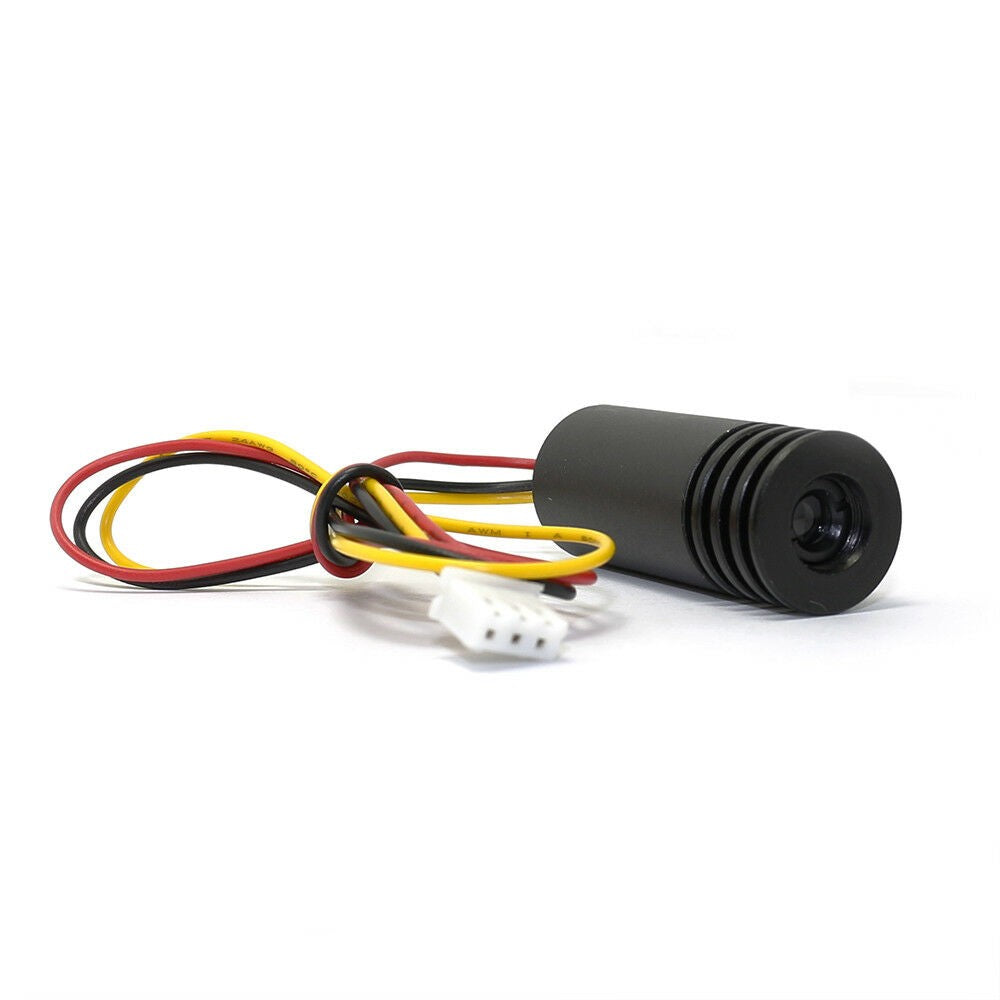

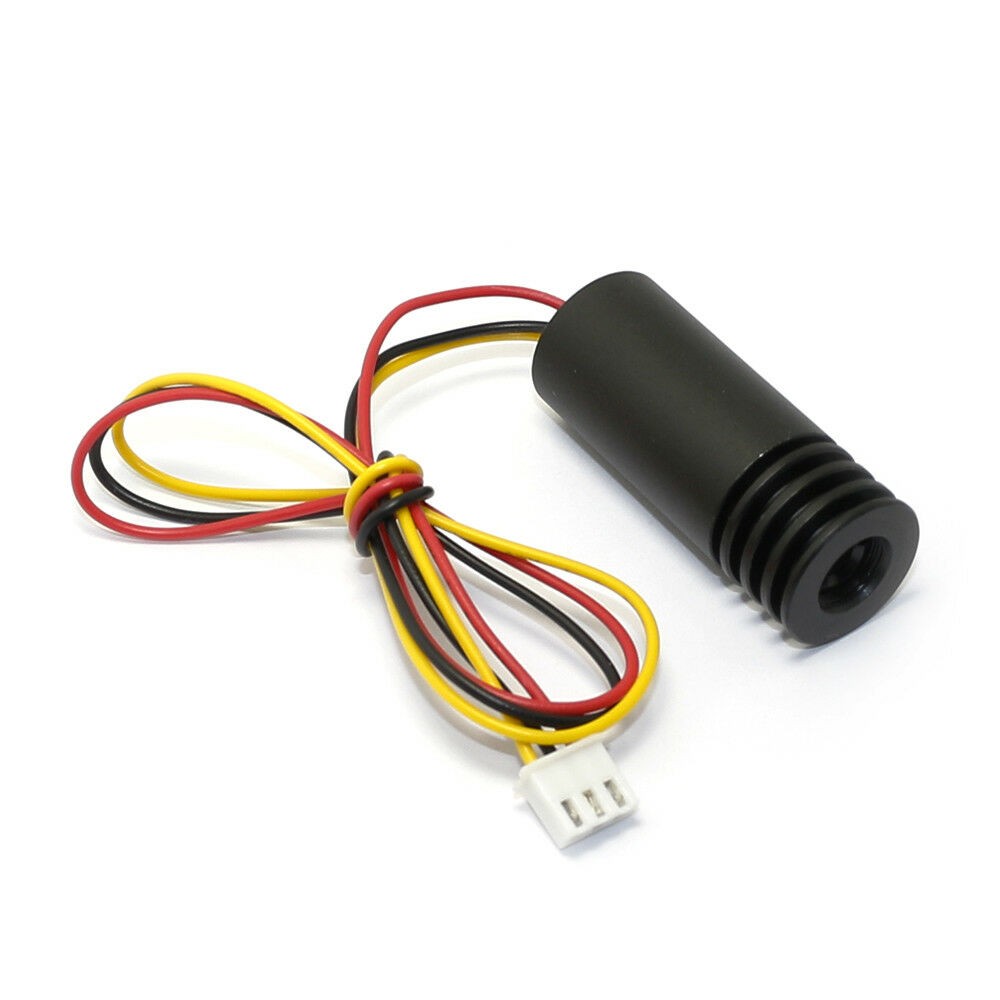

5VDC 980nm 60mw Infrared IR Laser Dot Module w/TTL 100KHz
5VDC 980nm 60mw Infrared IR Laser Dot Module w/TTL 100KHz
Regular price
$27.00
Regular price
$31.00
Sale price
$27.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
980nm 60mw Infrared IR Laser Dot Module w/TTL 100KHz
Features:
Wavelength 980nm
Ouptut Power 60mW
Current <200mA
Power supply 5.0VDC
TTL modulation Voltage 0-5V
TTL frequency 0-100KHz
Dimension: 18mmx45mm
The Lens focus is adjustable, not fixed, can adjust to an appropriate spot size, and then fix it.
Off low, high open, normal status open
Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive
Ouptut Power 60mW
Current <200mA
Power supply 5.0VDC
TTL modulation Voltage 0-5V
TTL frequency 0-100KHz
Dimension: 18mmx45mm
The Lens focus is adjustable, not fixed, can adjust to an appropriate spot size, and then fix it.
Off low, high open, normal status open
Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive
Features:
This 980nm laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.
The laser module is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing
The laser module is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing
Package:
1X 5VDC 980nm 60mw Infrared IR Laser Dot Module w/TTL 100KHz
