Φ6×12mm 650nm Red Dot Laser Module | 0.4mW / 1mW / 5mW / 10mW Industrial Positioning Laser Emitter

Our miniature 6mm×12mm cylindrical 650nm red dot laser module is a widely used low-power laser locator built with solid metal shell, featuring concentrated light spot, stable luminous output and low power consumption. Four optional power grades (0.4mW, 1mW, 5mW, 10mW) fully satisfy weak indication and medium-precision industrial positioning demands.

Core Product Advantages

Ultra-small 6*12mm cylinder structure, convenient for embedded installation inside various devices
Standard 650nm visible red beam, clear round dot with low divergence
Multiple optional power to match mechanical calibration, equipment indication, DIY production needs
Stable luminous performance, low heat generation for long continuous working
Cost-effective laser source for factory automation, teaching experiments and small machinery positioning

Main Technical Specs

Size: Φ 6X12mm

Material: Copper (all metal shell), lens material is usually A-grade high-quality glass lens

Output wavelength: 650nm ± 10nm

Surface treatment/color: brass shell (natural color)

Exit pupil power range:<0.4mW,<1mW,<5mW,<10mW (optional)

Range:<200 meters (indoor environment, laser may be affected by ambient light interference, distance may vary)

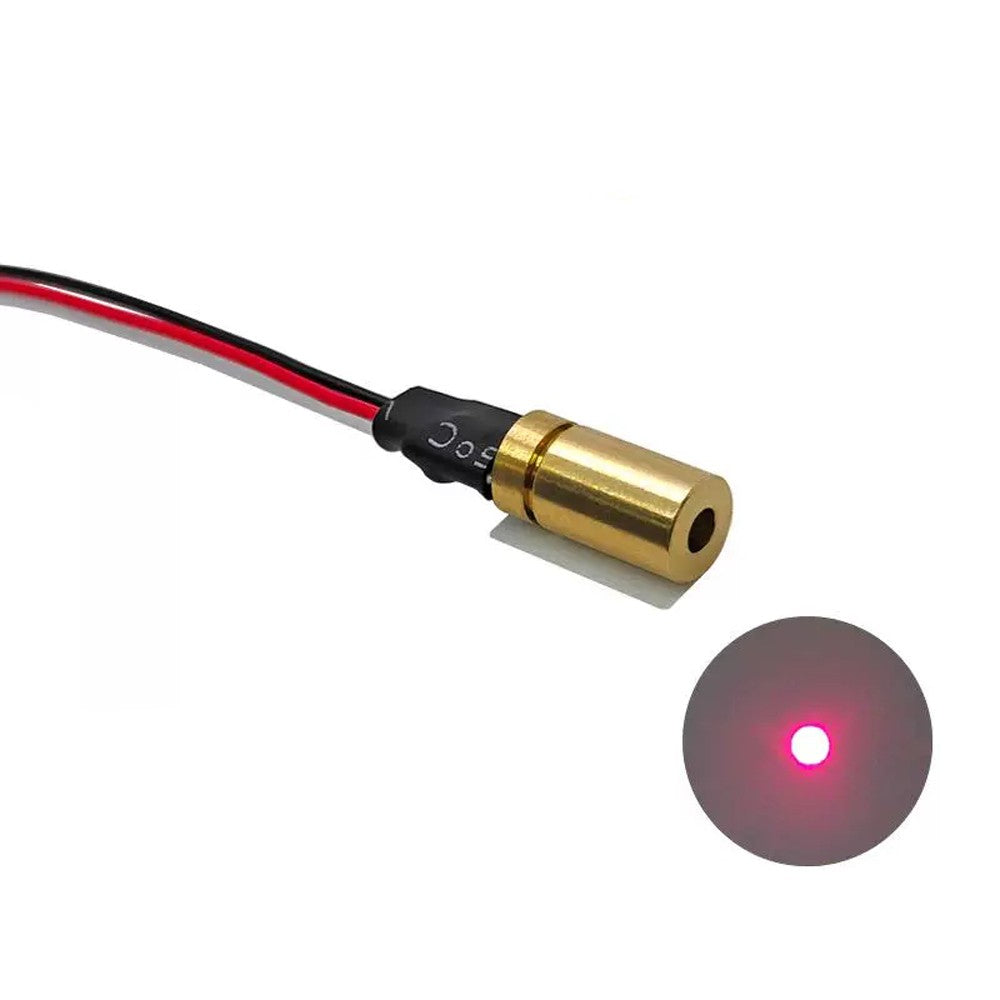

Spot shape and size: Point like light, elliptical, less than 12mm at 10 meters

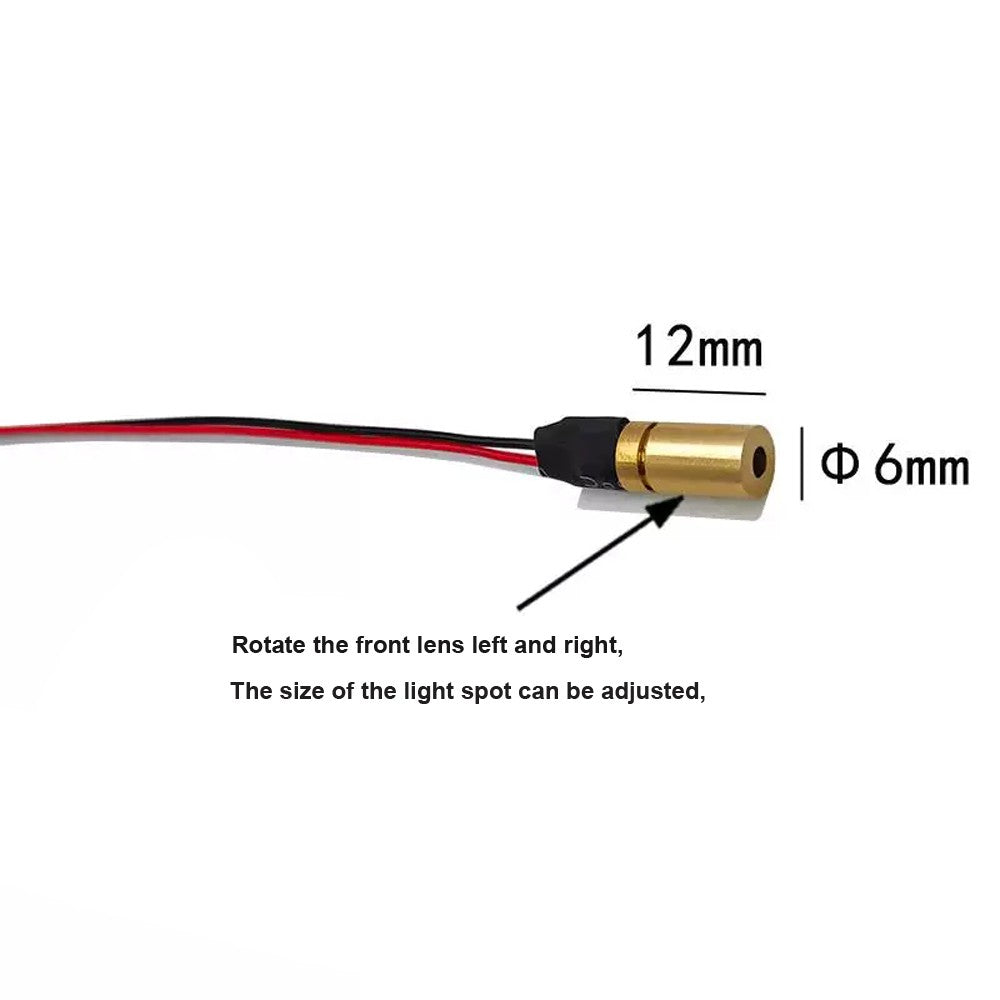

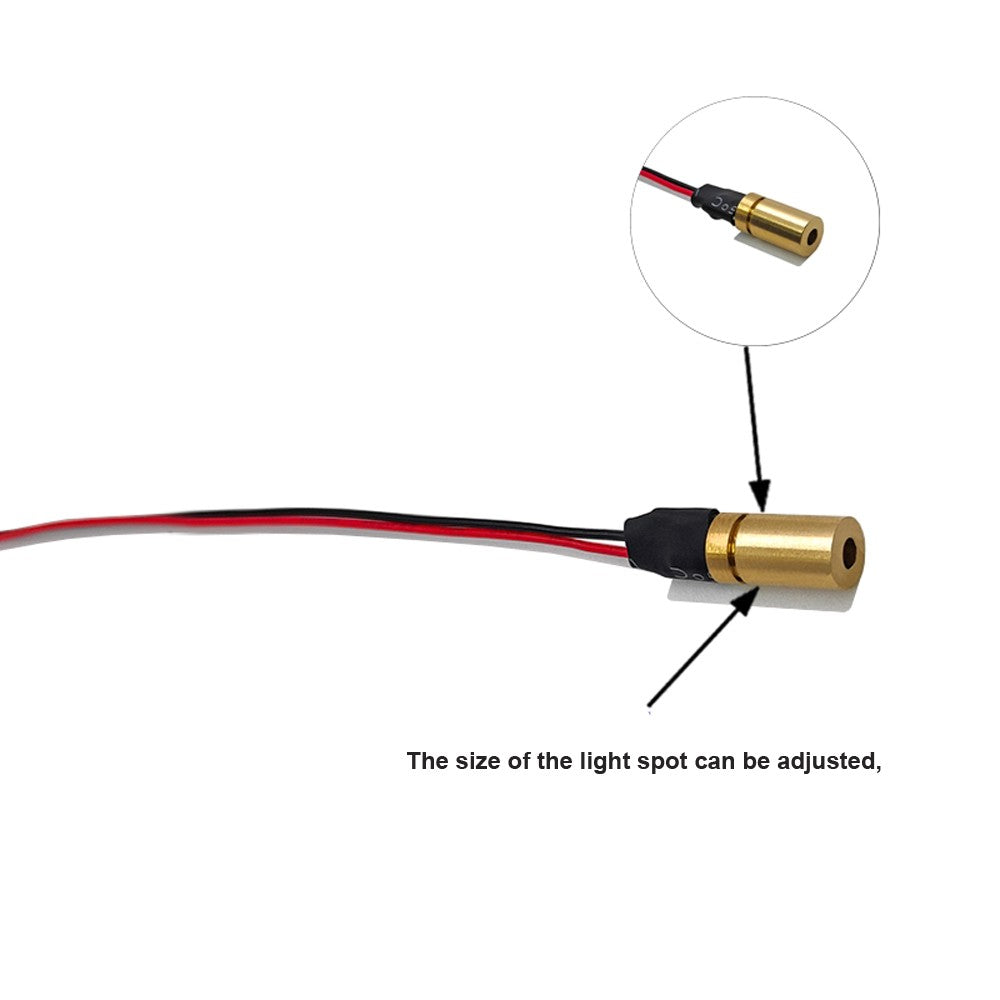

Focusing method: adjustable focus

Circuit control: ACC circuit

Working voltage: 2.8~5.2VDC

Working current:<20mA (0.4mW),<30mA (1mW),<35mA (5mW),<50mA (10mW)

Working temperature: 30 ° C~+50 ° C

Storage temperature: 20 ° C~+70 ° C

Service life: Continuous output/usage>10000 hours

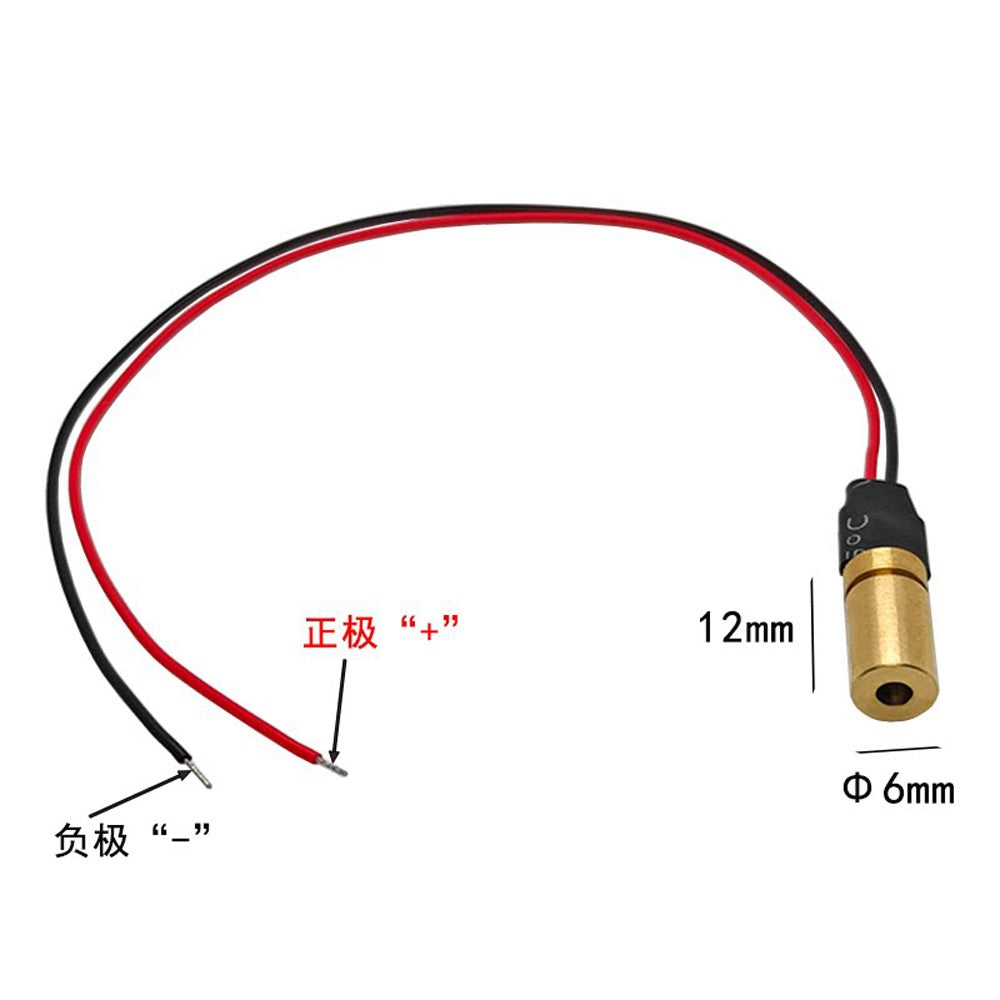

Tail wire: 26 # red and black electronic wire, approximately 15cm long

Safety level: Class I (0.4mW), Class I I (1mW), Class I11A (5mW), Class 111B (10mW)

Common Application Scenarios

Industrial equipment dot positioning, mechanical processing calibration mark, automated assembly line indicator lamp, woodworking auxiliary positioning, school physical optical experiments, electronic DIY accessories, textile & printing machinery alignment marking.

Safety Reminder

Avoid direct laser irradiation to human eyes to prevent eye discomfort. This product is for industrial & experimental use only, keep away from children.
