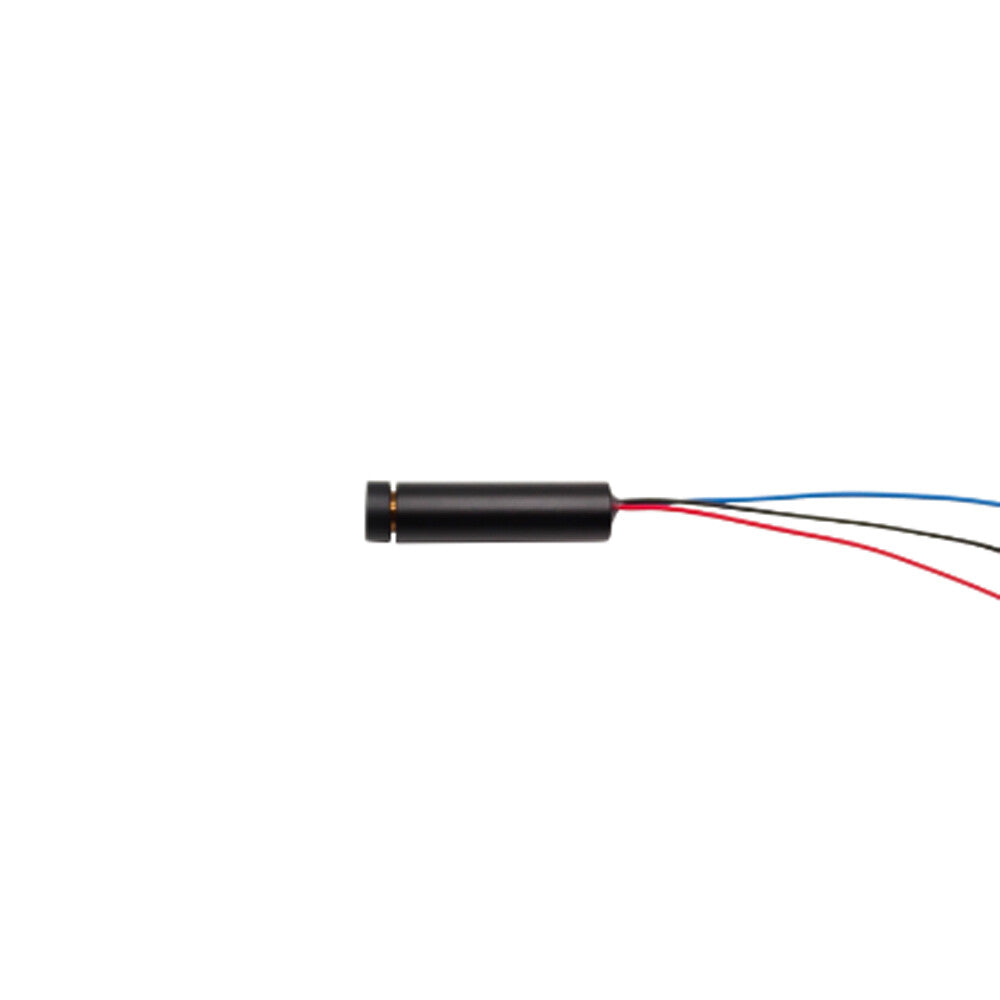

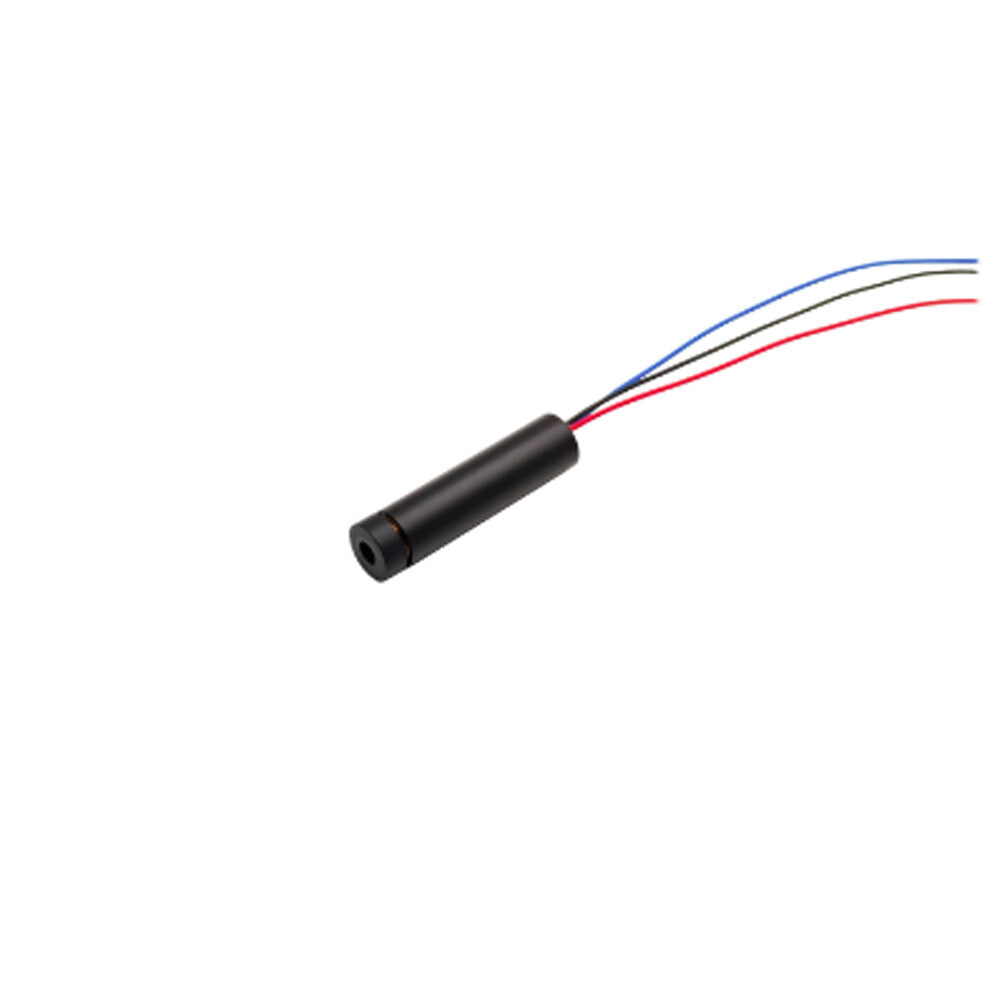

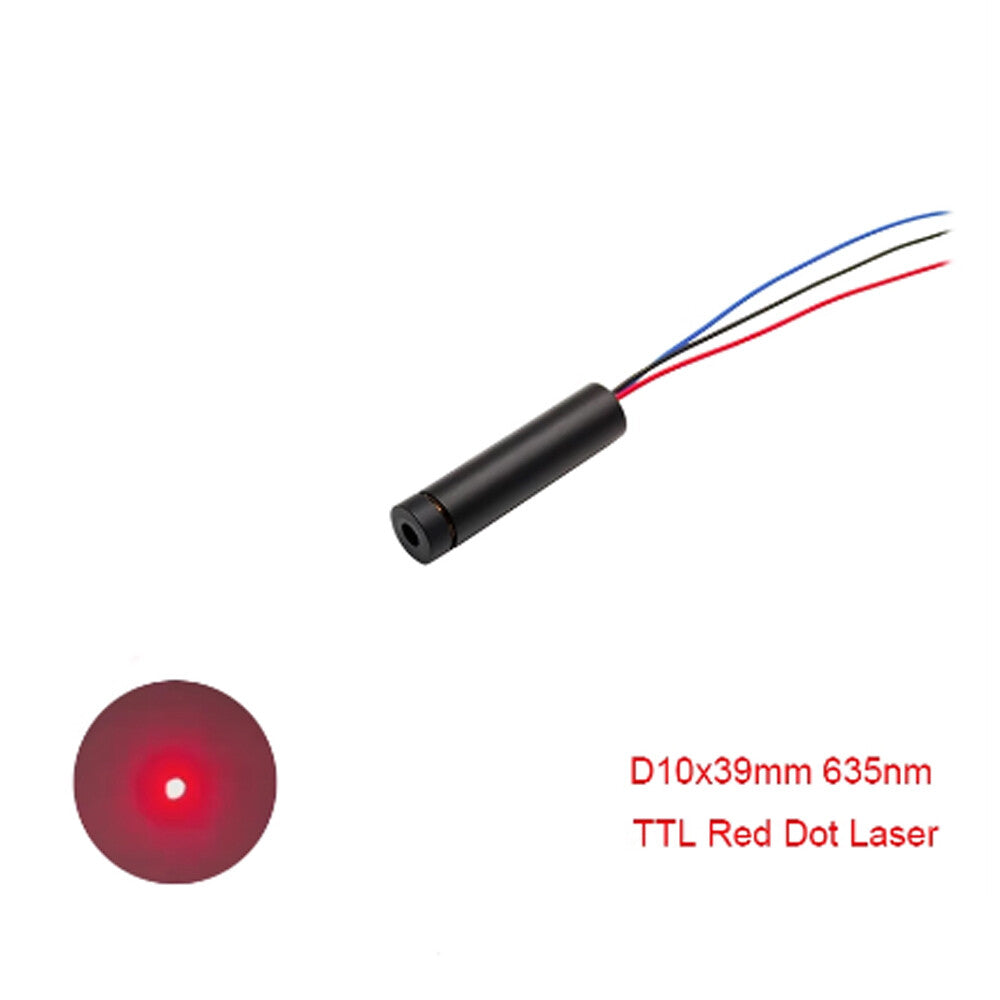

635nm 10mm 1mW 5mW 10mW Red Dot Laser Module PWM Modulate Red Laser Emitter Lamp

$33.00

~~$36.00~~ $33.00

Sale Sold out

Shipping calculated at checkout.

Options 1mW 5mW 10mW

Quantity

Features

Ultra-stable Laser Output: Adopts professional APC automatic power control circuit and 30KHZ max PWM modulation frequency, effectively stabilize laser power, avoid brightness attenuation and ensure consistent dot output for long-time operation.
Excellent Beam Performance: 635nm pure red visible light with professional collimation processing, the divergence angle is only 1.2mard after collimation. Equipped with high-quality PMMA lens, the laser spot is uniform, fine and without stray light.
Adjustable Focus Design: Support manual focus adjustment, freely control spot size to meet different distance and positioning accuracy requirements, flexible for multiple usage scenarios.
Low Power & Safe Operation: Wide 2.8-3V working voltage, ultra-low operating current (max 70mA), compatible with two AAA alkaline batteries for easy power supply. Certified Class IIB laser safety grade, safe and reliable for daily and industrial use.
Premium Durable Structure: Mist black anodized metal housing realizes anti-corrosion, anti-scratch and heat dissipation performance. The mean time to failure exceeds 8000 hours, ensuring ultra-long service life.
Wide Temperature Adaptability: Supports -20℃~+50℃ working temperature and -40℃~+85℃ storage temperature, stable performance in complex indoor and outdoor environments.

Precision Specifications

Working Mode: CW Continuous Wave
Wavelength: 635nm (Pure Red Visible Light)
Output Power Option: ＜1mW / ＜5mW / ＜10mW
Working Voltage: 2.8V - 3V
Max Operating Current: ＜70mA
Modulation Frequency: Max 30KHZ (PWM Modulatable)
Drive Mode: APC Constant Current Drive
Lens Material: High-transmittance PMMA Lens
Spot Feature: Adjustable Focus, Freely Tunable Spot Size
Collimation Divergence Angle: 1.2mard (After Precise Collimation)
Housing Material: Anodizing Mist Black Metal

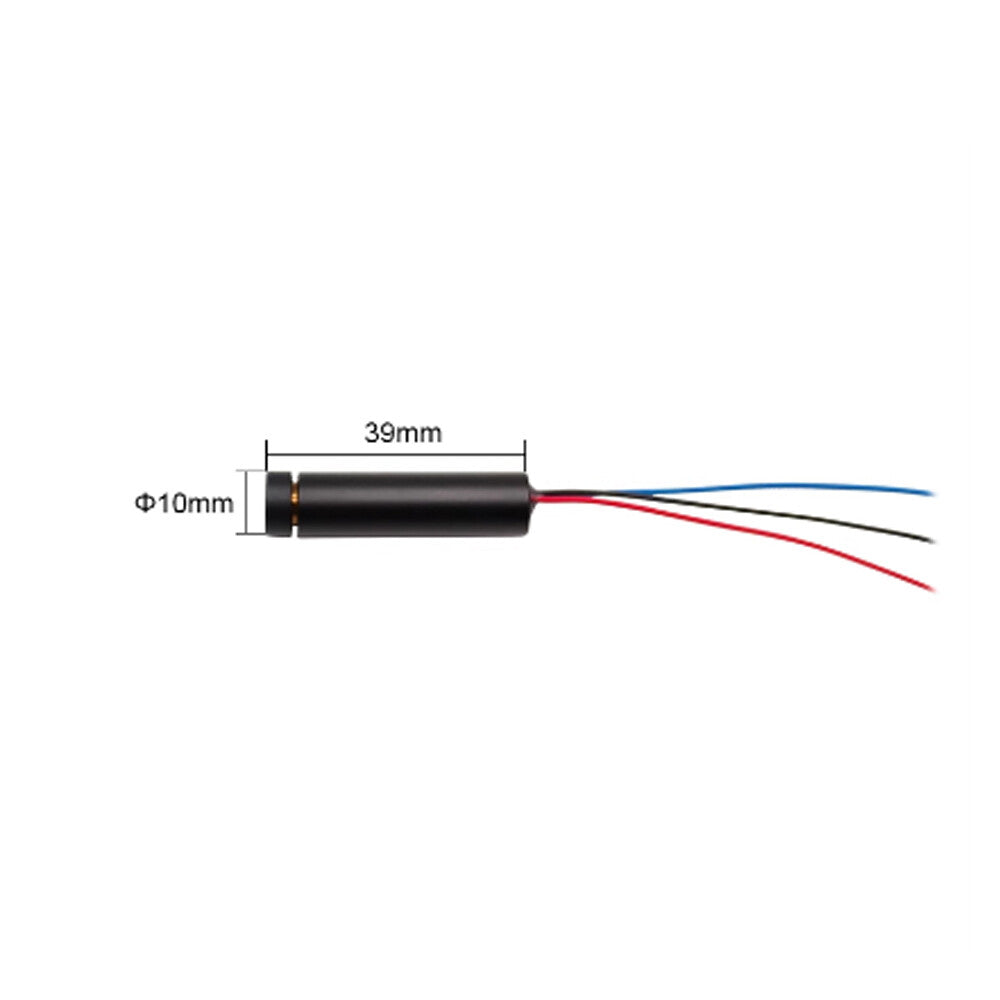

Product Size: 10mm (Diameter) × 39mm (Length)
Laser Safety Class: Class IIB
Service Life: ＞8000 Hours Mean Time To Failure
Operating Temperature: -20℃ ~ +50℃
Storage Temperature: -40℃ ~ +85℃

Wide Application

Ideal for industrial precision positioning, mechanical equipment calibration, laser marking auxiliary positioning, tool setting auxiliary light, stage light effect production, scientific experiment research, DIY laser projects, security monitoring auxiliary lighting and other fields.
