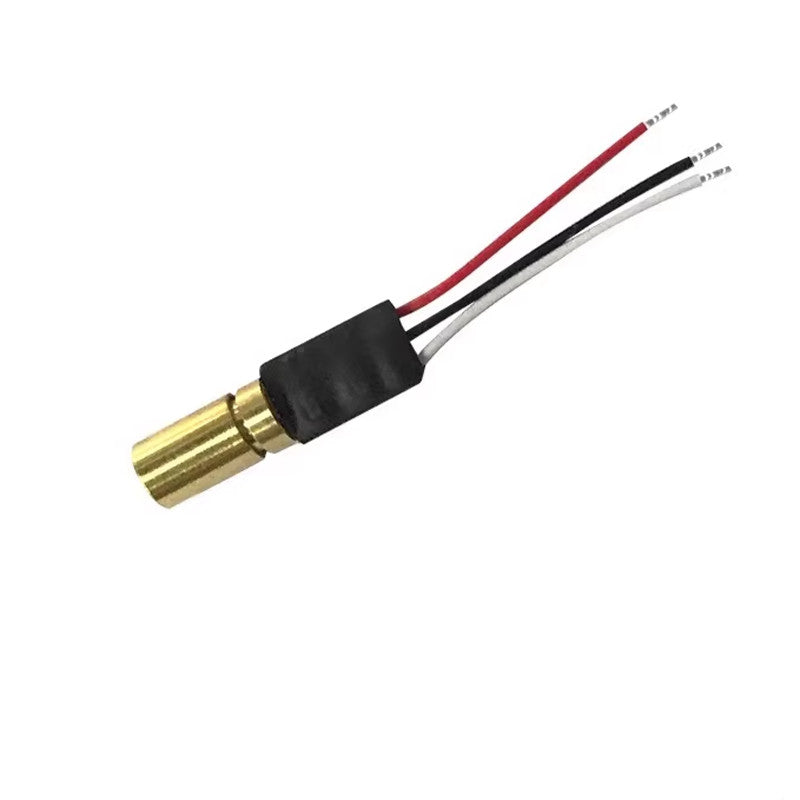

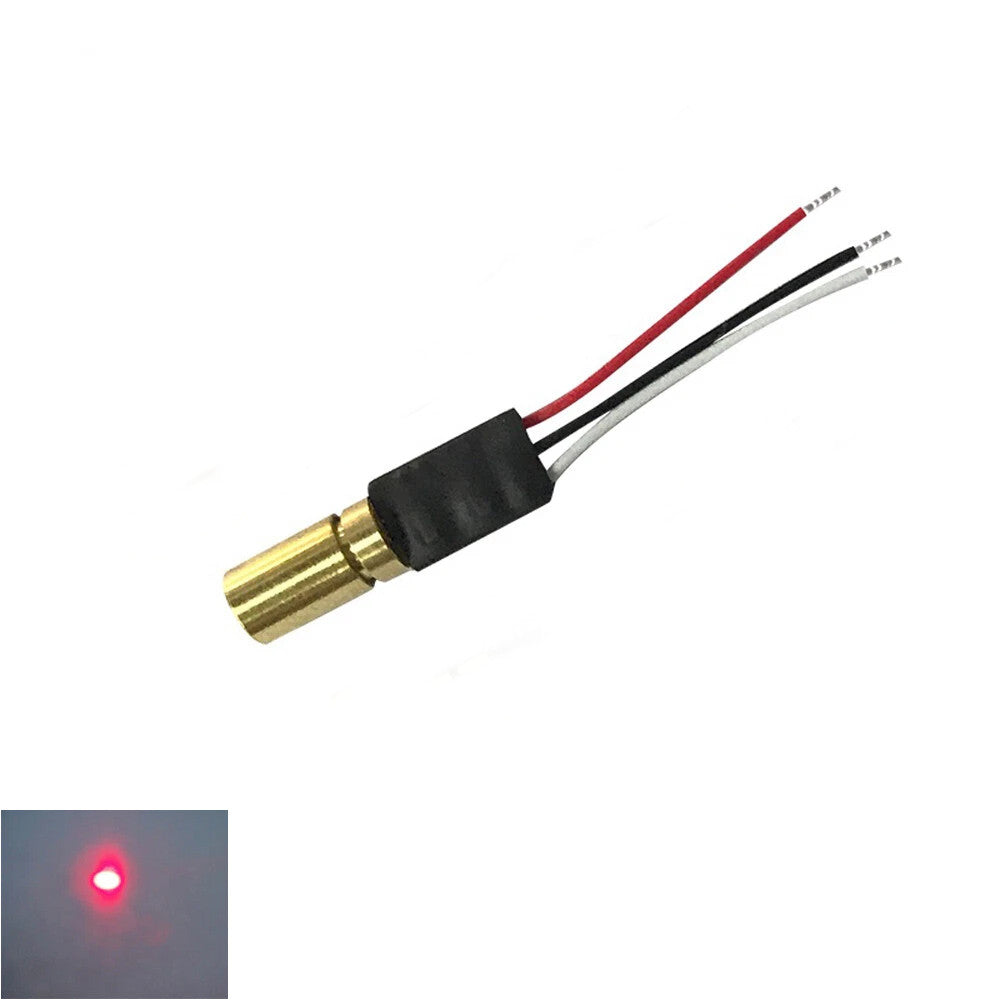

635nm 5mW 10mW Red Dot Laser Module Emitting Diode TTL Frequency Modulation 50KHZ

635nm 5mW 10mW Red Dot Laser Module Emitting Diode TTL Frequency Modulation 50KHZ

Wavelength: 635nm

Working voltage: DC: 3-5V

Power: <5mW/<10mW

Current: <45mA/<52mA

Range (indoor): < 100 meters/<150 meters

Working temperature: -10 ℃-+ 50 ℃

Storage temperature: -40 ℃-+ 80 ℃

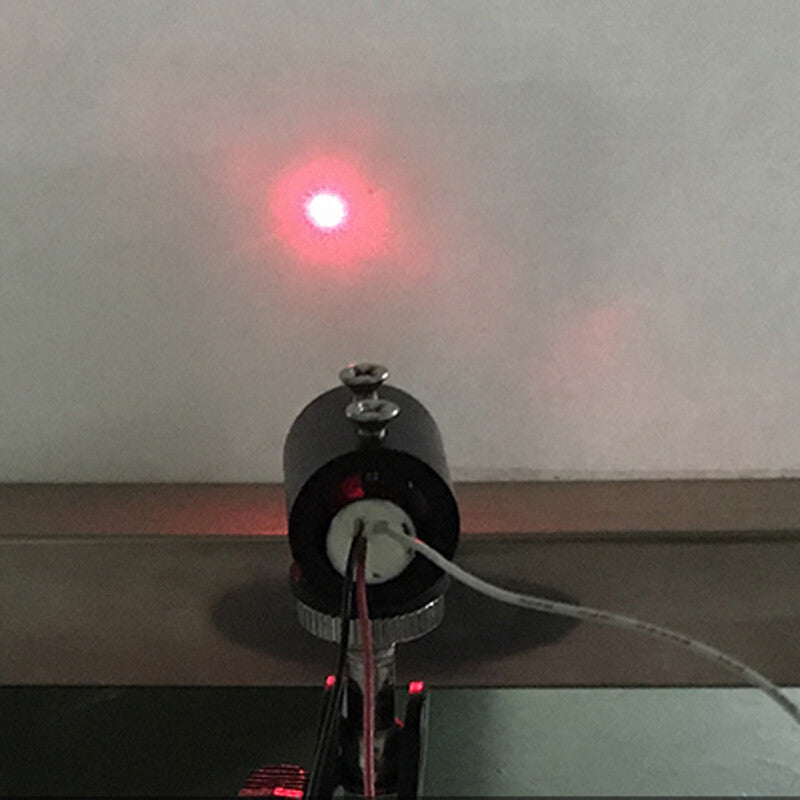

Spot size at 10 meters: ellipse 8x12mm

Focal length: fixed focus

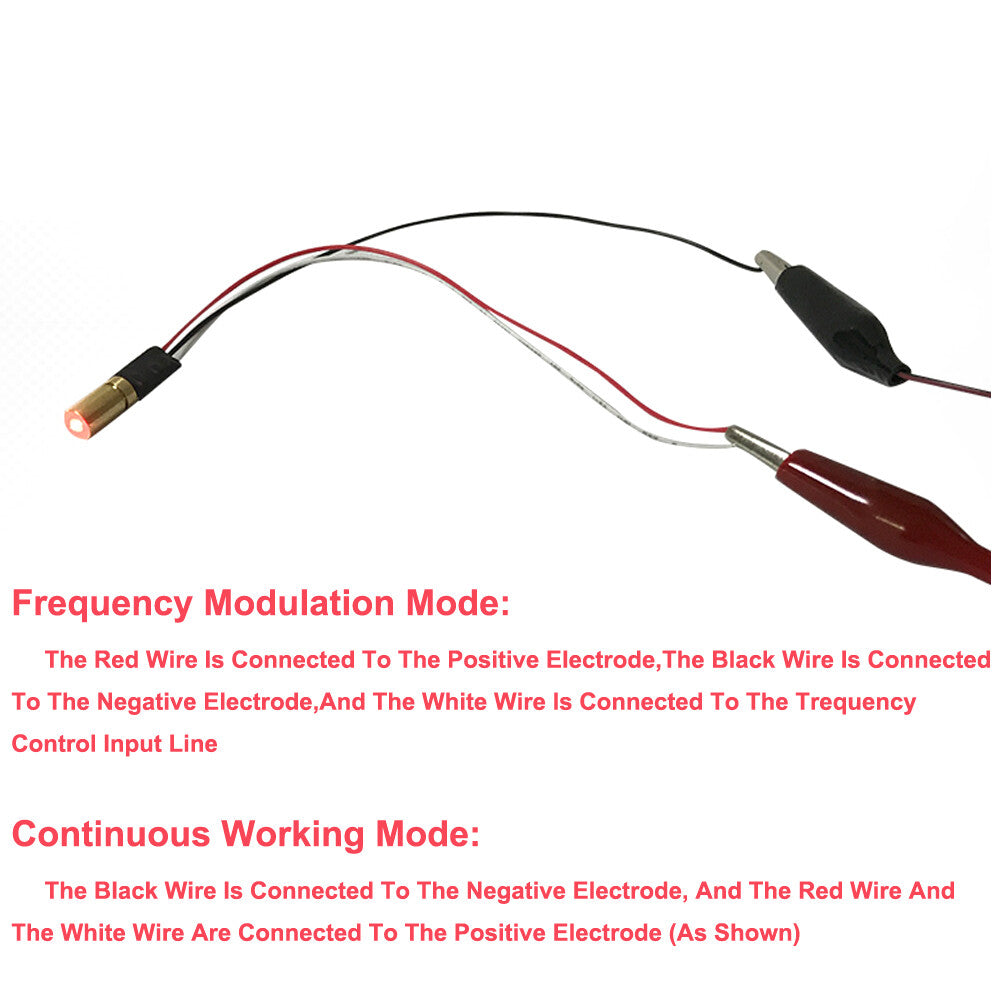

Circuit control: TTL / APC dual mode

TTL level voltage: 3-5V / high on, low off

Duty cycle: Optical power is proportional to the duty cycle

Control frequency: 0HZ-50KHZ

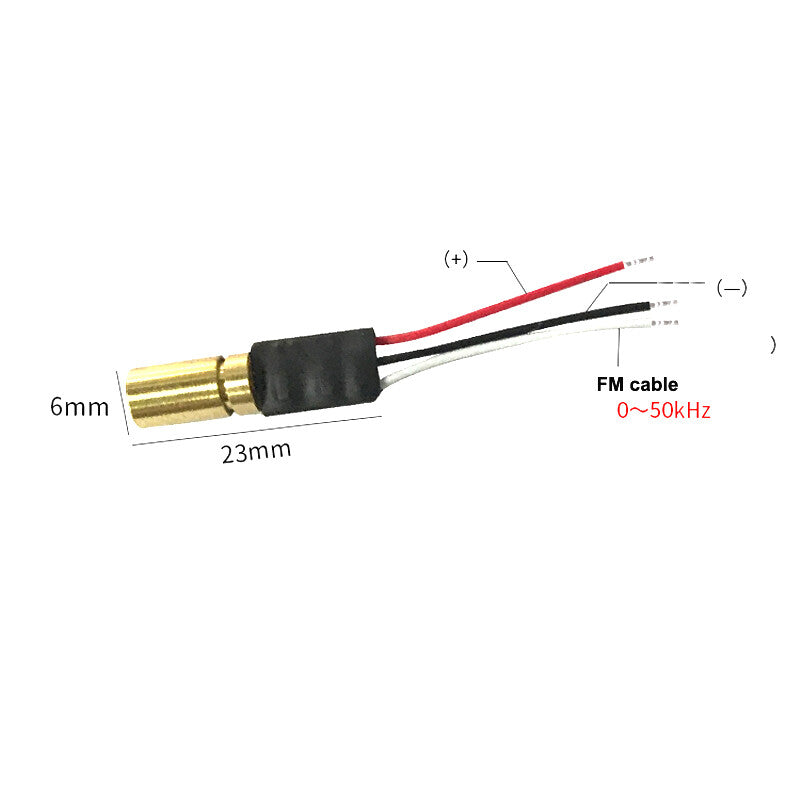

Size: 6x23mm

Package:

1* 635nm 5mW 10mW Laser Diode Module
