638nm 639nm 2.1W 9mm Orange Red Dual Beam Laser Diode Projection Light Source LD

638nm 639nm 2.1W 9mm Orange Red Dual Beam Laser Diode Projection Light Source LD

$100.00
$107.00 $100.00
Sale Sold out
Shipping calculated at checkout.
638nm 639nm 2.1W 2100mW TO-56 9mm Orange Red Dual Beam Laser Diode Projection Light Source LD

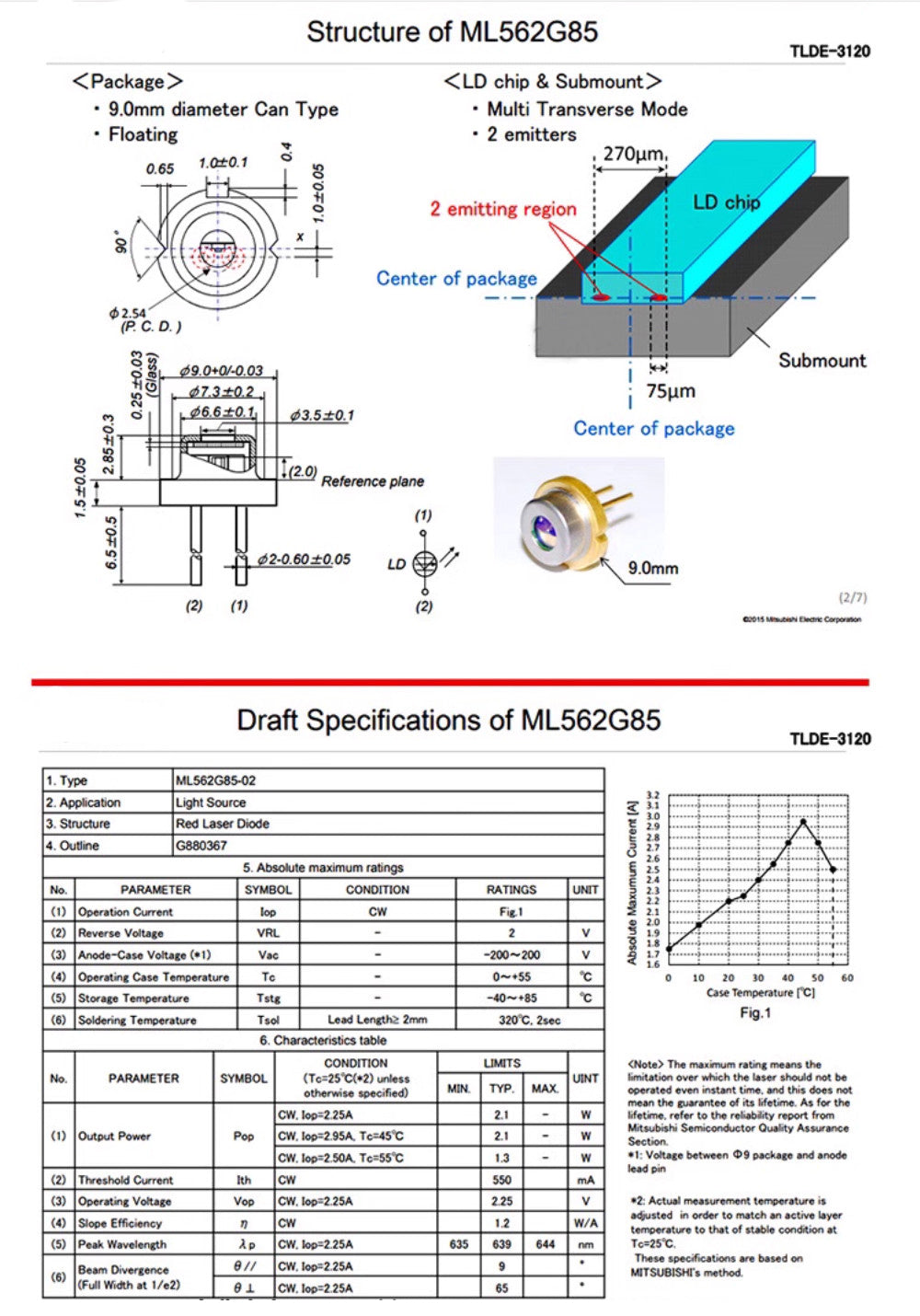

Specifications:
Output wavelength: 638nm
Output power: CW2100mW
Structural features: Adopting dual spot dual chip technology
Working current: 2950mA -45 degrees
Threshold current: 550mA
Working voltage: 2.25V
Reverse voltage: 2V
Packaging form: TO-56 (9mm)
Working temperature: 0~+55 ° C
Storage temperature: -40~+85 ° C
