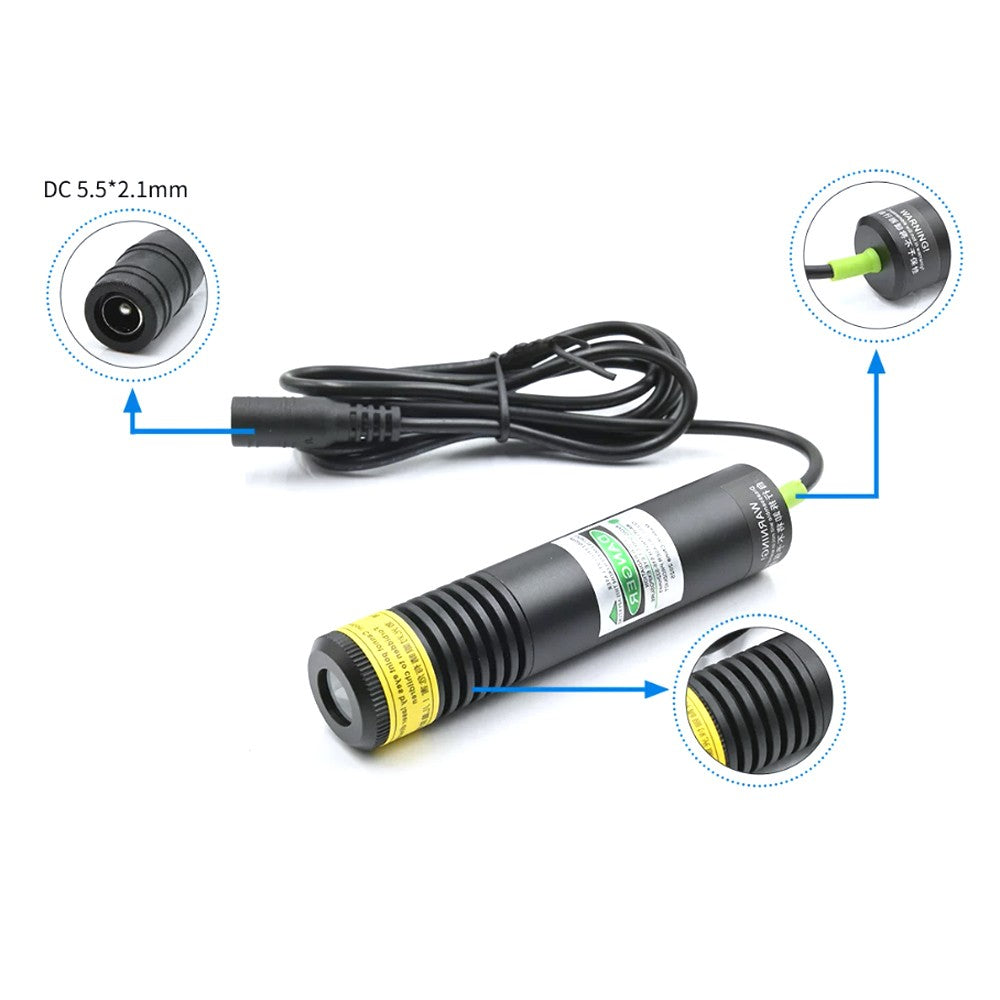

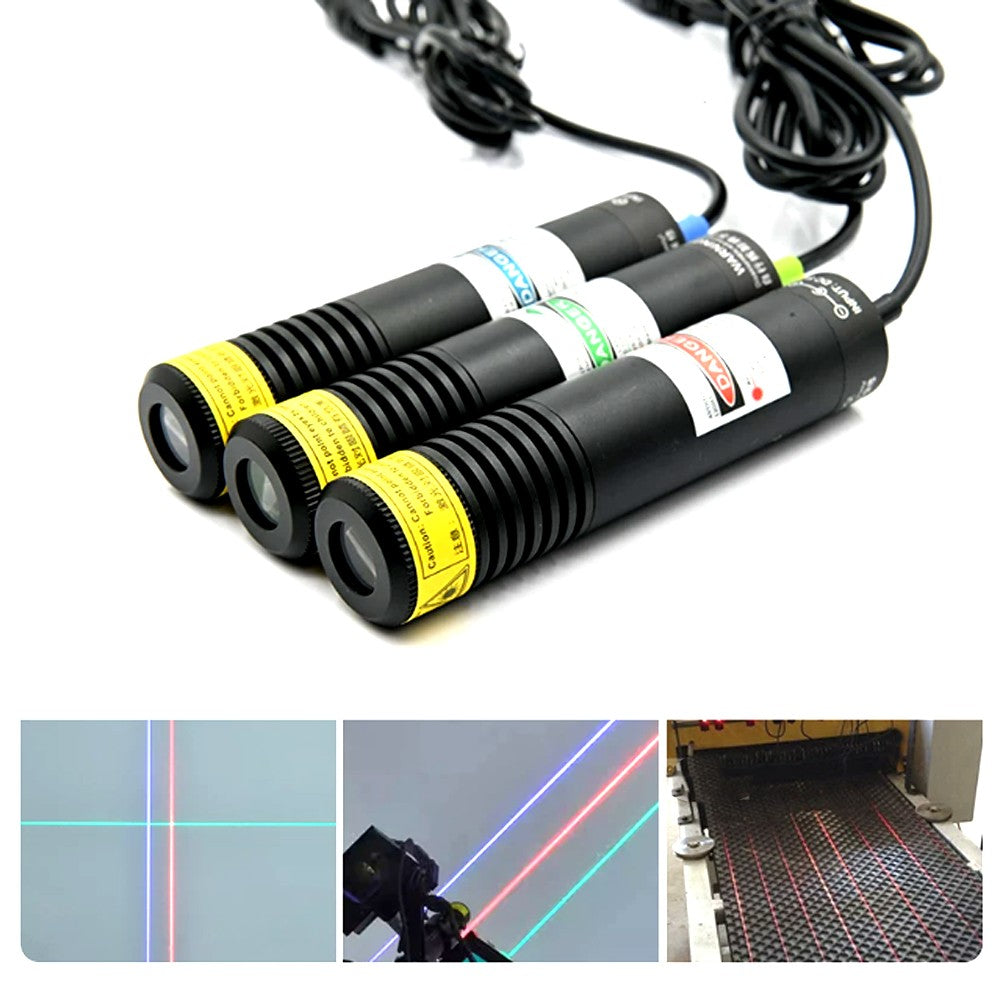

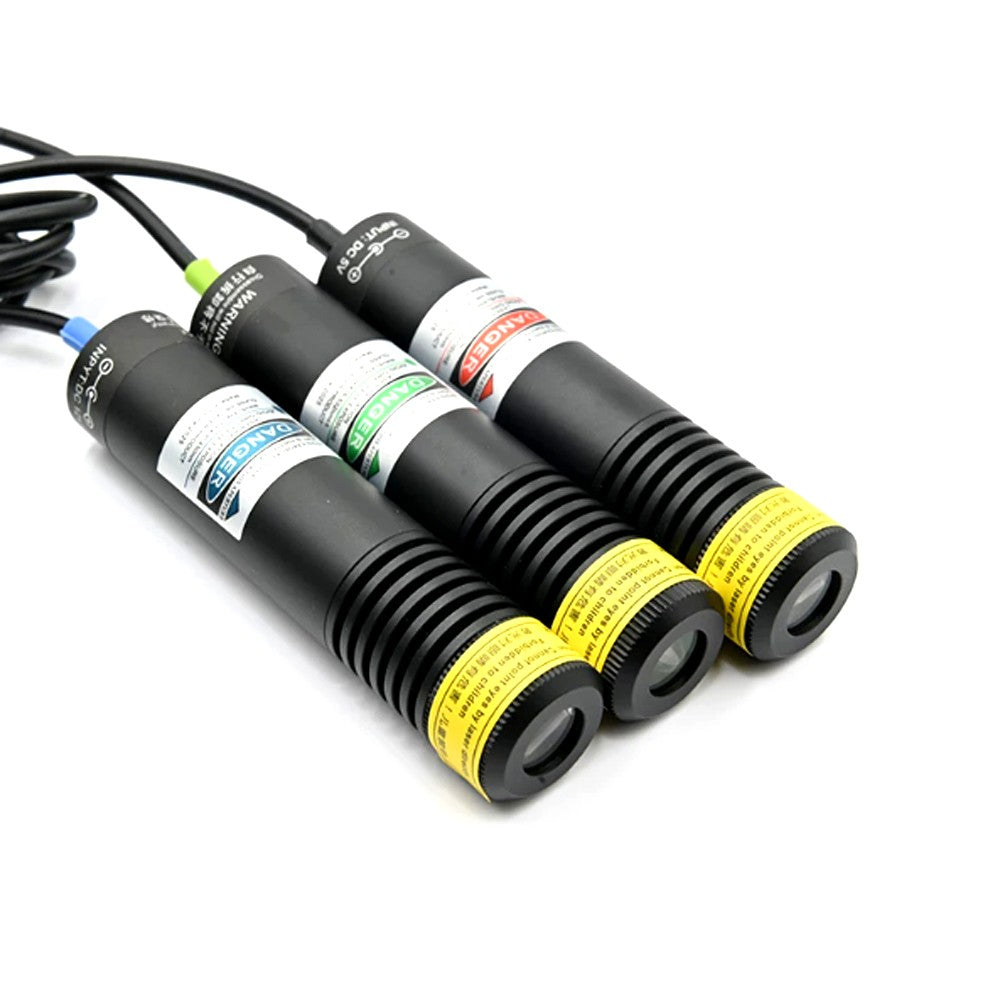

648nm 660nm 515nm 447nm Line Laser Woodworking Stone Cutting Positioning Lamp

648nm 660nm 515nm 447nm Line Laser Woodworking Stone Cutting Positioning Lamp

$46.00
$64.00 $46.00
Sale Sold out
Shipping calculated at checkout.
Options

5V 648-660nm 12V 515nm 447nm Red Green Blue Line Laser Woodworking Stone Cutting Special Positioning Lamp

Specifications:

Wavelength: 447nm-660nm

Output Power:  648nm 50mW / 648nm 100mW / 648nm 150mW / 660nm  200mW / 515nm  30mW / 447nm  100mW

Supply voltage:  Red Light: 5V        Green/Blue：12V

Working Current:  648nm 50mW(80mA) / 648nm 100mW(160mA) / 648nm 150mW(210mA) / 660nm 200mW(280mA) / 515nm 30mW(88mA) / 447nm 100mW(60mA)

Spot Mode:  Line

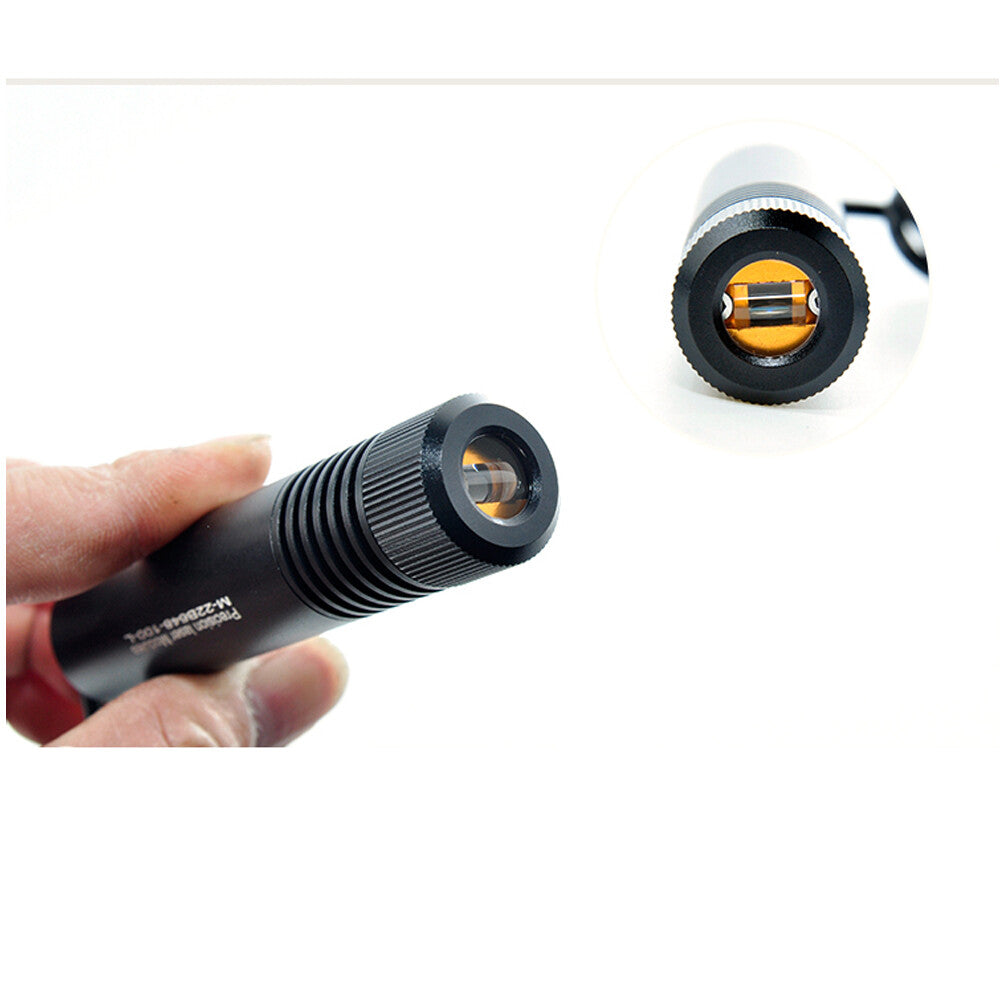

Optical Part: Glass Focus + Glass Column Mirror

Product Material: Aviation Aluminum

Operating Temperature: ±50℃

Llife Span: 8000 hours

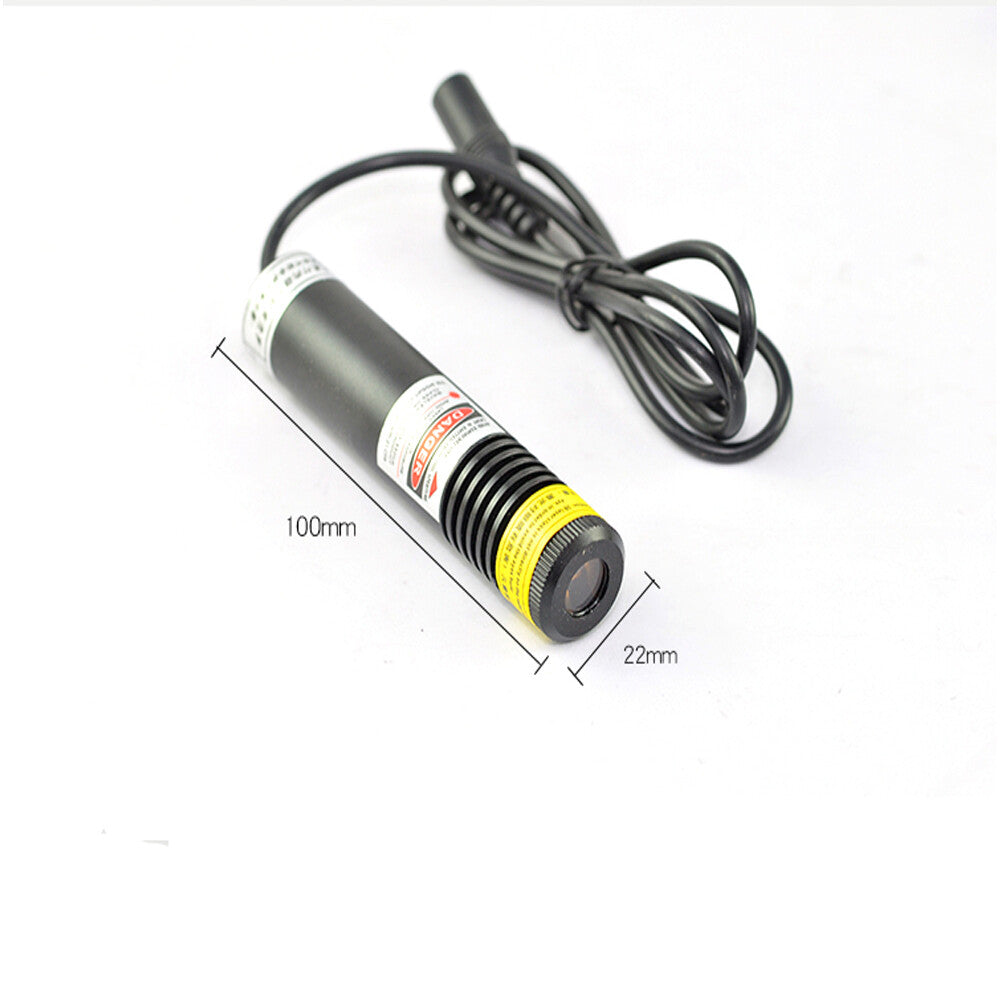

Dimensions: 22mm*100mm (Not Adjustable)

Optimal Working Distance: 0-10 Meters

Output Band: Visible Light

Weight: 0.38kg



Optimal Use Distance:

648nm 50mW word line cross line indoor use within 3 meters (can be used for a long time)
648nm 100mW word line cross line indoor use within 5 meters (can be used for a long time)
648nm 150mW word line cross line indoor use within 8 meters (can be used for a long time)
660nm 200mW word line cross line Indoor use within 10 meters (can be usedfor a long time)
515nm 30mW word line cross line Indoor use within 10 meters (can be usedfor a long time)
447nm 100mW word line cross line Indoor use within 10 meters (can be usedfor a long time)

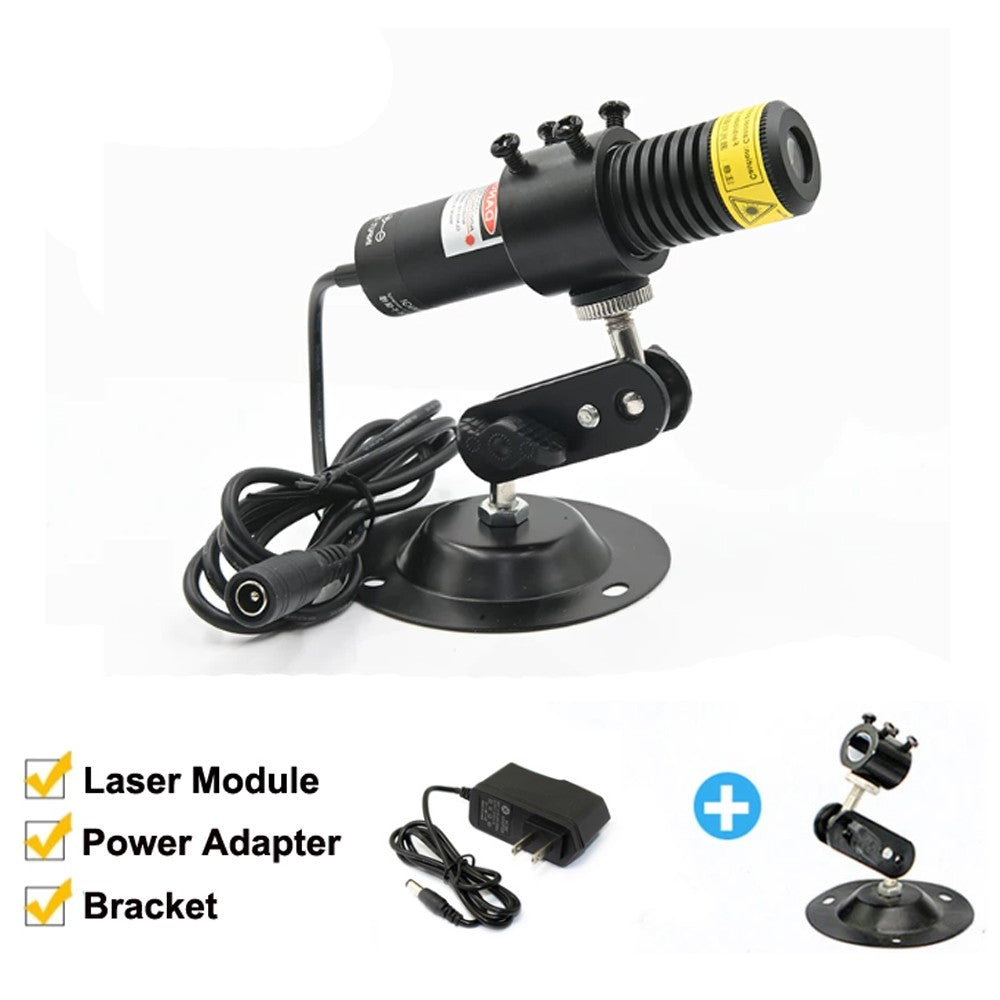

Package:
1*  Laser Module
1* Adapter
1 *Bracket
