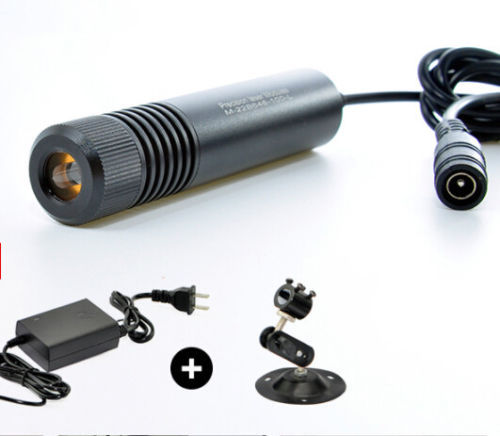

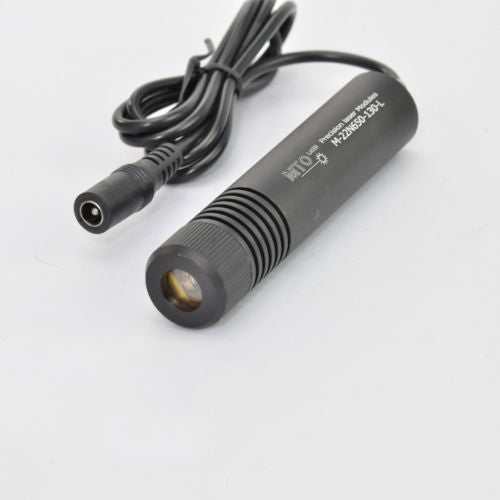

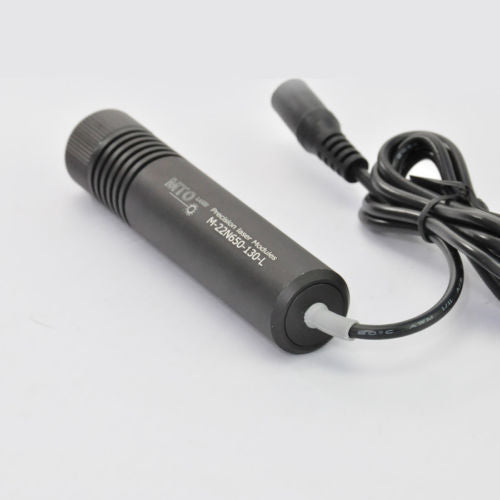

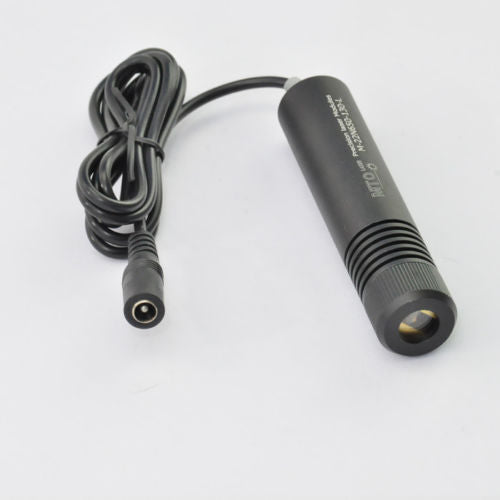

648nm Red Line Laser Module Laser Diode With Holder and 5V Power Adapter

Wavelength: 648nm

Output power: 50mW/100mW/150mW/200mW

Supply voltage: 5V

Working current: 80mA/160mA/210mA/280mA

Spot mode: Line

Product material: aviation aluminum

Working temperature: +-50 Celsius

Dimensions: 22mm*100mm

Working distance: Indoor 1-10 meters

Output band: visible light
Focus: Fixed focus
The best working distance: Indoor 3 meters(50mW)/Indoor 5 meters(100mW)/Indoor 8 meters(150mW)/Indoor 10 meters(200mW)

Structural features:

Aluminum alloy shell + imported laser diode +K9 glass lens + constant current driver board

Our products use imported laser diodes as the core components, and apply the production equipment technology and technology of communication lasers to the production of industrial lasers. The high-performance industrial application lasers produced have the incomparable advantages of other equivalent products:

1. Constant current smart feedback control circuit

2. High efficiency and high transmittance optical system;

3. Low power consumption, high-efficiency optical power output;

4. Stable performance, good consistency, long service life.

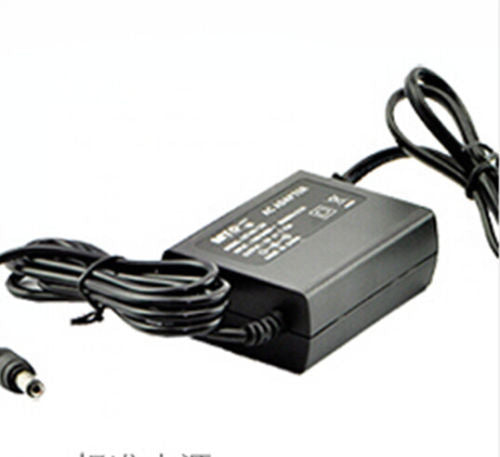

1 x 5V power adapter

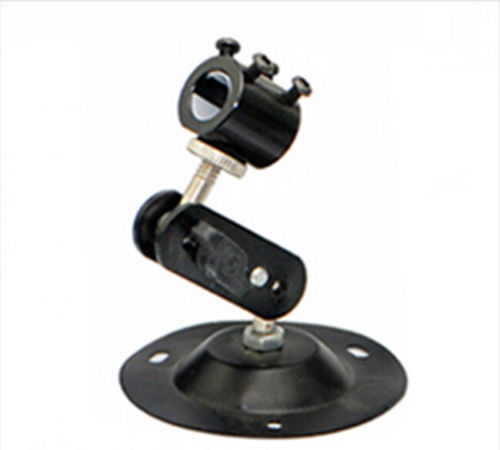

1 x Ordinary bracket
