650nm 10mW Dot Line Cross Laser Marker Laser Positioning Light Shearing Machine
Specifications:
Wavelength:650nm
Output power:10mW
Supply voltage:5V
Working current:40mA

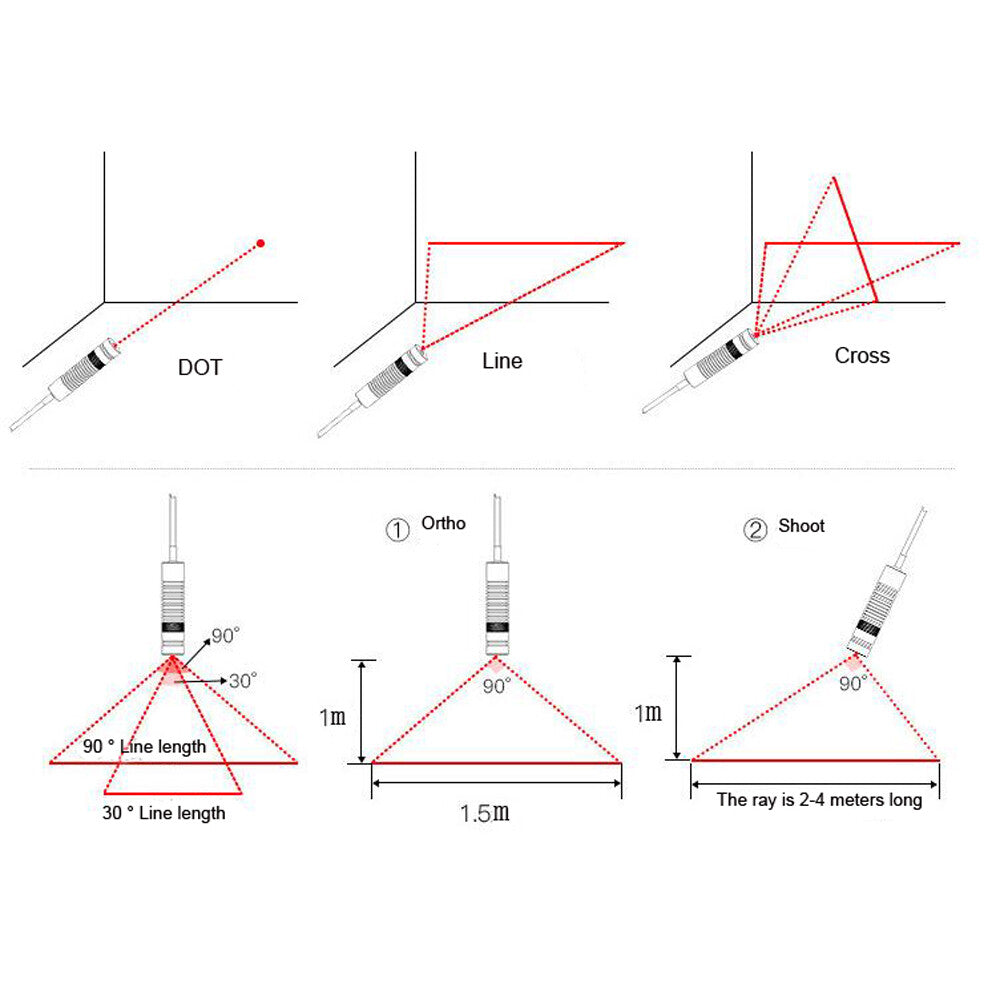

Beam mode:Word line
Optical part:Focusing lens + K9 glass wave lens
Material:Aviation Aluminum
Working temperature:± 50 ℃
Working life:8000 hours

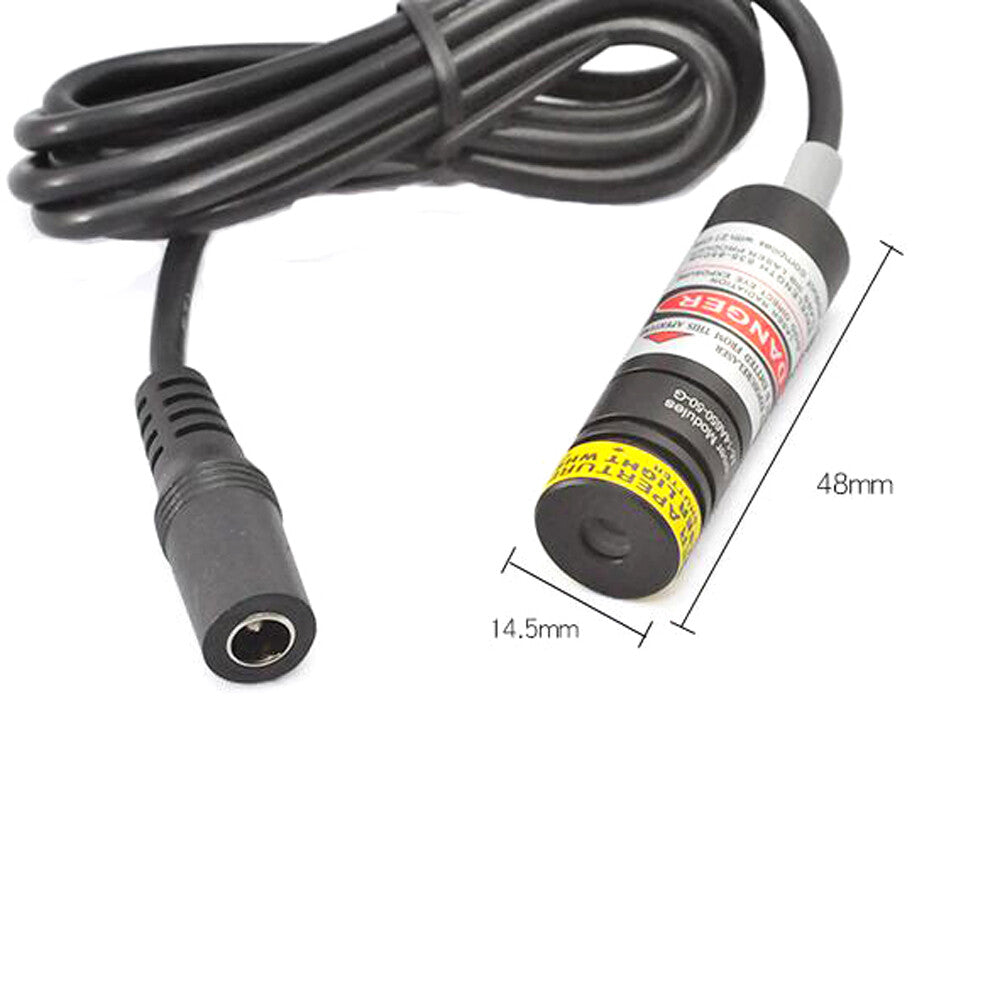

Dimensions:14.5mm * 48mm (adjustable focus)
The best working distance:0-2 meters
Output band:Visible light
Warranty period:One month replacement, one year warranty
Weight:0.045kg laser / 0.13kg bracket / 0.13kg power supply
Best use distance:
1.10mW flat-line crosshair for indoor use within 2 meters (can be used for a long time)
2. 50mW Straight Line Crosshair Use within 3 meters indoors (can be used for a long time)
3. 100mW flat-line crosshair Use within 5 meters indoors (can be used for a long time)
4. 150mW cross-line crosshair use within 8 meters (can be used for a long time)
5. 200mW flat line cross line Use within 10 meters indoors (do not use for a long time, continuous working for 20 minutes each time)
Note: The best working distance is within 2 meters for this 10mw laser, if you want to shine it at more than 2 meters far, please choose laser module with high output power

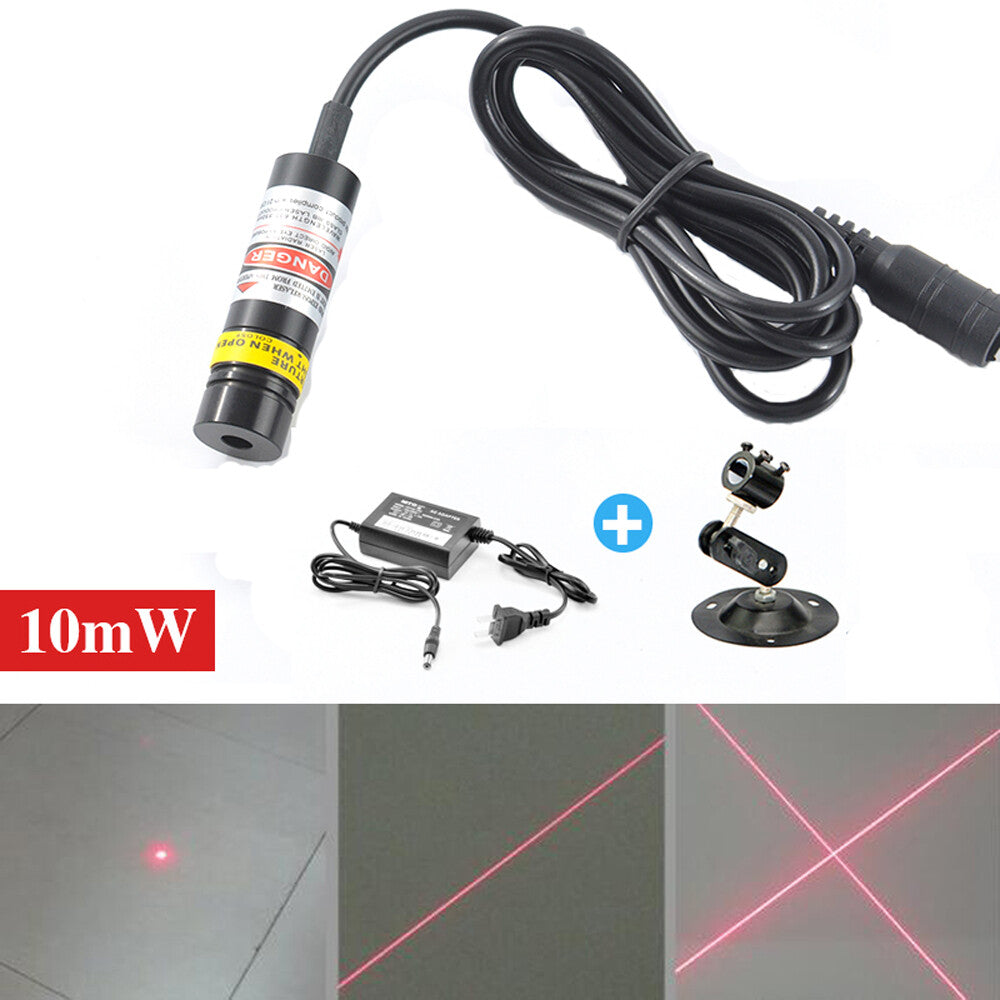

Package:
1 * Laser Module
1 * Bracket
1 * Power Supply
