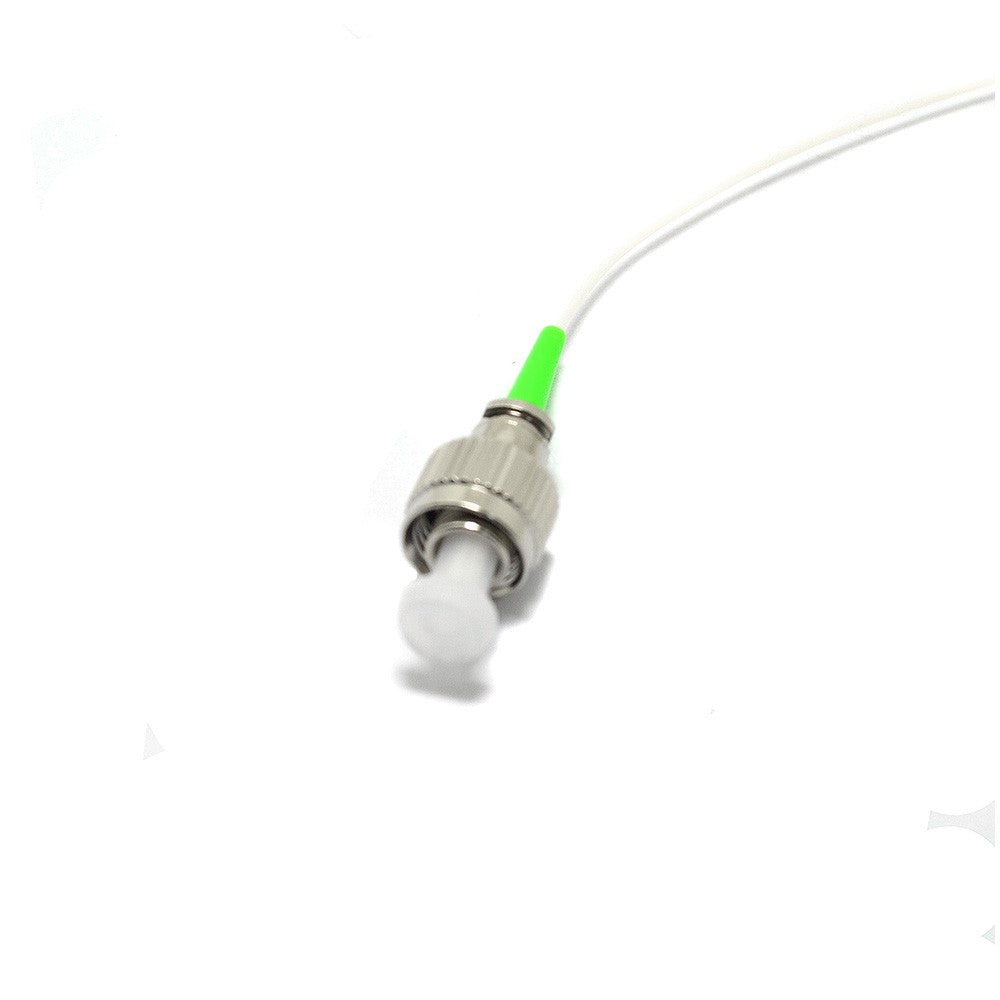

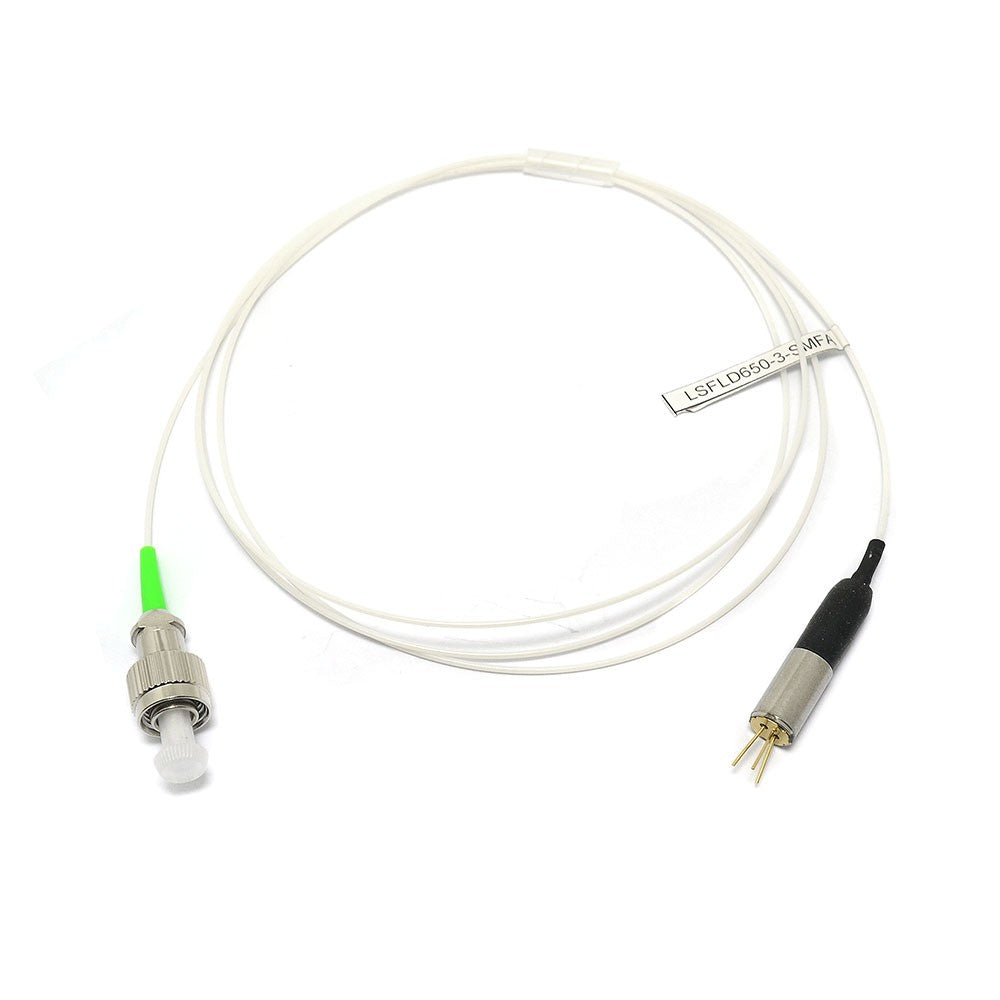

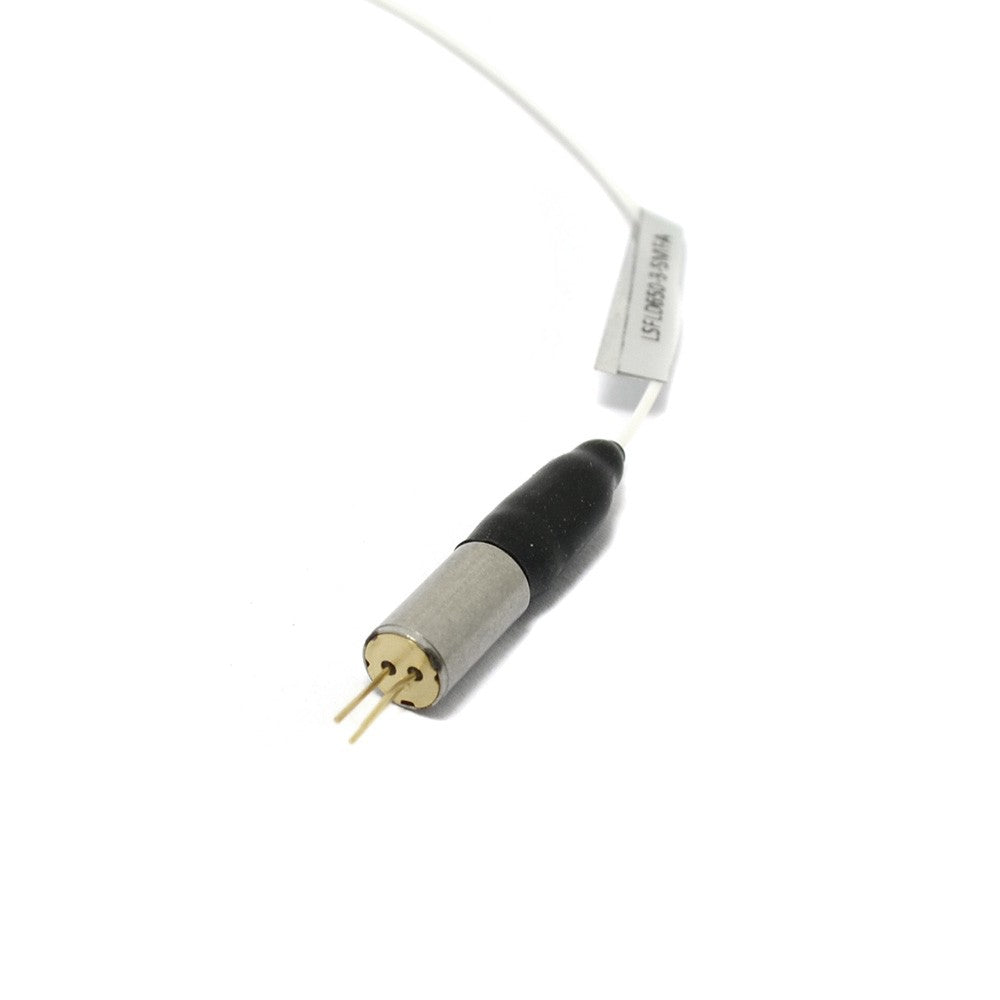

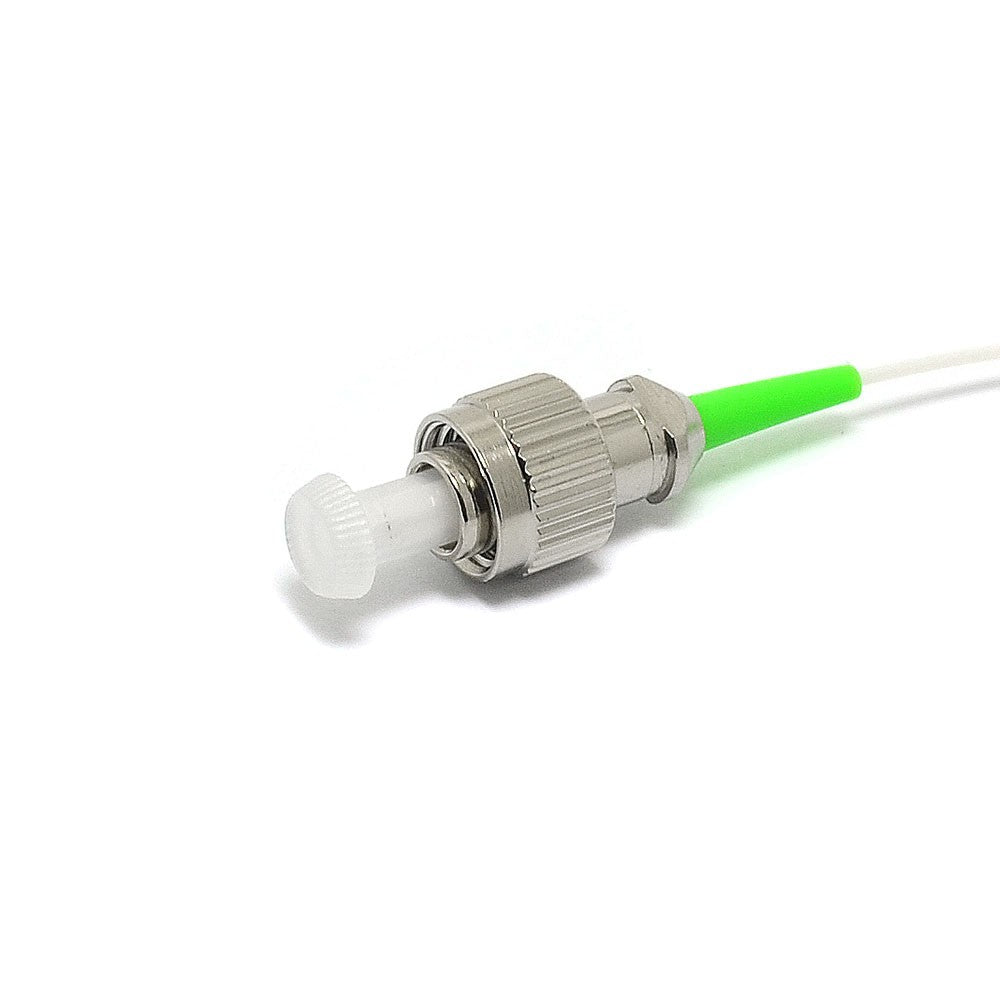

650nm 10mW FP SM coaxial laser diode B Type of PIN with 9um FC/APC

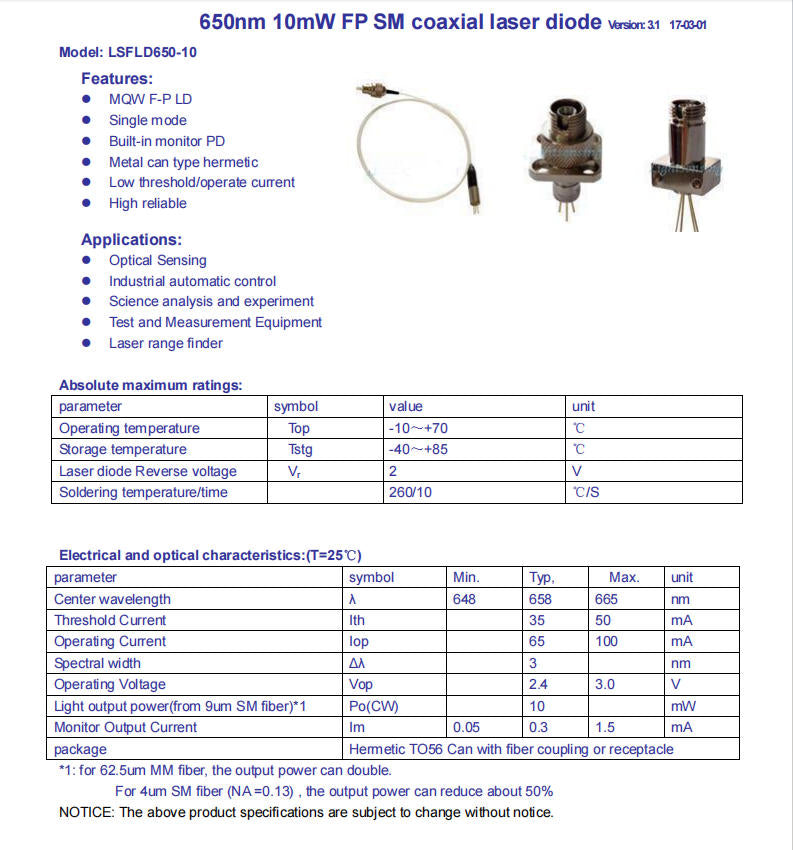

Specification:
Center Wavelength: 650nm
Fiber Output Power: 10mW
Threshold Current: 35mA
Working Current: 65mA
Operating Voltage: 2.4- 3V
Operating temperature : -10～+70 ℃
Features:
Built-in monitoring detector, low threshold current, low operating current, high stability, imported chips, etc.
Application:
1. Industrial Automation Control
2. Optical Sensing
3. Optical Communication
4. Optical Positioning System
5. Scientific Analysis and Experiment
6. Test and Measurement Instruments
The Cautions：
1: The above product specifications are subject to change without notice.
2: The suitable ESD protection is required in storage, transportation and using
3: The fiber bending radius no less than 20mm for avoiding fiber damaged ,Be sure the fiber coupling facet is clean before connecting it to opto-circuit.
Package:
1*650nm 10mw laser diode B Type of PIN with 9um FC/APC
