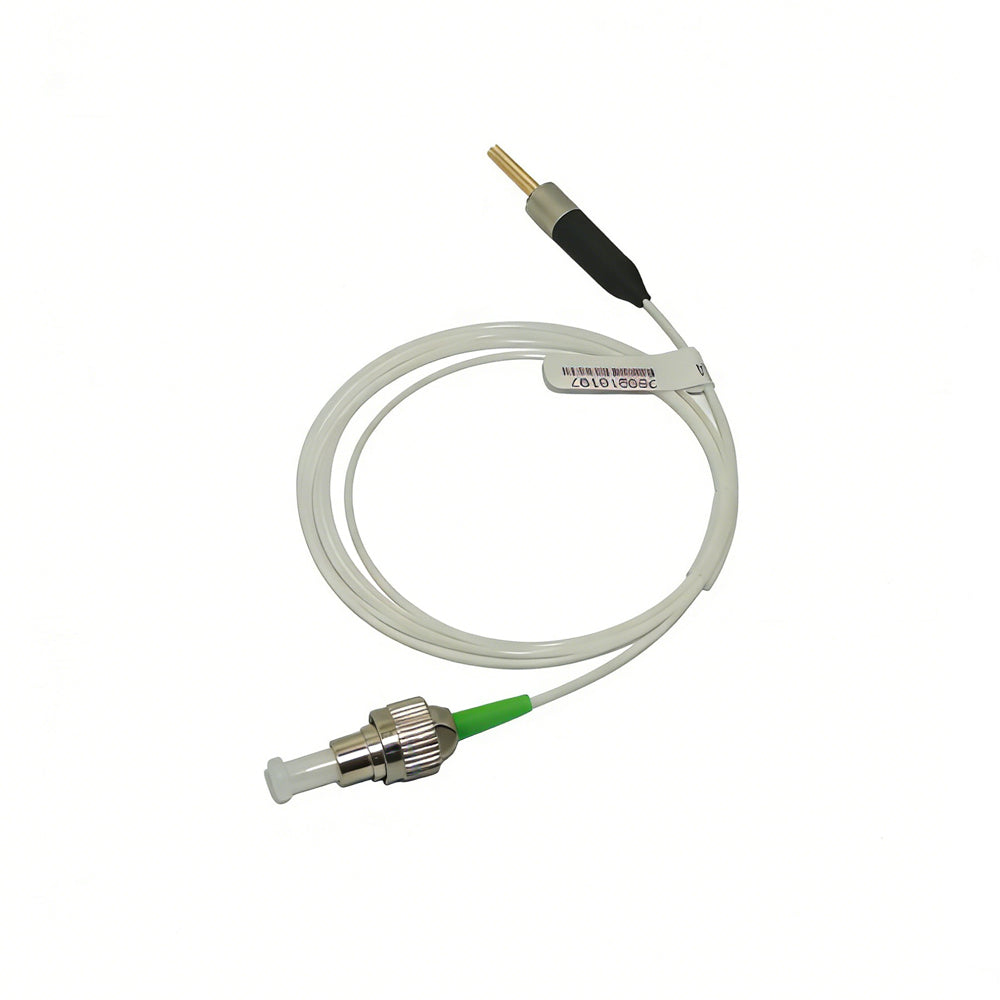

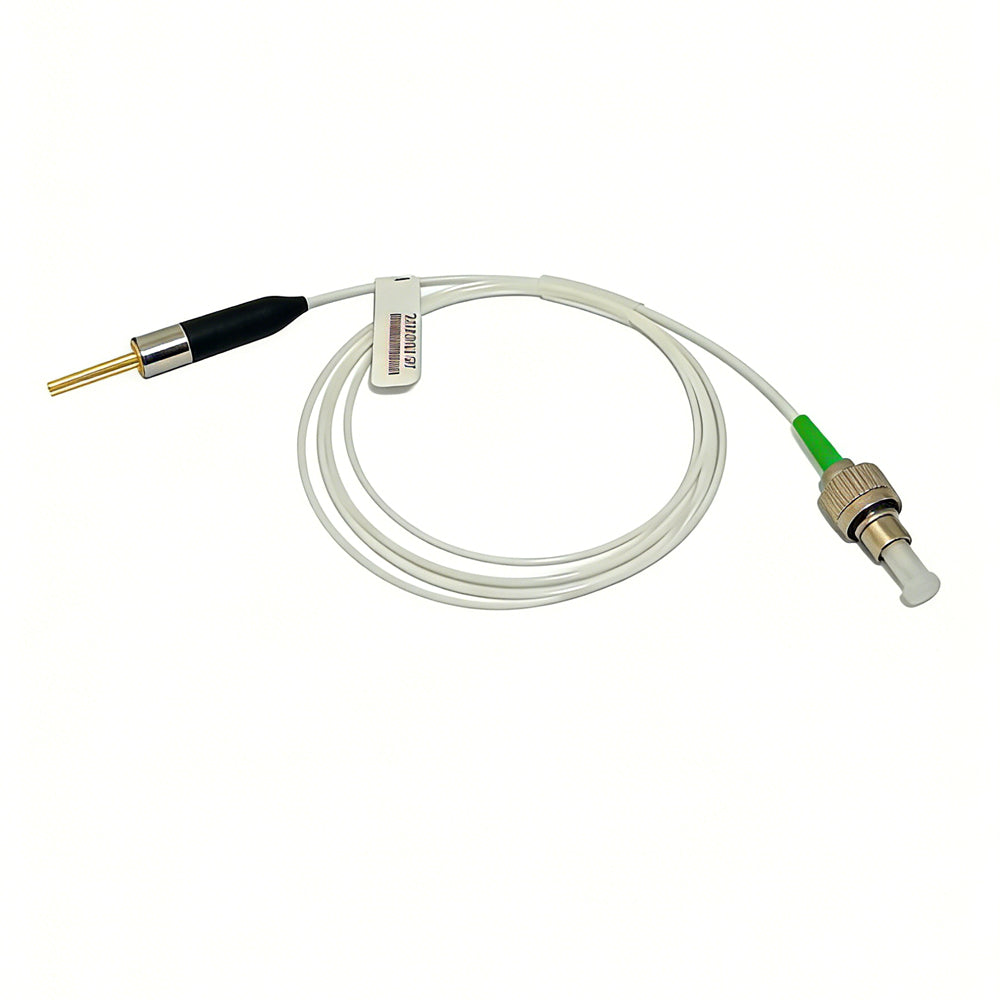

650nm 10mW FP SM coaxial laser diode B Type 9um FC/APC

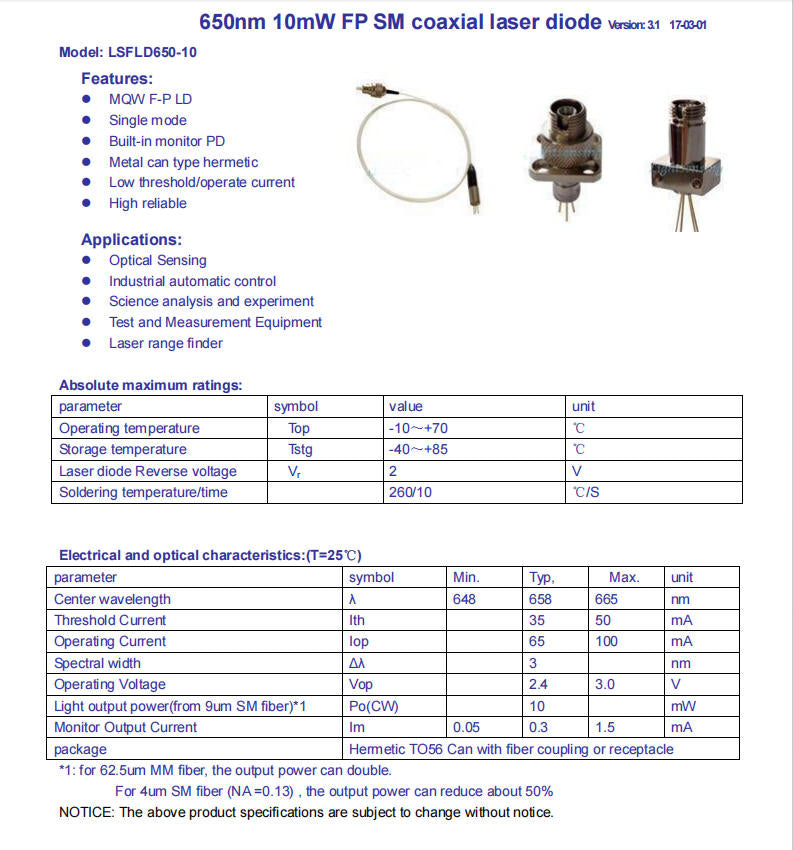

Main Performance: Center Wavelength: 650nm Fiber Output Power: 10mW Threshold Current: 35mA Working Current: 65mA Operating Voltage: 2.2- 2.6 V Operating temperature : -10～+70 ℃ Storage temperature : -40～+85 ℃
Features: Built-in monitoring detector, low threshold current, low operating current, high stability, imported chips, etc.
Application: 1. Industrial Automation Control 2. Optical Sensing 3. Optical Communication 4. Optical Positioning System 5. Scientific Analysis and Experiment 6. Test and Measurement Instruments
The Cautions： 1: The above product specifications are subject to change without notice.
2: The suitable ESD protection is required in storage, transportation and using
3: The fiber bending radius no less than 20mm for avoiding fiber damaged ,Be sure the fiber coupling facet is clean before
