650nm 30-50mW 100mW 200mW Red Fixed Focus Laser Dot Visible Light Module Locator

650nm 30-50mW 100mW 200mW Red Fixed Focus Laser Dot Visible Light Module Locator

$46.00
$46.00
Sale Sold out
Shipping calculated at checkout.
Options
650nm 30mW 50mW 100mW 200mW Red Fixed Focus Laser Dot Visible Light Module Locator


Specifications:

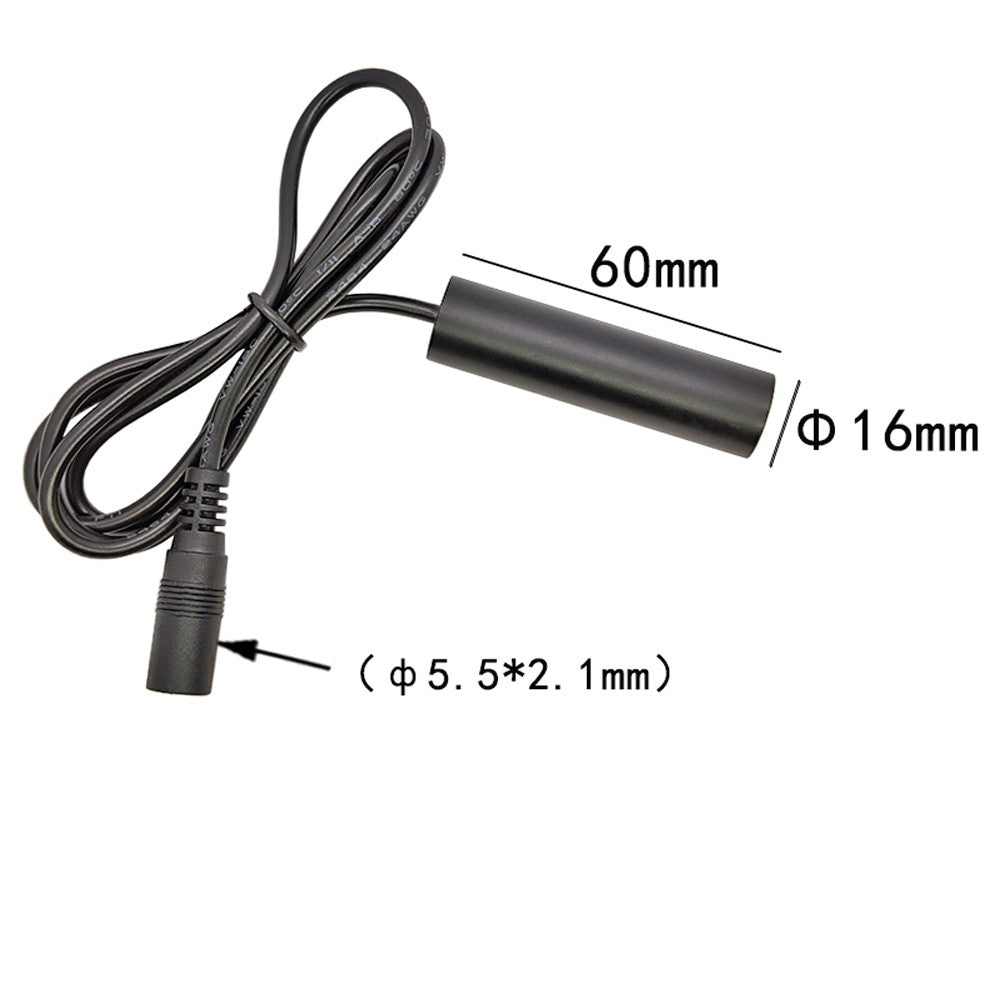

Dimensions:16mm*60mm
Output Wavelength:650nm±10nm
Spot shape/diameter:Dot like light, elliptical, spot size<Φ10mm at 10m(Adjustment Focus)
Output Power:30mW~200mW
Product Material:Aviation Aluminum
Working Voltage:|DC=3V-5V(CircuitI:ACC)
Working Current:<110mA(30mW),<160mA(50mW)，<180mA(100mW)，<320mA(200mW)
Service Life:>8000 Hours
Working Temperature:-10°C~+50°C
Storage Temperature:-20°C~+70°C

Package:1*Laser Module
