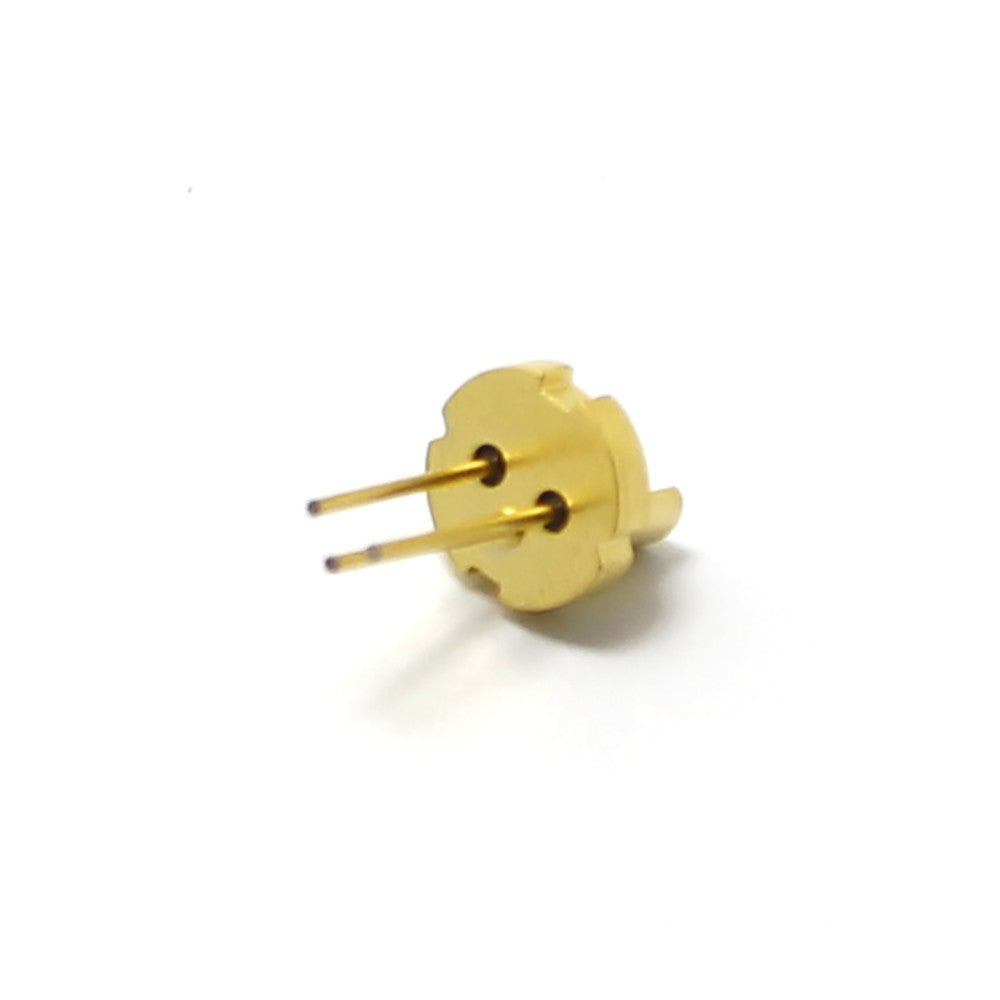

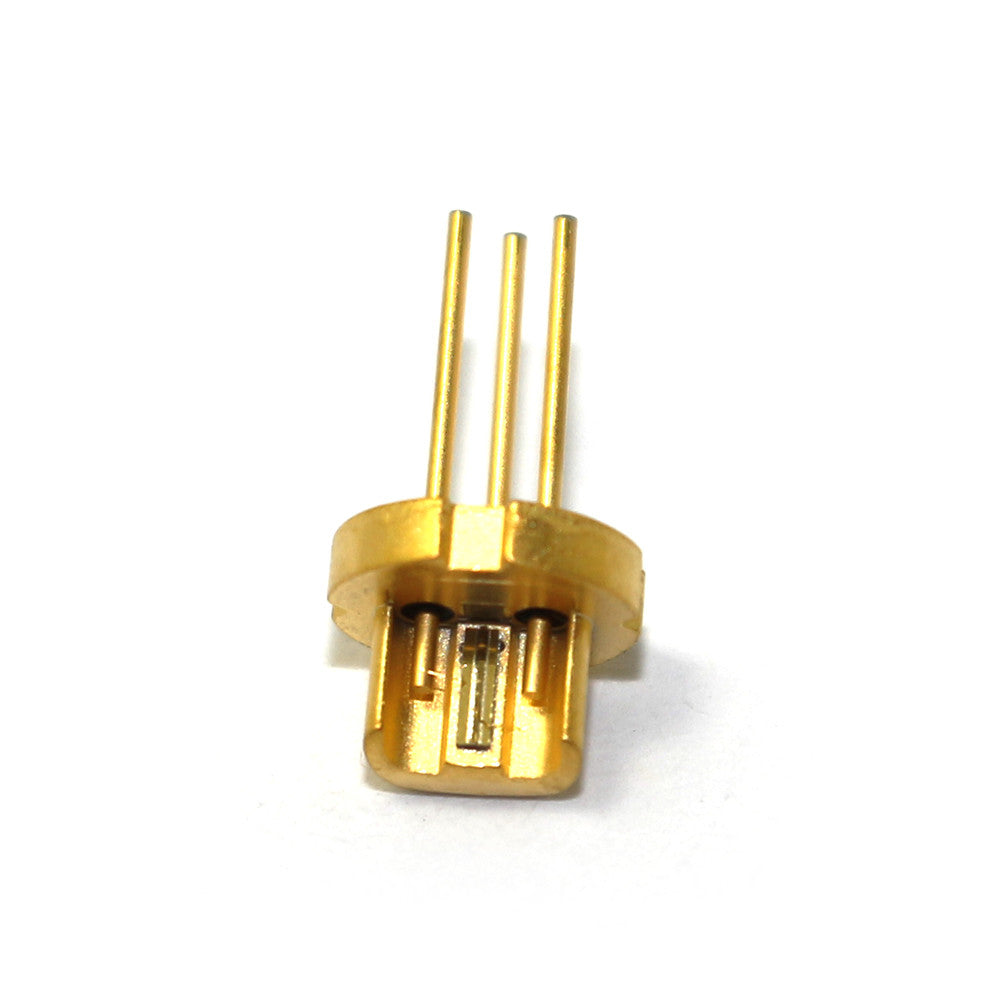

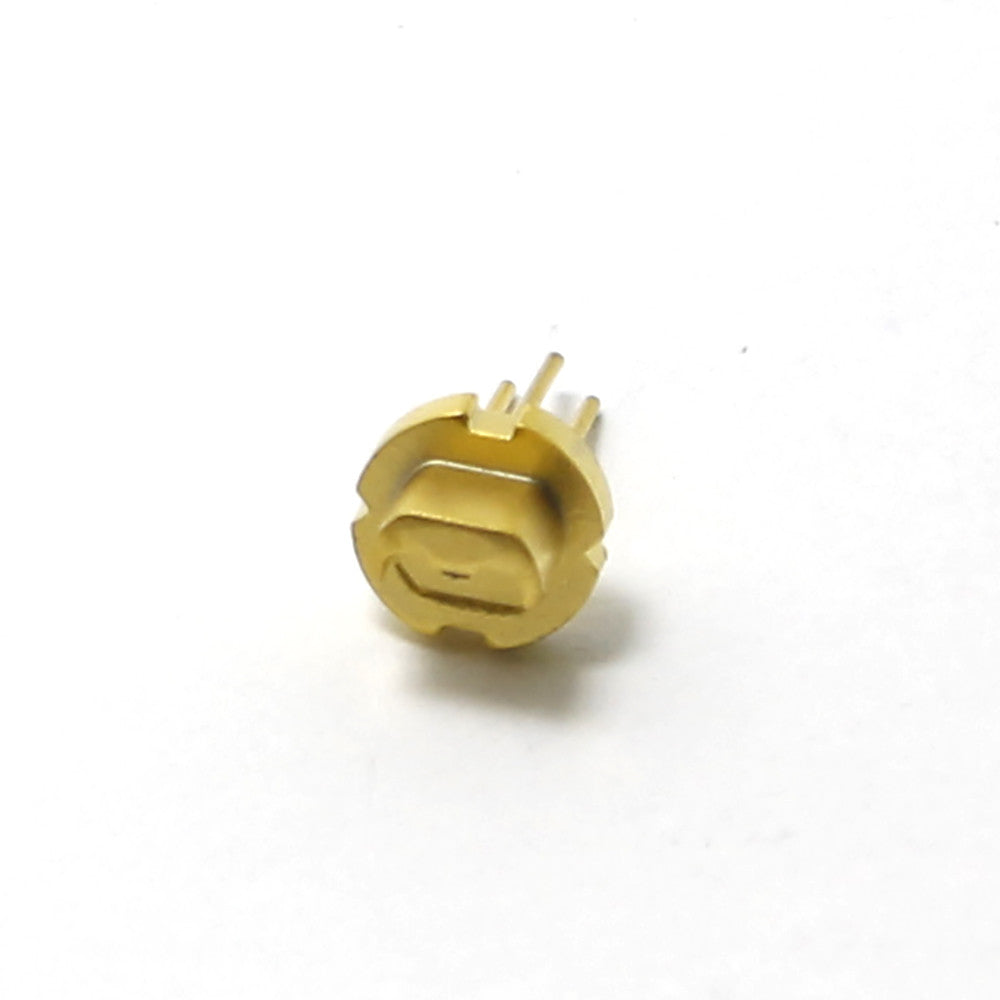

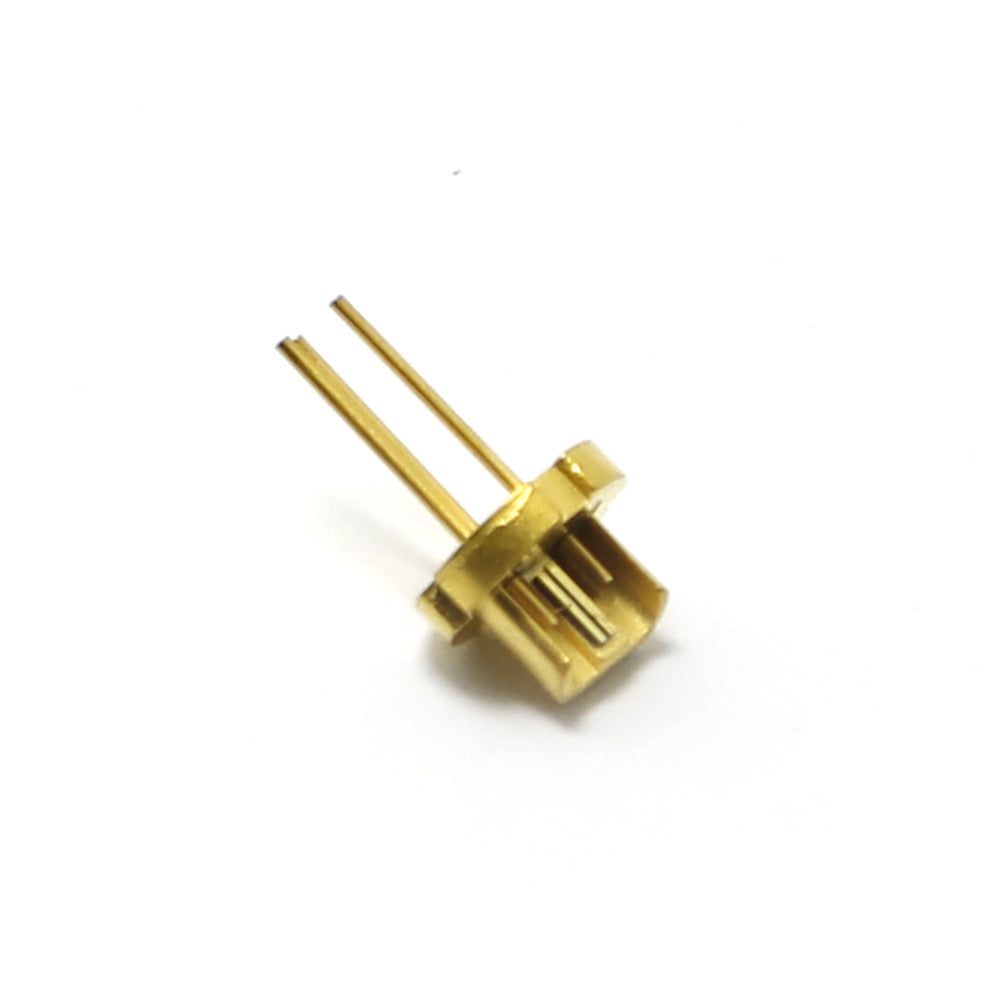

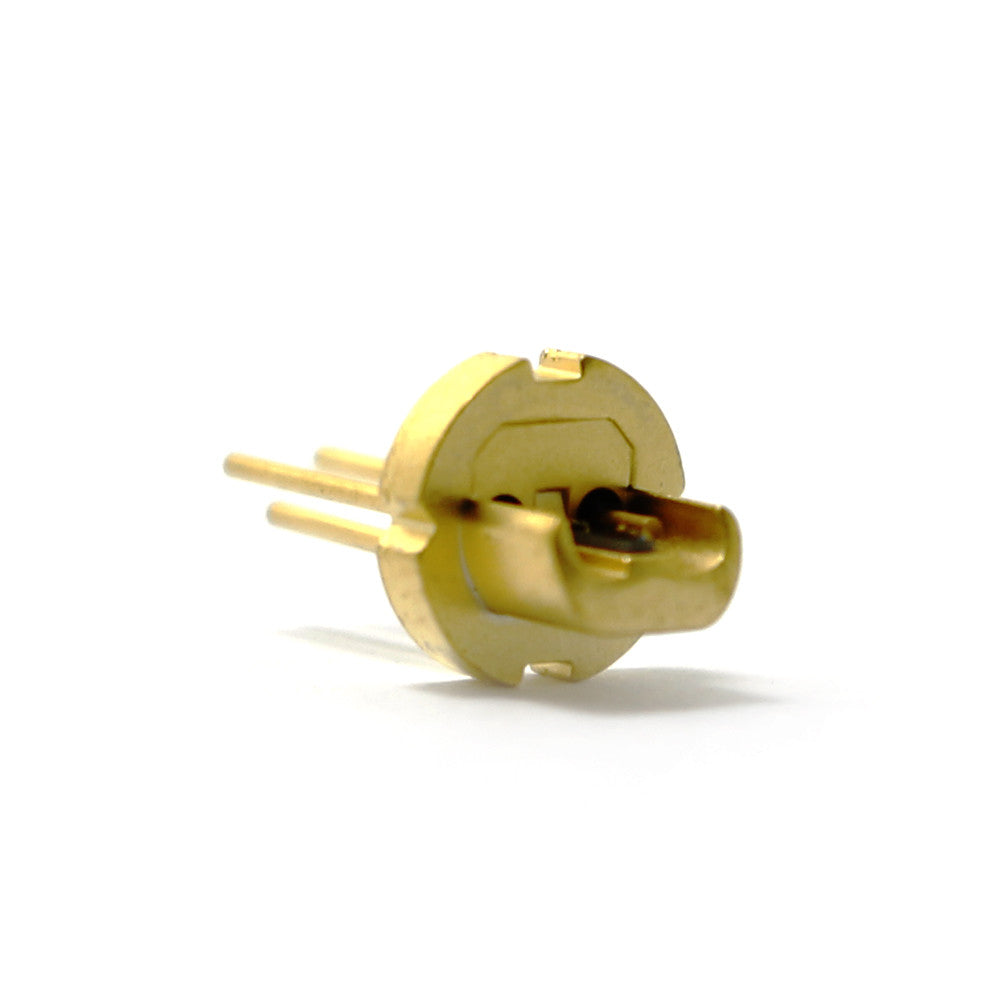

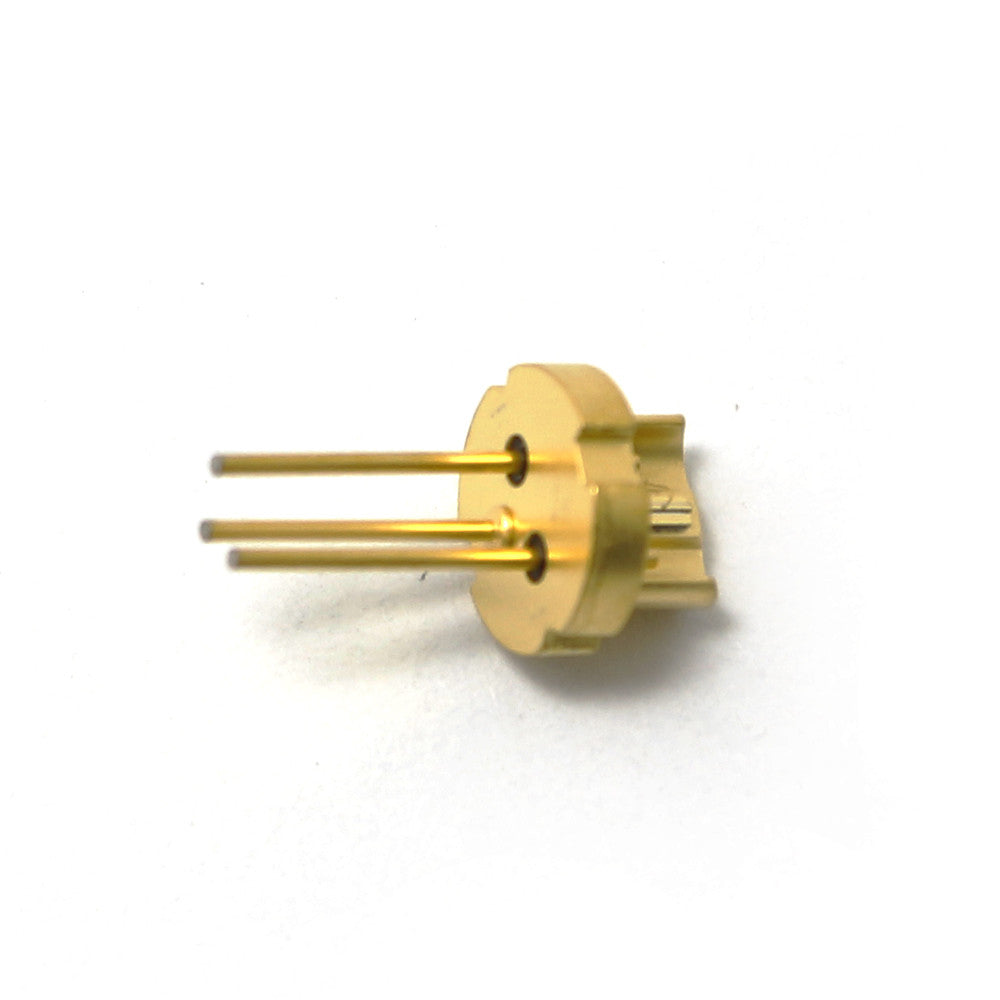

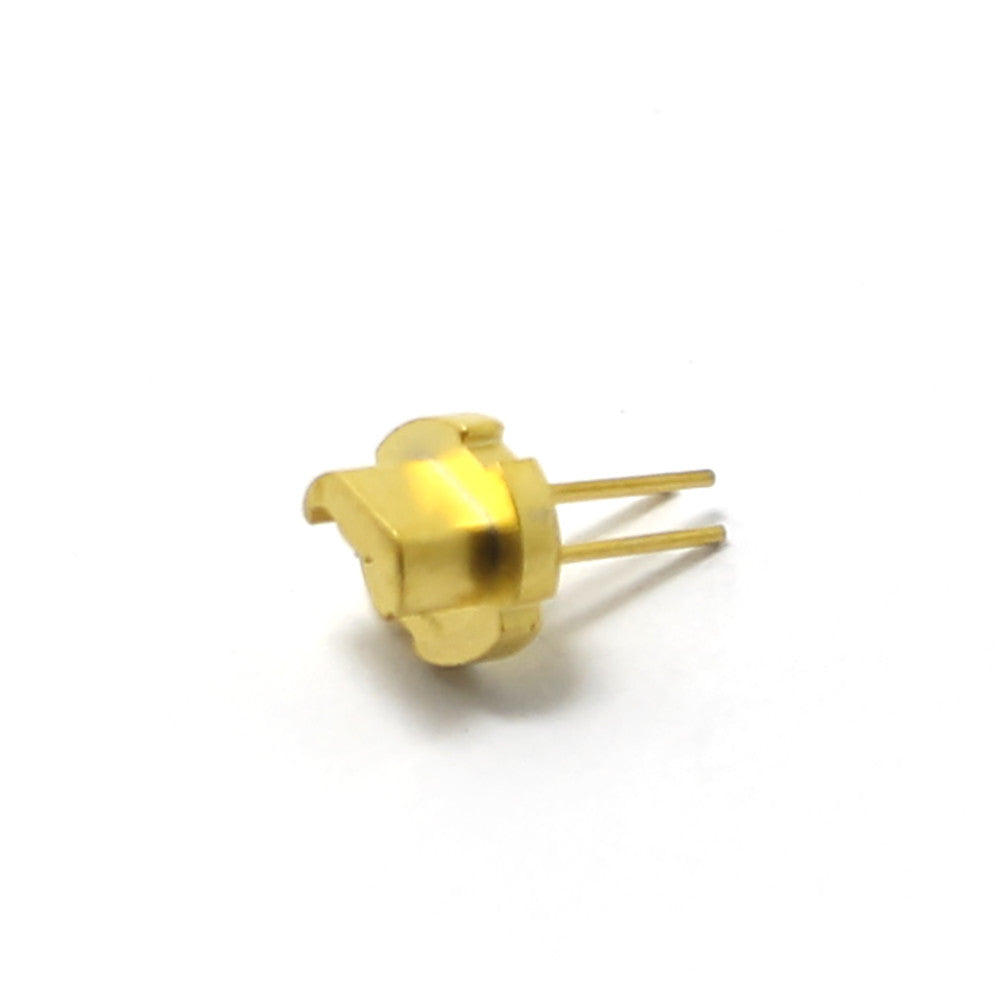

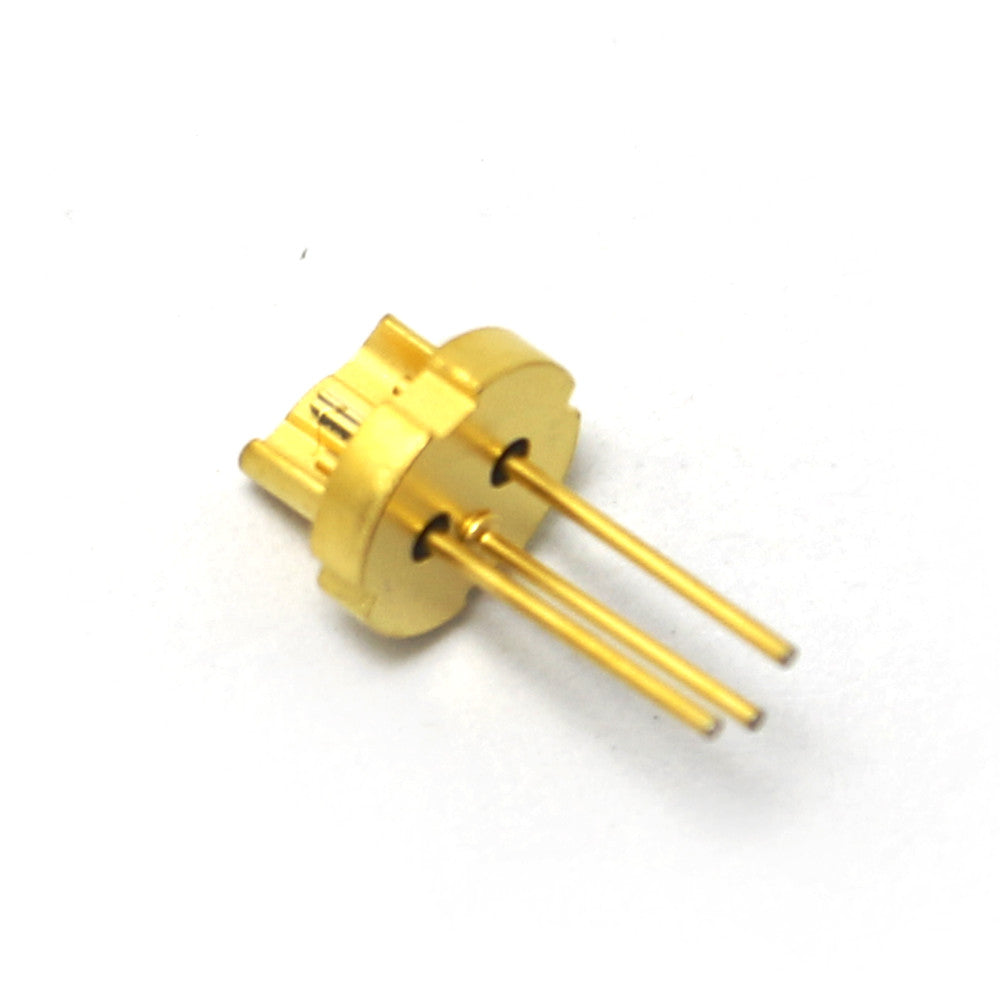

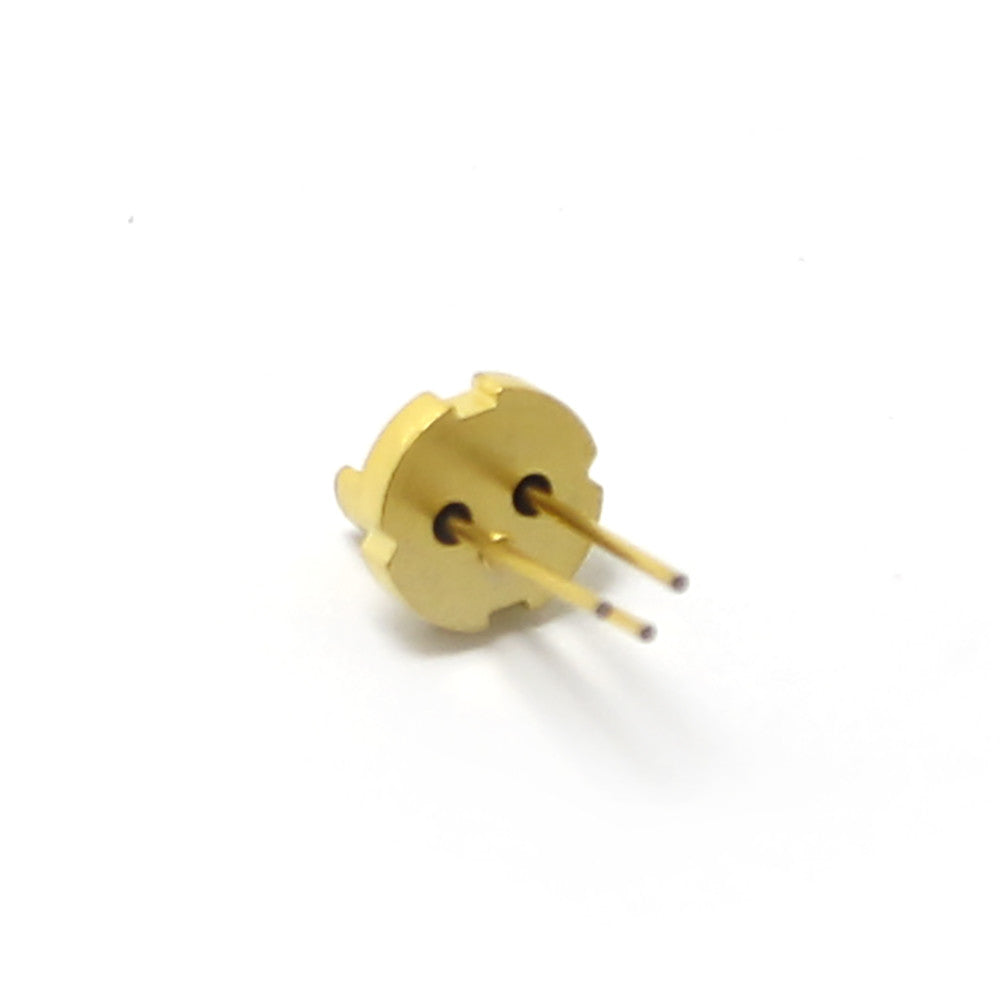

650nm 660nm 300mw/400mw Push CW Red Laser Diode LD Mitsubishi LPC-826 New

650nm 660nm 300mw/400mw Push CW Red Laser Diode LD Mitsubishi LPC-826 New

Regular price $23.00
Regular price $28.00 Sale price $23.00
Sale Sold out
Shipping calculated at checkout.

650nm 660nm 300mw/400mw Push CW Red Laser Diode LD LPC826 New


Features:
Wavelength: 660nm
Output Power CW: 200mW ave. 400mW max.
Output Power Pulse: 350mW target duty 35%
Operating Current: <340mA
Threshold Current: 75-85mA
Slope Efficiency: 0.97 mW/mA
Operating Voltage: 2.2-3.0V
Maximum Operating Temperature: 75°C

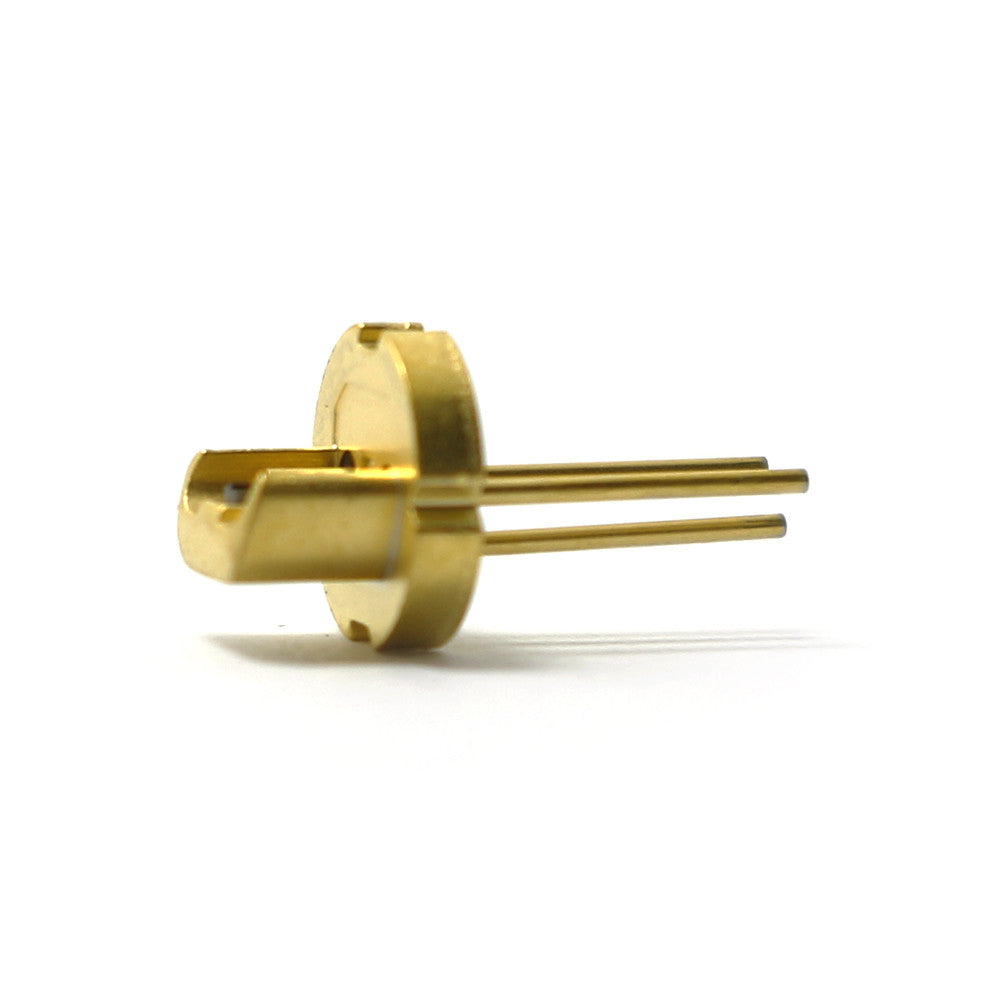

Package: TO18 Open (5.6mm)
Working Life: >10,000 hrs at 50% Max. Power



Details:

LPC-826 High Power 660nm Red Laser Diode: 200mW+ CW or 340mW+ Pulse

Brand new stock directly packed from the manufacturers production trays. This diode is used by several portable laser manufacturers for high power red lasers rated at 200-300mW

The specification given above is provided by the Japanese distributor.

Package:
1X 650nm 660nm 300mw/400mw Push CW Red Laser Diode LD LPC826 New
