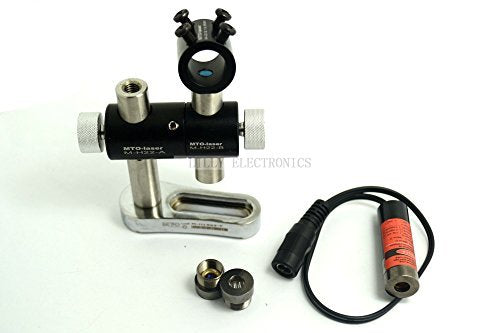

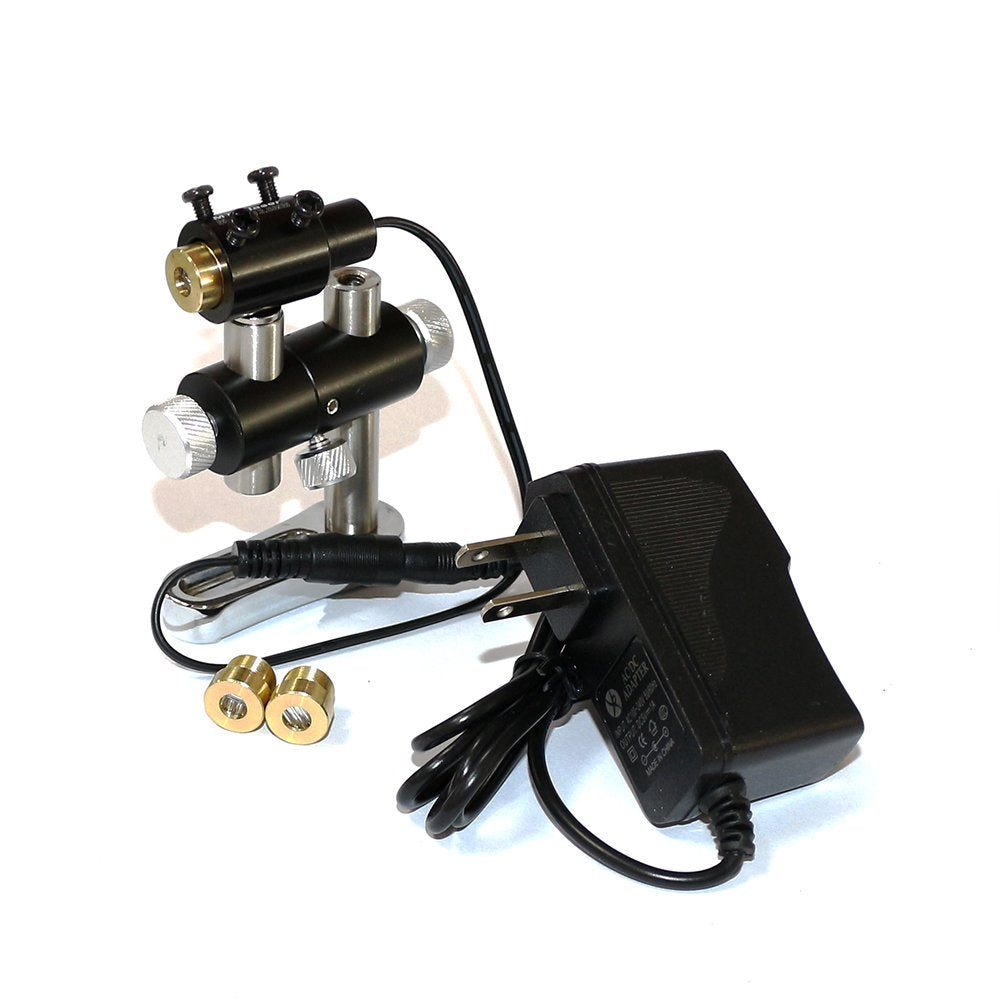

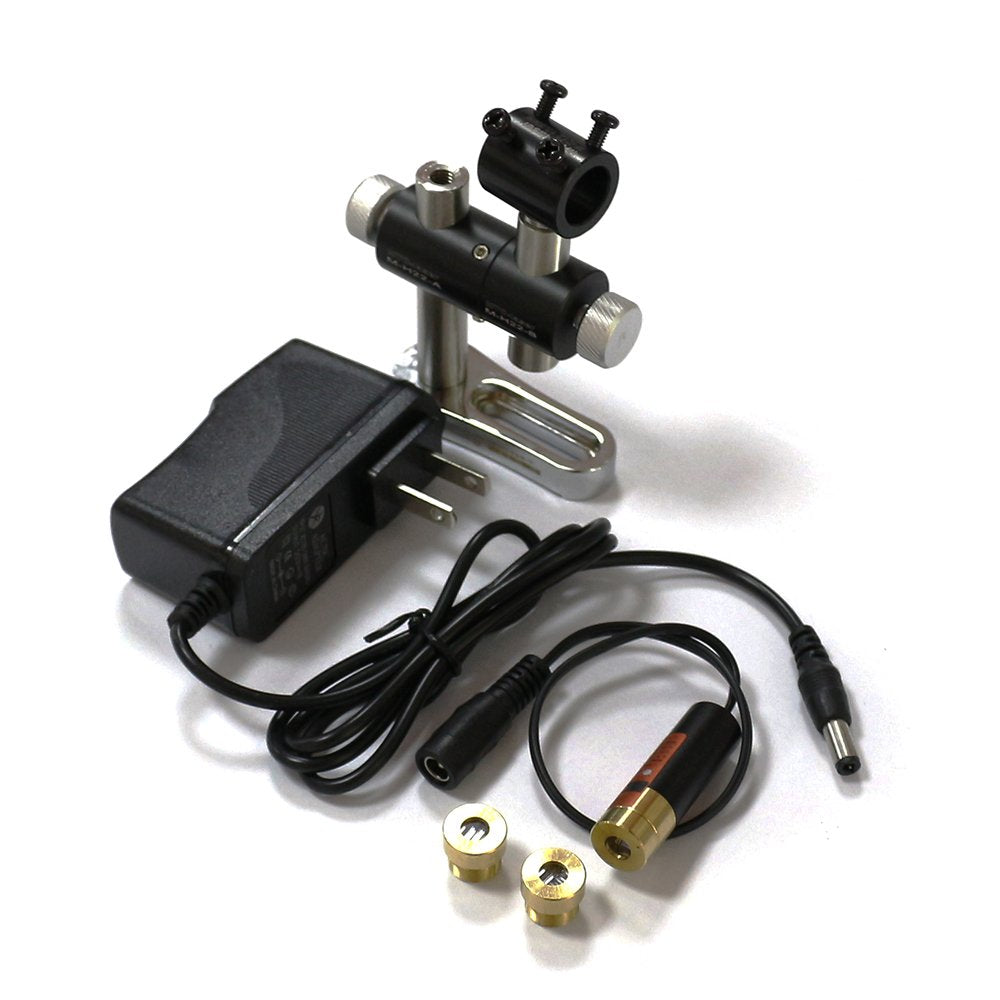

650nm 660nm Adjusted Red Laser Line Dot Cross Laser Diode Module 3V-5.5V Laser Dot/Line/Cross Module Focusable 13mmx42mm with US Power Adapter and Heatsink

Specification:

Output Power: 100mw
Wavelength: 650nm,660nm
Working Voltage: 3V-5.5V
Working Current: 180mA
Working Temperature: -10 degrees~＋40 degrees
Duty Cycle: 10 minutes on, 3 minutes off
Laser Shape: Dot/Line/Cross
Dimensions: 13x42mm

Notes:
1.This laser module is widely used in clothes cutting, wood cutting, mechanical positioning.
2.Please keep the lens clean to make the laser beam clear and bright.

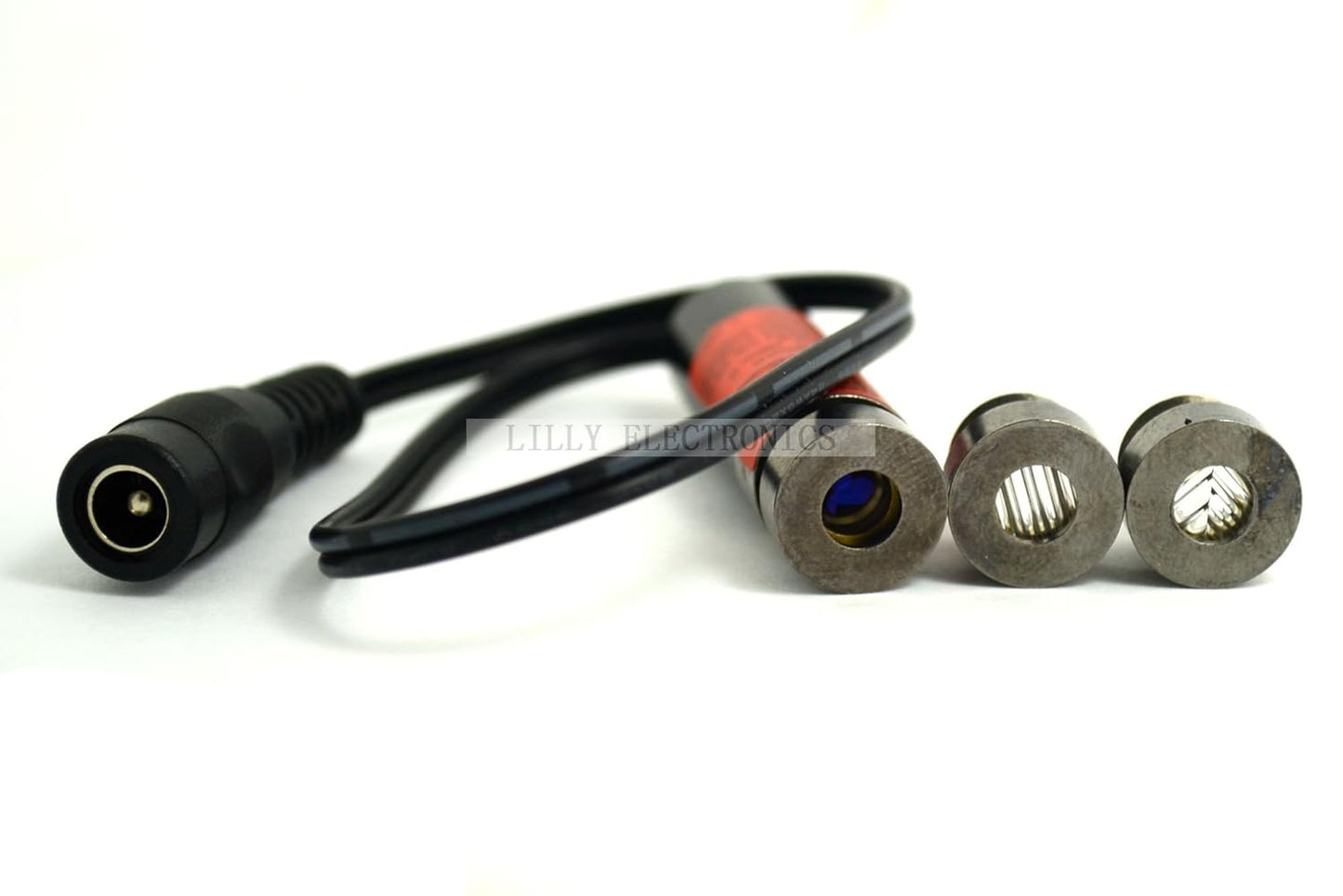

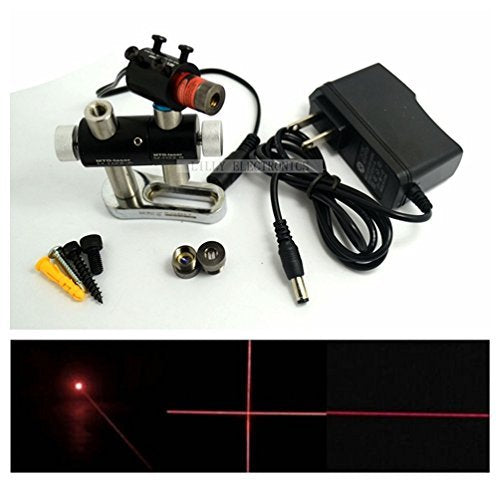

3. Y ou can change the caps to get different effects: dot line and cross,which is shown in the main photo.
4.Before carrying on some laser DIY activities, please protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
5.Please protect your eyes when you work with this red module.
6.This module comes with 5v 1a AC adapter for customer's easy operation.There are US-plug and EU-plug,UK-plug and AU-plug in our inventory.We will ship it according to your country if you don't leave us any message.Thanks.


Package:

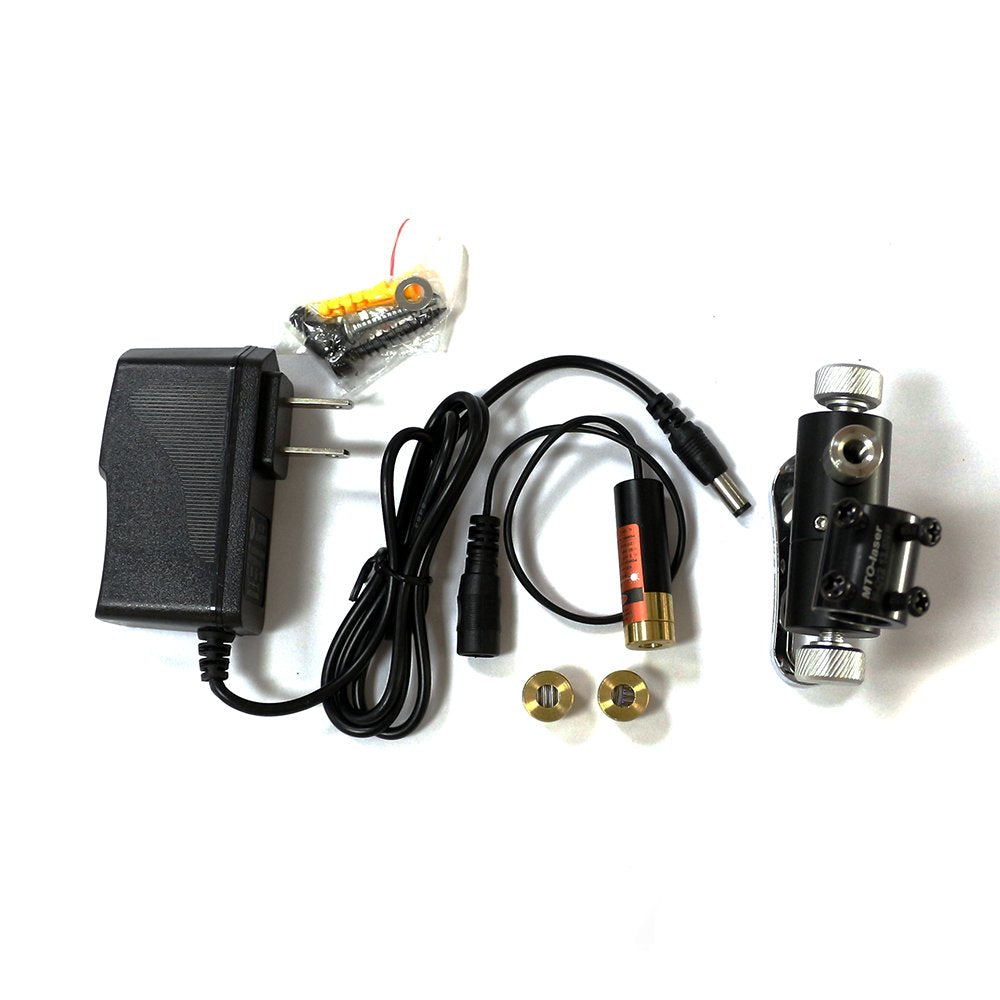

 1 x 650nm 660nm Adjusted Red Laser Line Dot Cross Laser Diode Module 3V-5.5V Laser Dot/Line/Cross Module Focusable 13mmx42mm with US Power Adapter and Heatsink
