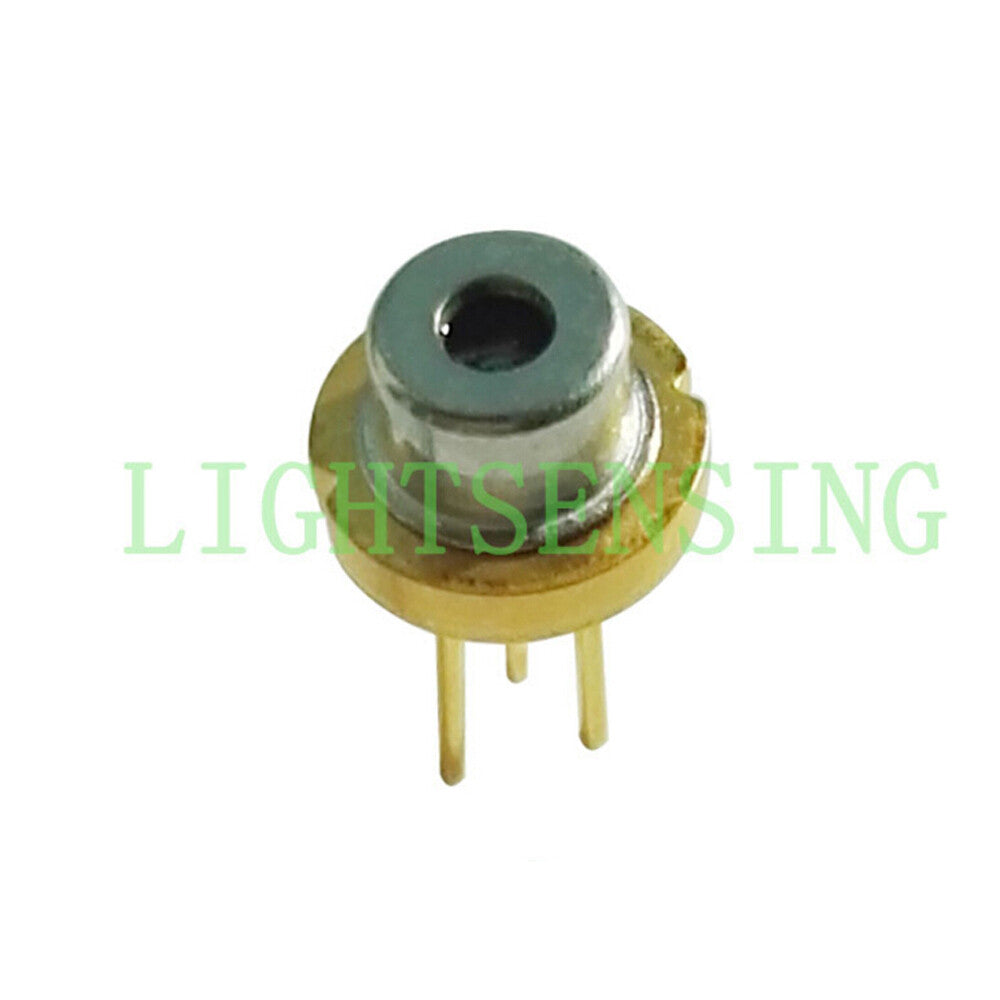

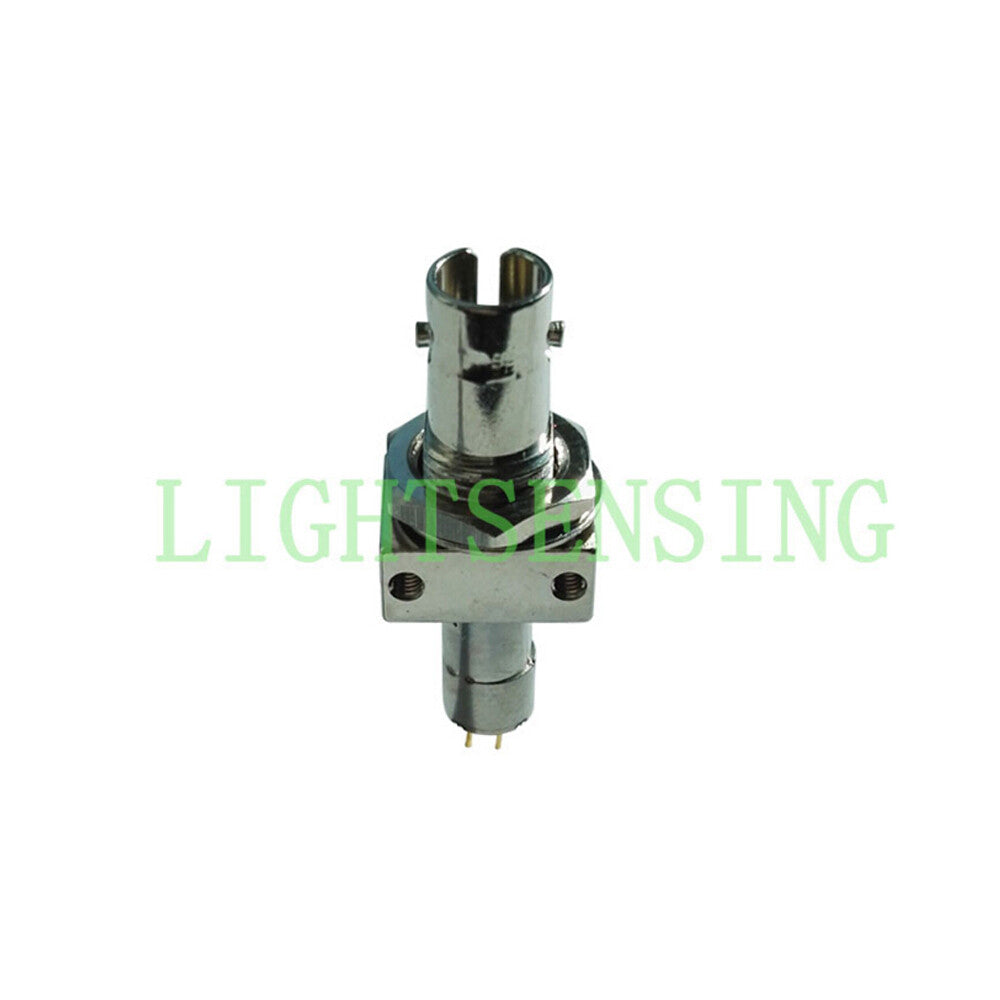

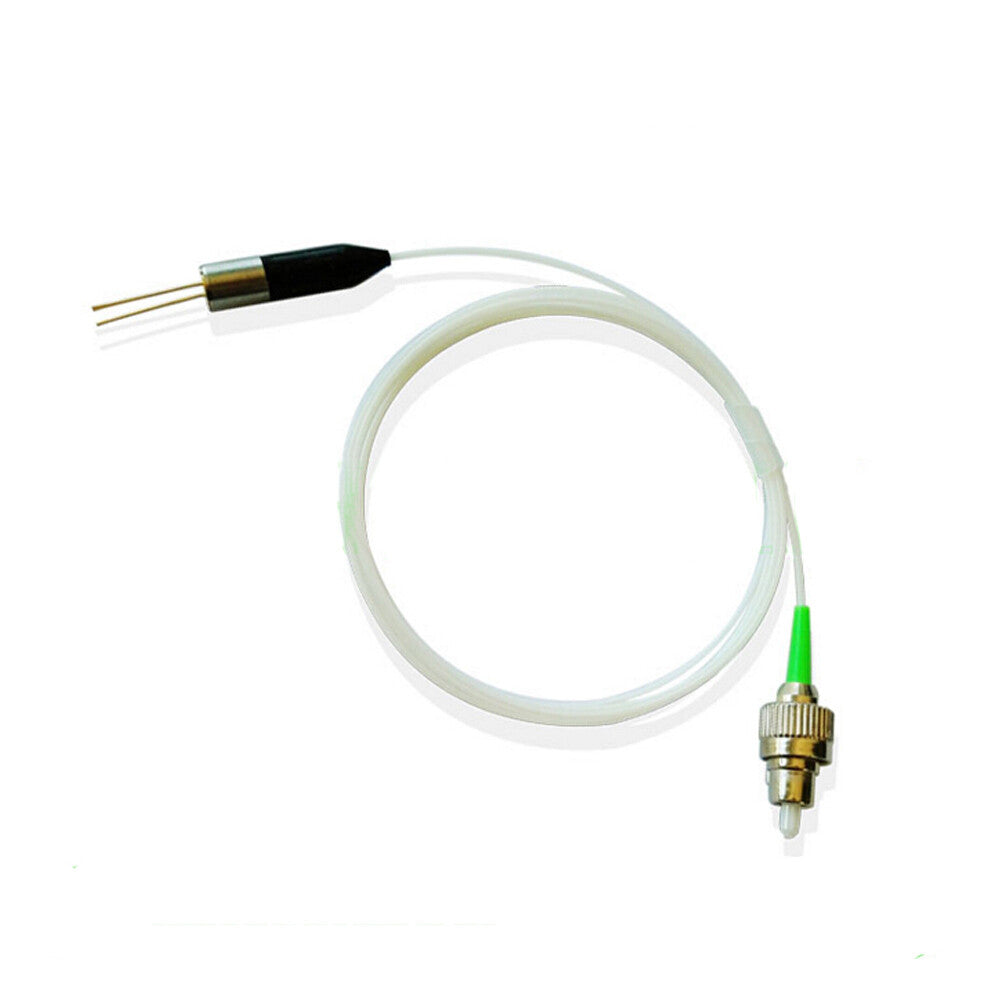

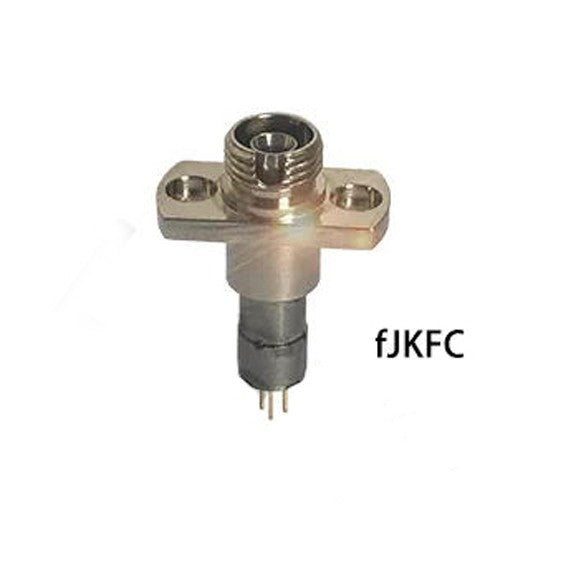

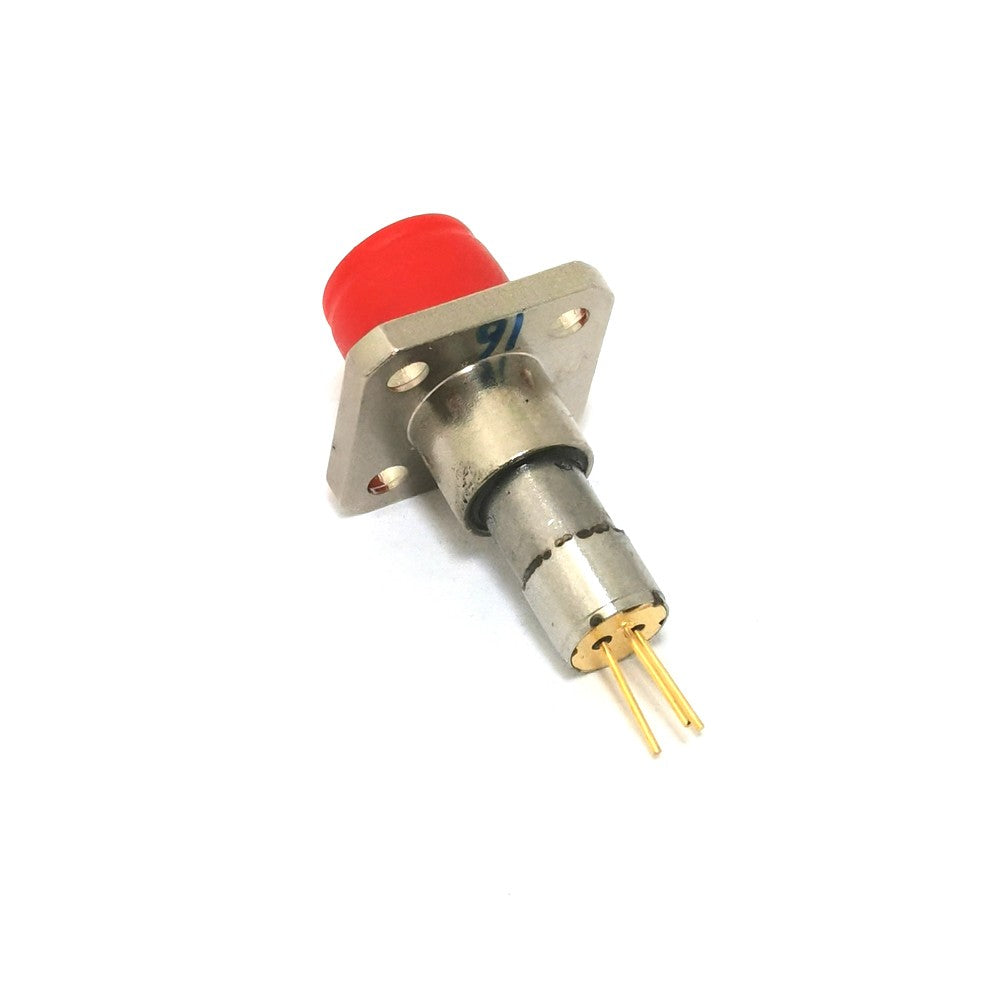

650nm FP Laser Diode Laser Fiber Output Power 3mW Laser Module

650nm FP Laser Diode Laser Fiber Output Power 3mW Laser Module

Center Wavelength: 650nm

Fiber Output Power: 3mW

Threshold Current: 10mA

Working Current: 40mA

Operating Voltage: 2.2- 2.6 V

Operating temperature : -10～+40 ℃

Features:

Built-in monitoring detector, low threshold current, low operating current, high stability, imported chips, etc.

Application:

1. Industrial Automation Control 2. Optical Sensing 3. Optical Communication

4. Optical Positioning System 5. Scientific Analysis and Experiment 6. Test and Measurement Instruments

The Cautions：

1:The suitable ESD protection is required in storage, transportation and using
2: The fiber bending radius no less than 20mm for avoiding fiber damaged ,Be sure the fiber coupling facet is clean before connecting it to opto-circuit

Package:

1*650nm laser diode
