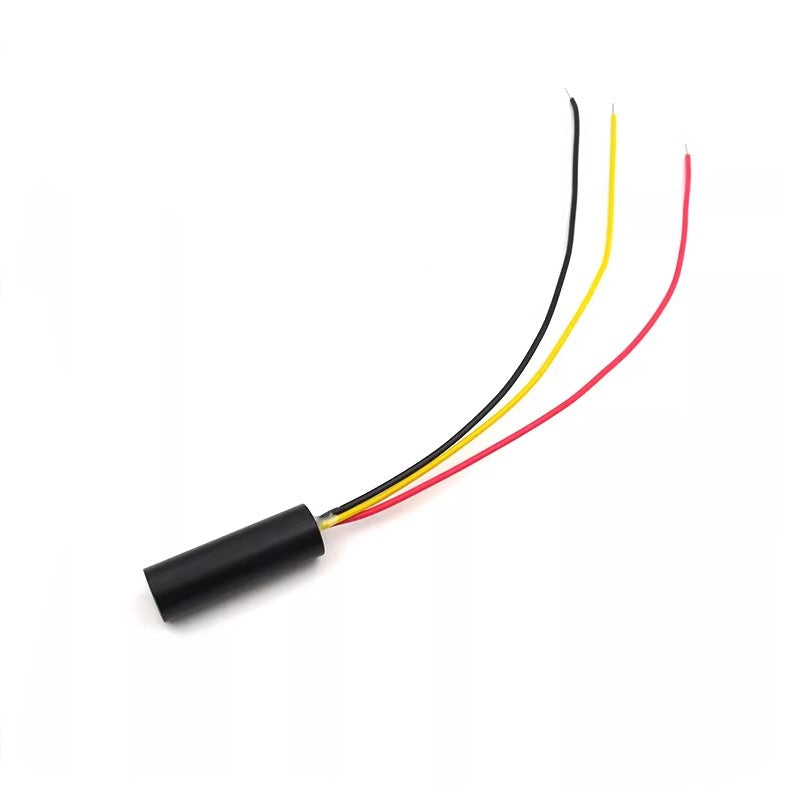

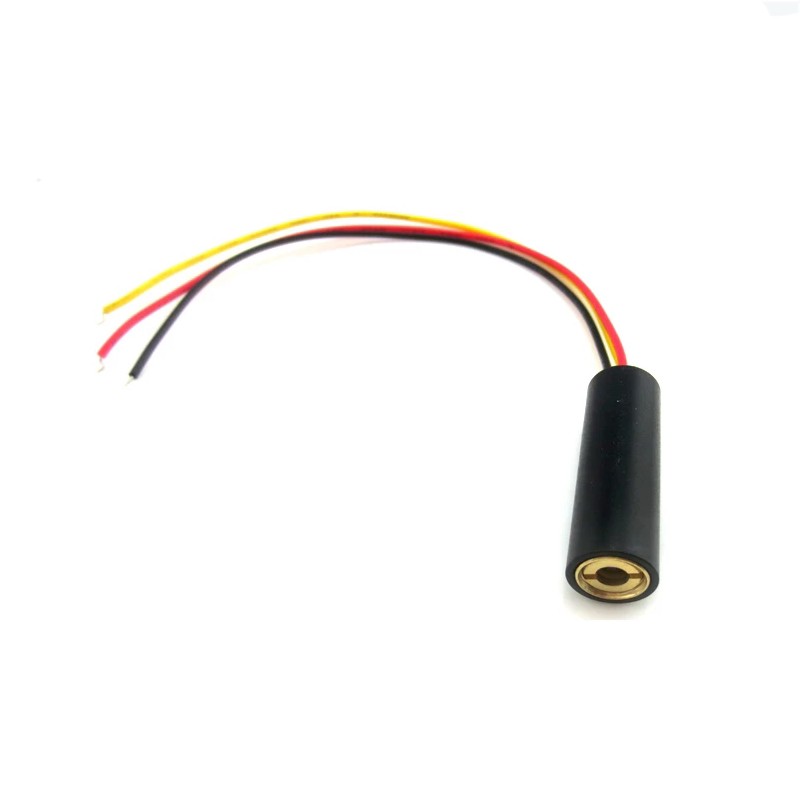

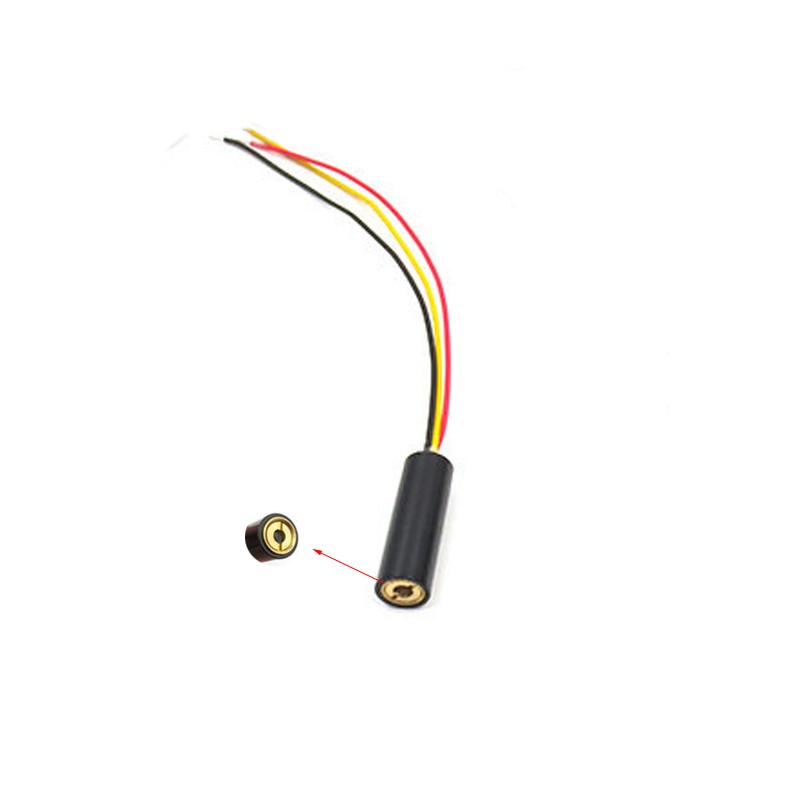

780nm 808nm 850nm 980nm 5mw 10mw 50mw 100mw IR Infrared Light TTL Laser Module

780nm 808nm 850nm 980nm 5mw 10mw 50mw 100mw IR Infrared Light TTL Dot Laser Module

Dimensions: 10*30mm

Working Voltage: DC 2.8-5.2 (V)

Laser Shape: Dot

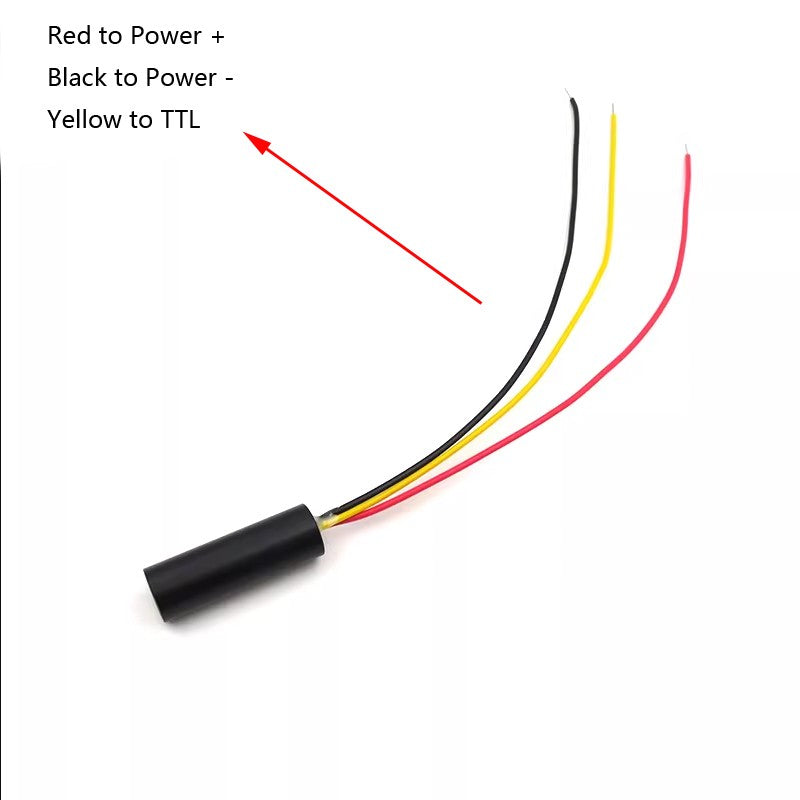

Connection:

Red wire to Power +,

Black wire to Power -,

Yellow wire to TTL

Detailed description:

780nm:

Power: 5mW/10mW/50mW/100mW

Working current: ≤35mA(5mw)/≤60mA(10mw)/≤120mA(50mw)/≤180mA(100mw)

Modulation voltage: DC 2.8-5.2V (0V off, 2.8-5.2V on)

Modulation frequency: 1HZ-100KHZ

808nm:

Power: 5mW/10mW/50mW/100mW

Working current: ≤35mA(5mw)/≤50mA(10mw)/≤100mA(20mw)≤120mA(50mw)/≤180mA(100mw)

Modulation voltage: DC 2.8-5.2V (0V off, 2.8-5.2V on)

Modulation frequency: 1HZ-100KHZ

850nm:

Power: 5mW/10mW/20mW/50mW/100mW

Working current: ≤100mA(5mw)/≤110mA(10mw)/≤120mA(50mw)/≤180mA(100mw)

Modulation voltage: DC 2.8-5.2V (0V off, 2.8-5.2V on)

Modulation frequency: 1HZ-100KHZ

980nm:

Power: 5mW/10mW/50mW/100mW

Working current: ≤35mA(5mw)/≤60mA(10mw)/≤120mA(50mw)/≤180mA(100mw)

Modulation voltage: DC 2.8-5.2V (0V off, 2.8-5.2V on)

Modulation frequency: 1HZ-100KHZ

Note:

Equipped with TTL modulation line, it can connect digital signals with frequencies ranging from 1HZ to 100KHZ, and can match any proportion of duty cycle;

Away from visible light, invisible to the naked eye, requiring the use of an infrared camera for viewing;

Package:

1*IR TTL Modulated Laser Module
