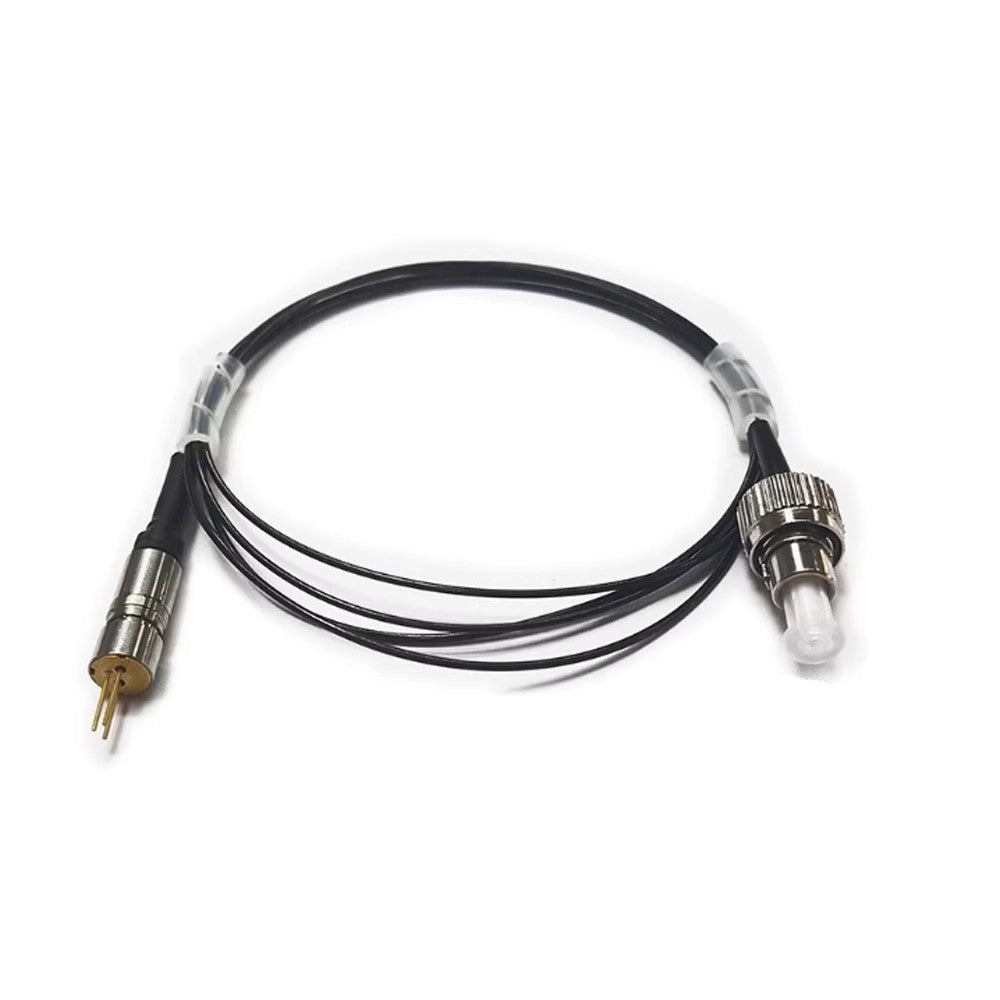

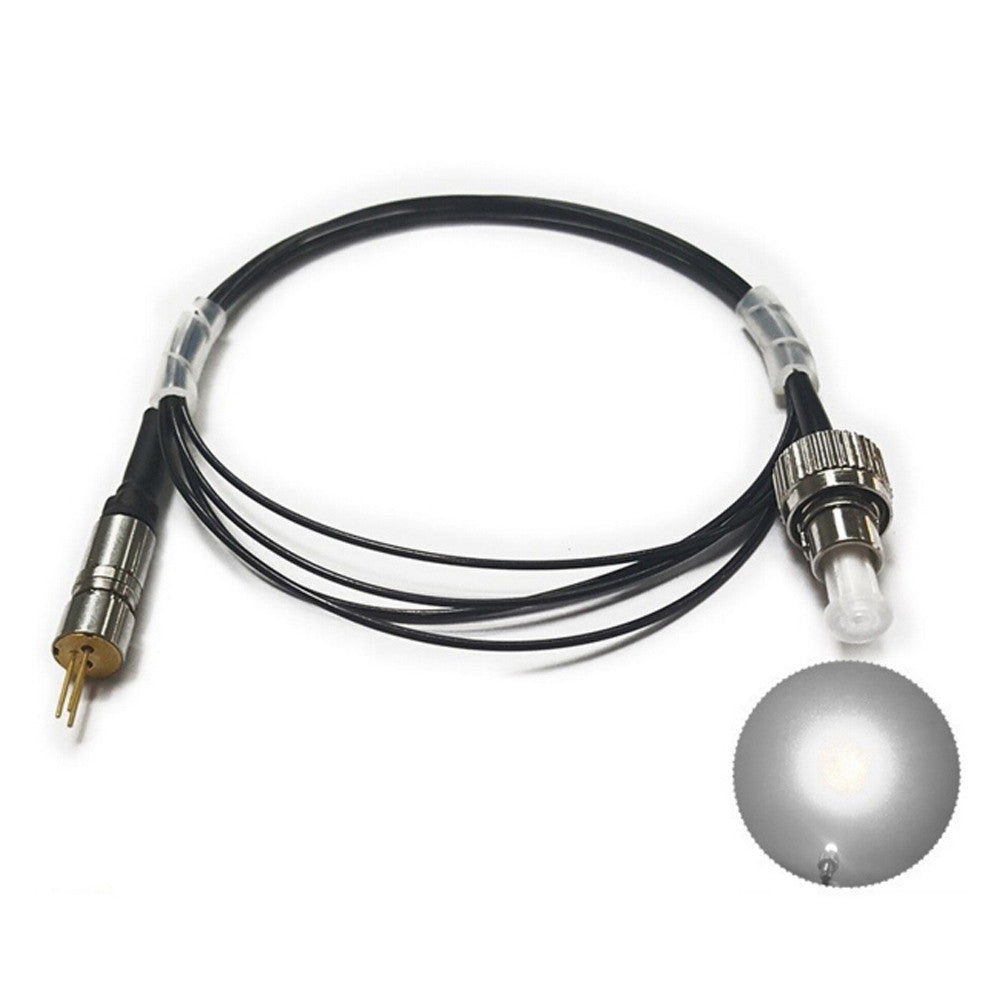

785nm 150mW Laser Coupler Splitter Fiber Infrared Laser Module w/ Driver Board

785nm 150mW Laser Coupler Splitter Fiber Infrared Laser Module w/ Driver Board

$319.00
$383.00 $319.00
Sale Sold out
Shipping calculated at checkout.
Options
785nm 150mW Laser Coupler Splitter Fiber Infrared Laser Module w/ Driver Board

Specifications:
Output wavelength:785±10nm
Output power:<100mW

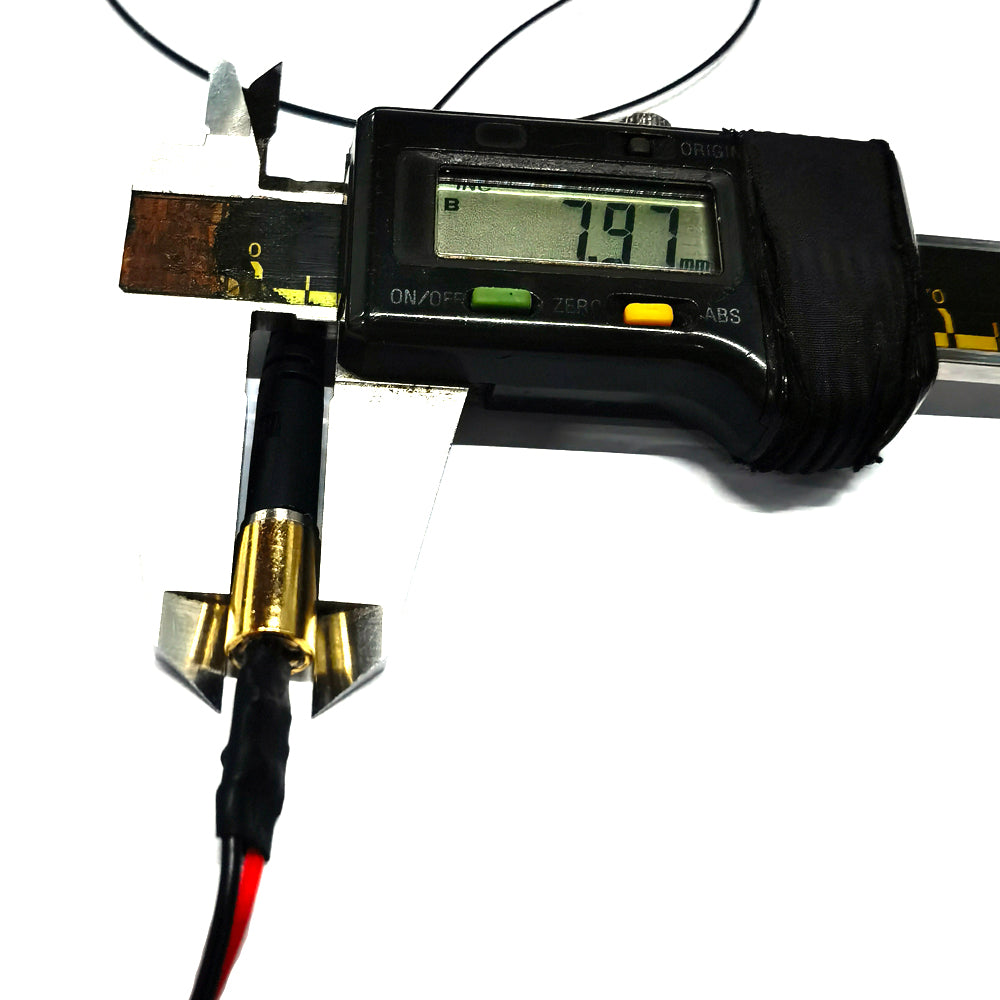

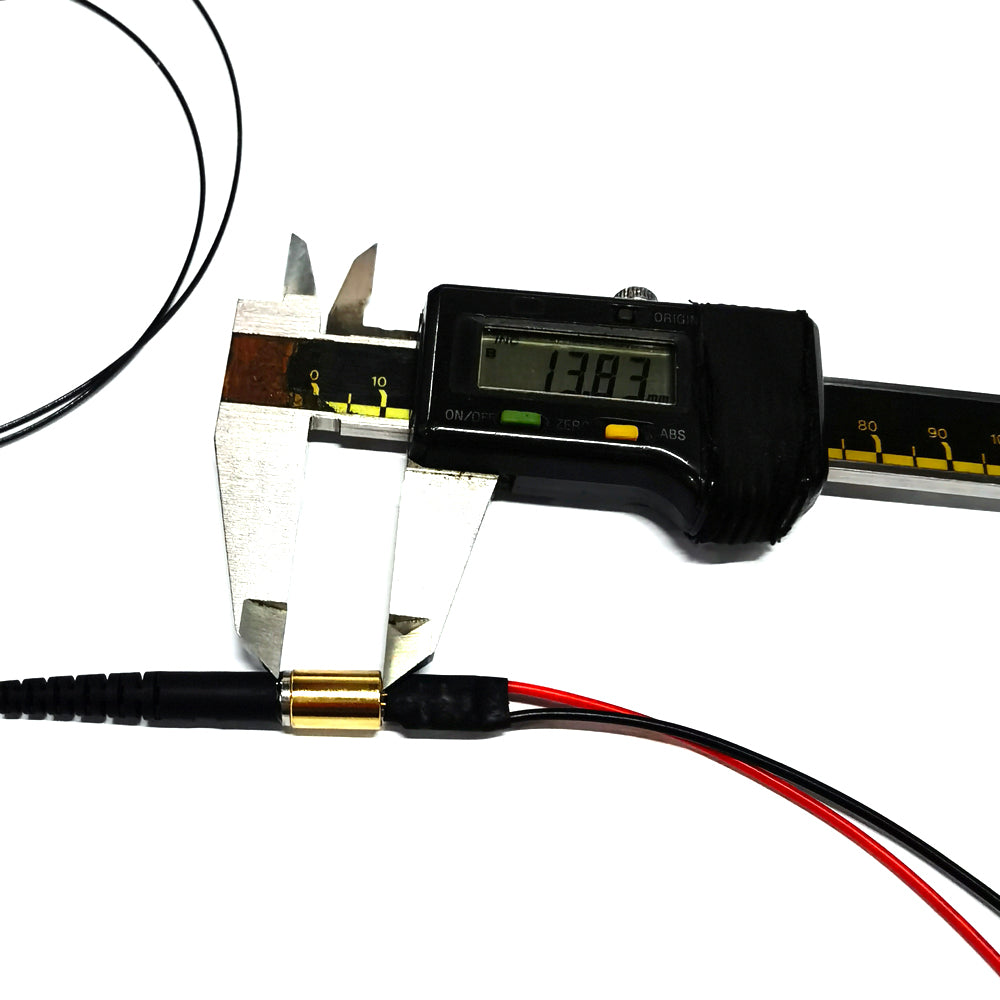

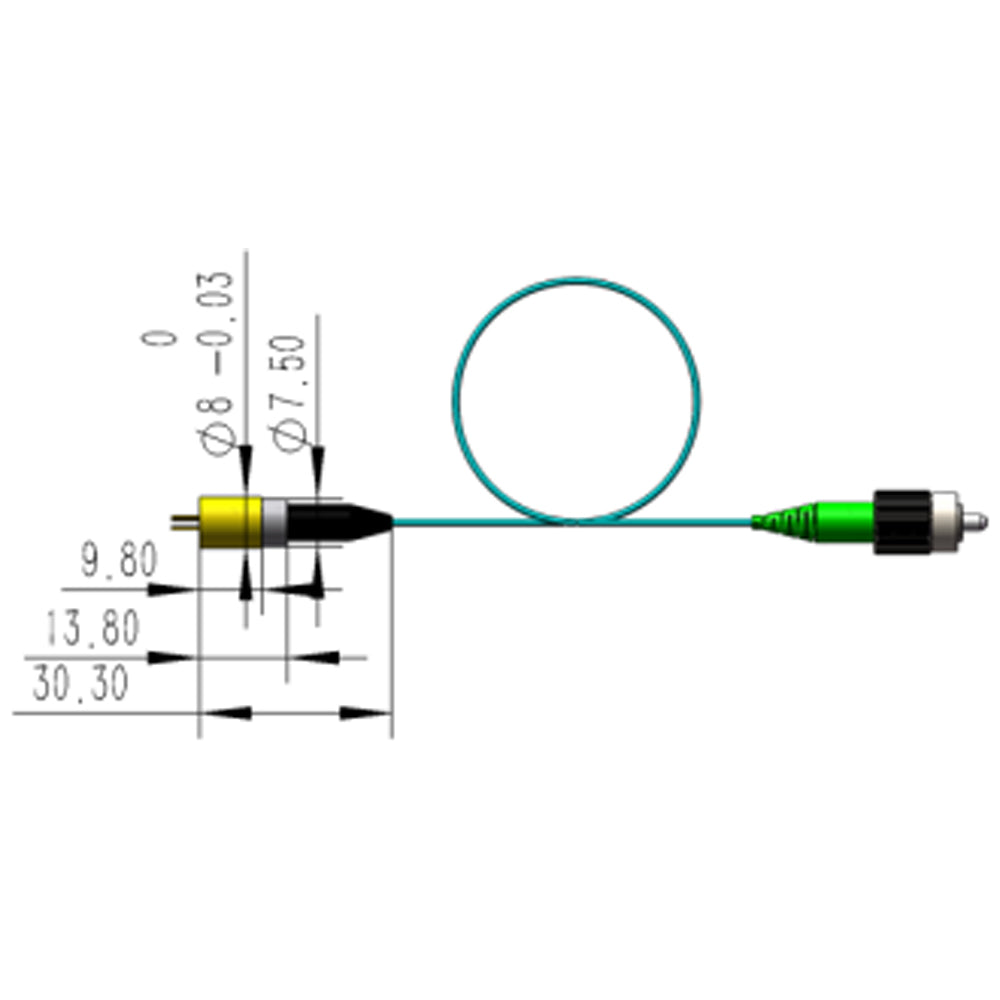

Size:6*16MM
Fiber Material: Quartz
Fiber core diameter: 200 microns
Fiber length: 1 meter

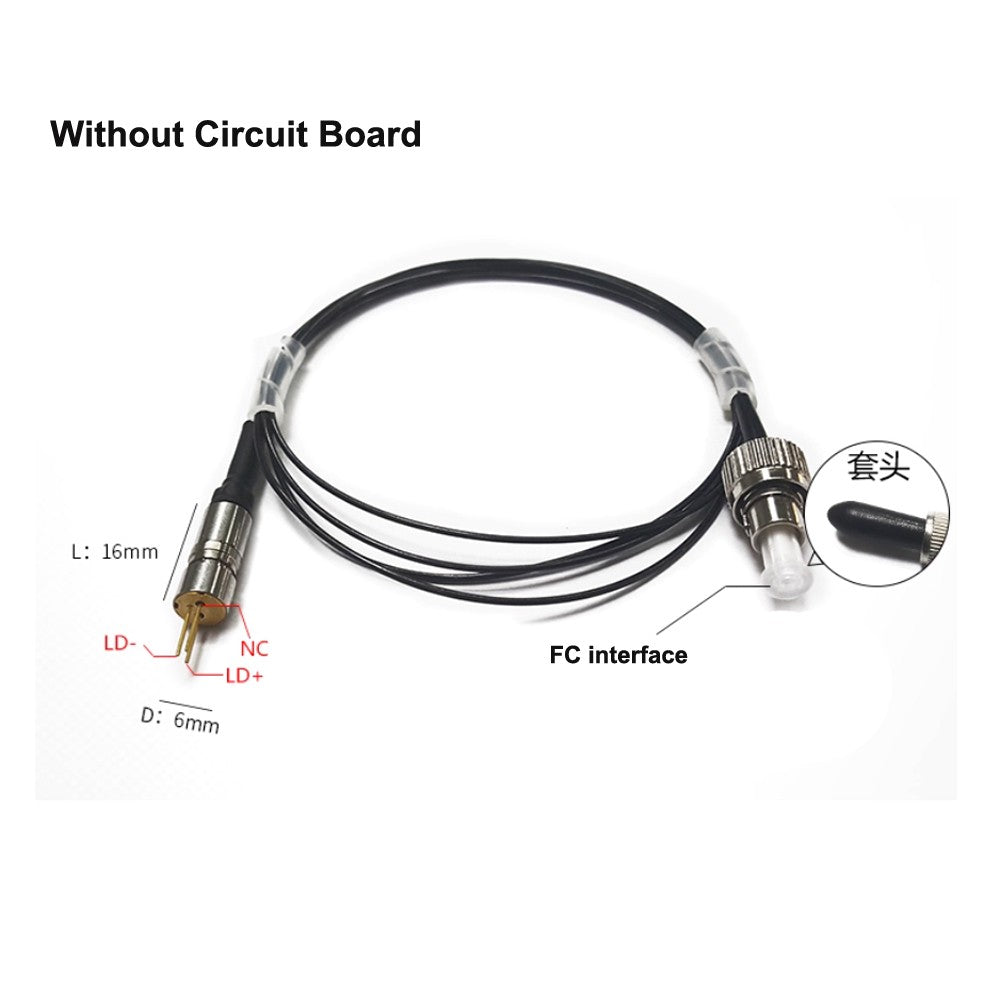

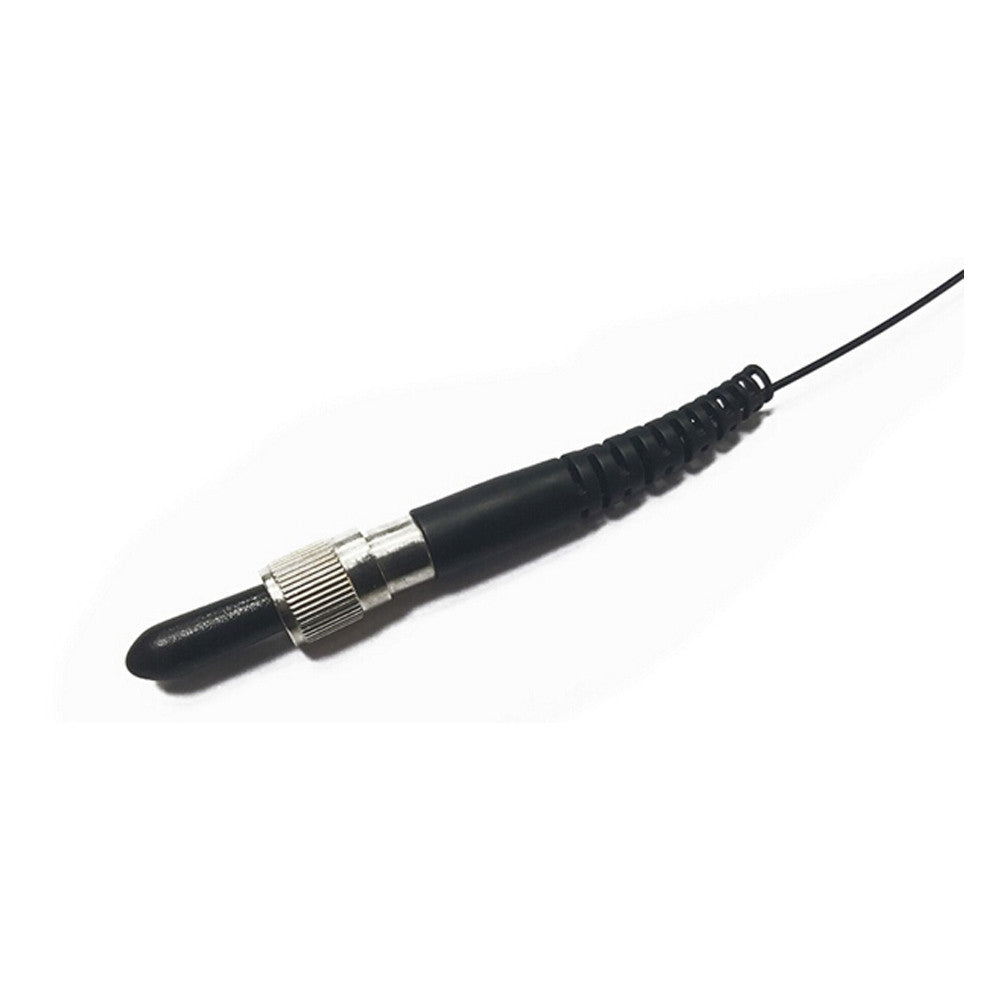

Connector type: FC connector (customizable)

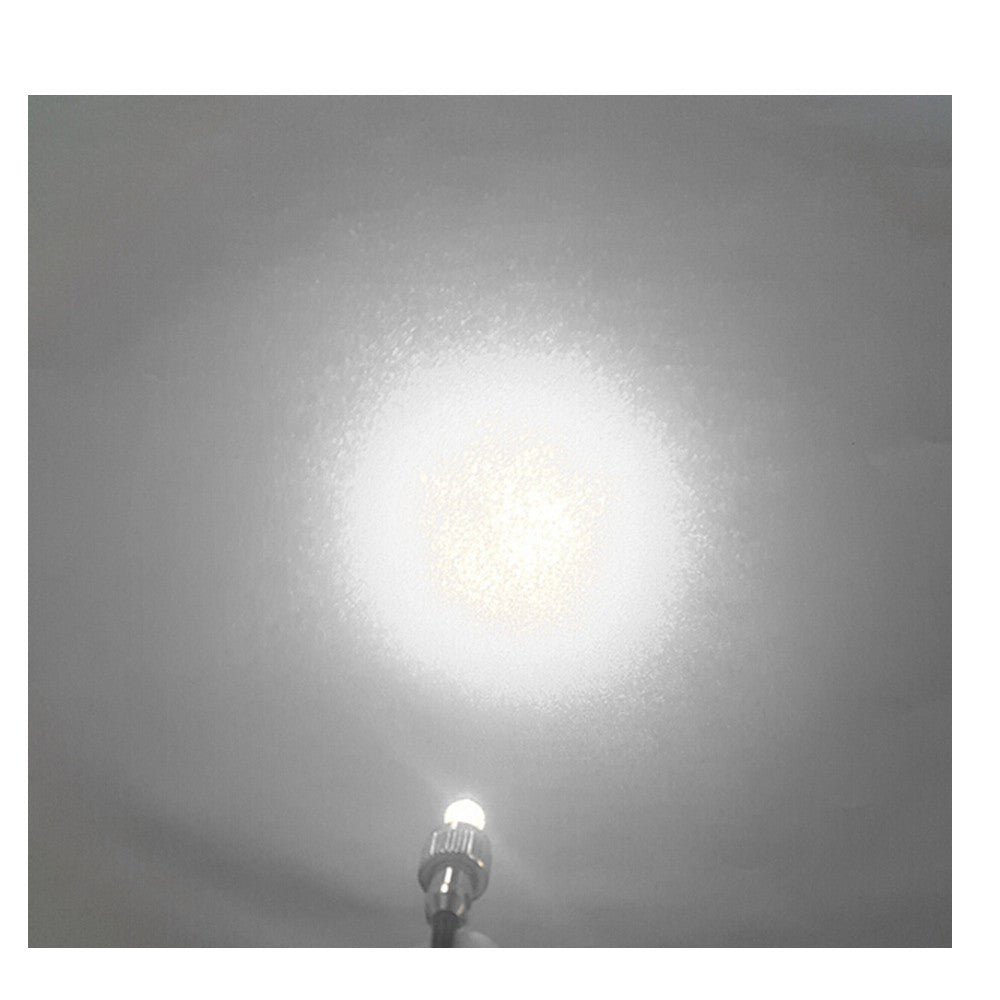

Spot shape: astigmatism
Coupling lens material: optical glass
Bare tube starting voltage:DC2.2V

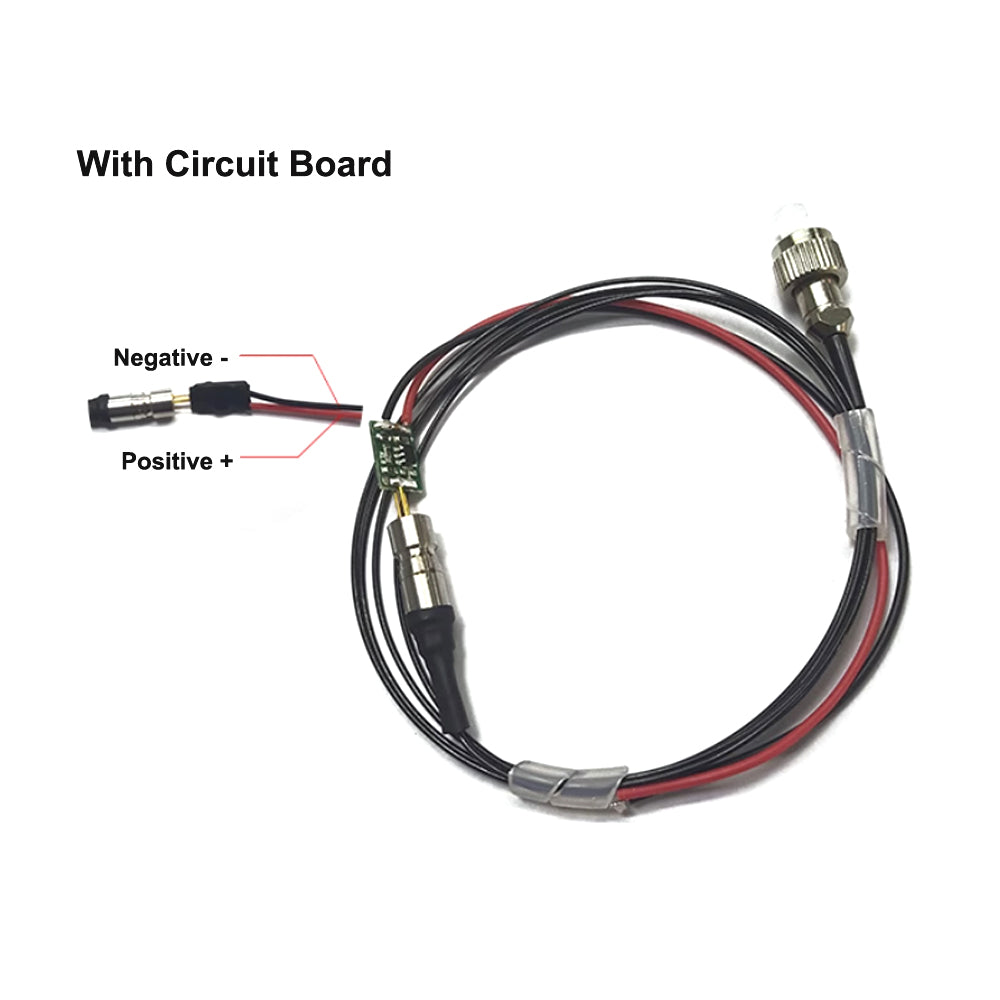

Circuit control mode: ACC constant current control board
Plus driver board voltage: DC3-5V
Bare tube maximum working current:

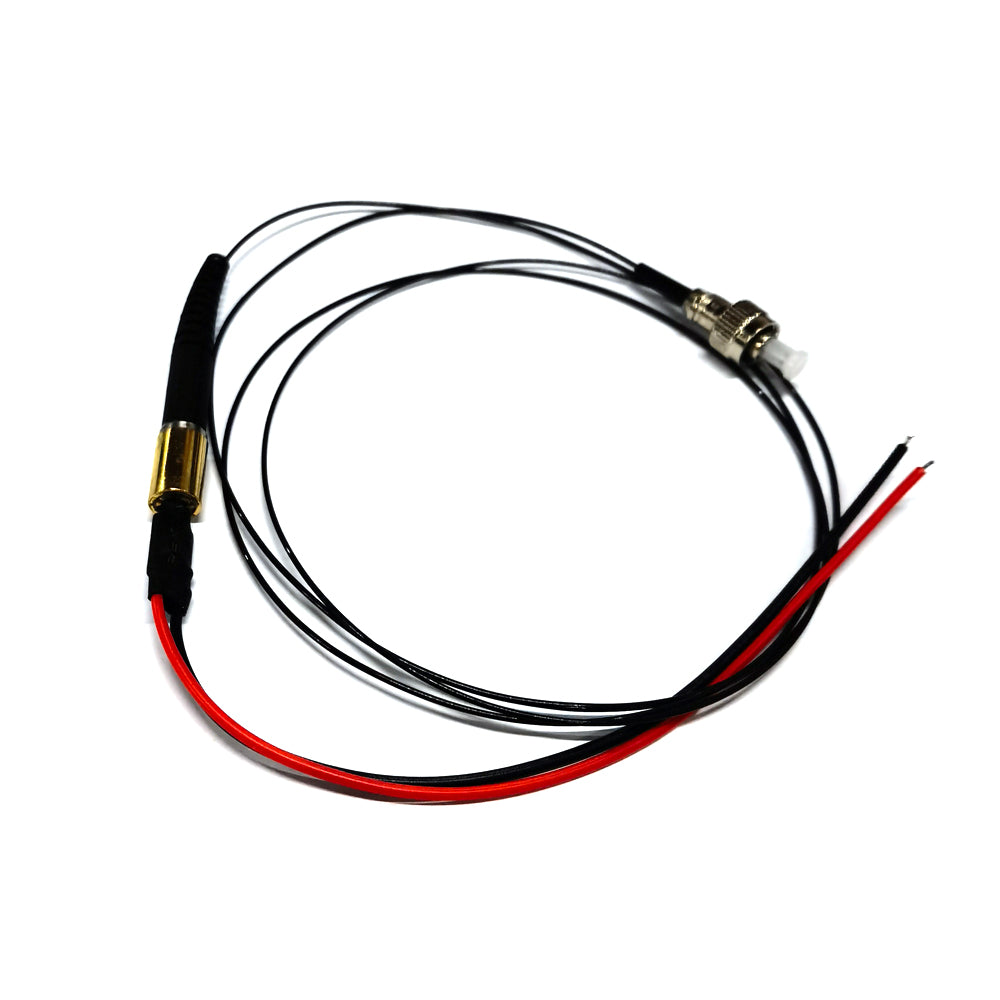

Wire: UL1571 28#150MM red and black electronic wire
Working temperature:-10 ° C ~ +60 ° C
Storage temperature:-20 ° C ~ +85° C


Package：

1x 785nm 150mW Laser Coupler Splitter Fiber Infrared Laser Module w/ Driver Board
