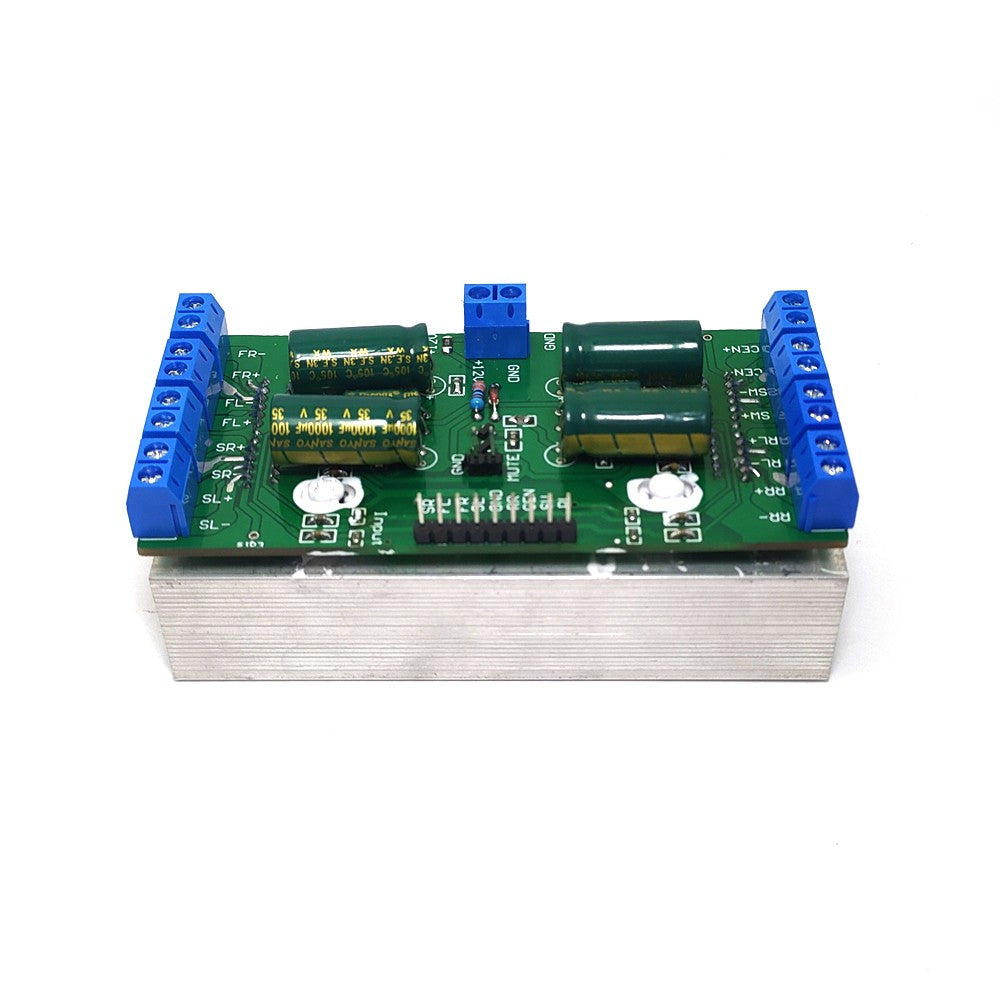

8 Channels Amplifier Board 7.1 Amp Board ZY-8CHGF

8 Channels Amplifier Board 7.1 Amp Board ZY-8CHGF

$57.00
$64.00 $57.00
Sale Sold out
Shipping calculated at checkout.

Description:

This plate is a pure amplifier board, excluding the bass front features.

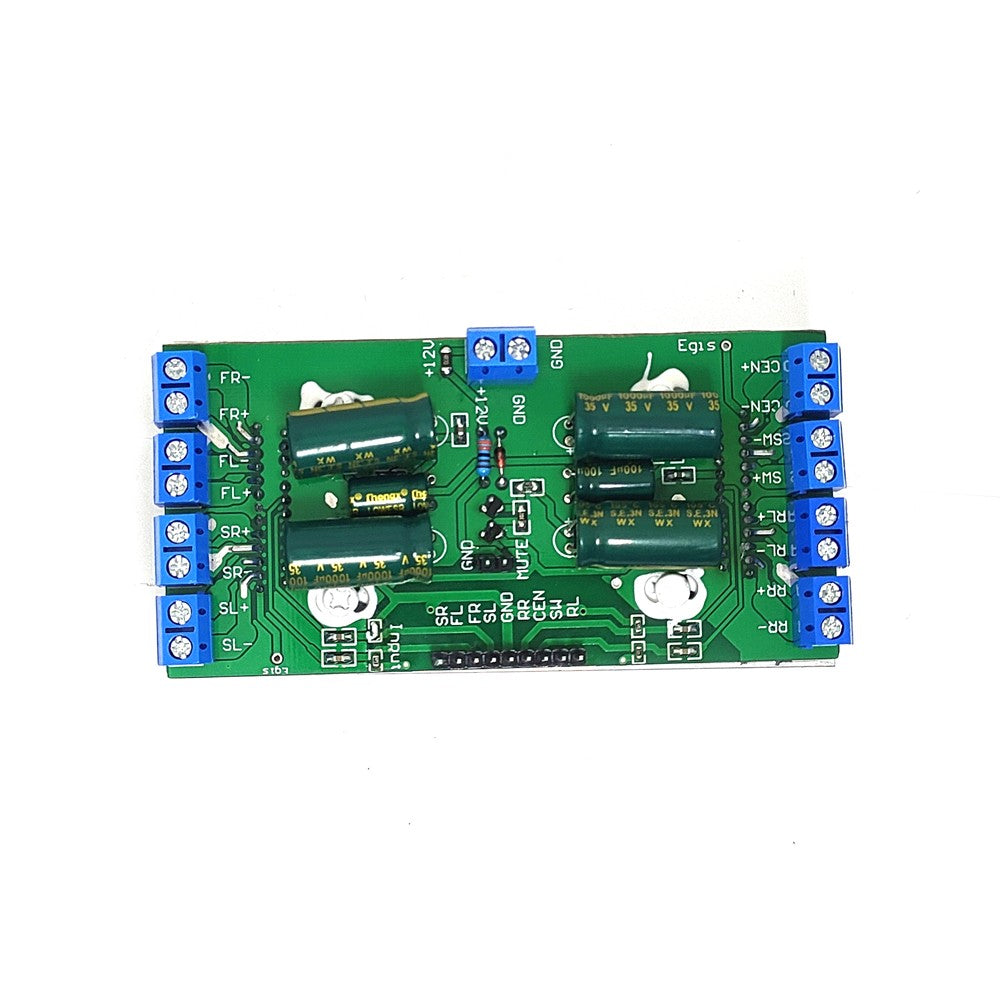

7.1 include:Front left (FL), front right (FR), center (CENT), left surround (SL), right surround (SR), the left after (RL), rear right (RR) and bass (SW)

This version can be used both 7.1 theater and as a car amplifier board.

For 7.1, 8-channel power is equal power, the output power of 30W * 8! If you increase the radiator area or use a fan for cooling, then, when the input voltage is 14.4V,output powerfor each channel could reach 50w!

Please note that in the absence of fan cooling, high power output is prohibited,otherwise the amplifier board would overheat protection!


Parameters:

Load: above 4 ohms, 20W * 8 equal power

PCB size: 100mm * 50mm

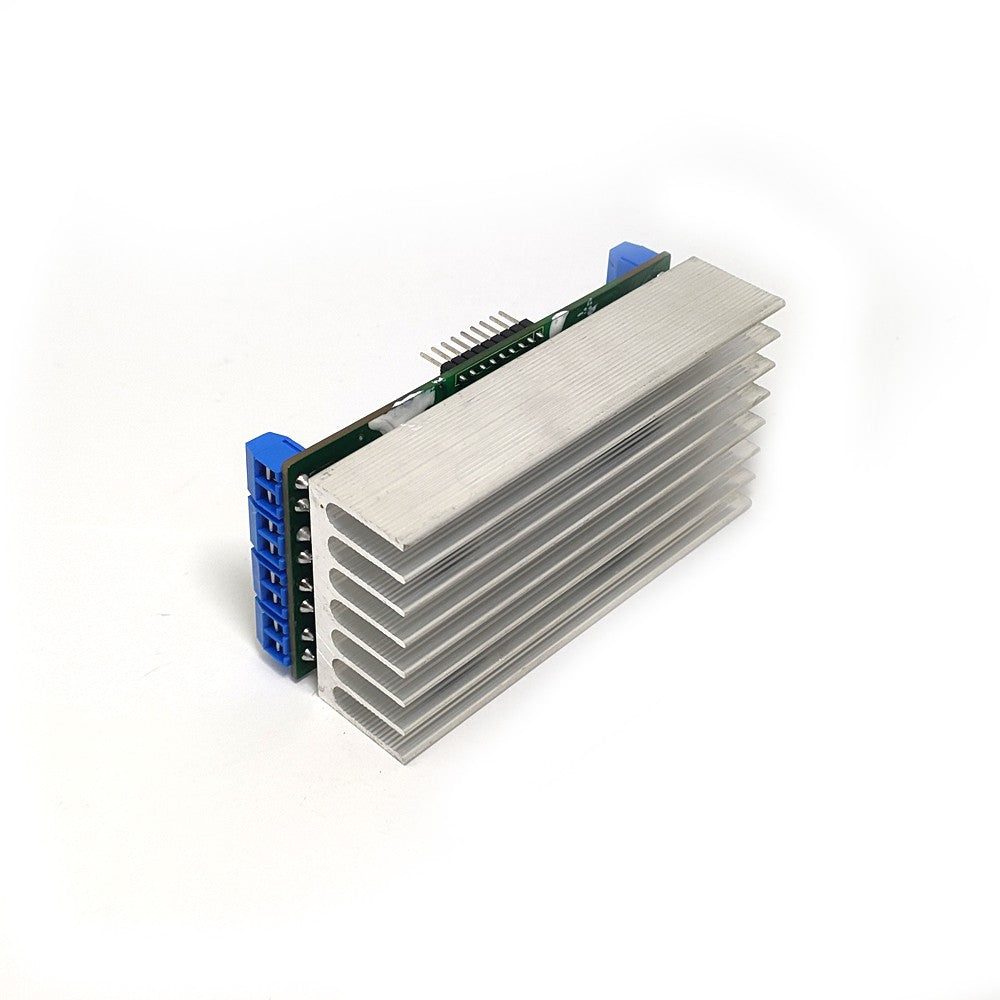

Radiator size: 100mm * 45mm * 20mm

Supply voltage: 12 single-supply

Output Power: Rated 20W * 8 (12V DC power supply, 4 ohm load)

SNR: 95DB

Magnification: 26.4 times (like 8-channel)


Package:

1 x 8 Channels Amplifier Board 7.1 Amp Board ZY-8CHGF
