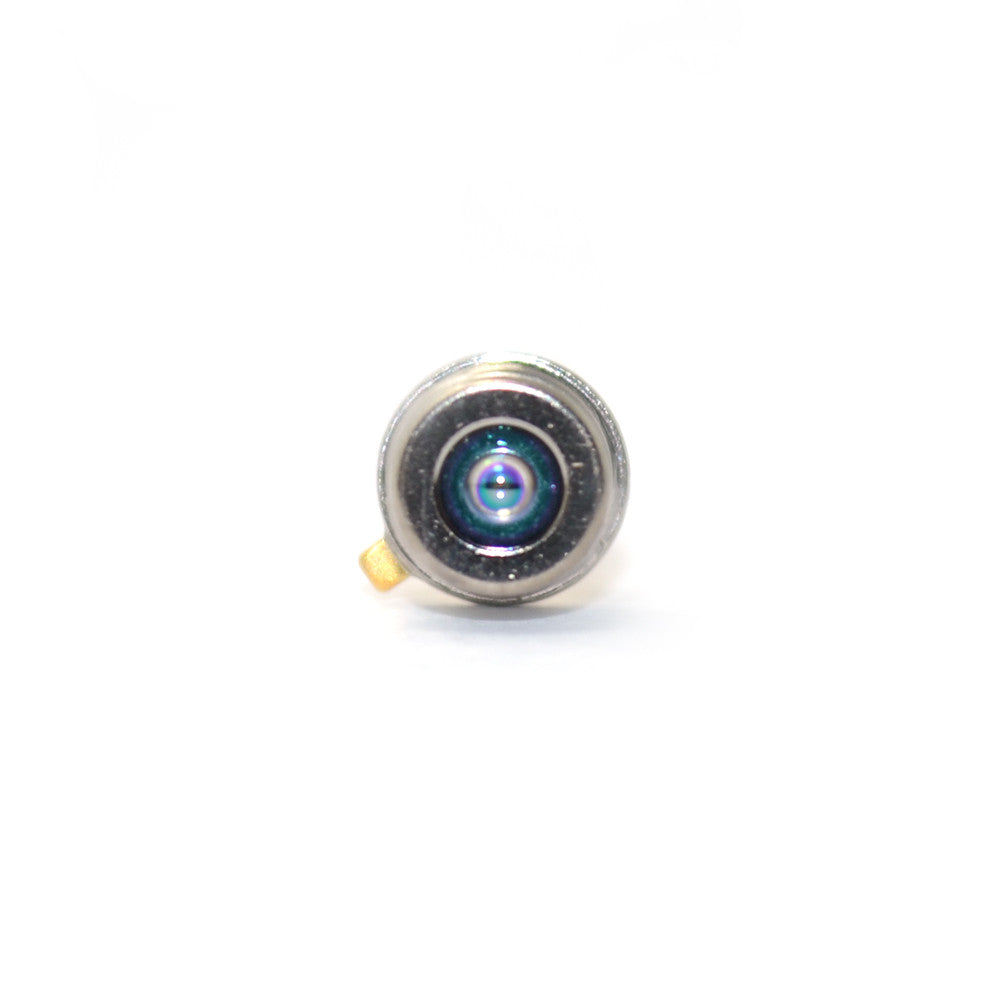

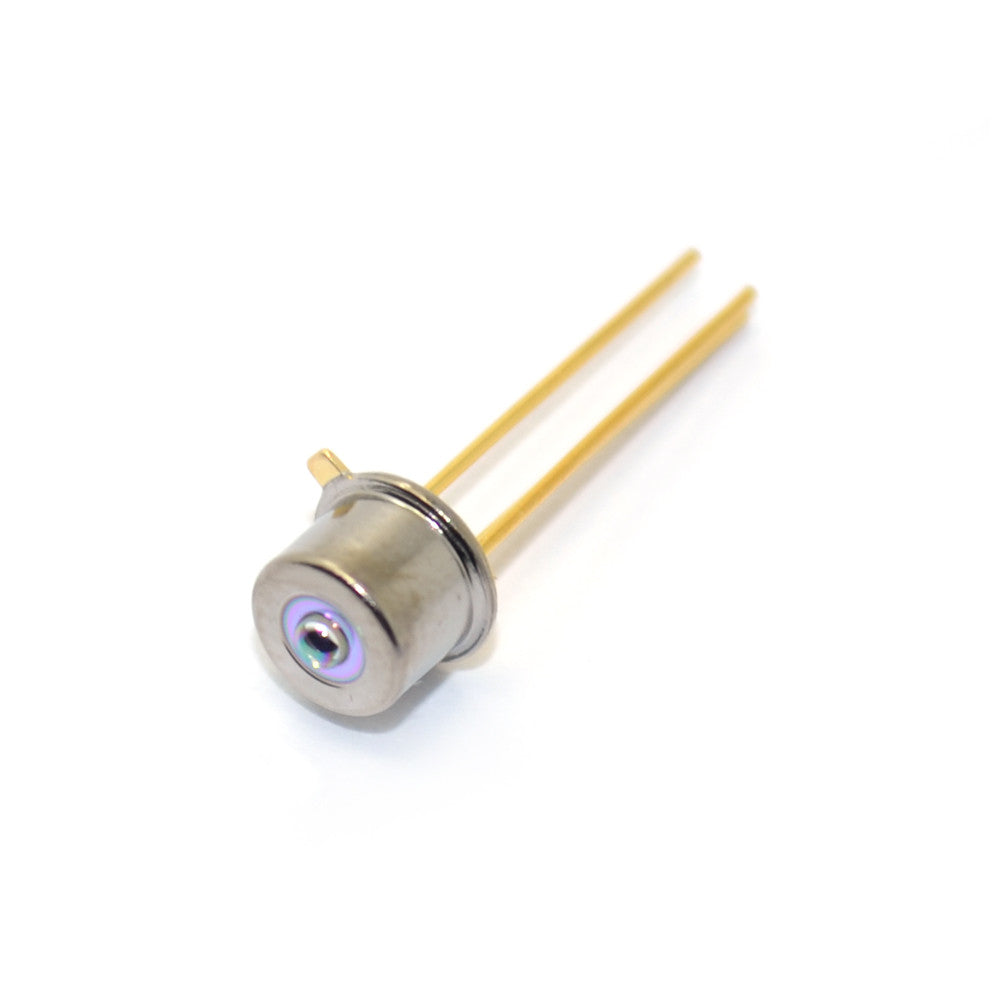

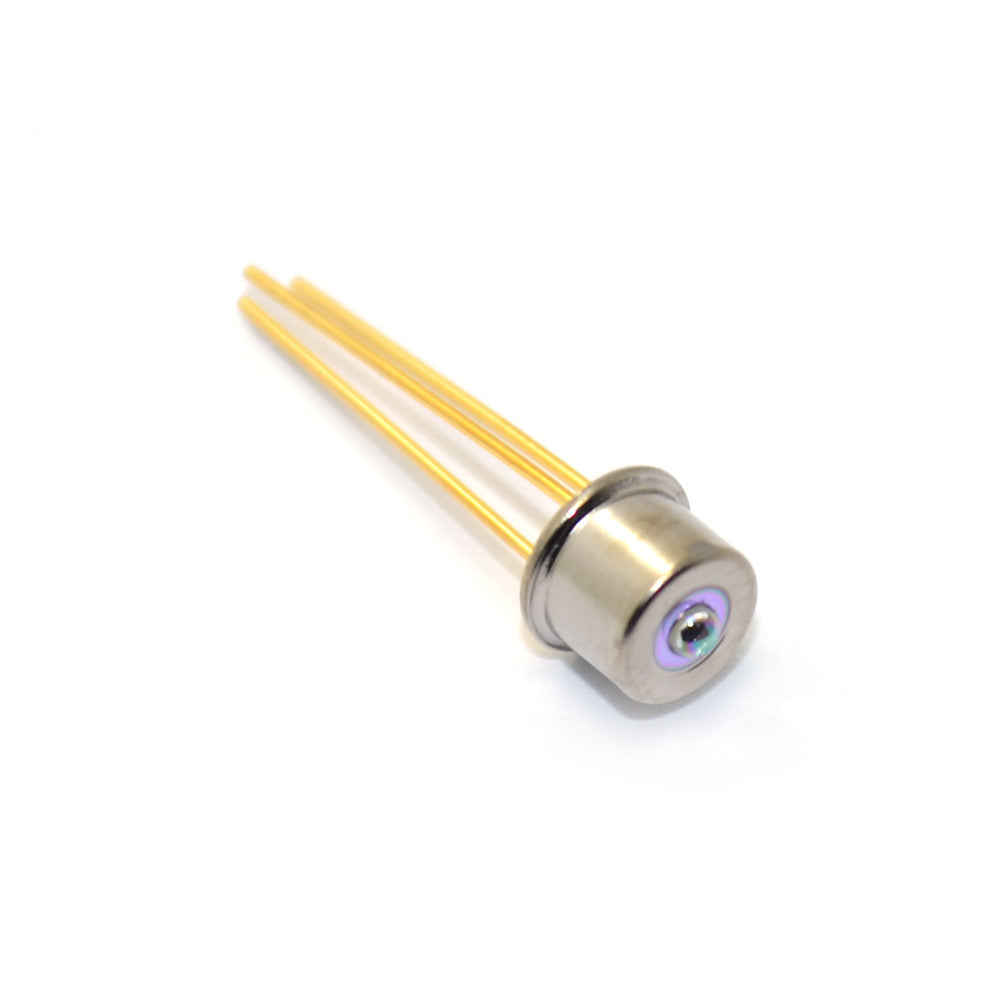

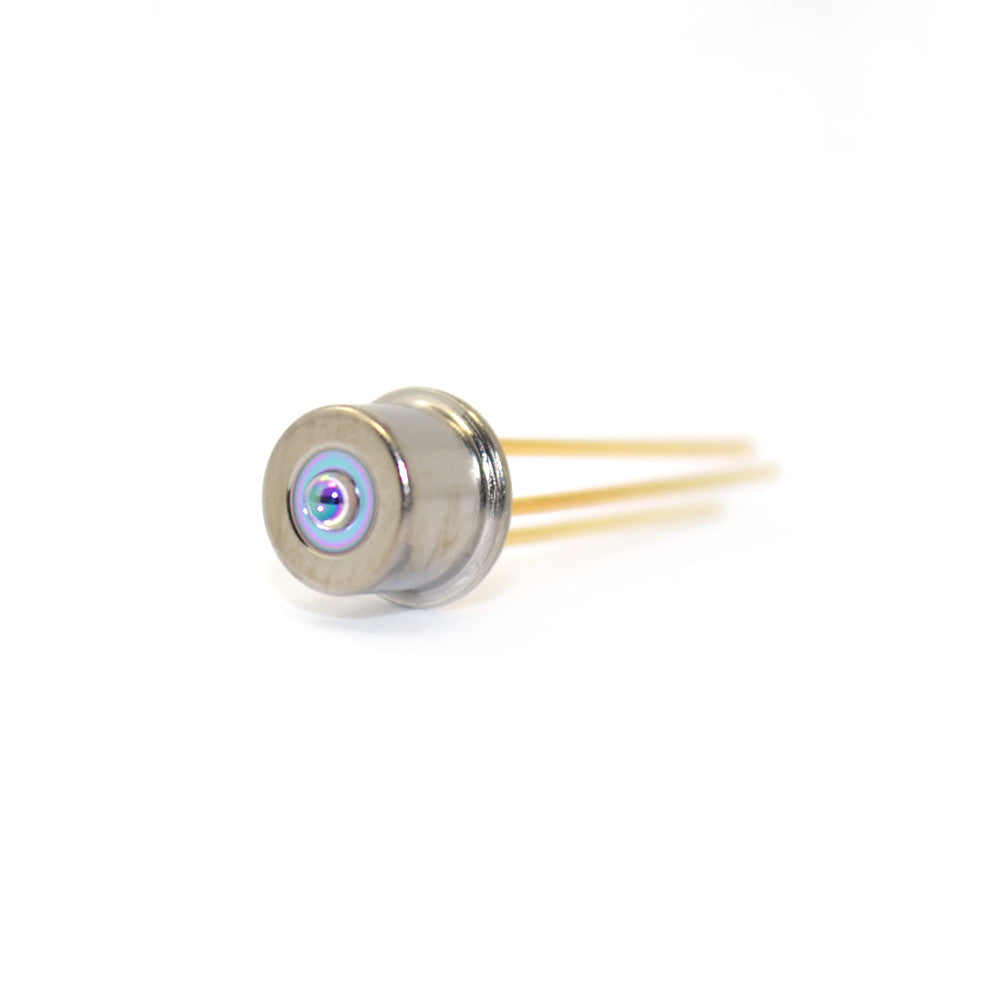

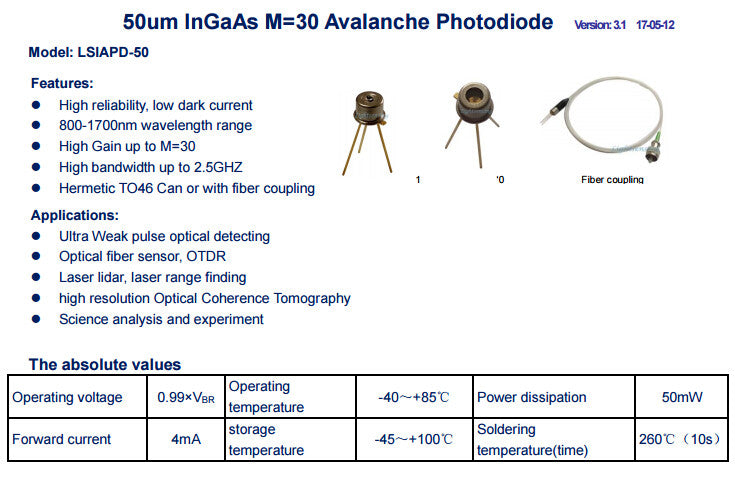

800-1700nm 50um 2GHz Avalanche Photodiode Detector APD

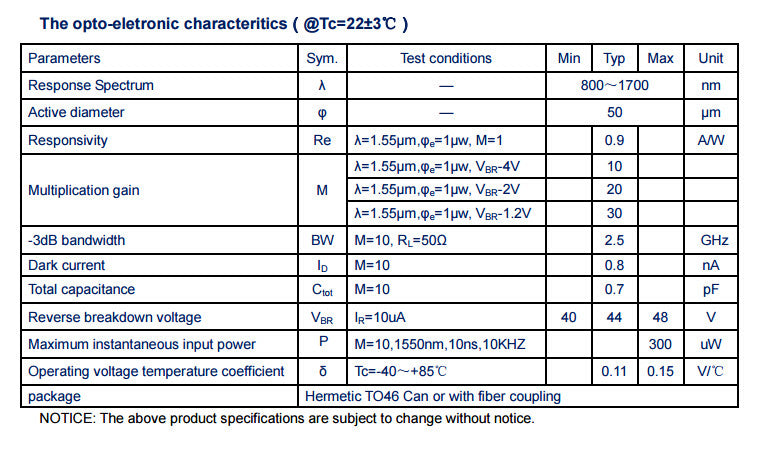

1. Model: LSIAPD-50
2. diameter of photosensitive surface: 50um
3. Response wavelength: 800-1700nm
4. Multiplication factor: M = 10 @ 1550nm

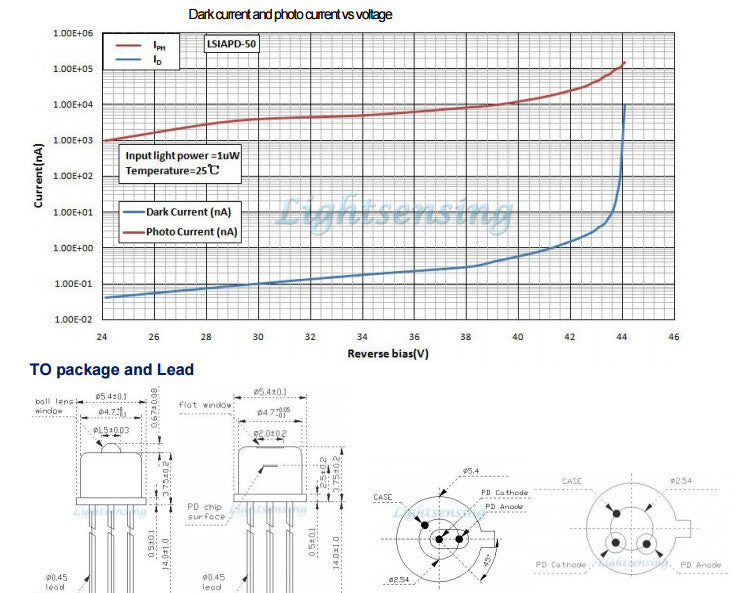

5. Current Dark: 2nA @ M = 10
6.-3dB Bandwidth: 2 GHz @ M = 10

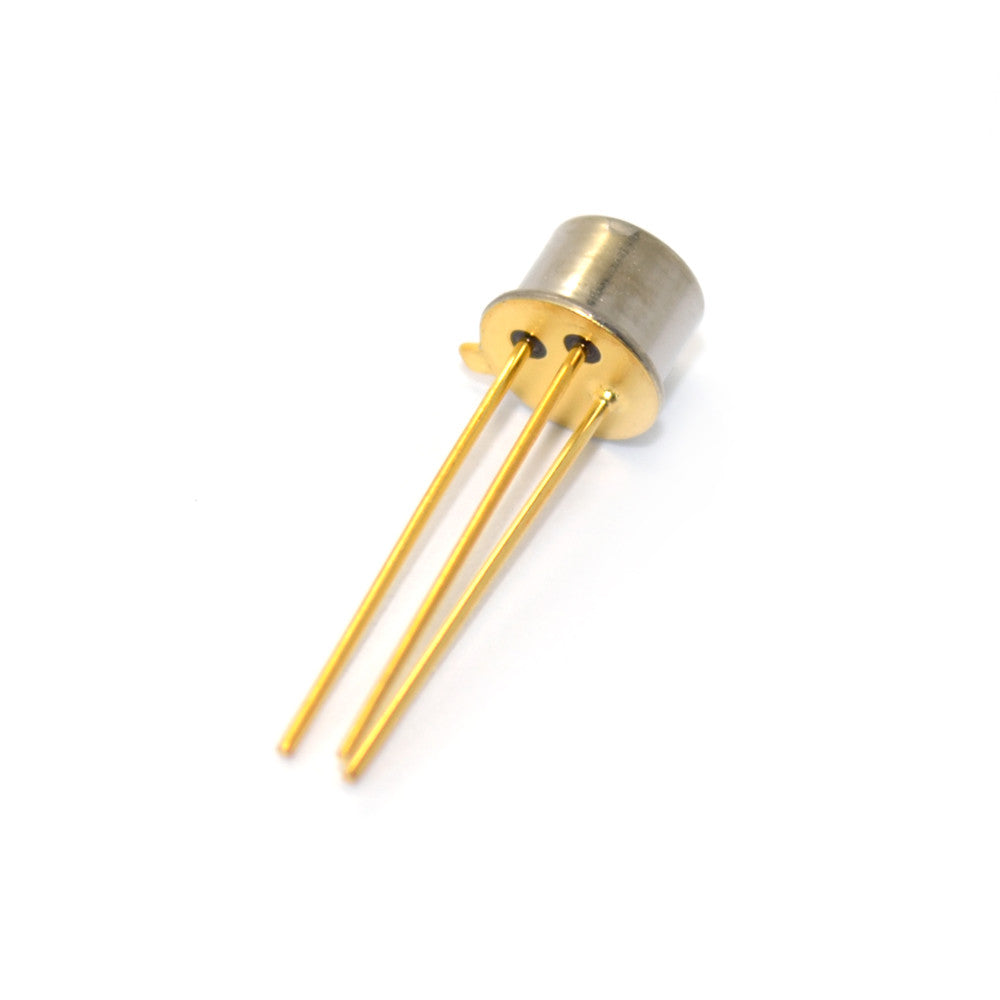

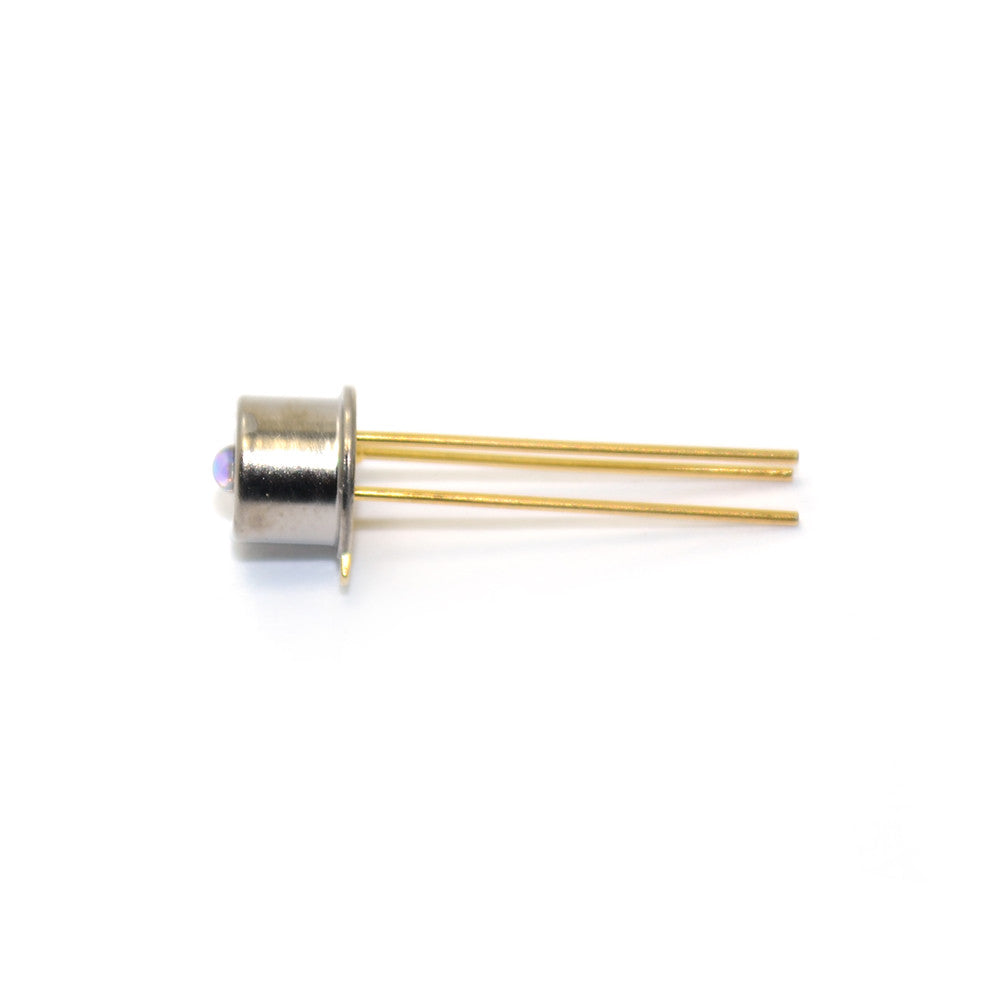

7. Package: TO-46 Can

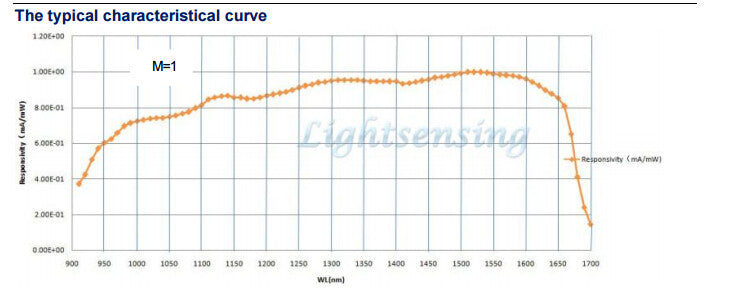

8. Responsivity: 0.85mA / mW @ 1550nm, M = 1
Package:
1 x 800-1700nm 50um 2GHz Avalanche Photodiode Detector APD
