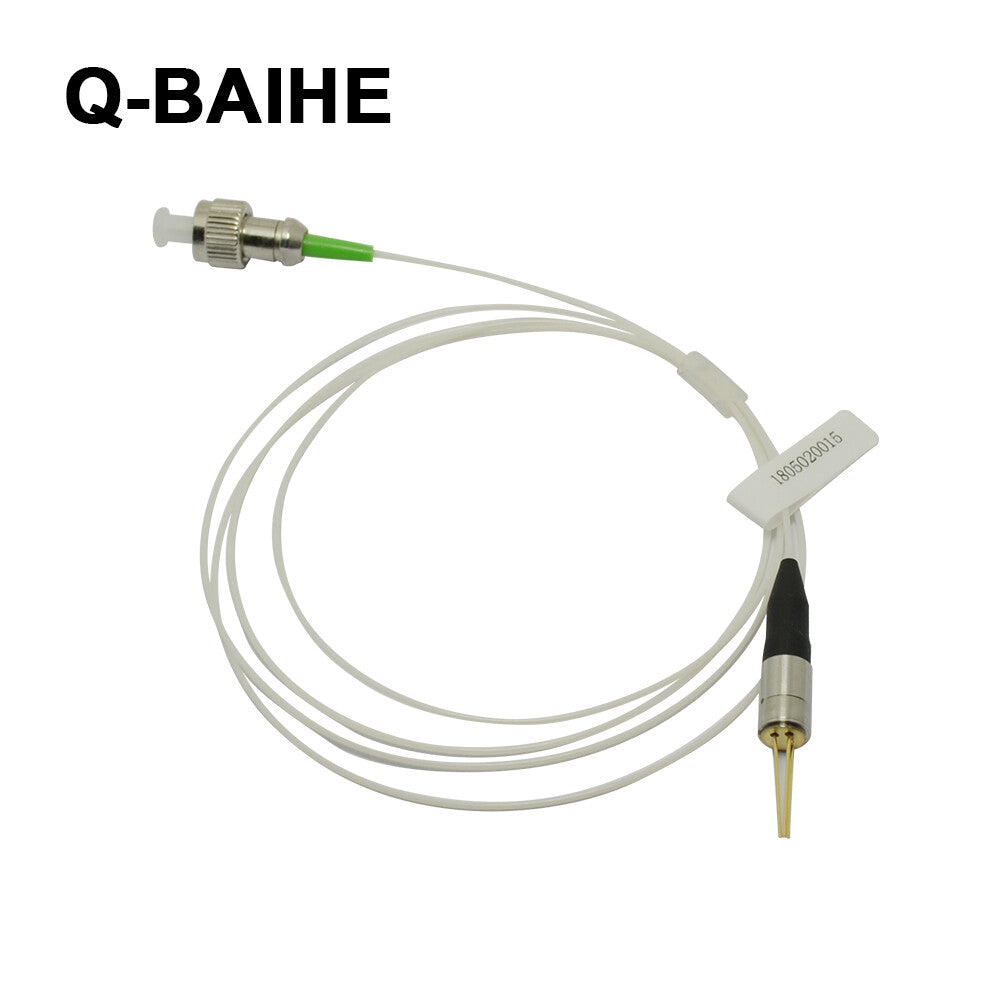

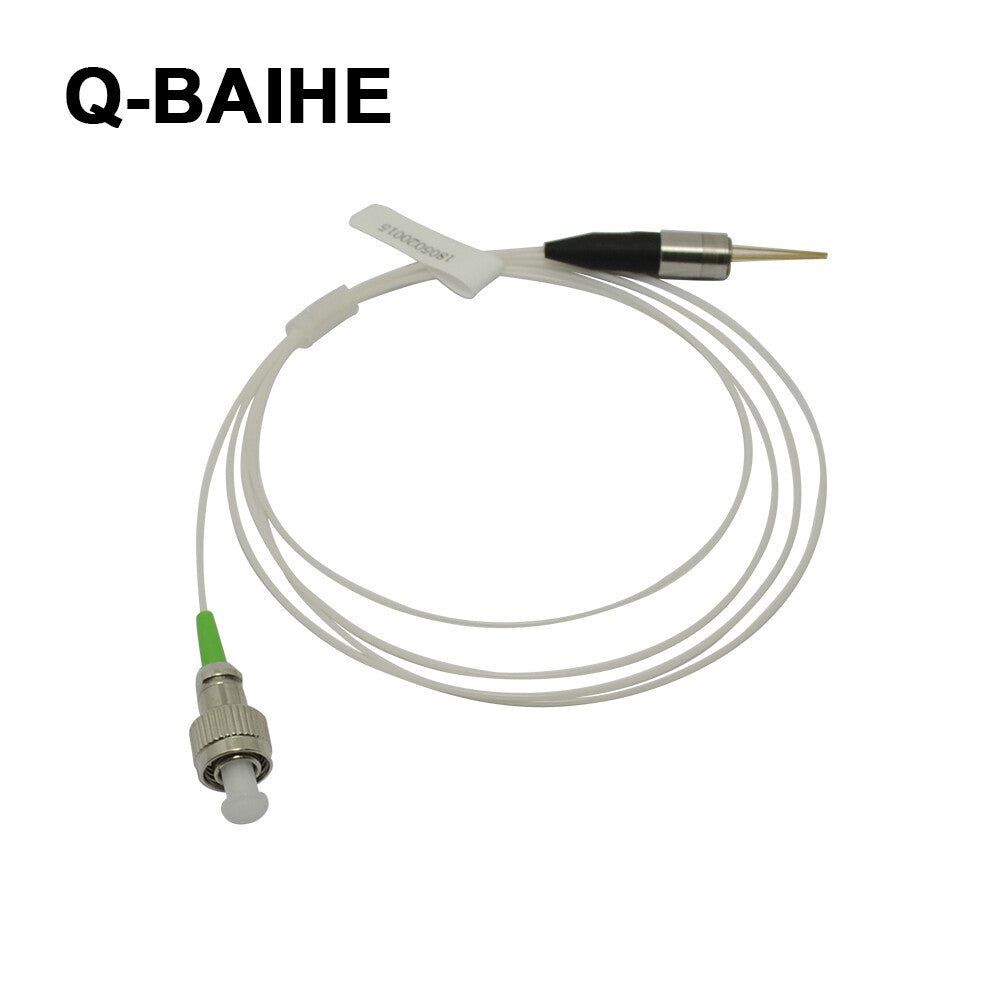

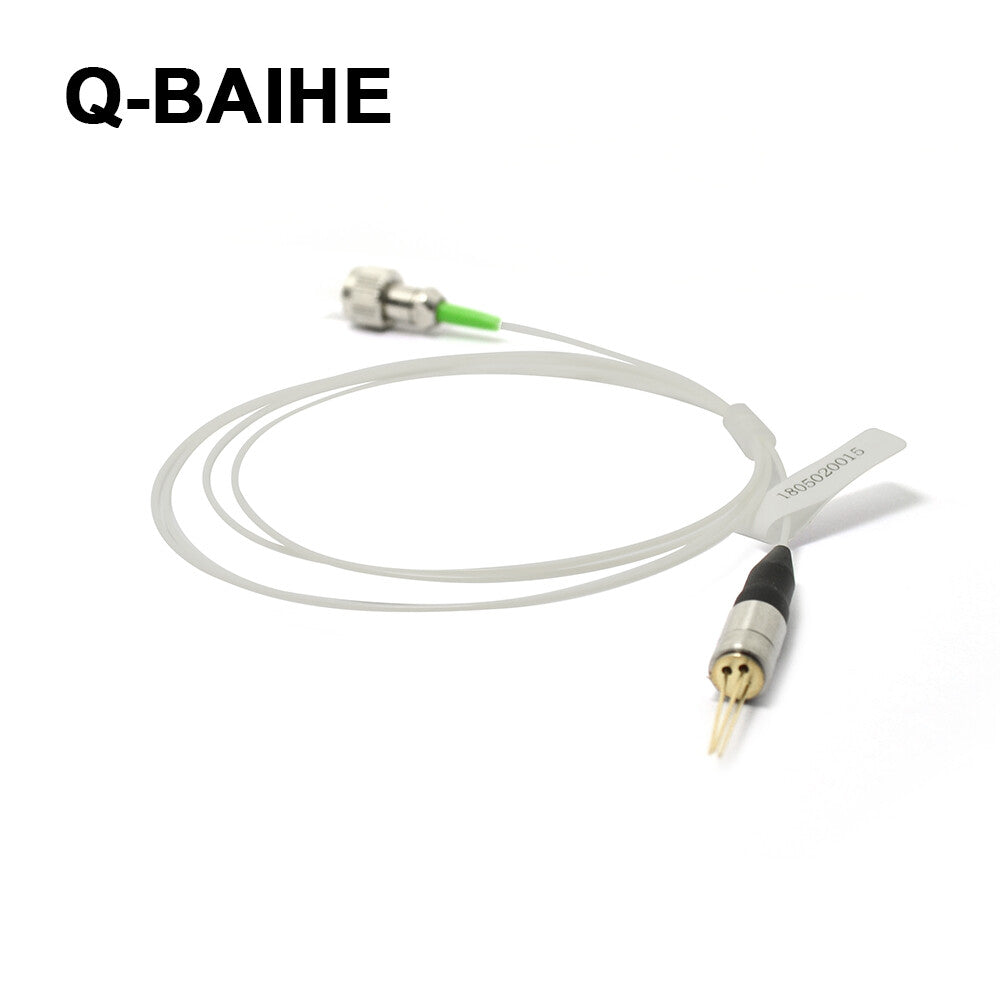

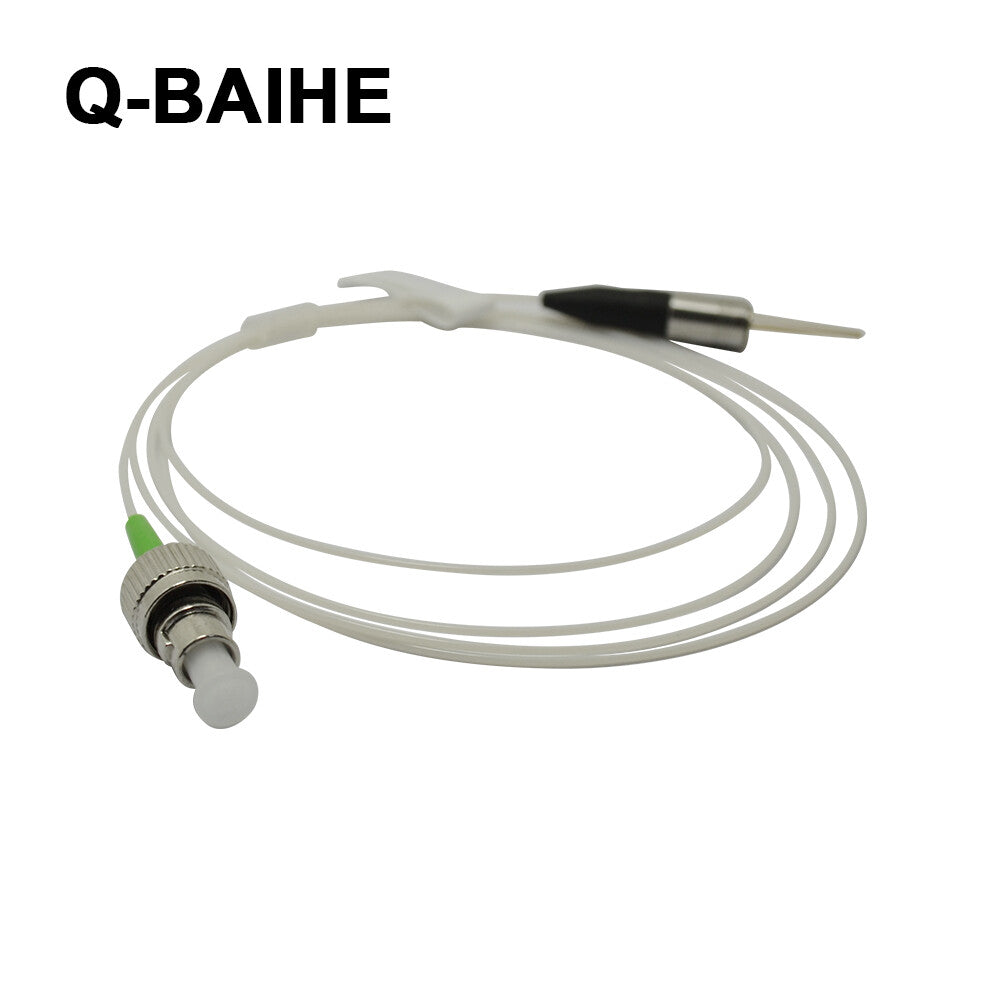

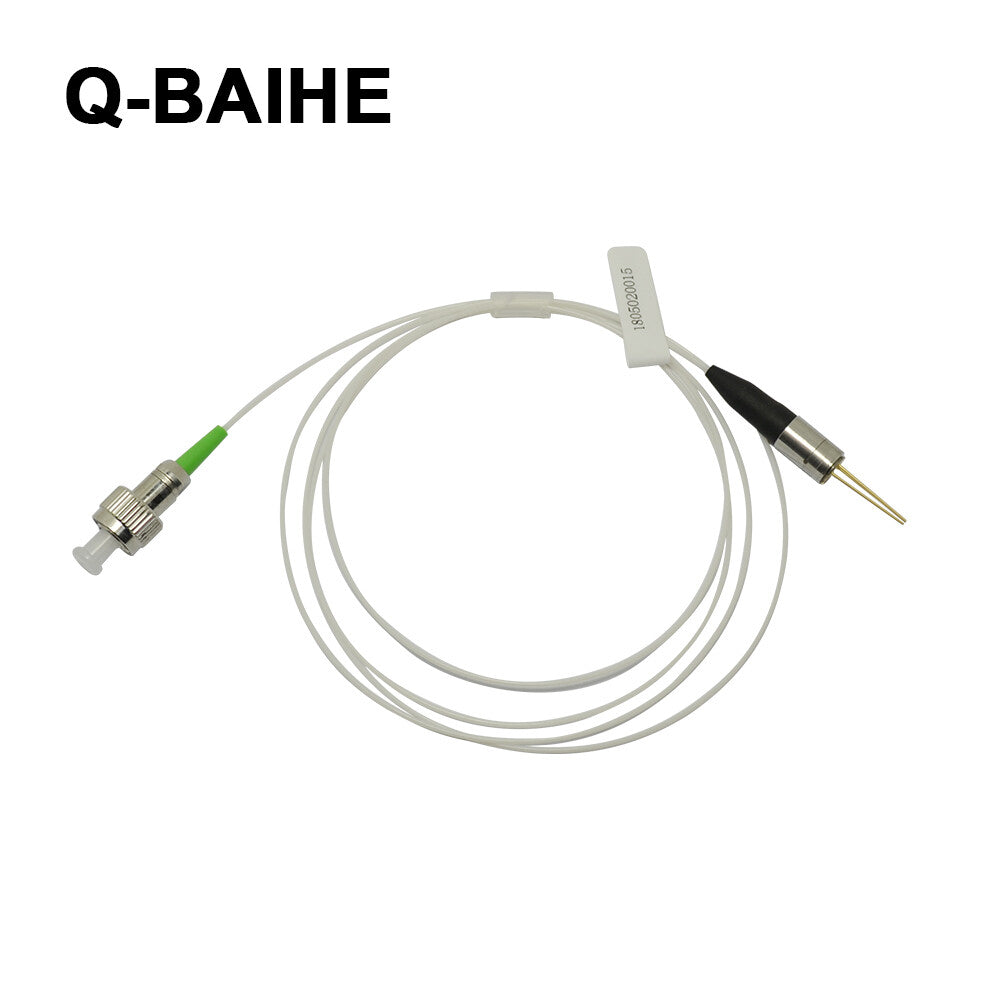

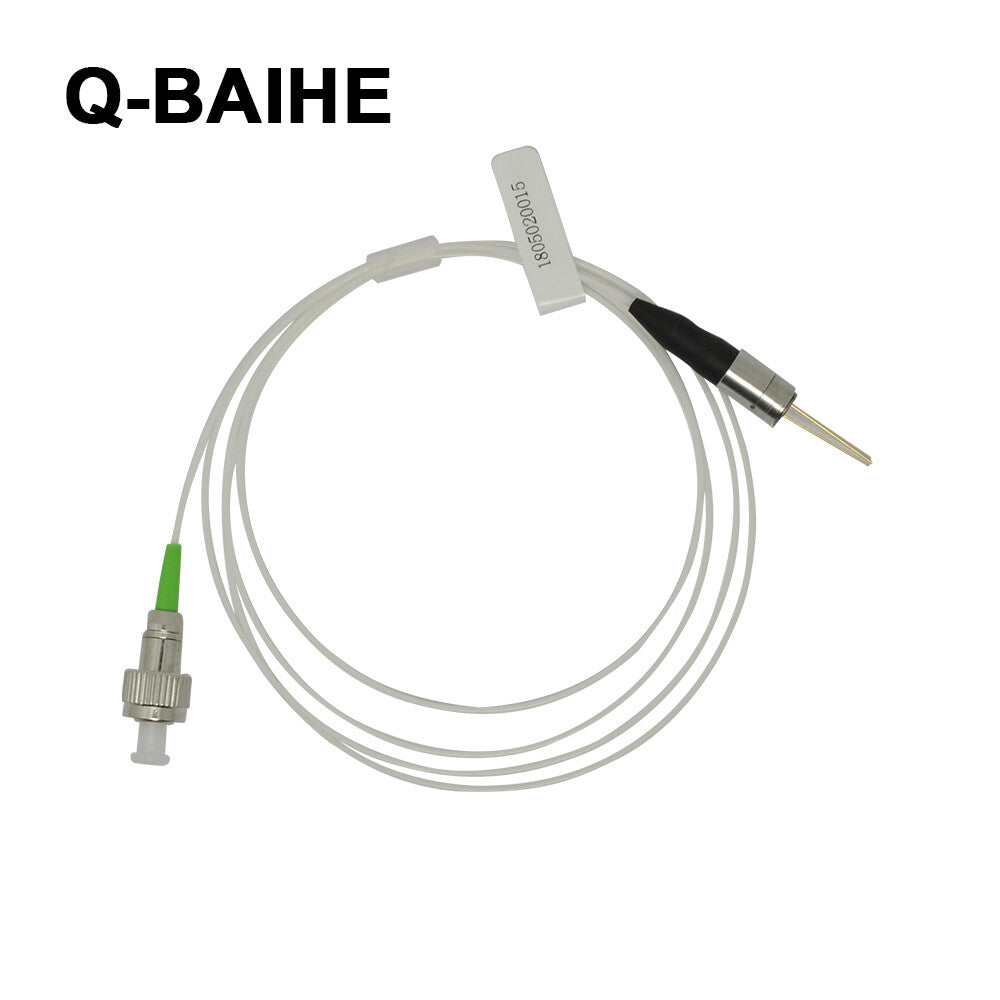

800-1700nm 50um 2GHz Avalanche Photodiode Detector With Fiber Coupling

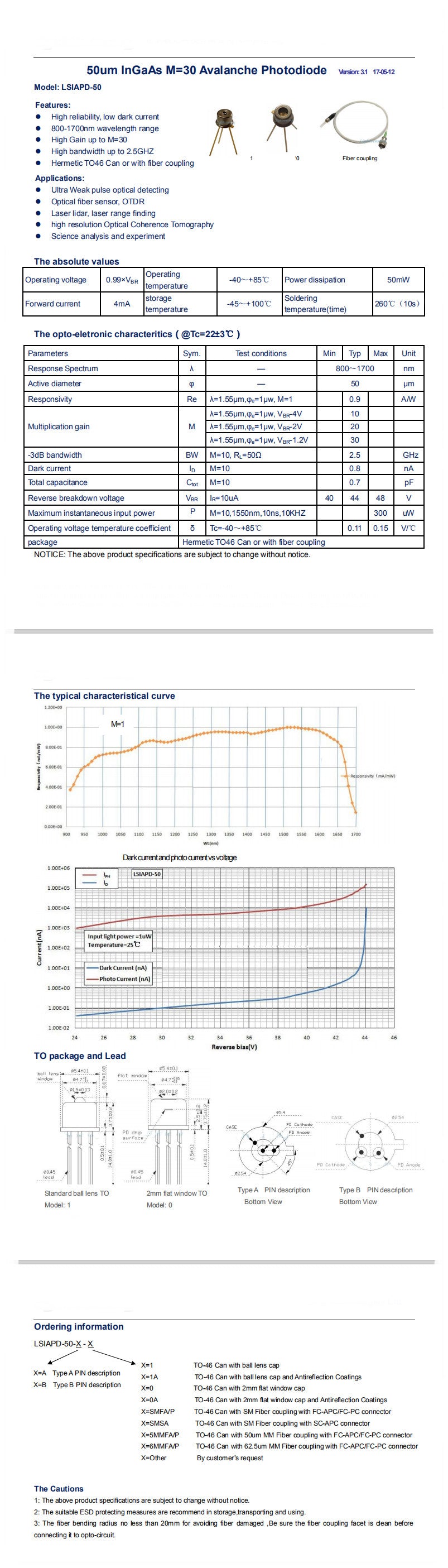

Specification:
1. Model: LSIAPD-50
2. photosensitive surface diameter: 50um
3. Response wavelength: 800-1700nm
4. Multiplication factor: M = 10 @ 1550nm
5. Dark current: 2nA @ M = 10
6.-3dB bandwidth: 2GHz @ M = 10
7. Package:TO46 Can with 50um MM Fiber coupling with FC-APC/FC-PC connector
TO46 Can with 62.5um MM Fiber coupling with FC-APC/FC-PC connector
8. Responsivity: 0.85mA / mW @ 1550nm, M = 1
Application:
Industrial automation control
2. Scientific analysis and experimentation
3. Optical fiber communication
4. Optical power meter
5. Fiber optic sensor
Package:
1x 800-1700nm 50um 2GHz Avalanche Photodiode Detector With Fiber Coupling
