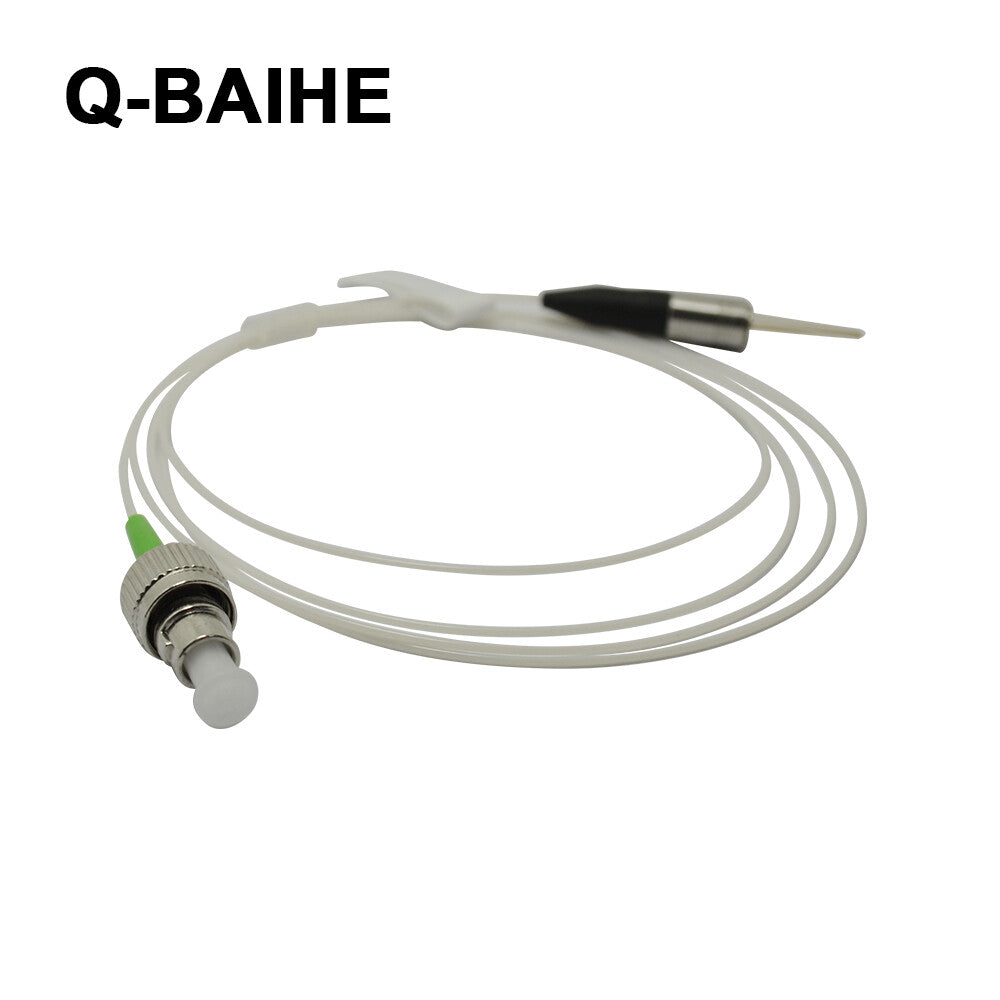

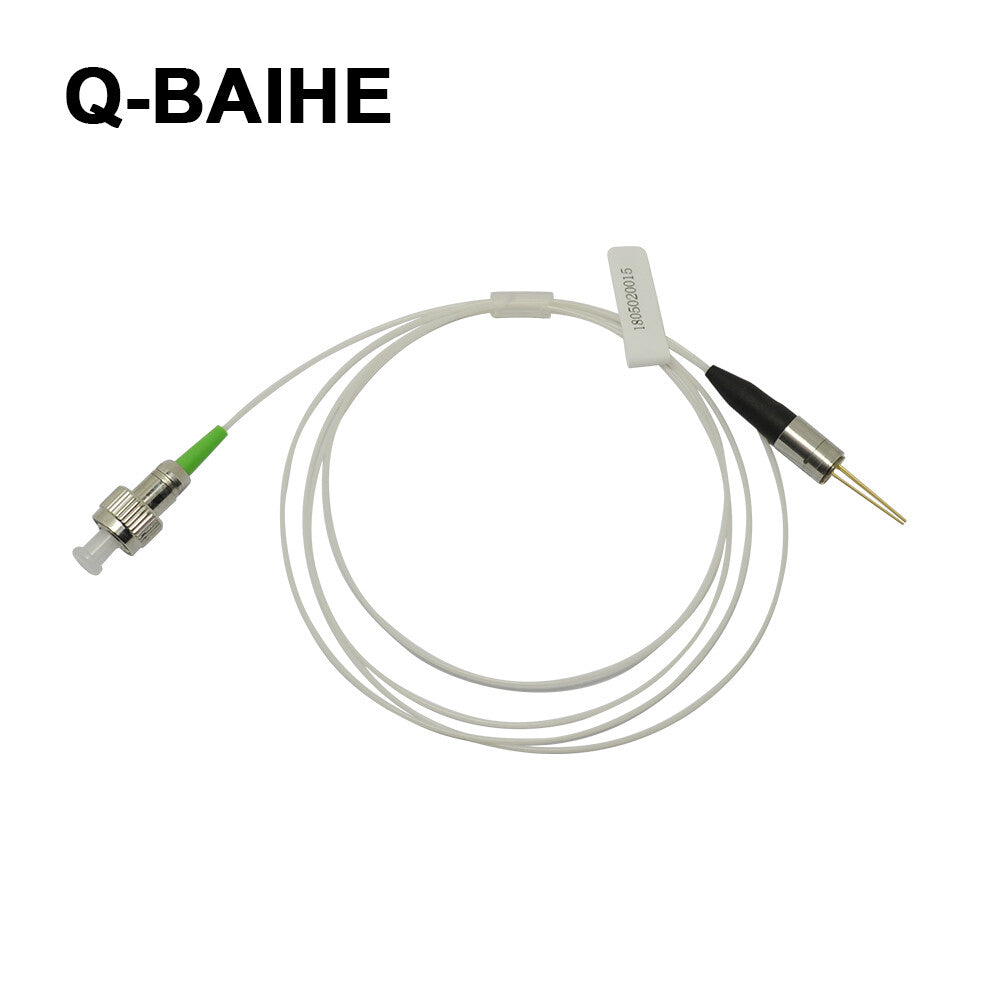

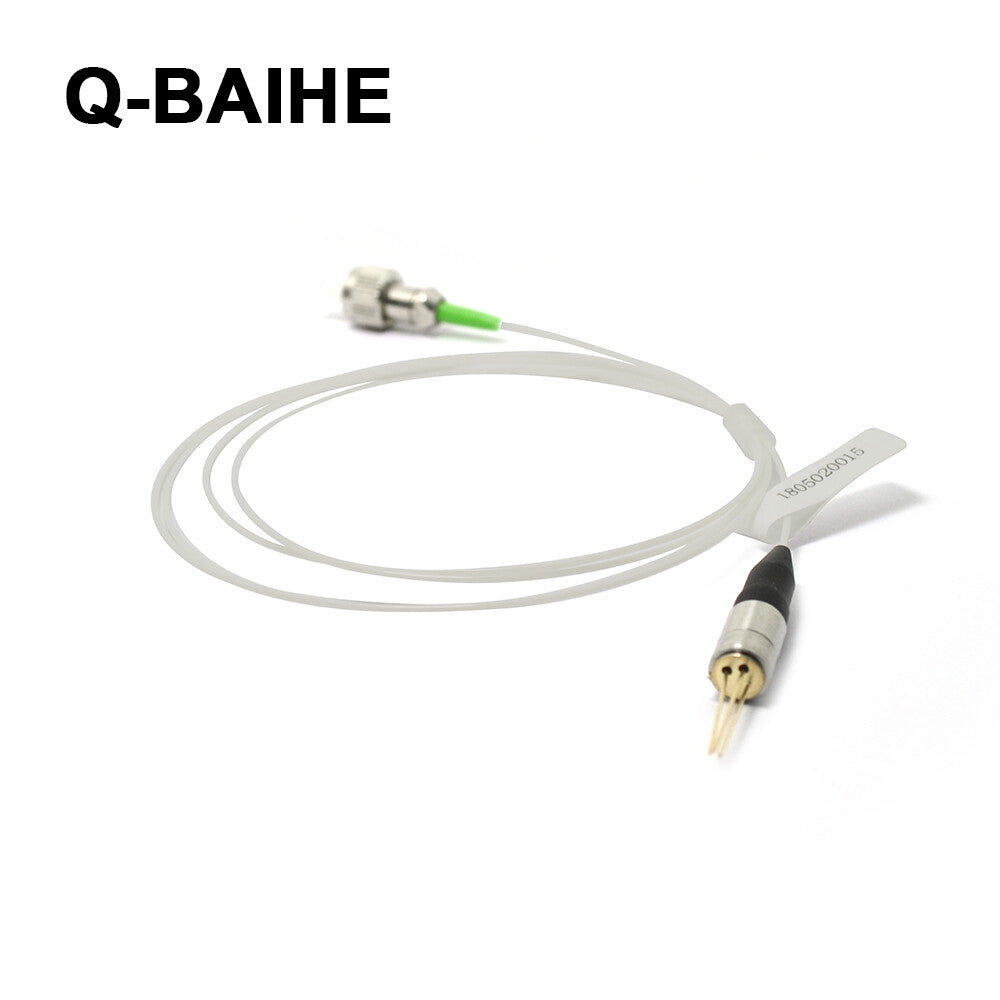

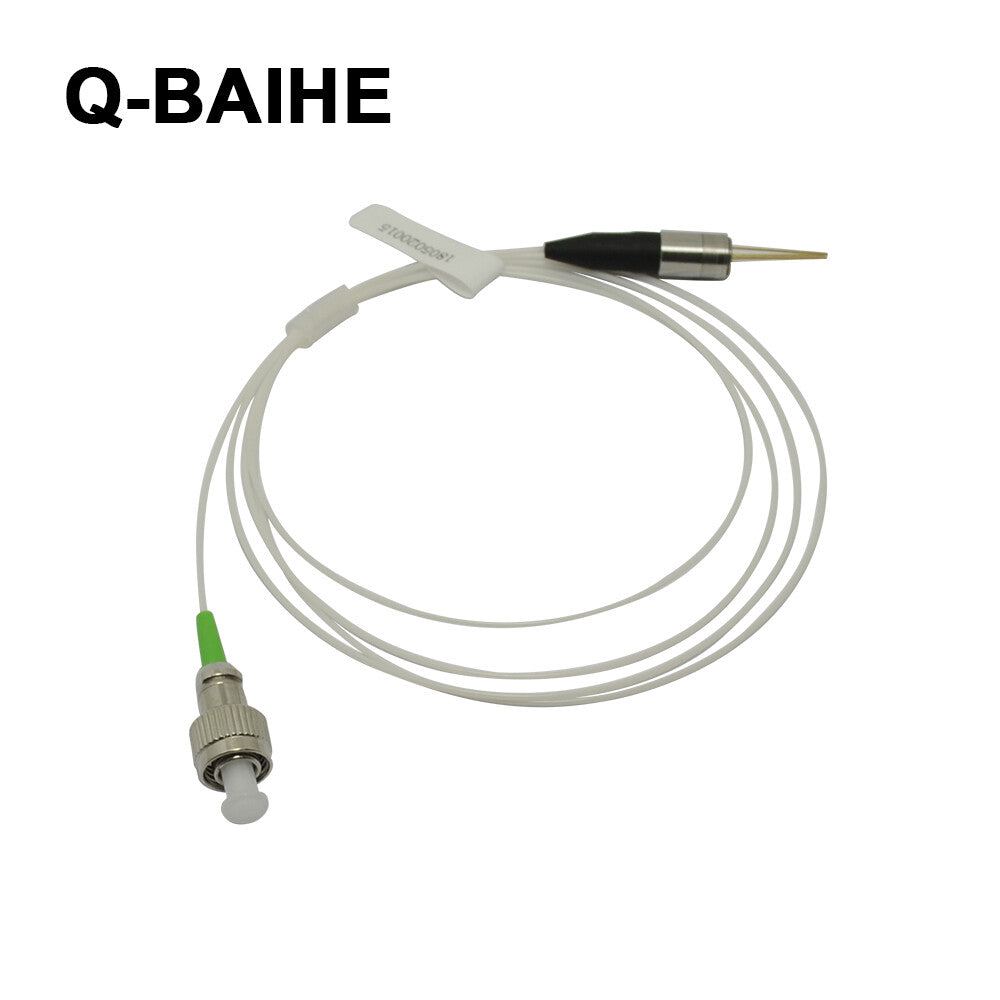

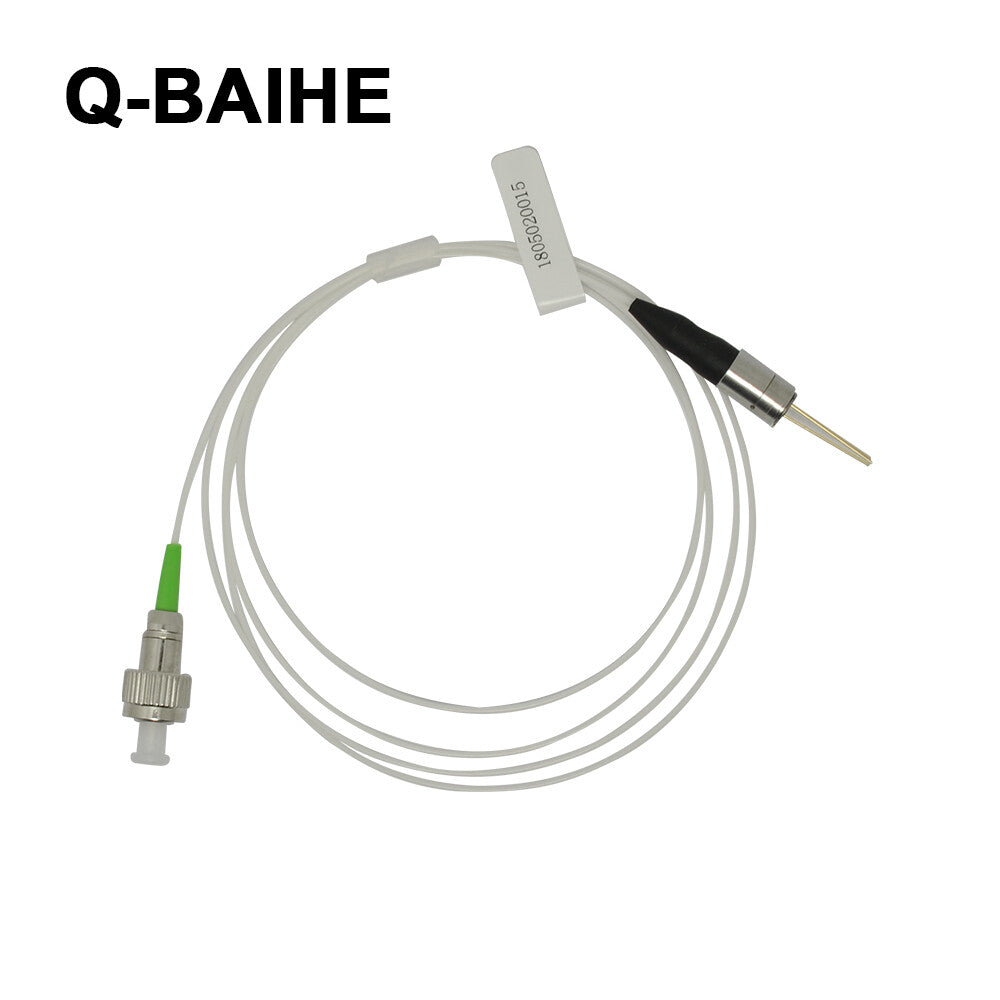

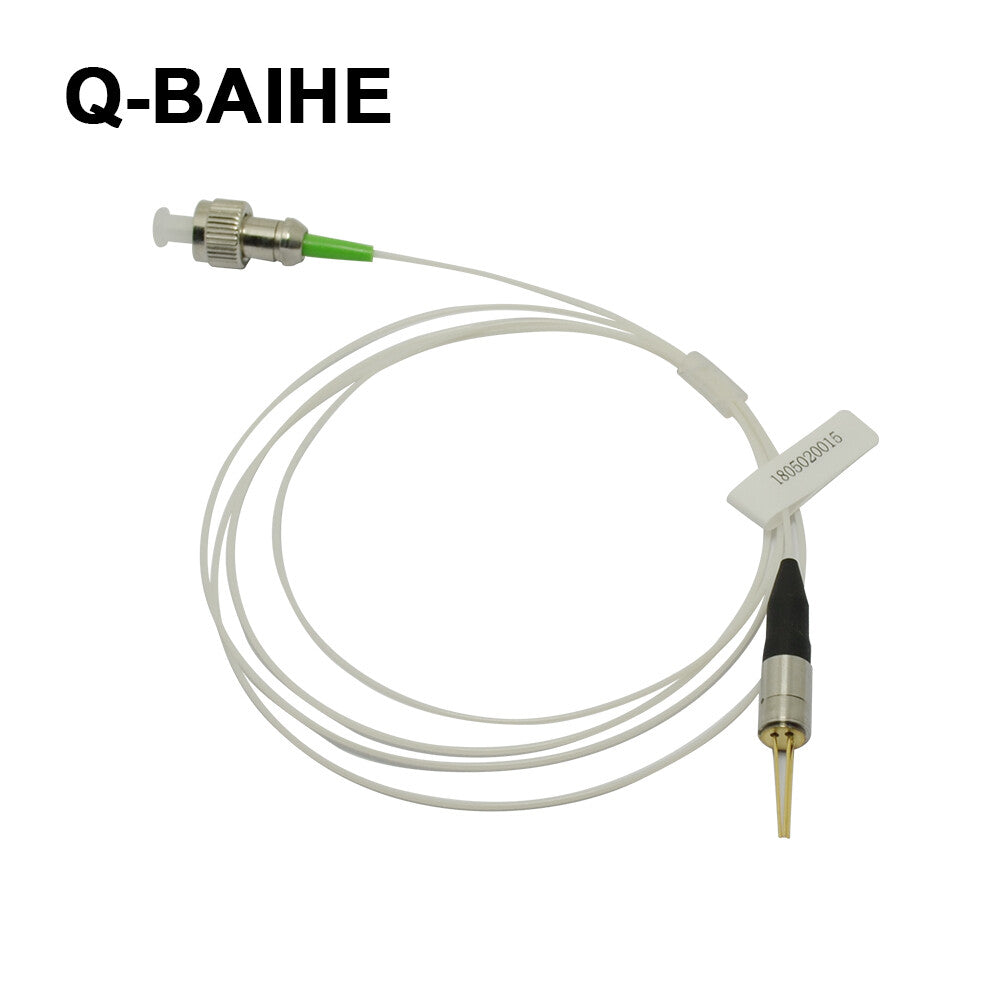

800-1700nm 50um 2GHz InGaAs Avalanche Photodiode Detector With Fiber Coupling

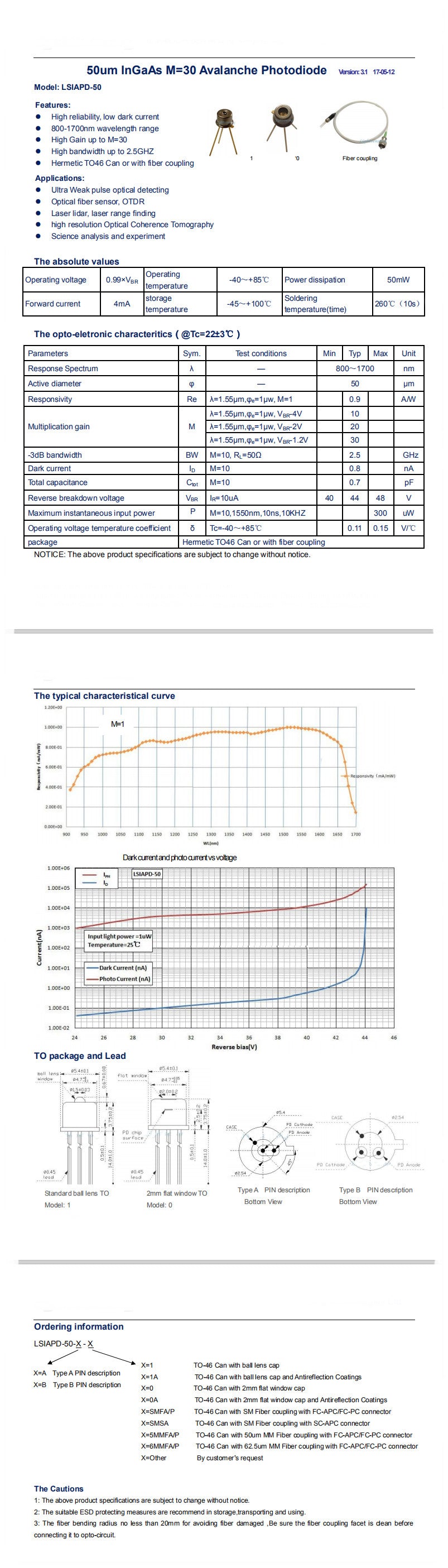

Specification:
1. Model: LSIAPD-50
2. photosensitive surface diameter: 50um
3. Response wavelength: 800-1700nm
4. Multiplication factor: M = 10 @ 1550nm
5. Dark current: 2nA @ M = 10
6.-3dB bandwidth: 2GHz @ M = 10
7. Package: TO-46 Can or fiber coupling, optical interface optional
Default is To-46
8. Responsivity: 0.85mA / mW @ 1550nm, M = 1
1. Model: LSIAPD-50
2. photosensitive surface diameter: 50um
3. Response wavelength: 800-1700nm
4. Multiplication factor: M = 10 @ 1550nm
5. Dark current: 2nA @ M = 10
6.-3dB bandwidth: 2GHz @ M = 10
7. Package: TO-46 Can or fiber coupling, optical interface optional
Default is To-46
8. Responsivity: 0.85mA / mW @ 1550nm, M = 1
Application:
Industrial automation control
2. Scientific analysis and experimentation
3. Optical fiber communication
4. Optical power meter
5. Fiber optic sensor
Industrial automation control
2. Scientific analysis and experimentation
3. Optical fiber communication
4. Optical power meter
5. Fiber optic sensor
Package:
1x 800-1700nm 50um 2GHz InGaAs Avalanche Photodiode Detector With Fiber Coupling
1x 800-1700nm 50um 2GHz InGaAs Avalanche Photodiode Detector With Fiber Coupling
