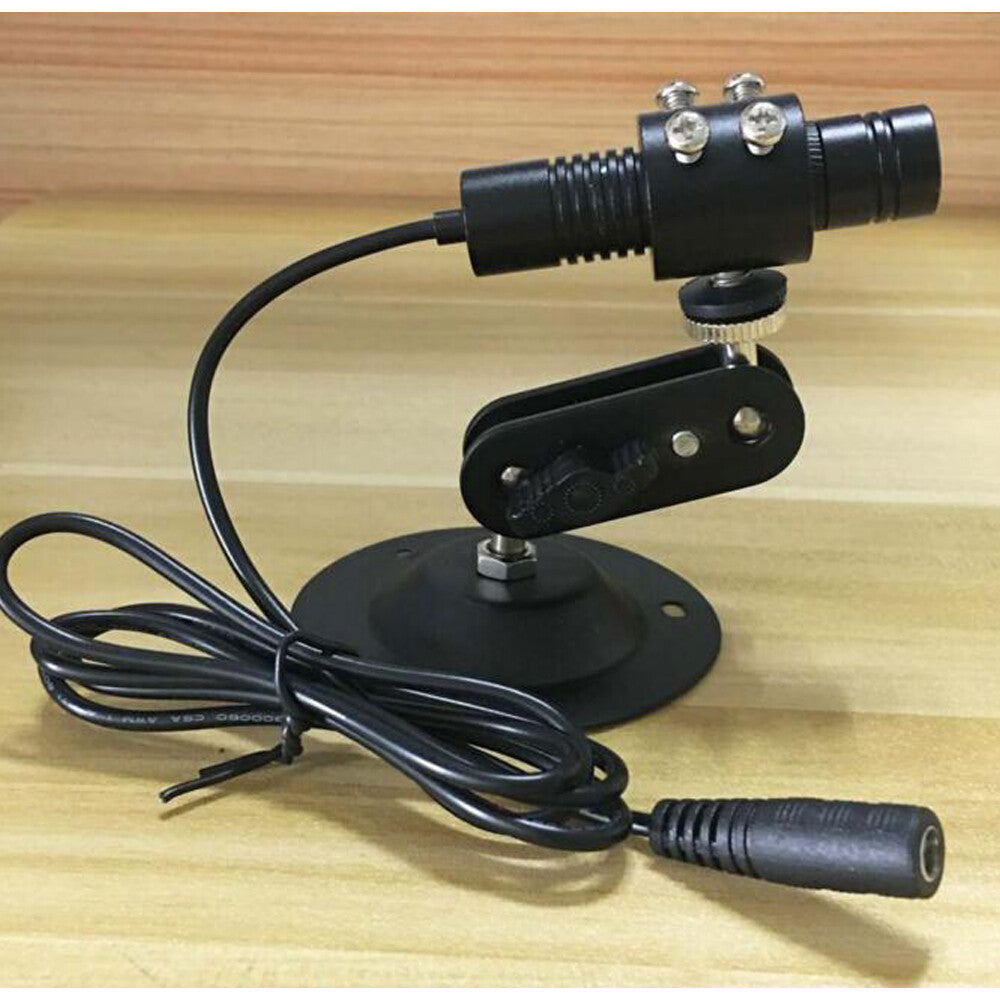

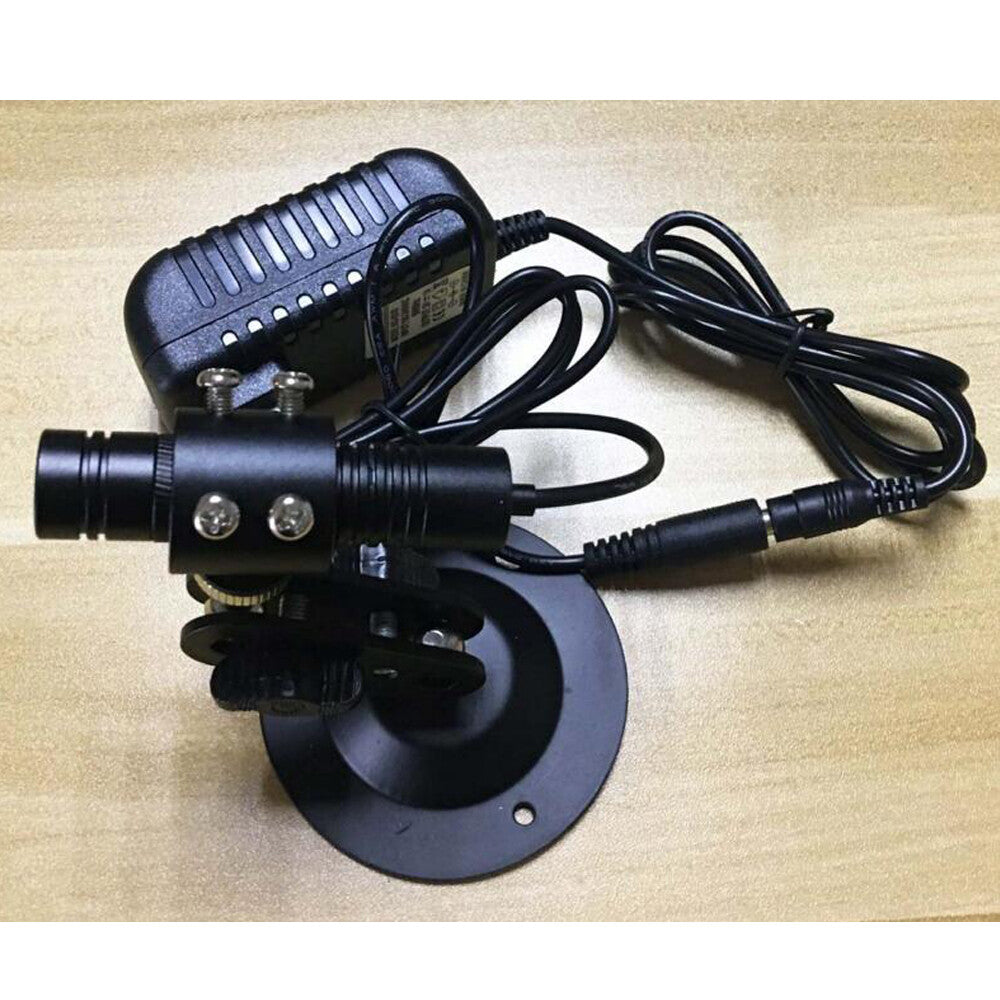

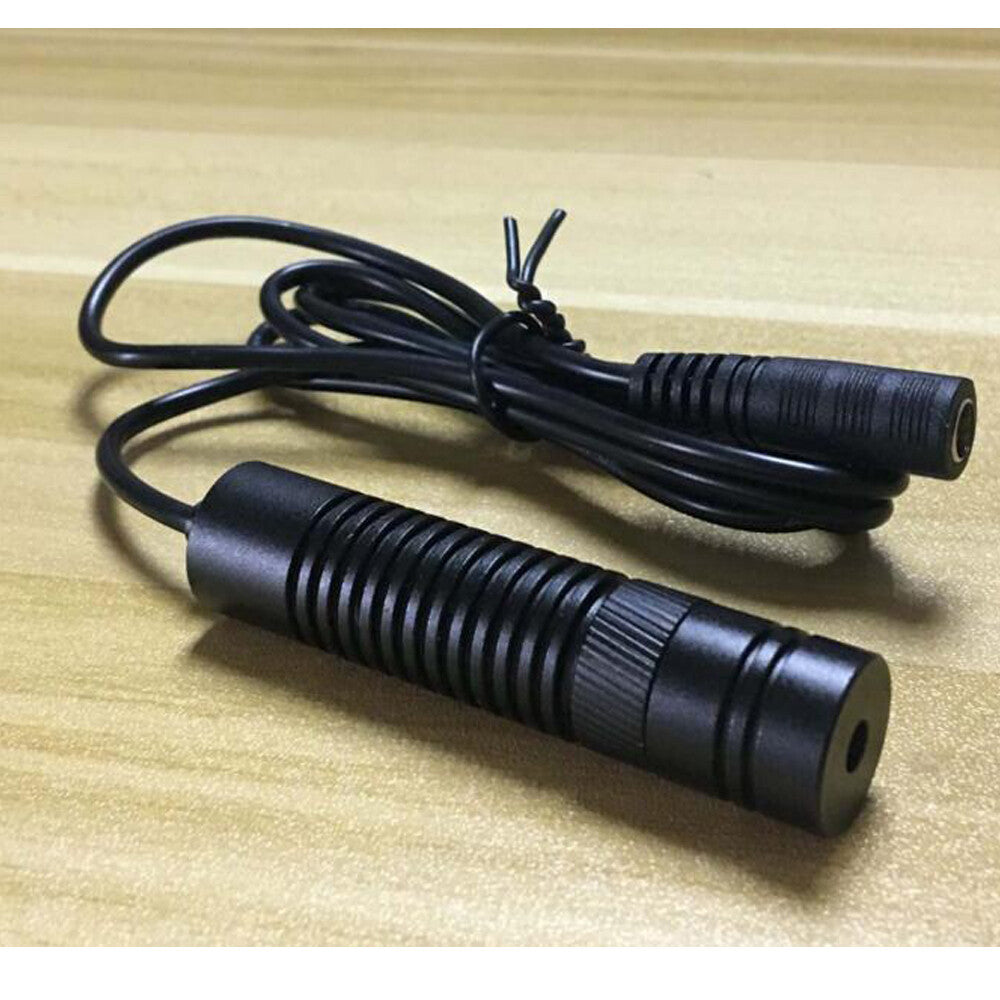

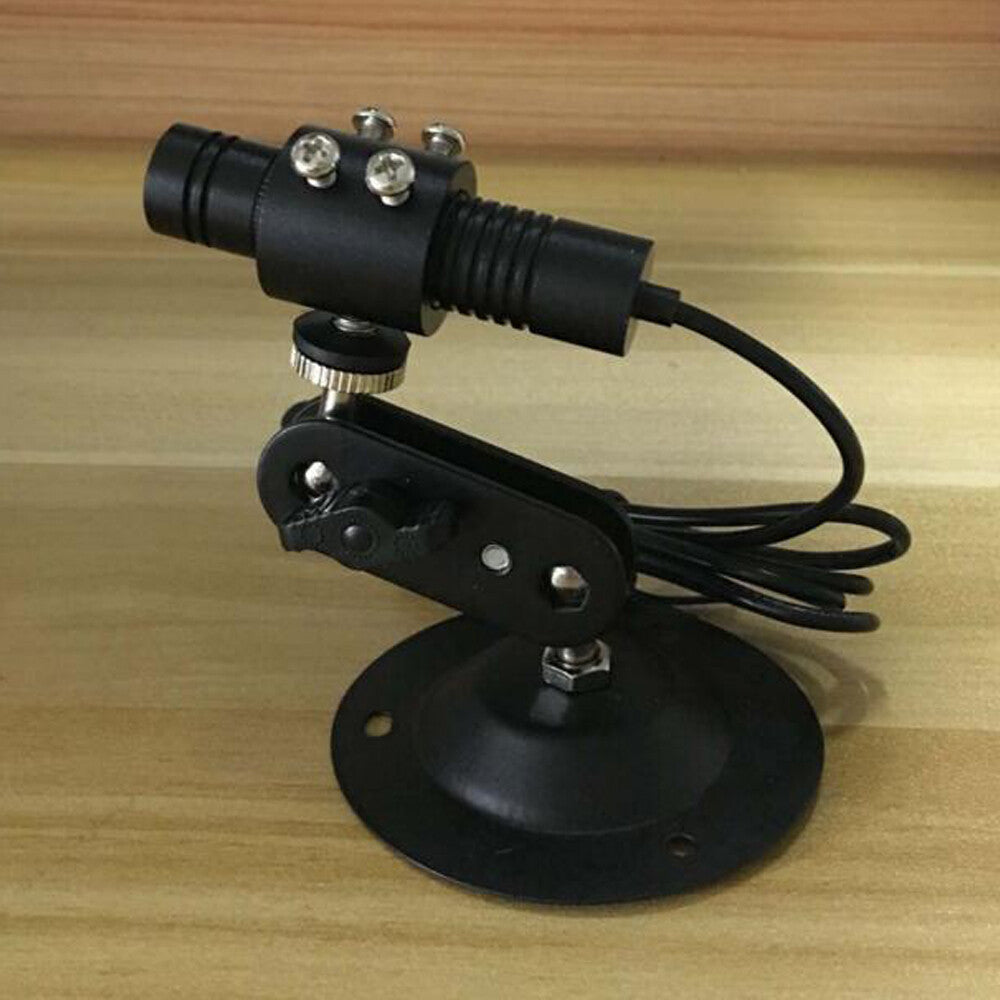

808nm 200mW Infrared Line Laser Module Interactive Projection Positioning Sight

808nm 200mW Infrared Line Laser Module Interactive Projection Positioning Sight

$59.00
$59.00
Sale Sold out
Shipping calculated at checkout.
Spot Shape
808nm 200mW Infrared Dot Line Cross Laser Module Interactive Projection Positioning Sight
Specifications:
Host Size:16*68mm
Output Wavelength:808nm
Output Power: 200mW

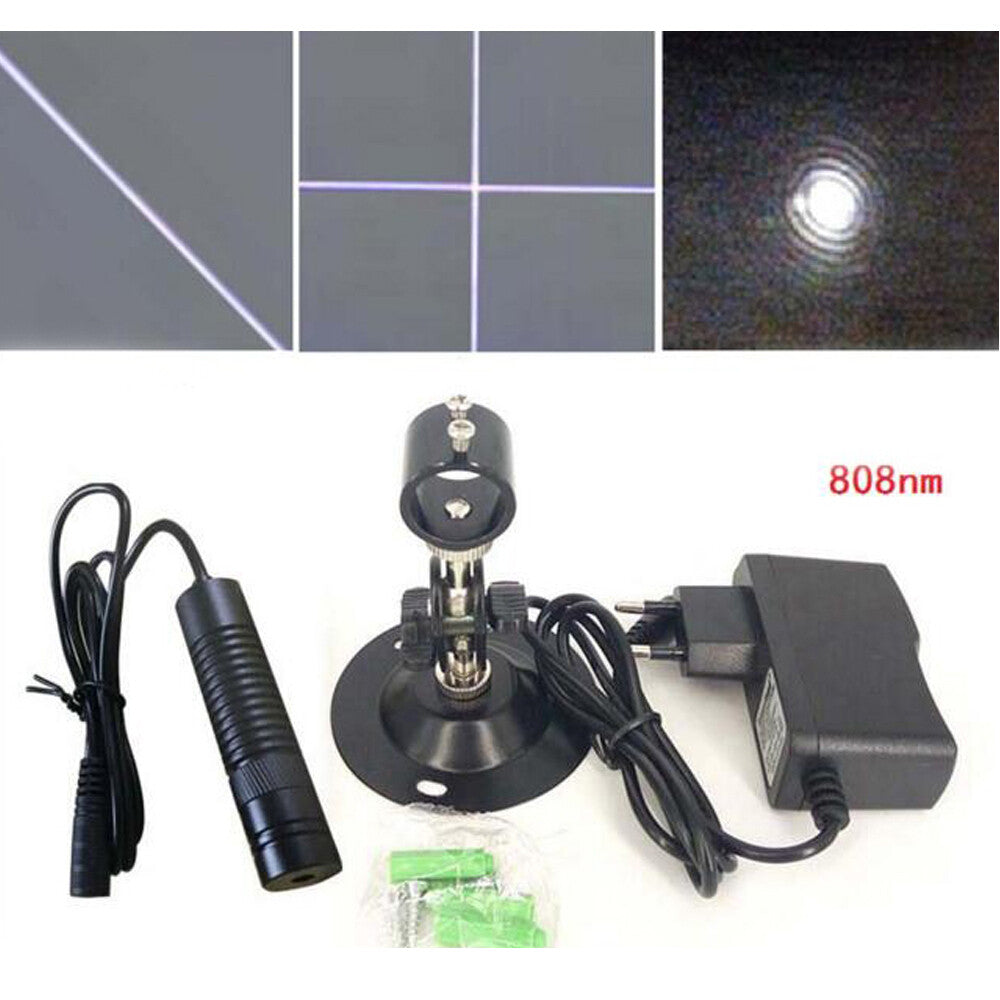

Spot Mode: Dot/Line/Cross
Spot Size:Adjustable Focus
Diode Model:Imported New Diode
Cooling Method:Aluminum Heat Dissipation
Surface Treatment:Black
Shell Material: Aluminum
Circuit Control:Constant Current
Working Voltage:DC=3-4.5V
Working Current:I<650mA
Warm-Up Time:No
Remarks: The Power Supply Is Built-In
Working Temperature:-10 ° C ~ +40 ° C
Storage Temperature:-10 ° C ~ +40 ° C
Reverse Connection Protection:With Automatic Identification Of Positive And Negative
Structural Features:Laser Tube + Lens + Heat Sink

Package:
1* Laser Module
1*3V Power Supply
1* Universal Bracket
