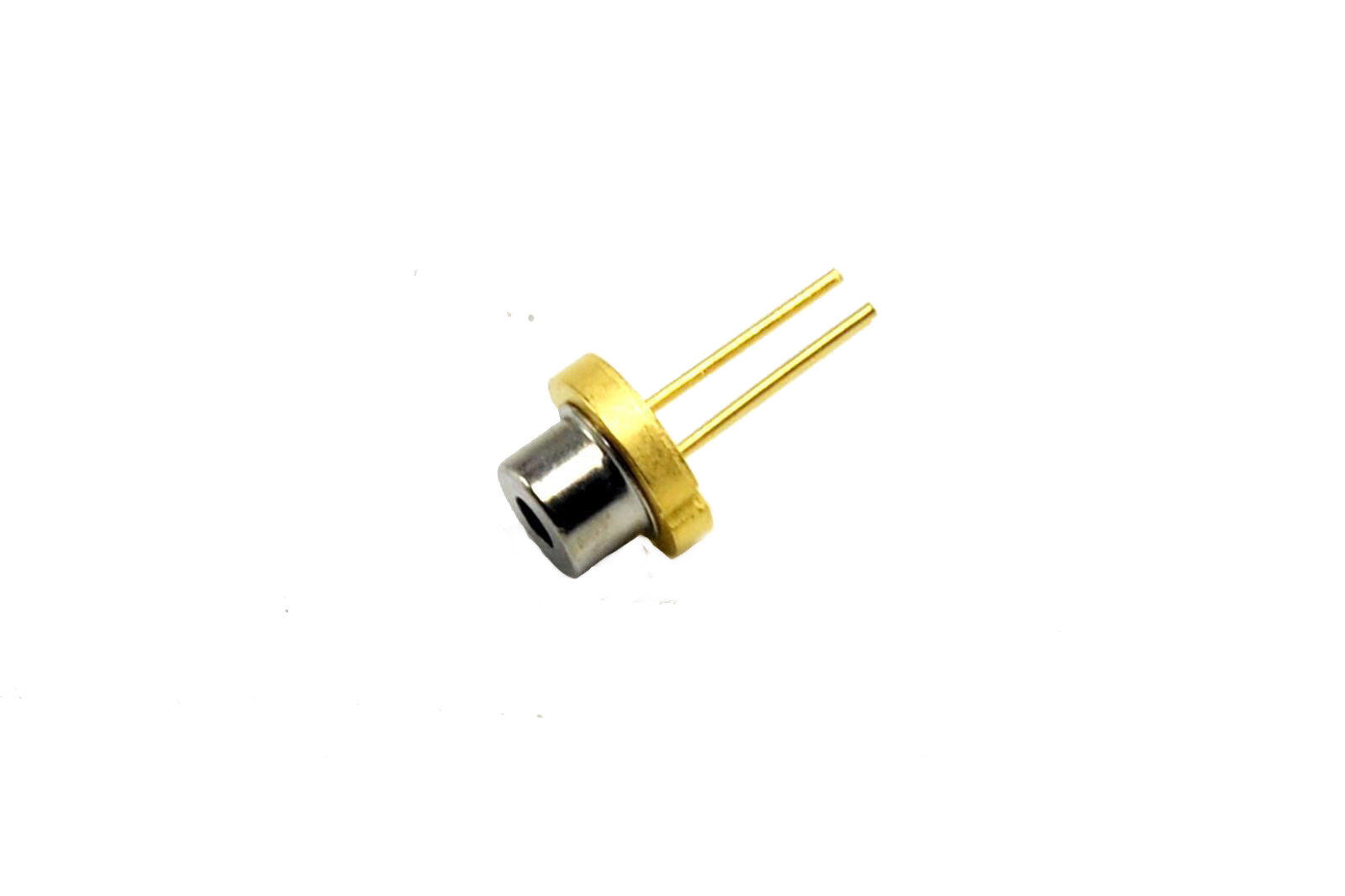

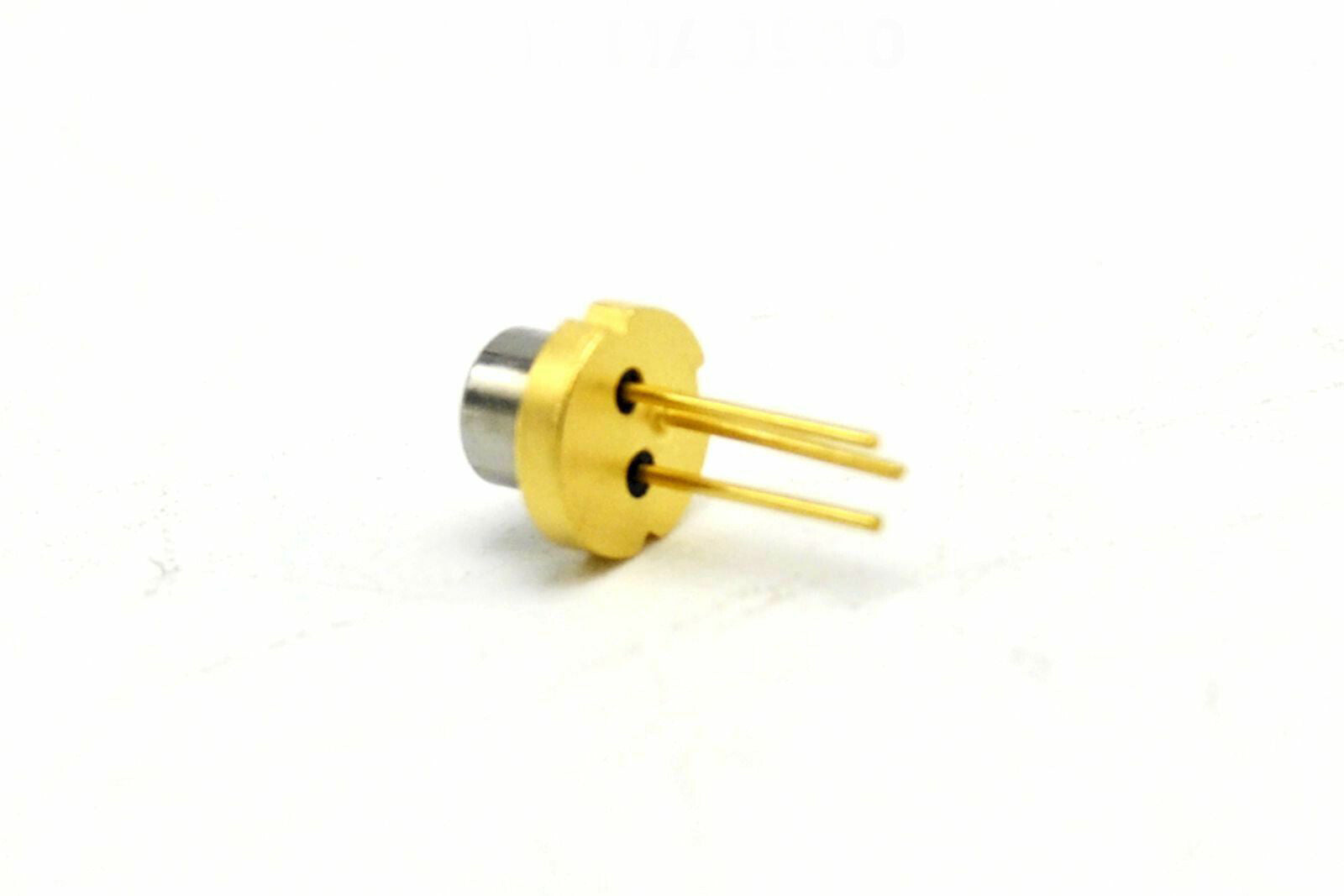

808nm 500mW 5.6mm TO-18 Infrared IR Laser Diode LD with PD

808nm 500mW 5.6mm TO-18 Infrared IR Laser Diode LD with PD

Regular price $17.00
Regular price $23.00 Sale price $17.00
Sale Sold out
Shipping calculated at checkout.

808nm 500mW 5.6mm TO-18 Infrared IR Laser Diode LD for Producing Green Lasers with PD

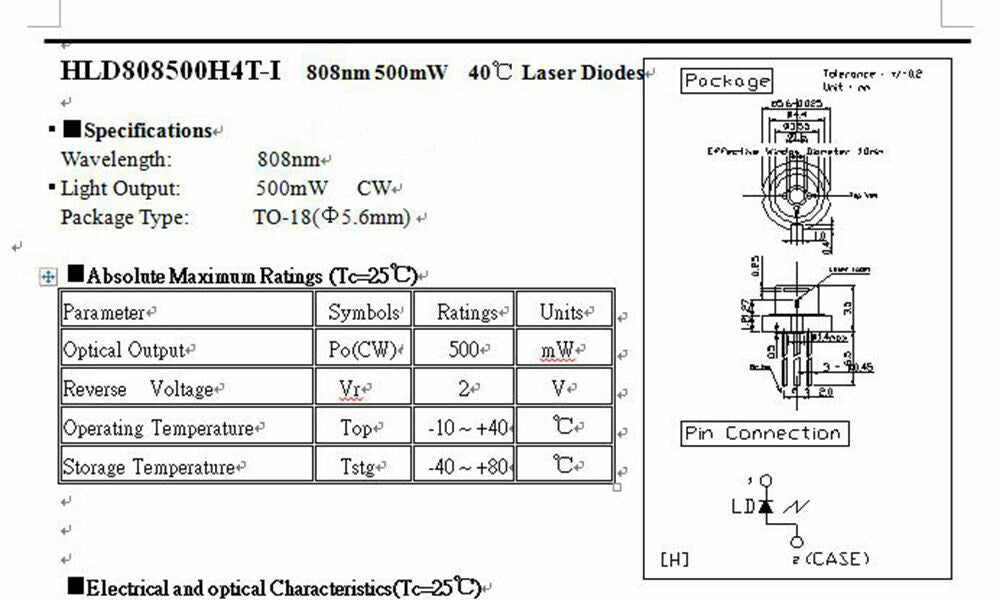

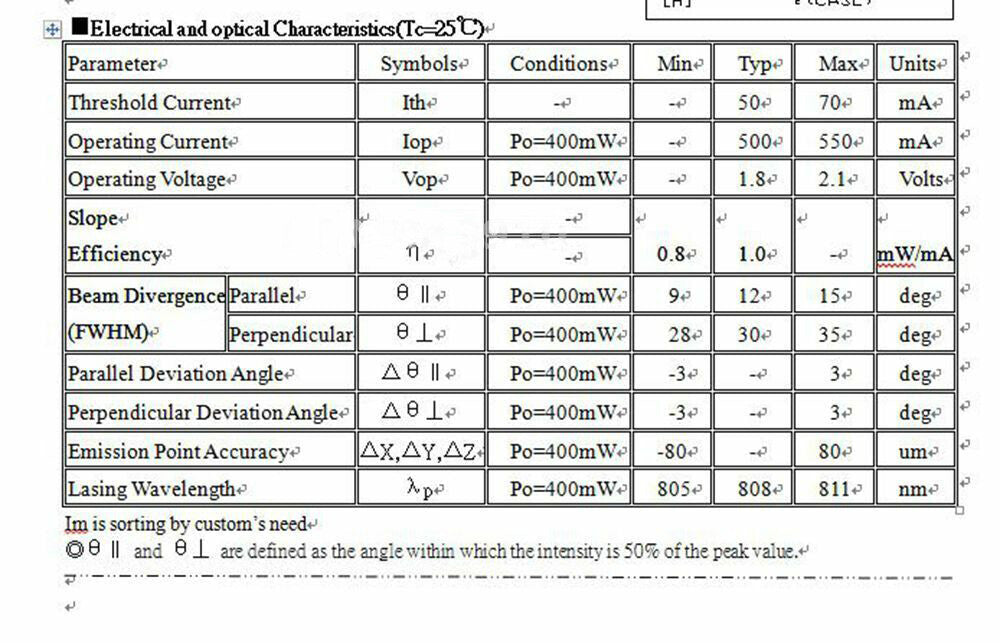

Specification:
Output Power: 500mw
Wavelength: 808nm

Working Voltage: 1.8VDC
Working Current: 500mA

Working Temperature: -10 ℃~+40 ℃
Dimensions: TO18 (5.6mm)

Details:
This 808nm laser diode is especially used for producing green lasers after passing through crystals.

This Infrared laser diode is an industrial electronic component and used for as Industrial testament, Lab, DIY.

The laser diode is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing. and Don't operate when the power is connected.

Package:
1pc 808nm 500mW 5.6mm TO-18 Infrared IR Laser Diode LD for Producing Green Lasers with PD
