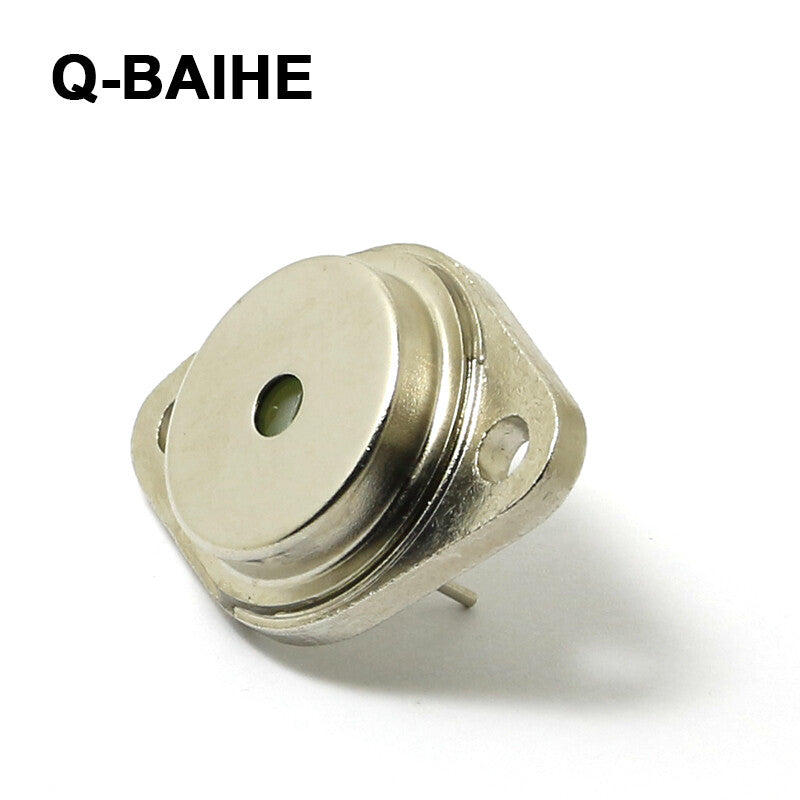

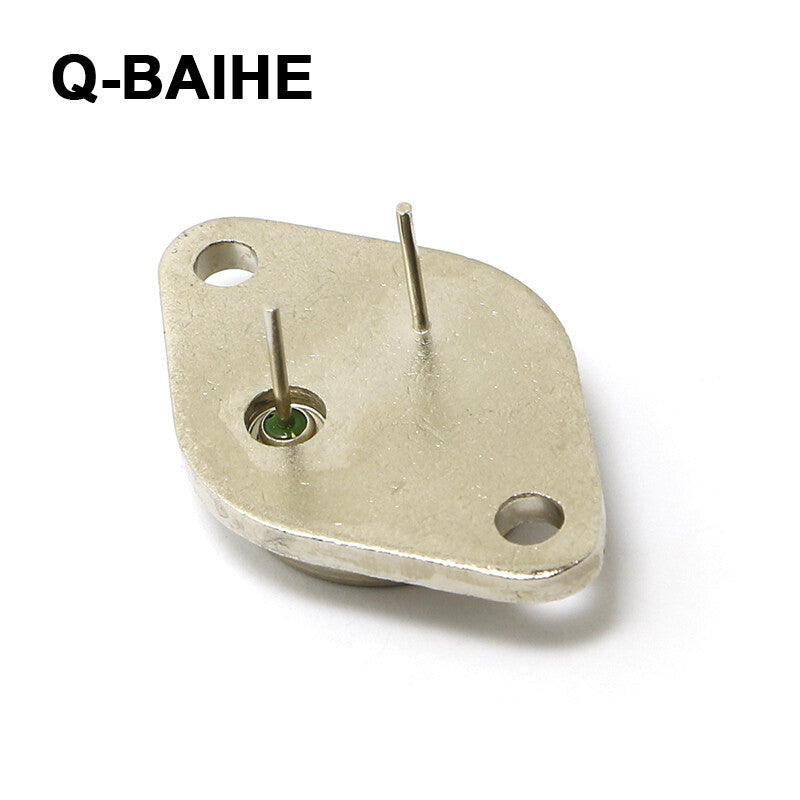

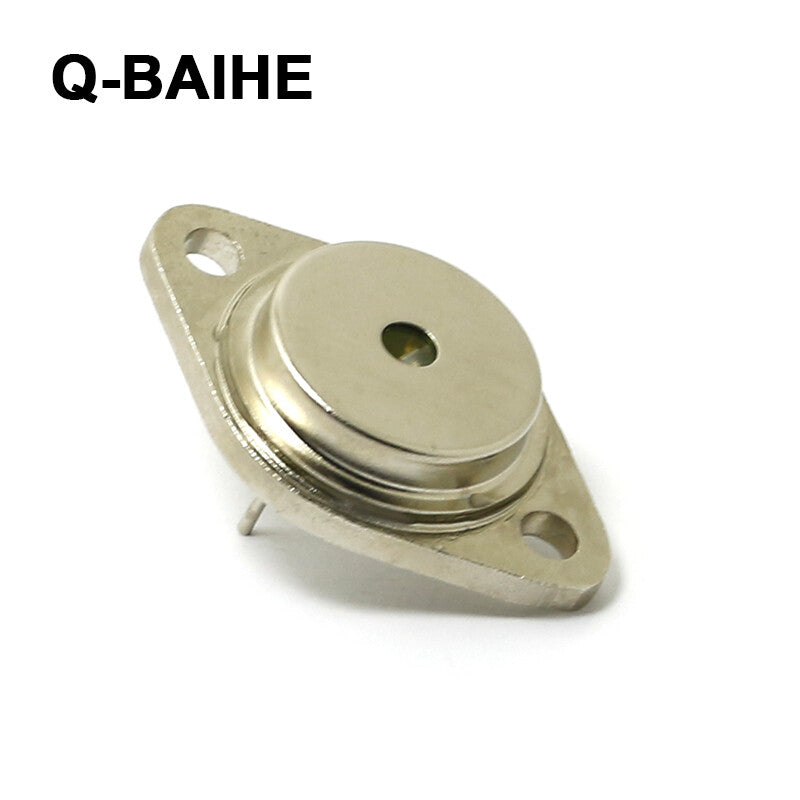

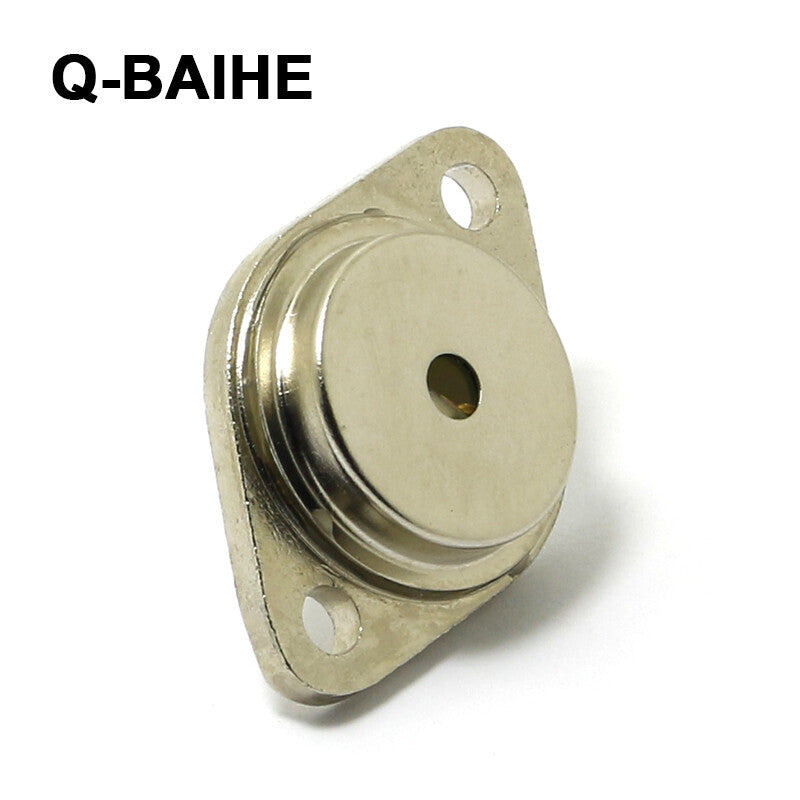

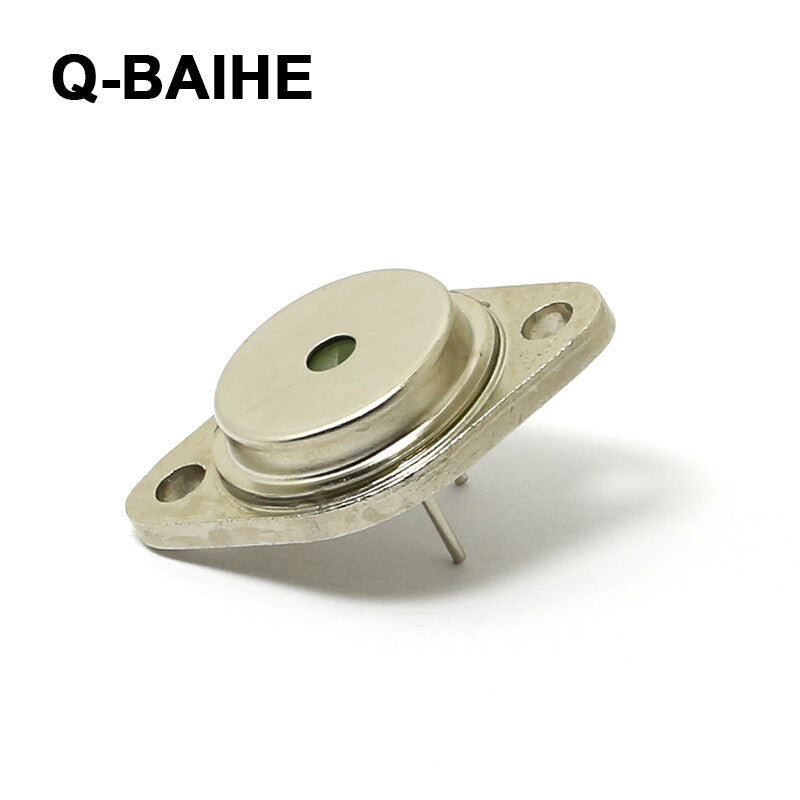

808nm/810nm 5000mW 5W TO3 Package Infrared IR Laser/Lazer Diode LD with FAC
808nm/810nm 5000mW 5W TO3 Package Infrared IR Laser/Lazer Diode LD with FAC
Regular price
$187.00
Regular price
$207.00
Sale price
$187.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
808nm/810nm 5000mW 5W TO3 Package Infrared IR Laser/Lazer Diode LD with FAC
Description:
Package: TO-3
CW output power(Mw): 5000
Peak wavelength(nm): 808+/-10
Spectral width(nm):≤1.8
Threshold current(mA):≤700
Operating current(mA):≤3700
Operating voltage:≤2.3
Slope efficiency(W/A):≥1.25
Beam divergency(deg):10*10
Spot size: 1:1
Serial resitance(Ω):≤0.25
Lifetime(h):10000Package: TO-3
Details:
ONLY for professionals.
1. 808nm is IR invisible laser by human bare eyes, you can only see it through CCD camera. You could see a very weak red dot by naked eyes for 808nm IR laser
2. Duty cycle without heatsink: 5 seconds on, 1 seconds off.
3. Working life: testing life with heatsink.
4. Warranty: no warranty because laser diode is consuming material.
5. Datasheet: you can google a datasheet or contact me for it.
6. If buyer use it for longer time without heatsink, we do not take any responsibility.
Package:
1 x 808nm/810nm 5000mW 5W TO3 Package Infrared IR Laser/Lazer Diode LD with FAC
ONLY for professionals.
1. 808nm is IR invisible laser by human bare eyes, you can only see it through CCD camera. You could see a very weak red dot by naked eyes for 808nm IR laser
2. Duty cycle without heatsink: 5 seconds on, 1 seconds off.
3. Working life: testing life with heatsink.
4. Warranty: no warranty because laser diode is consuming material.
5. Datasheet: you can google a datasheet or contact me for it.
6. If buyer use it for longer time without heatsink, we do not take any responsibility.
Package:
1 x 808nm/810nm 5000mW 5W TO3 Package Infrared IR Laser/Lazer Diode LD with FAC
