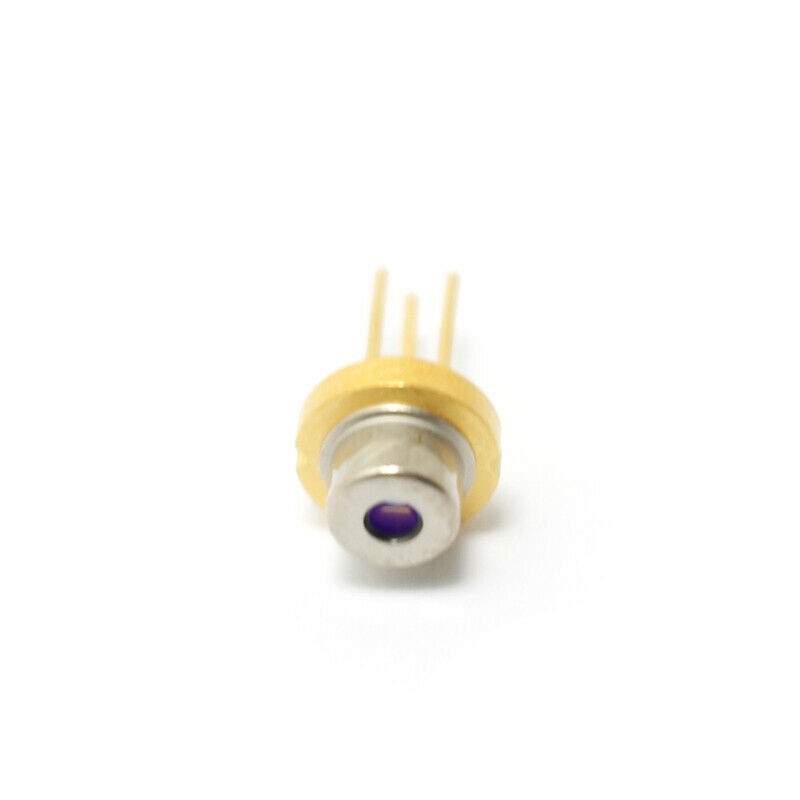

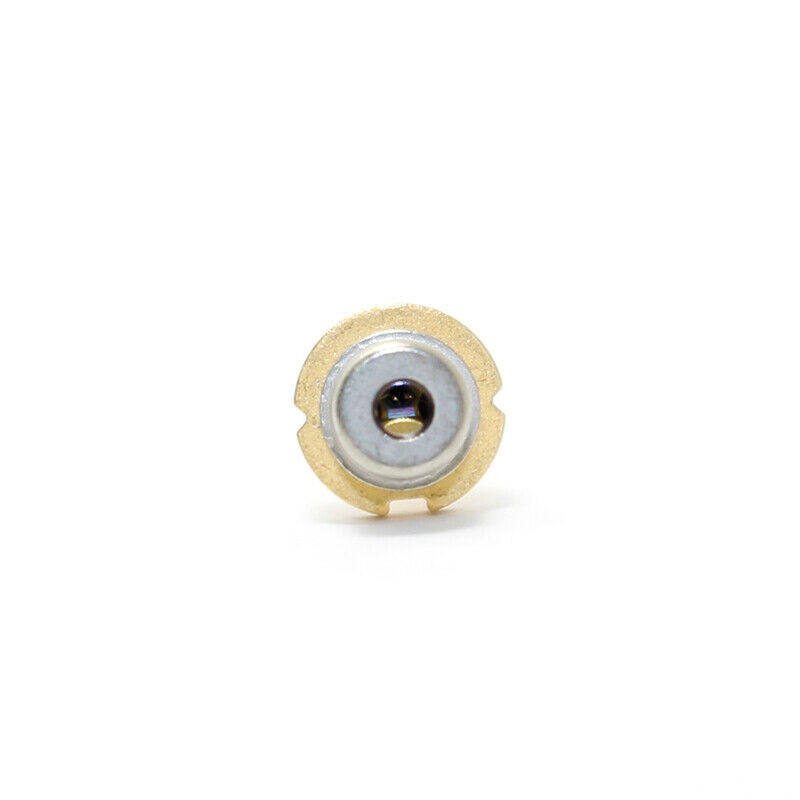

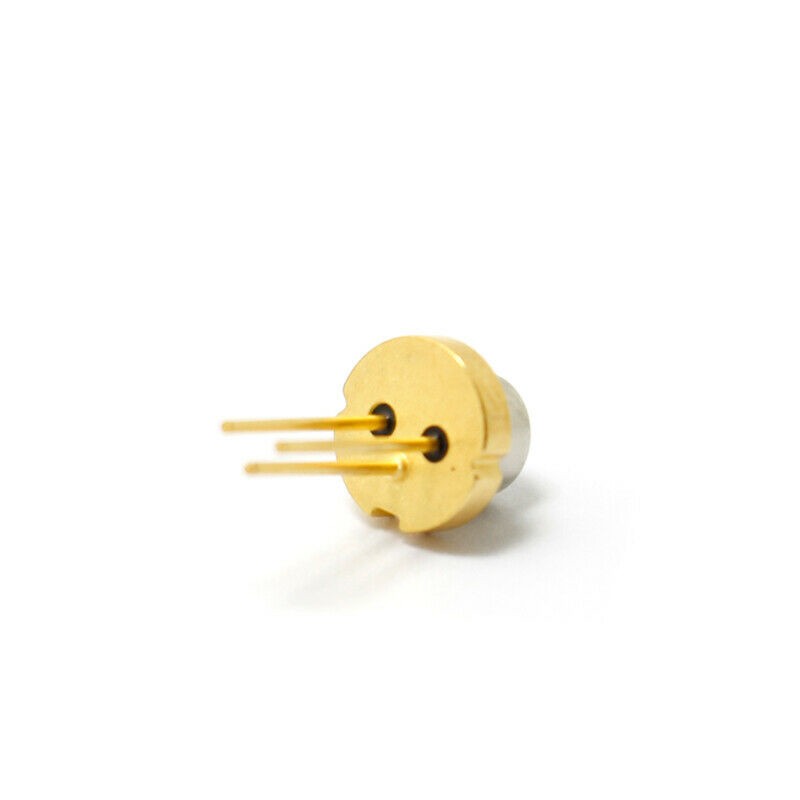

815nm 830nm 840nm 150mW 50°C TO-18 (5.6mm) P Type Near-infrared Laser Diode LD

815nm 830nm 840nm 150mW 50°C TO-18 (5.6mm) P Type Near-infrared Laser Diode LD

$31.00
$36.00 $31.00
Sale Sold out
Shipping calculated at checkout.
815nm 830nm 840nm 150mW 50°C TO-18 (5.6mm) P-Type Near-infrared Laser Diode LD

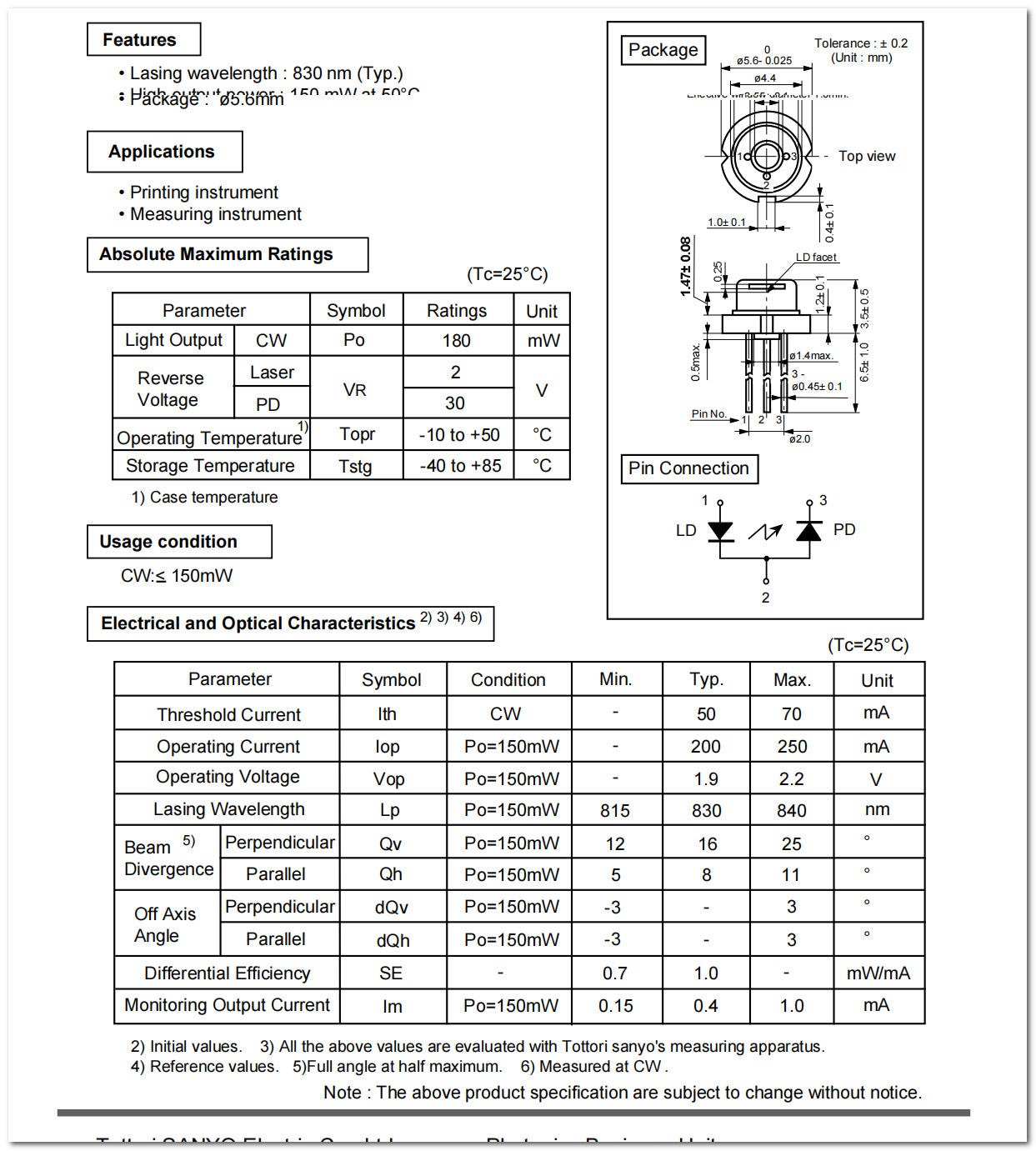

Specifications:
Lasing wavelength : 830 nm (Typ.)
High output power :150 mW at 50°C
Threshold current : Ith = 50 mA (Typ.)

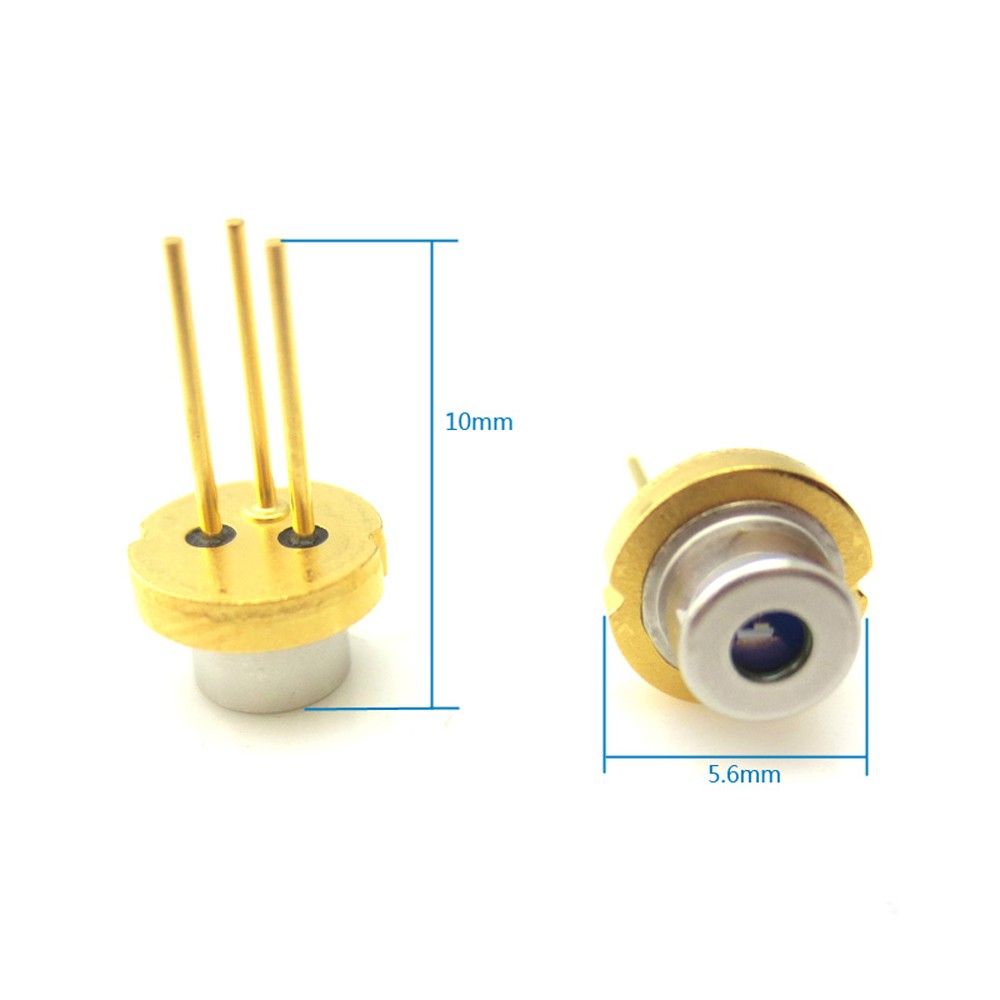

Package :5.6mm
Light Output power： 180mW
Operating Current：200mA
Operating Voltage：2V
Operating Temperature：-10 to +50°C
Storage Temperature：-40 to +85°C


Package：
1x Near-infrared Laser Diode LD
