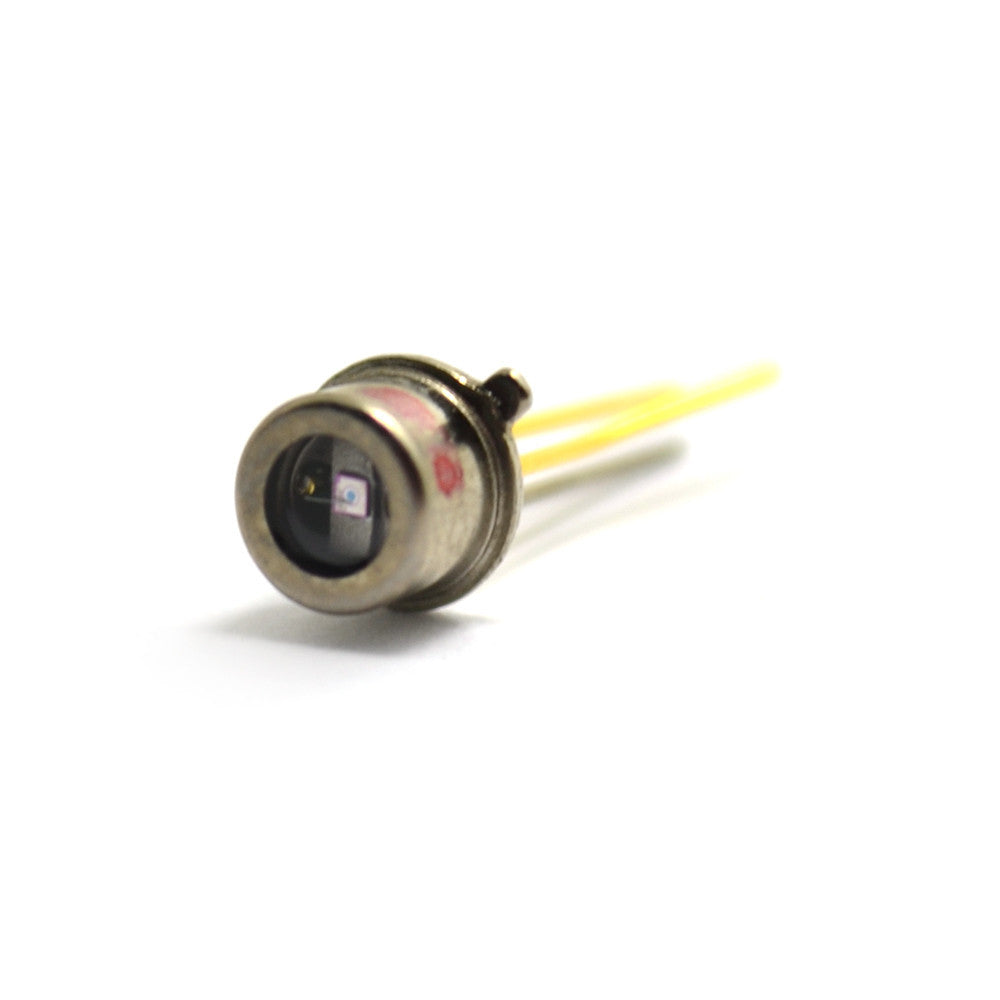

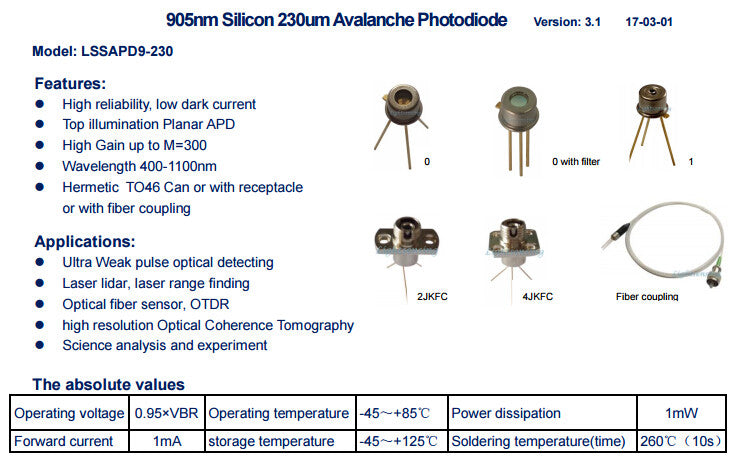

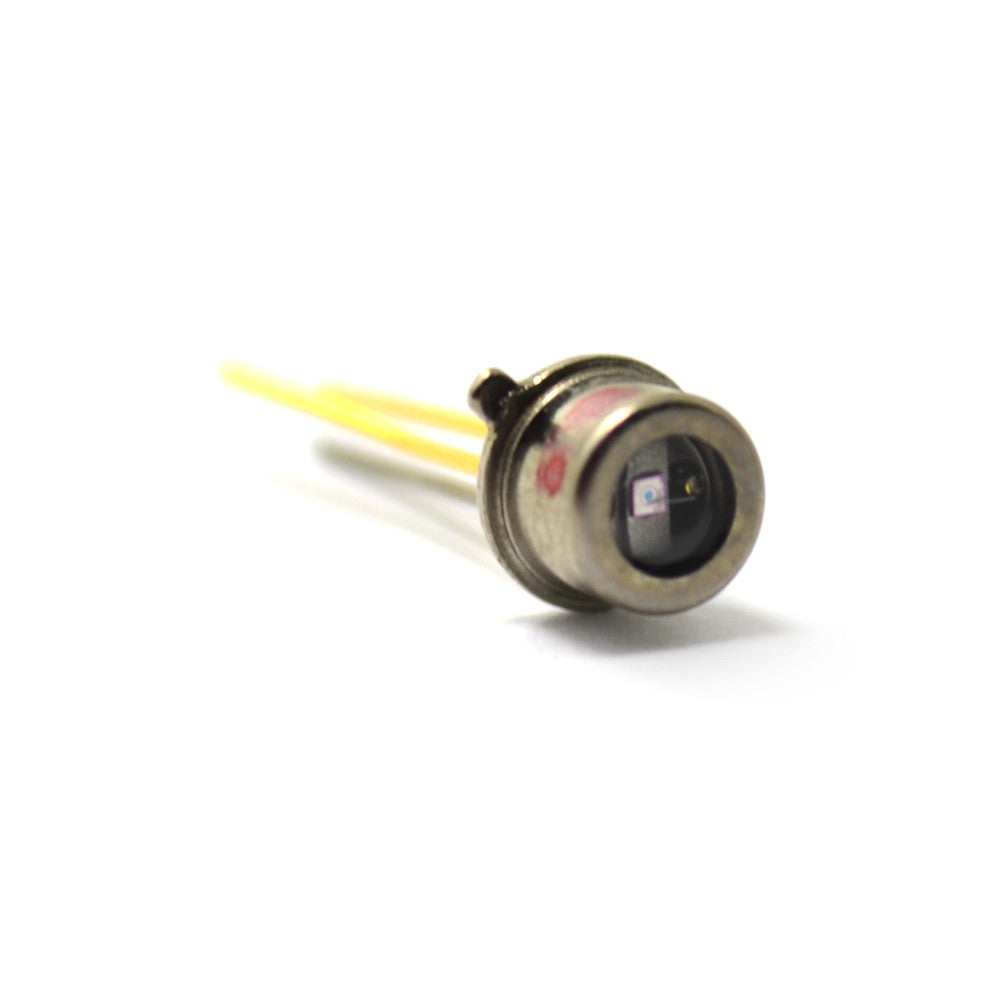

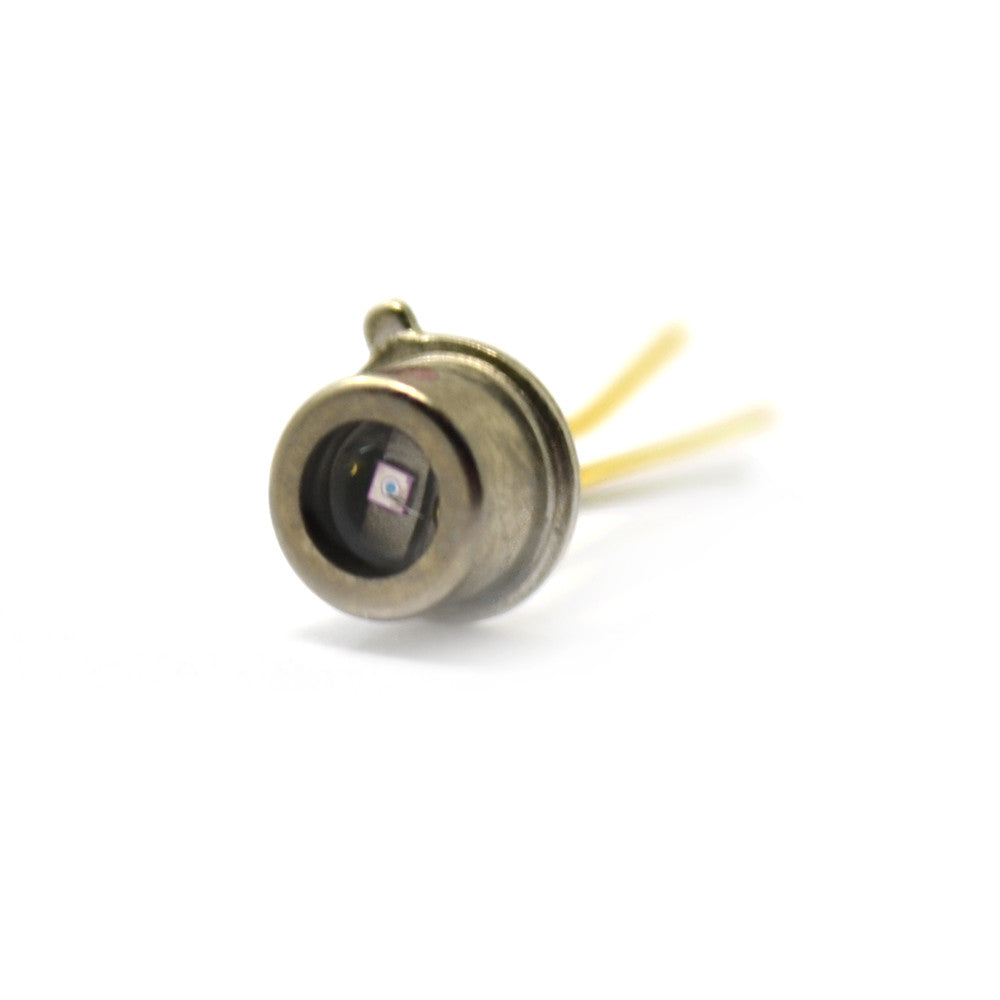

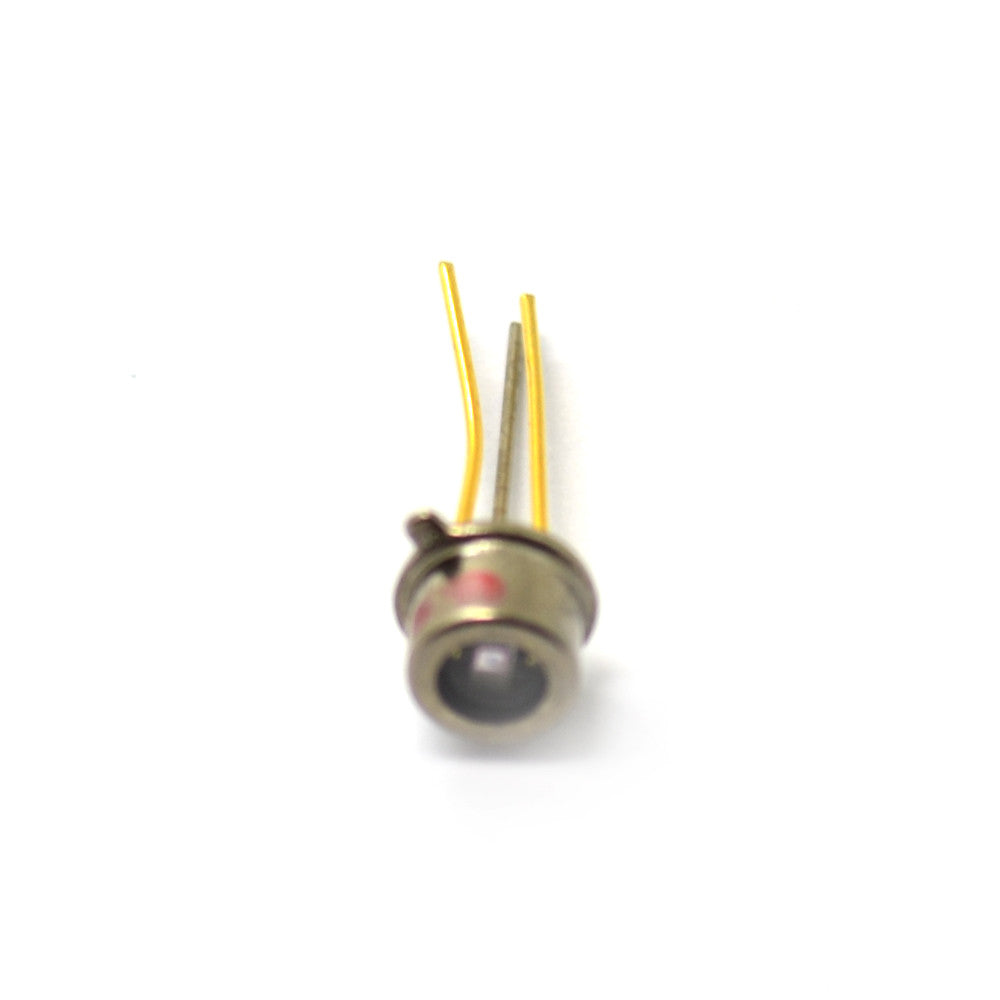

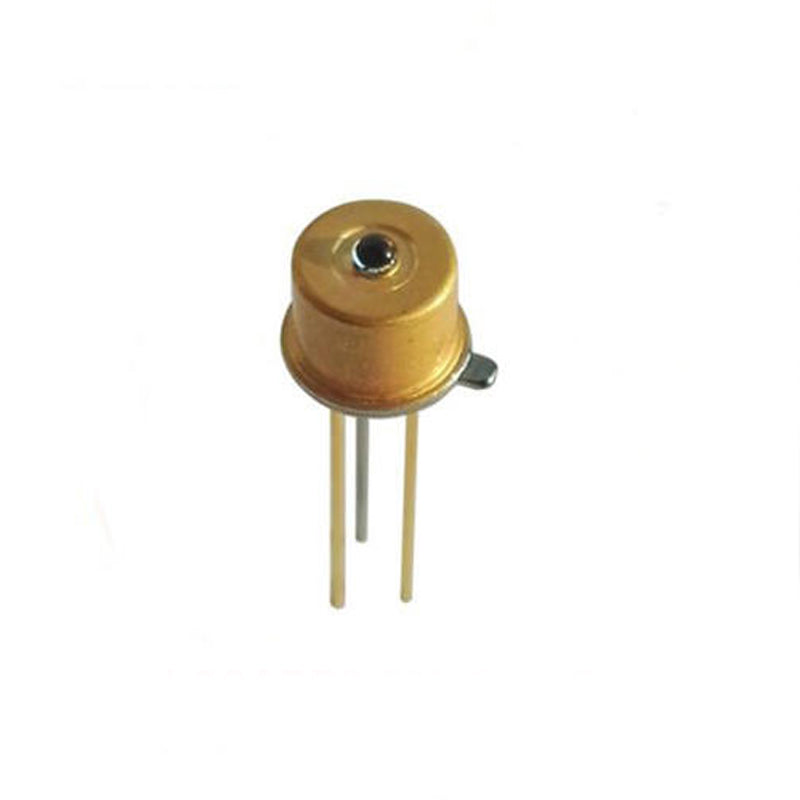

905nm Silicon 230um Avalanche Peak Response Photodiode @ 900nm with Package A-46

Description:

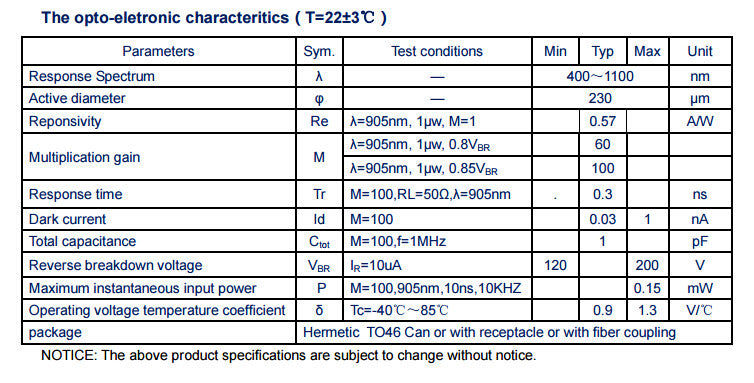

Main performance:

1. Model: LSSAPD9-230

2. diameter of photosensitive surface: 230um

3. Response wavelength: 400-1100nm

4. Current Dark: 0.2nA @ M = 100

5. Rise time: 0.4ns @ 905nm

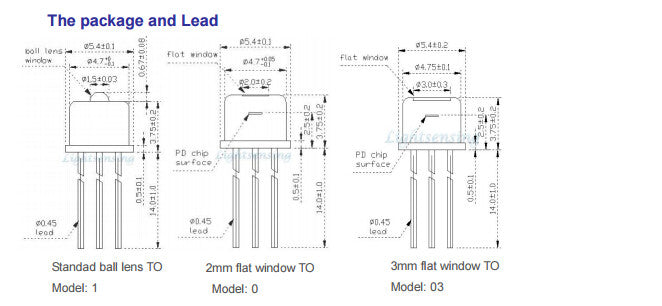

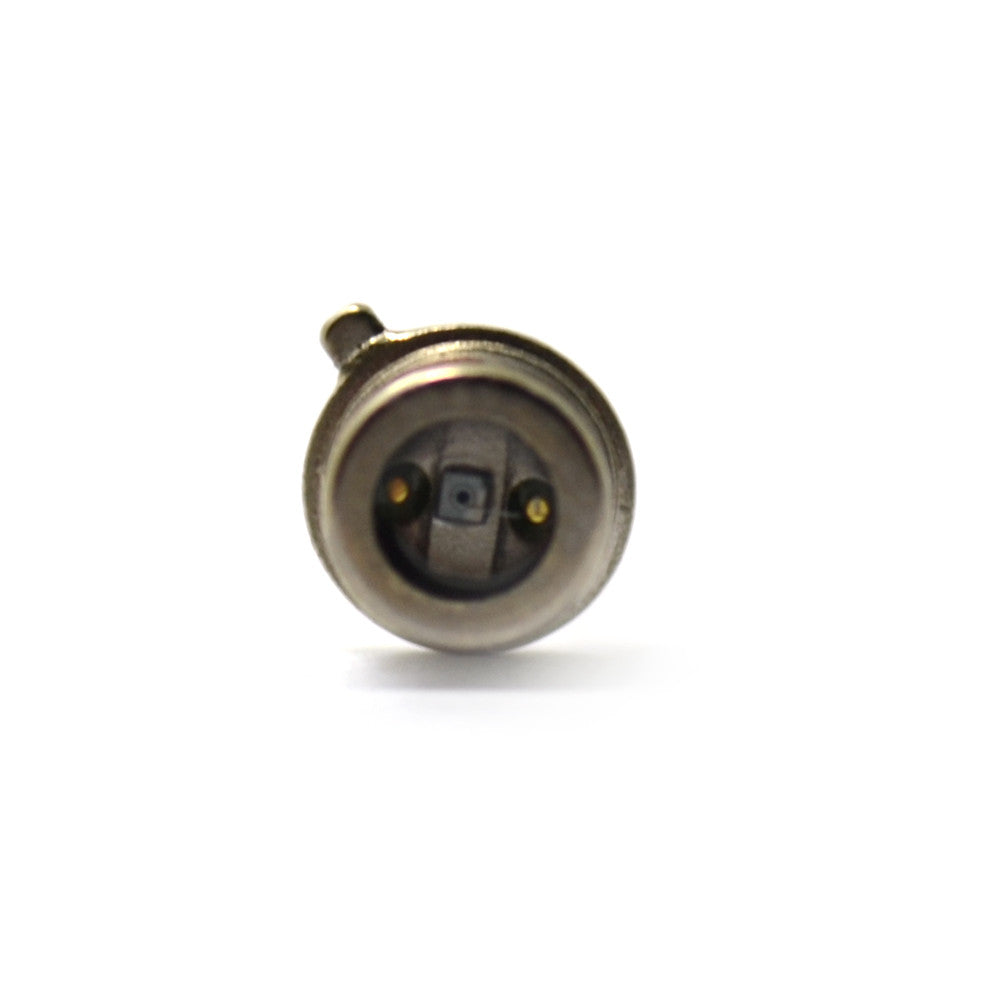

6. Package: A-46 Can, coupling fiber, optional optical interface

7. Response: 55 mA / mW @ 905 nm, M = 100

 Application:

1. Industrial control automation
2. Scientific analysis and experience
3. Simulation of cable television

4. Optical fiber communication
5. Fast optical pulse test
6. Optical time domain reflectometer

7. fiber optic sensor

Package:

1 x  905nm Silicon 230um Avalanche Peak Response Photodiode @ 900nm with Package A-46
